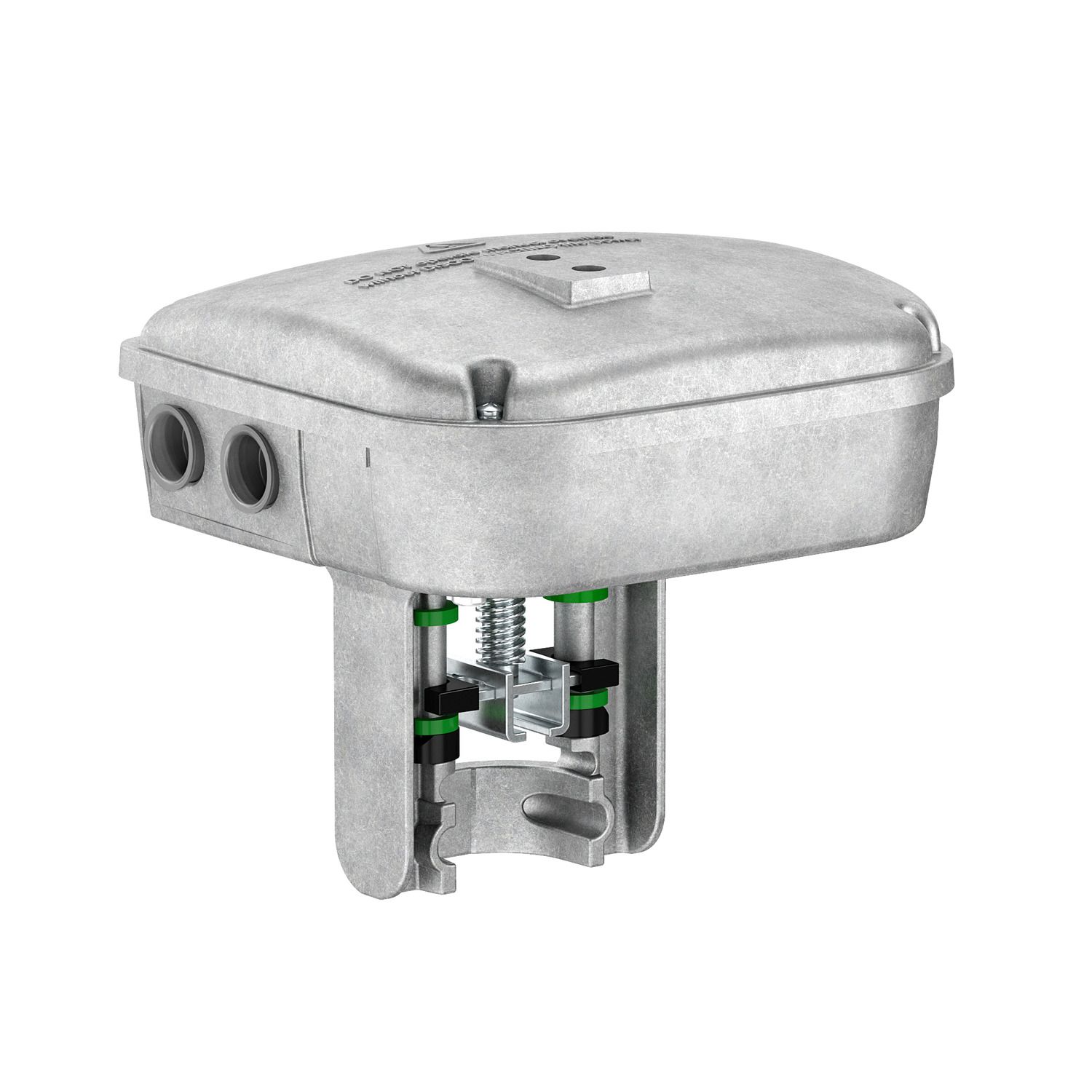

MP500C is an linear electro-mechanical actuator for the control of the VP220 SpaceLogic PIBCV, DN40-100. MP500C is controlled either by an increase/decrease floating signal or by a range of modulating control signals between the span of 0…10V. Working range and end point switches calibrate to any stroke and flow setting of the valve. Multi-signal control for either 3 point increase/decrease signal or various modulating control signals including sequencing. Supply Voltage: 24 Vac +/- 10%, 24 Vdc +/- 15%. Thrust: 500N. Enclosure rating IP52 (NEMA 2). EMC 2004/108/CE.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | pressure independent control valves |
| Transformer rated power in VA | 50 VA |
| Motor type | brushless DC motor |
| Product or component type | actuator |
| Power consumption in VA | 30 VA AC |
| Targeted region | Australia., North America., Asia Pacific., Europe |
| Complementary | |
| Force N | 500 N |
| Switch function | 2 SPDT (optional) |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class III |
| Control type | automatic reset |
| Analogue input range | 0...10 V DC |
| Stroke running time | 30 s |
| Force lbf | 113 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP54 |
| Relative humidity | 0-90 % RH, non-condensing |
| Ambient air temperature for storage | -25-65 °C |
| Ambient air temperature for operation | -10-50 °C |
| Control signal | proportional/modulating, floating |
| Conduit connection | conduit connector holes |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Actuator product series | MP500C-SR |
| Power loss return | spring return |
| Feedback signal | 0...5 V DC, 2...10 V DC |
| Stroke auto calibration | True |
| Additional features | field selectable floating input signal travel time |
