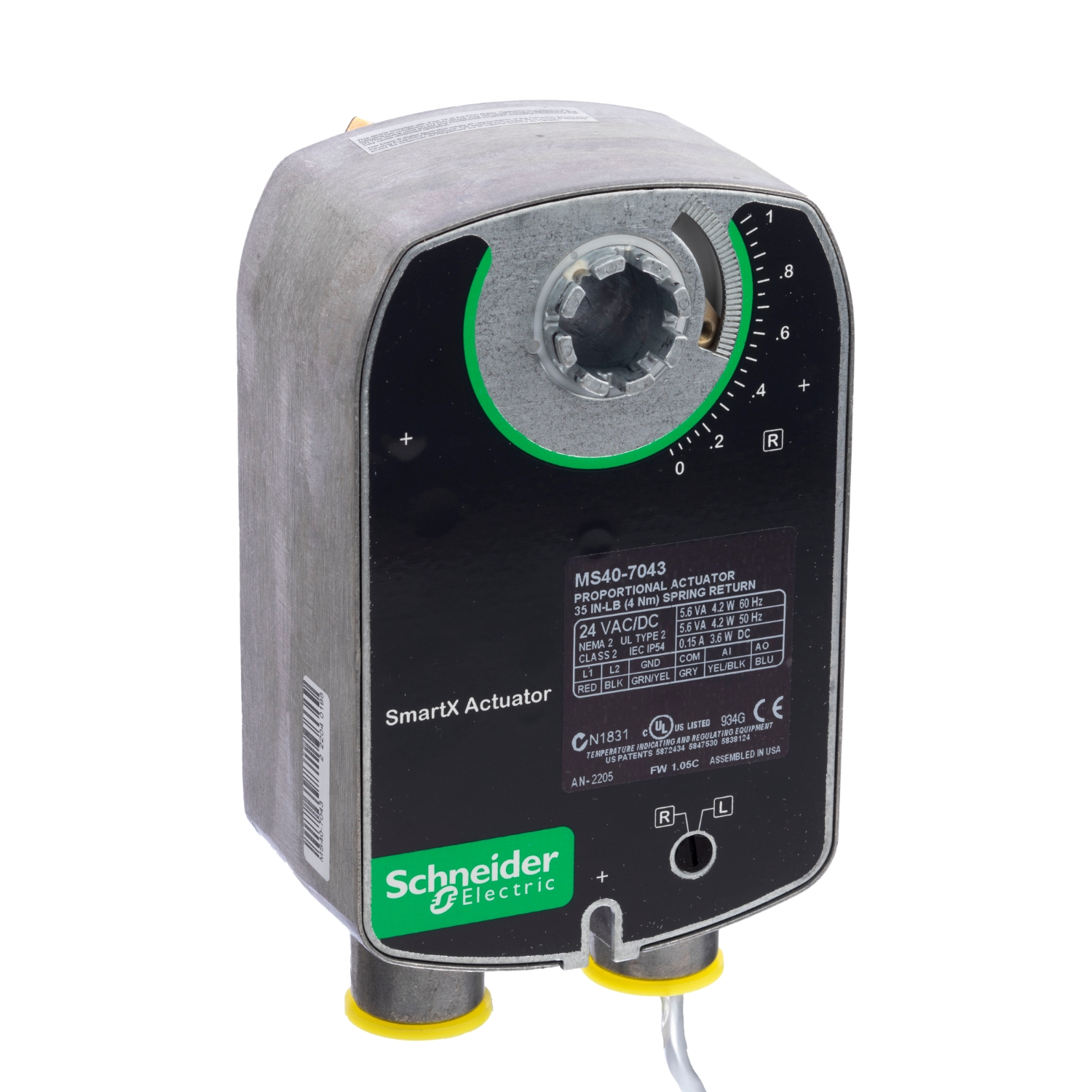

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 35 lb-in, NEMA 2
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | globe valve, dampers |
| Control type | manual override with 5/32 allen wrench |
| Product or component type | actuator |
| Power consumption in VA | 5.6 VA AC |
| Targeted region | Australia., North America. |
| Switch function | No |
| Actuator rotation | 95 ° |
| Material | die cast aluminium: housing |
| IP degree of protection | IP11 |
| Relative humidity | 5-95 % non-condensing |
| Analogue input range | 4...20 mA DC, 2...10 V DC |
| Motor type | brushless DC motor |
| Ambient air temperature for storage | -40-71 °C |
| NEMA degree of protection | NEMA 2 |
| Actuator | rotary |
| [Us] rated supply voltage | 22...30 V DC, 24 V AC/DC |
| Ambient air temperature for operation | -30-60 °C |
| Electrical insulation class | class II |
| Tightening torque | 4 N.m, 35 lb.in |
| Conduit connection | 1/2" |
| Power loss return | spring return |
| Leads and connections | plenum |
| Feedback signal | 2...10 V DC |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Control signal | proportional/modulating |
| Actuator product series | Mx4x-7xxx |
| Lead length | 3 ft |
| Position indicator | Stroke indicator on bracket |
| Rotational range adjustment | 40...95° |
Only registered users can write reviews
Related products

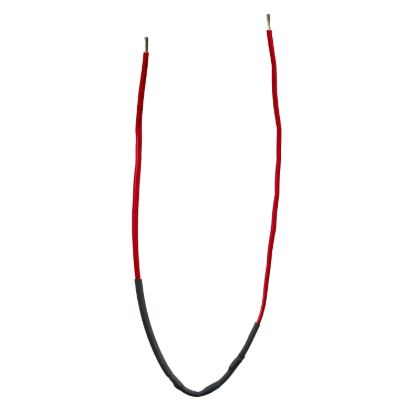

SmartX, Damper Actuator Accessory, Resistor Kit, 500 ohm, converts a 4 to 20 mA input signal to a 2 to 10 Vdc signal, 500 ohms, 9 in long
