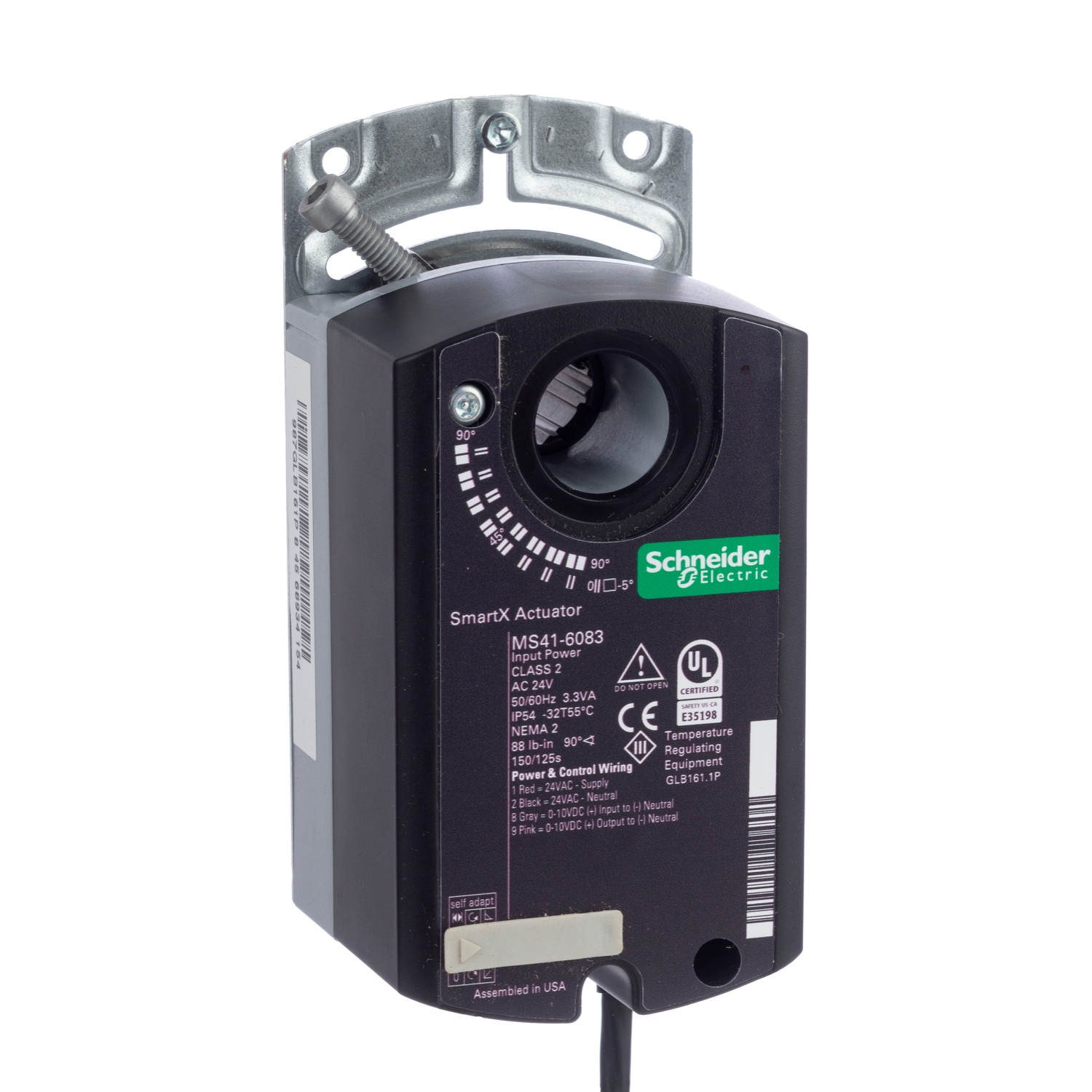

SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 88 lb-in, NEMA 2
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Switch function | No |
| Material | polymer: housing |
| IP degree of protection | IP11 |
| Relative humidity | 5-95 % non-condensing |
| Motor type | AC synchronous servo motor |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 2 |
| [Us] rated supply voltage | 24 V AC |
| Electrical insulation class | class II |
| Product destination | globe valve, dampers |
| Control type | automatic reset |
| Product or component type | actuator |
| Power consumption in VA | 3.3 VA AC |
| Targeted region | Australia., North America. |
| Actuator rotation | 95 ° |
| Analogue input range | 0...10 V DC |
| Actuator | rotary |
| Ambient air temperature for operation | -31.6-54.4 °C |
| Tightening torque | 10 N.m, 88 lb.in |
| Power loss return | non-spring return |
| Feedback signal | 0...10 V DC |
| Control signal | proportional/modulating |
| Lead length | 3 ft |
| Conduit connection | 1/2" |
| Leads and connections | plenum |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Actuator product series | Mx4x-6xxx |
| Position indicator | pointer and scale from 0...90° |
| Rotational range adjustment | 0...95° |
