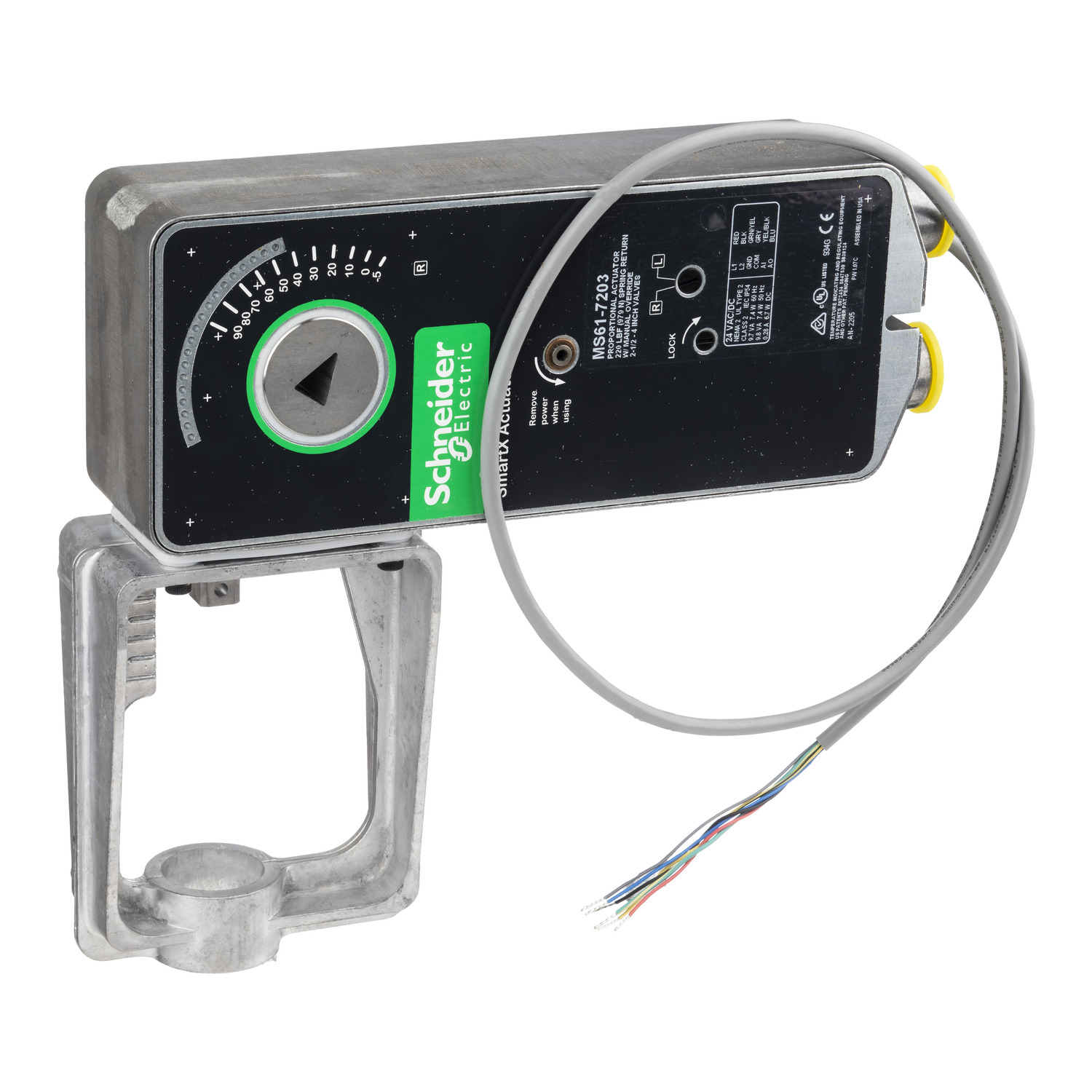

SmartX, Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 220 lbf, 25 mm stroke, NEMA 1
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 979 N |
| Switch function | No |
| Hold-in power consumption in W | 3.3-3.3 W |
| Material | die cast aluminium: housing |
| IP degree of protection | IP11 |
| Relative humidity | 15-95 % non-condensing |
| Motor type | brushless DC motor |
| Ambient air temperature for storage | -40-71 °C |
| NEMA degree of protection | NEMA 1 |
| [Us] rated supply voltage | 22...30 V DC, 24 V AC |
| Electrical insulation class | class II |
| Product destination | butterfly valves, globe valve |
| Control type | automatic reset |
| Current consumption | 300 mA |
| Product or component type | actuator |
| Power consumption in VA | 9.8 VA AC |
| Targeted region | North America. |
| Power consumption in W | 7.7 W |
| Analogue input range | 4...20 mA DC, 2...10 V DC |
| Force lbf | 220 lbf |
| Actuator | linear |
| Ambient air temperature for operation | -17.7-60 °C |
| Power loss return | spring return |
| Feedback signal | 2...10 V DC |
| Control signal | proportional/modulating |
| Lead length | 3 ft |
| Stroke auto calibration | False |
| Conduit connection | 1/2" |
| Leads and connections | appliance |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | MSx1-7203 |
| Position indicator | -5°: normal or spring-return position, pointer and scale from -5...90° |
