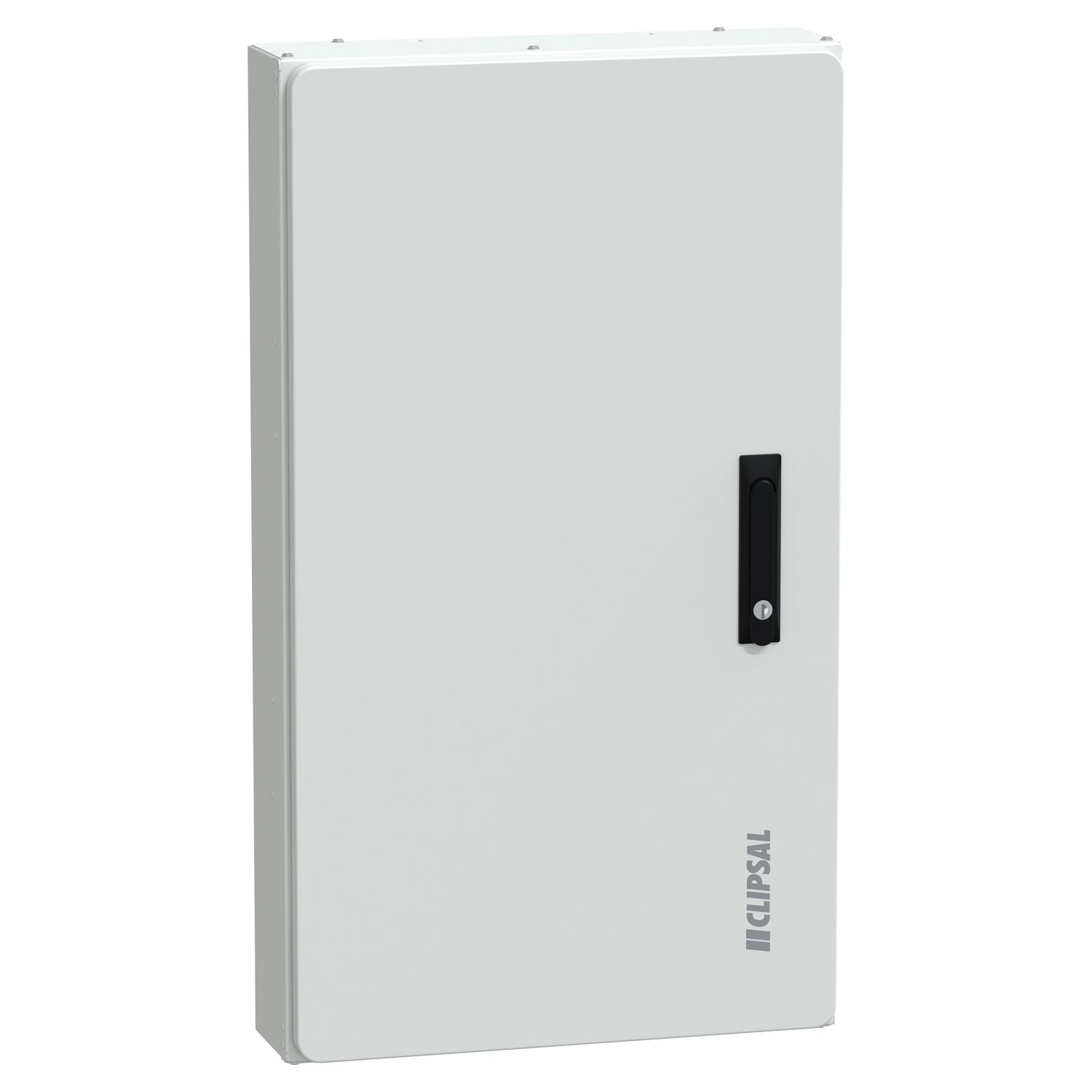

MAX9 PRO is chassis style metal distribution board suitable for light commercial and large residential applications. It is a 24 way distribution board with 250 A incomer switch. It has ingress protection rating of IP30. The rated short time withstand current for the chassis is 25 kA at 100msec. The MAX9 PRO distribution board chassis is compatible with MAX9 RCBO, AFDD, Phase Neutral MCB. It has overall 31 modules of DIN Space. 16 modules on the top and 15 modules on bottom of the board. The Color of the distribution board is White (RAL 9003). The enclosure material is powdercoated Galvanised Steel with 1.2mm thickness. The distribution board is compliant to AS/NZS 61439.3 and supports the compliance to wiring regulations AS NZS 3000. The distribution board is provided with Pole fillers, Circuit schedule holder and spare CL001 Key for Door lock.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | distribution board |
| Range | MAX9 |
| Colour | white (RAL 9003) |
| Provided equipment | enclosure, chassis, switch, removable gland plates top and bottom of the enclosure, neutral bar, earthing bar, pole filler, circuit schedule card top and bottom of the enclosure, keys, DIN rail |
| Door type | plain door - reversible |
| Device application | distribution |
| Complementary | |
| [In] rated current | 250 A |
| [Ue] rated operational voltage | 240/415 V AC 50 Hz |
| Depth | 153 mm |
| Number of ways | 24 ways |
| Surface finish | powder coated |
| Height | 842 mm |
| Enclosure material | galvanized sheet steel |
| Width | 480 mm |
| [Icw] rated short-time withstand current | 15 kA for 100 ms, 25 kA for 100 ms |
| [Ui] rated insulation voltage | 500 V |
| Protection device type | main incomer: switch-disconnector - 250 A, outgoer: miniature circuit breaker (MCB), outgoer: residual current circuit breaker with overcurrent protection (RCBO), outgoer: Arc fault detection device(AFDD) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Enclosure mounting | surface |
| Environment | |
| Standards | AS/NZS 61439.3, AS/NZ 3000 |
| IK degree of protection | IK09 |
| Ambient air temperature for operation | -35-70 °C |
| IP degree of protection | IP30 |
| Ambient air temperature for storage | -40-85 °C |
| Contractual warranty | |
| Warranty | 18 |
