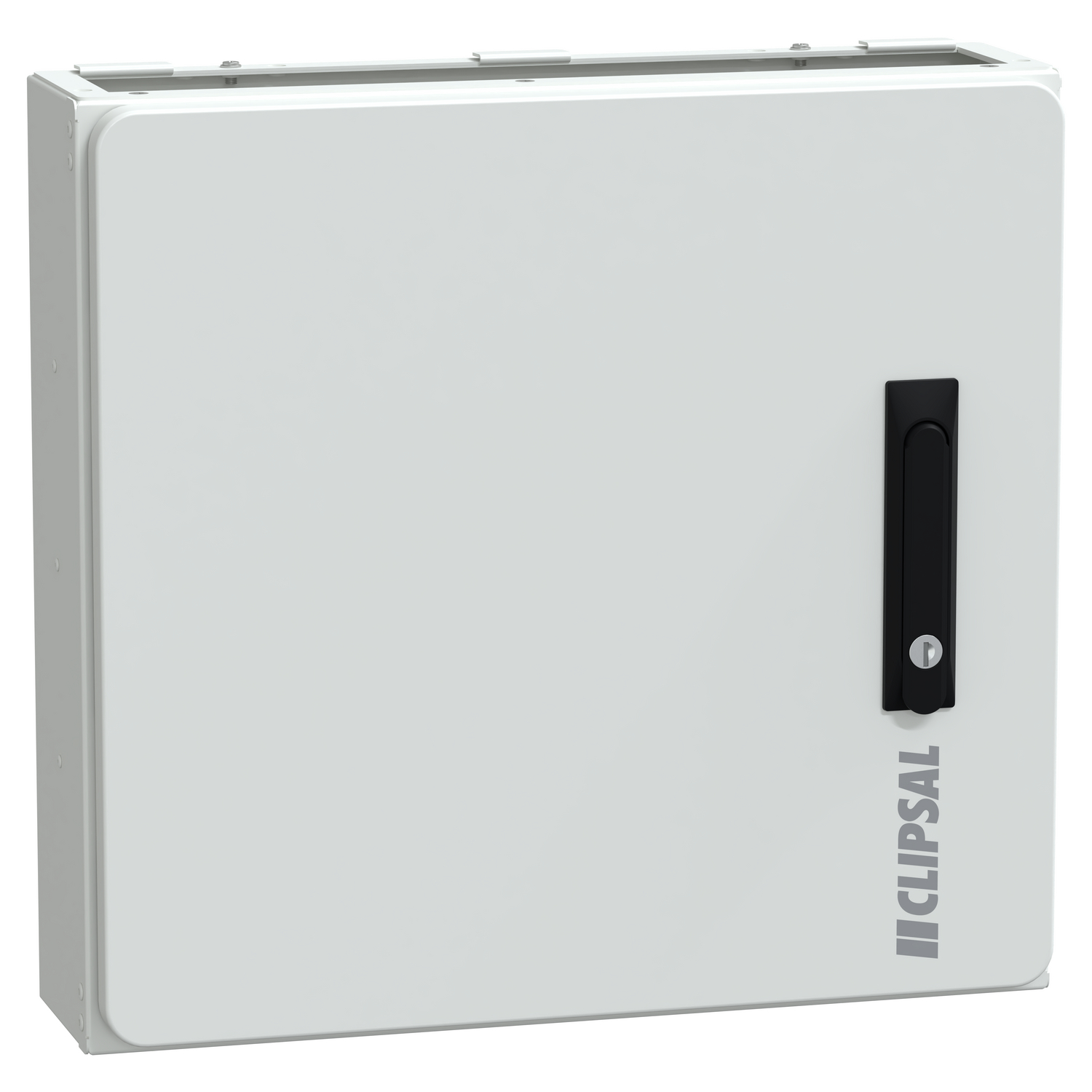

MAX9 PRO extension box are suitable for light commercial and large residential applications. It has overall 36 modules of DIN Space with 2 rows, 18 modules on each row. MAX9 PRO extension box are suitable for light commercial and large residential applications. The extension box has modular design, can be mounted on MAX9 PRO distribution board and can be used as standalone DIN Board. The Color of the extension box is White (RAL 9003). The material is powdercoated Galvanised Steel with 1.2mm thickness.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | distribution board |
| Range | MAX9 |
| Colour | white (RAL 9003) |
| Provided equipment | enclosure, pole filler, keys, DIN rail |
| Door type | plain door - reversible |
| Device application | distribution |
| Complementary | |
| Depth | 153 mm |
| Number of ways | 36 ways |
| Surface finish | powder coated |
| Height | 456 mm |
| Enclosure material | galvanized sheet steel |
| Width | 480 mm |
| [Icw] rated short-time withstand current | 25 kA for 100 ms |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Enclosure mounting | surface |
| Environment | |
| Standards | AS/NZS 61439.3, AS/NZ 3000 |
| IK degree of protection | IK09 |
| IP degree of protection | IP30 |
| Contractual warranty | |
| Warranty | 18 |
