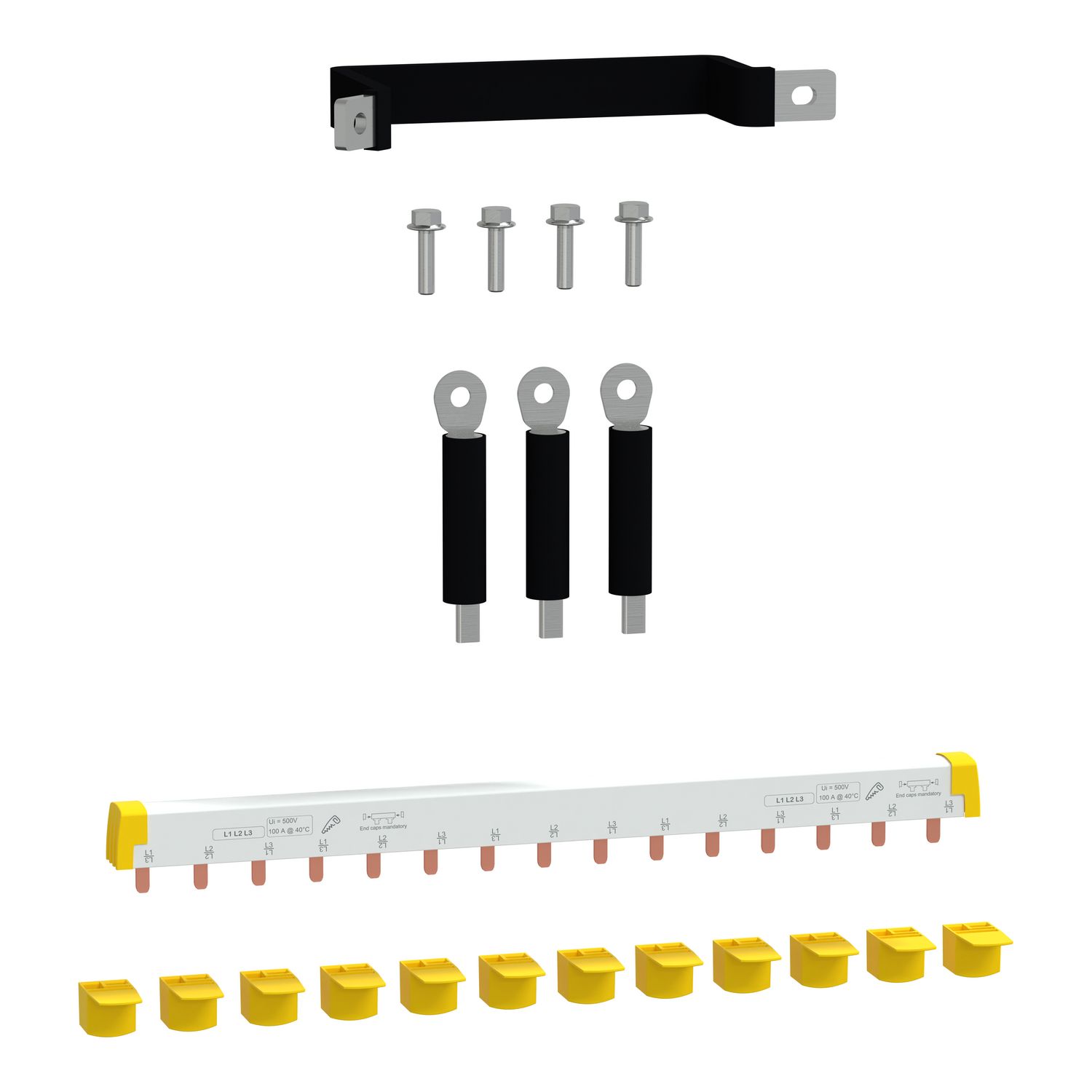

The Kit with 3phase Comb busbar supports installation of 50-63A MCBs on bottom DIN rails provided. The kit consists of 3phase 15 ways pin type comb busbar along with neutral connection link and phase links. The kit connects directly to the bottom of the chassis to distribute power to the comb busbar.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Total number of 18 mm modules | 15 |
| Product or component type | kit |
| Accessory / separate part category | enclosure accessory |
| Range | MAX9 |
| Complementary | |
| Provided equipment | 12 pieces tooth covers, 1 neutral link, 3 connecting cables with lug |
| Range compatibility | MAX9 PRO distribution board |
| Number of ways | outgoer: 15 ways 3 L |
| [Ui] rated insulation voltage | 500 V conforming to AS/NZS 61439-1 |
| [Ie] rated operational current | 100 A |
| Market segment | small commercial |
| Mounting location | top |
| Device presentation | cuttable |
| Mounting mode | horizontal |
| Insulation | insulated |
| [Ue] rated operational voltage | 415 V AC |
| Connection pitch | outgoer: 18 mm |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Colour | white (RAL 9003) |
| Poles configuration for 1 way | outgoer: 3P |
| Environment | |
| Standards | AS/NZS 61439.3 |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
