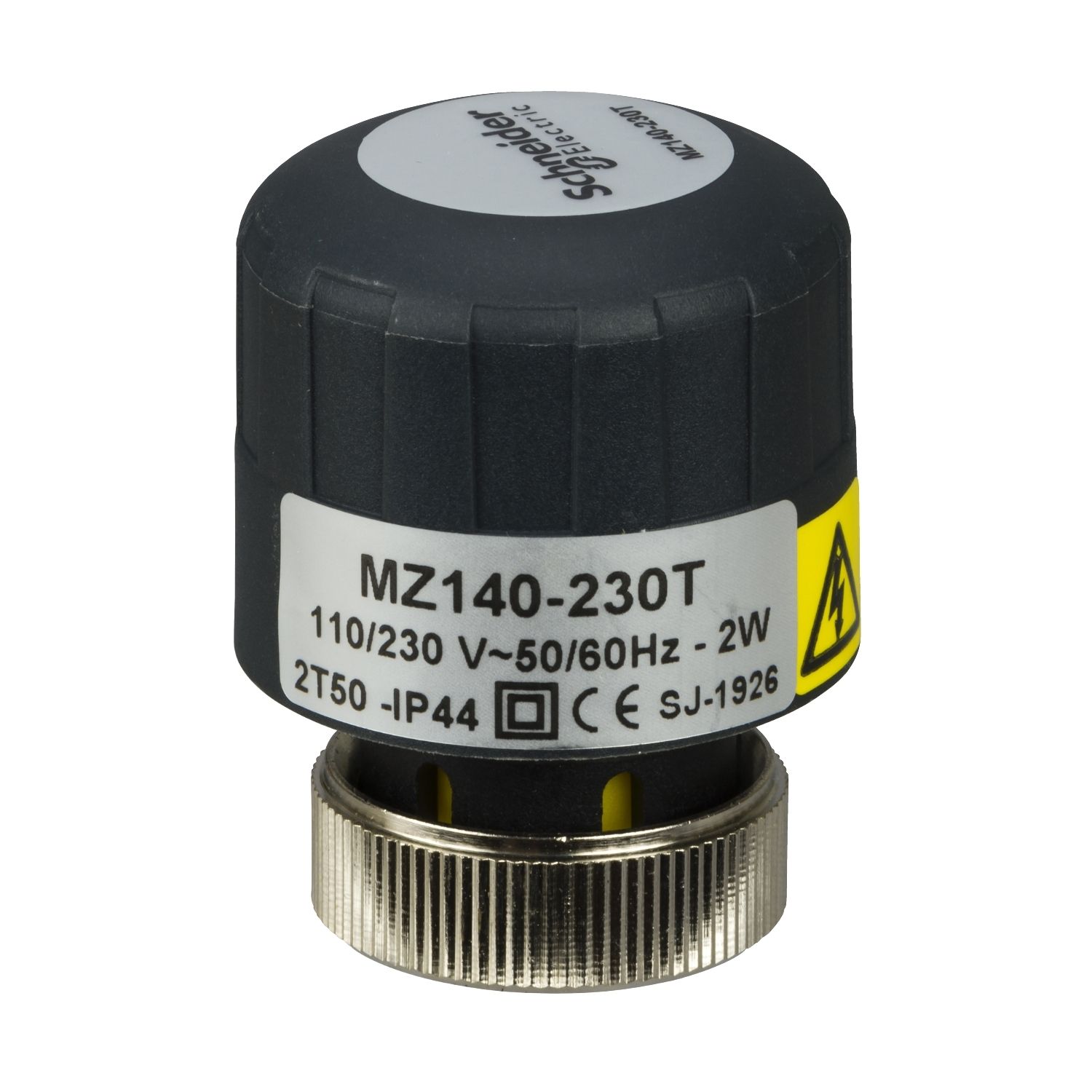

MZ140-T is a thermoelectric actuator designed to provide two position on/off control together with VZ*08* zone Valves. The Actuator without power is retracted to ensure the zone valve is in a closed state. With power, the actuator actuator stem is extended to open the valve. The compact construction provides a small footprint. Power Supply: 110 - 230 Vac. Stem force 140N. Protection class IP44 for vertical mounting. Max. stroke 4 mm. EMC 24/18/CE, LVD 26/95/CE.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 140 N |
| Hold-in power consumption in VA | 2-2 VA AC |
| IP degree of protection | IP44 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -45-60 °C |
| [Us] rated supply voltage | 110...230 V AC |
| Product destination | zone valves |
| Control type | manual override with 5/32 allen wrench |
| Product or component type | actuator |
| Targeted region | Australia., Asia Pacific., Europe |
| Stroke length | 4-4 mm |
| Power consumption in W | 2 W |
| Force lbf | 32 lbf |
| Actuator | linear |
| Ambient air temperature for operation | 2-50 °C |
| Power loss return | spring return |
| Control signal | 2-position (on/off) |
| Lead length | 1.5 m |
| Connection valve | coupling ring M30 x 1.5 |
| Stroke auto calibration | False |
| Leads and connections | bipolar |
| Actuator type | thermoelectric |
| Position indicator | Stroke indicator on bracket |
