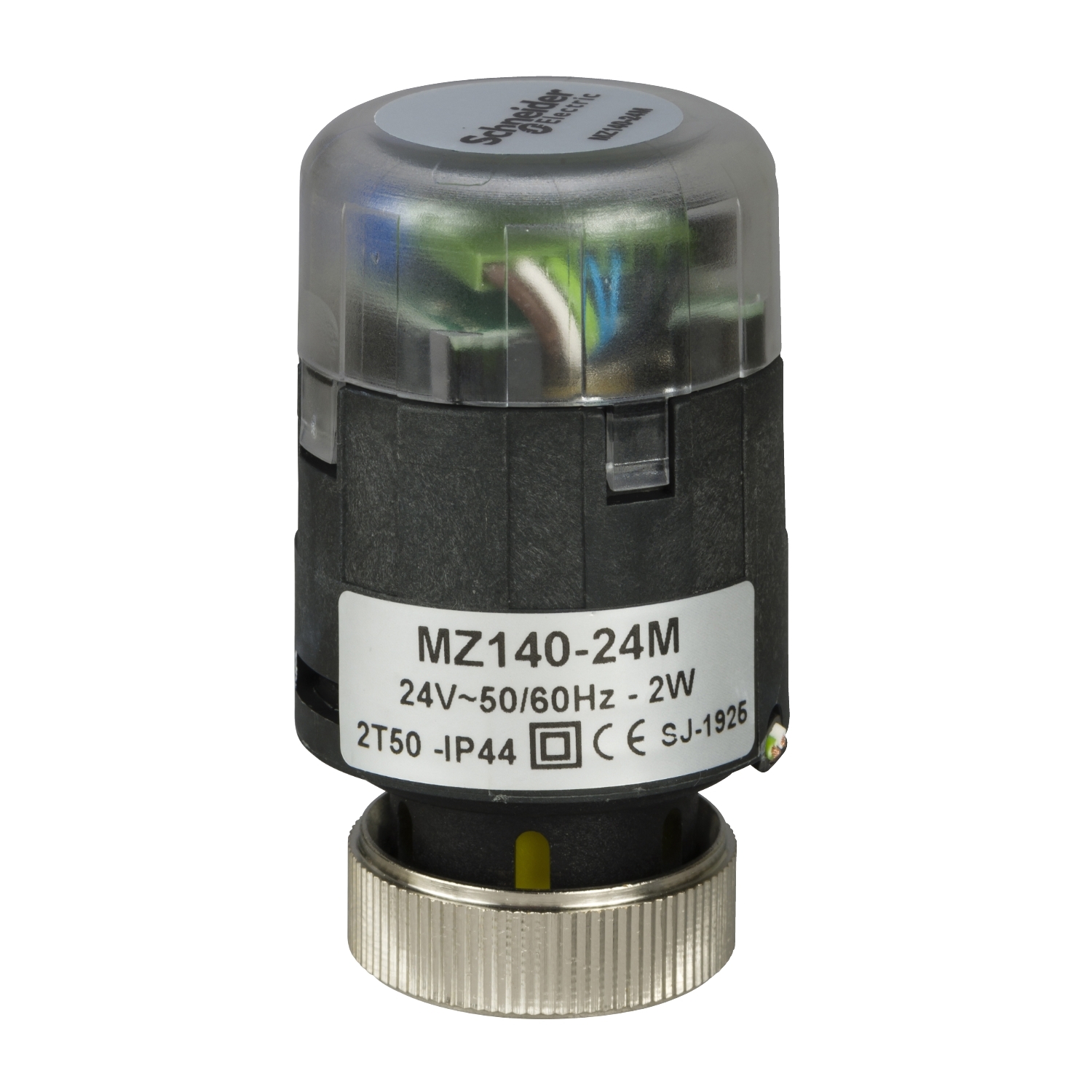

The MZ140-24M is a thermoelectric actuator designed to provide modulating control together with the VZ*08* zone valve. The MZ140-24M actuator at power off or Vdc control signal will ensure the VZ*08* zone valve is closed. With a control signal of 10 Vdc the actuator will fully open the valve. With a control signal of 1 Vdc the actuator will fully open the Valves. Nominal Power Supply 21.8…26.8 Vac. Stem force 140N. Protection class IP44 for vertical mounting, IP141 for Horizontal mounting. Stroke 2. 5 mm. EMC 244/18/CE, LVD 266/95/CE.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 140 N |
| Hold-in power consumption in VA | 2-2 VA AC |
| IP degree of protection | IP44, IP41 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -45-60 °C |
| [Us] rated supply voltage | 24 V AC |
| Product destination | zone valves |
| Control type | manual override with 5/32 allen wrench |
| Product or component type | actuator |
| Targeted region | Australia., Asia Pacific., Europe |
| Stroke length | 4-4 mm |
| Power consumption in W | 2 W |
| Analogue input range | 2...10 V DC |
| Force lbf | 32 lbf |
| Actuator | linear |
| Ambient air temperature for operation | 2-50 °C |
| Power loss return | spring return |
| Control signal | proportional/modulating |
| Lead length | 1.5 m |
| Connection valve | coupling ring M30 x 1.5 |
| Stroke auto calibration | False |
| Actuator type | thermoelectric |
| Position indicator | Stroke indicator on bracket |
