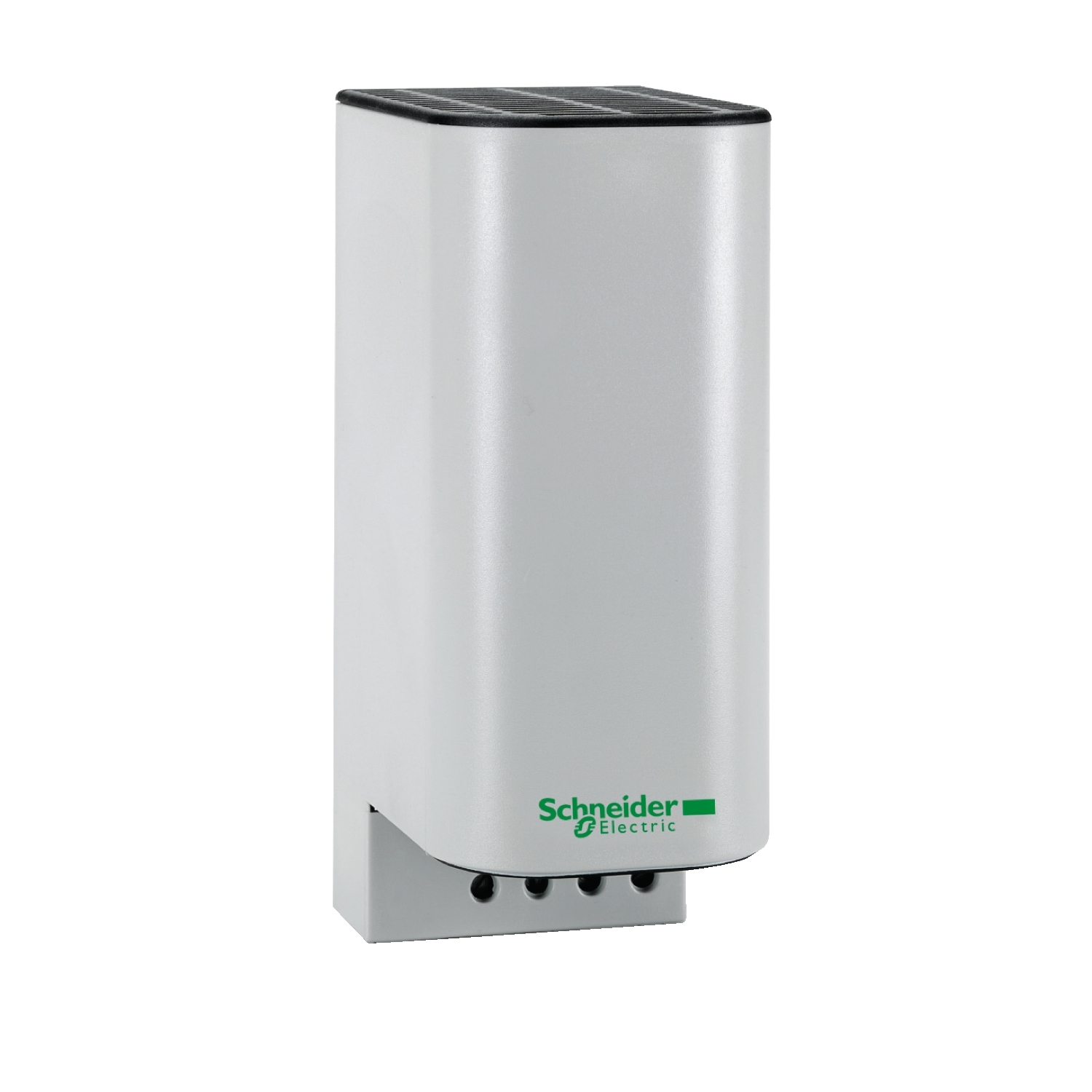

ClimaSys PTC heating resistance insulate. 50W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 110...250 V AC 50/60 Hz |
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | resistance heater |
| Power range | 50 W |
| Electrical connection | 4 screw terminals 2.5 mm² |
| Complementary | |
| IP degree of protection | IP20 |
| Operating position | vertical |
| Material | cover: plastic, body: extruded aluminium |
| Height | 110 mm external: |
| Width | 60 mm external: |
| Electrical insulation class | class II |
| Depth | 90 mm external: |
| Condition of use | heaters must be installed with a thermal controller, air sealed enclosure, electrical protection is needed |
| Fixing mode | by clips |
| Mounting support | 35 mm DIN rail |
| Ambient air temperature for operation | -40-70 °C |
| Product certifications | VDE, UL |
