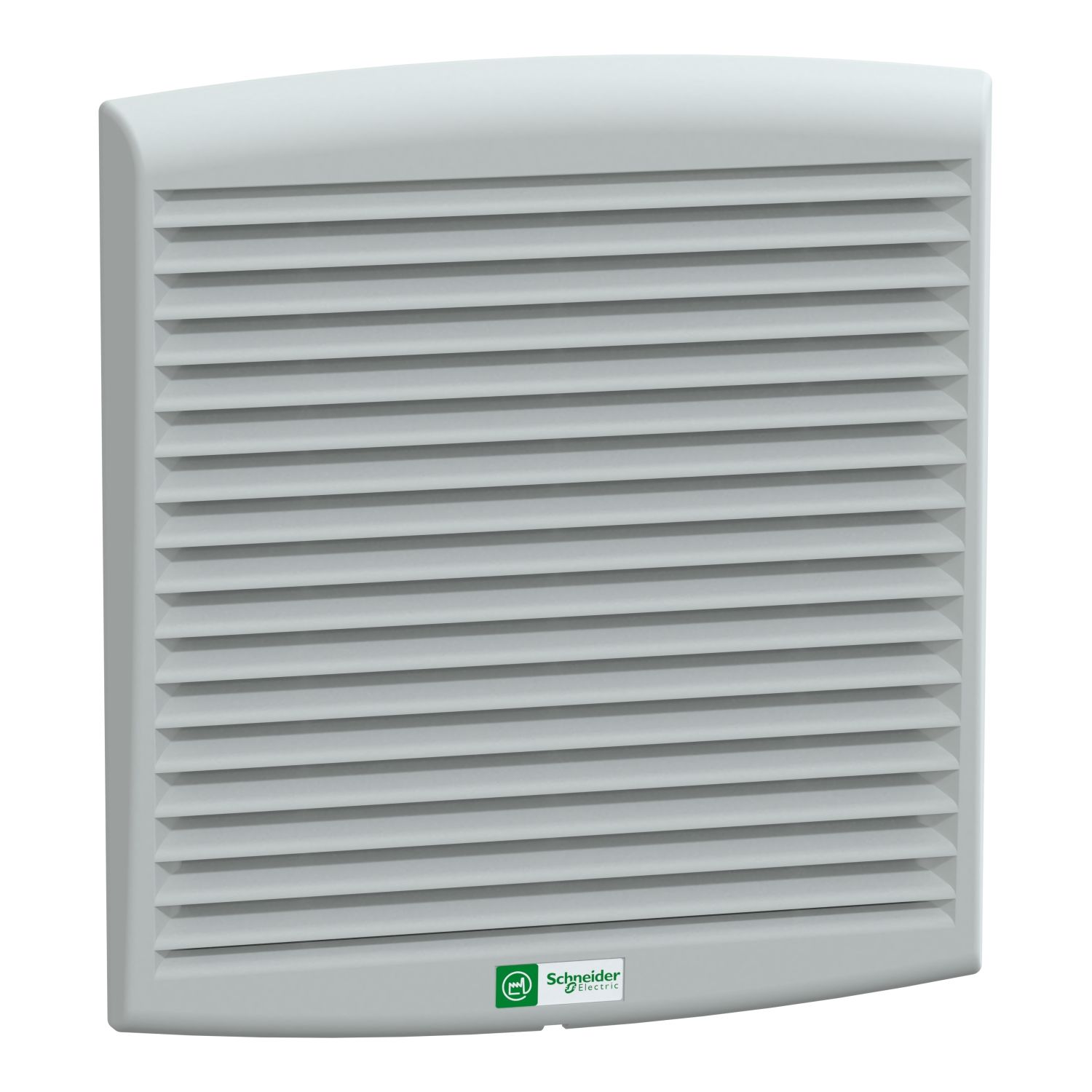

This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 50 Pa It has a power range of 15,5 W 50 Hz and 14,4 W 60 Hz, and a free flow rate of 165 m3/h at 50 Hz and 193 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -20 to 60°C It has a Faston connector and comes with a filter, an outlet grille, two protective grilles on the front and rear surfaces, and a power cord It has an IP54 degree of protection and a noise level of 50-51 dB The cut-out dimensions of the fan are 223 x 223 mm This fan also comes with an anti-insect filter included
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 115 V 50/60 Hz |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | fan |
| Type of ventilation filter | standard |
| Air flow | free flow rate with standard filter: 193 m3/h at 60 Hz, free flow rate with standard filter: 165 m3/h at 50 Hz |
| [Us] rated supply voltage | 75...126 V |
| Complementary | |
| Noise level | 50-51 dB |
| Bearing type | ball |
| [In] rated current | 0.18-0.18 A 60 Hz, 0.2-0.2 A 50 Hz |
| Colour | outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| Height | 268 mm external: |
| Width | 248 mm external: |
| Ambient air temperature for storage | -40-70 °C |
| Cut-out dimensions | 223 x 223 mm |
| Depth | 104 mm external: |
| Net weight | 1.14 kg |
| Device composition | 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor |
| Maximum pressure | 50 Pa flow rate 0 m³/h |
| Condition of use | surrounding environment must be relatively clean, flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, outside temperature must be 5 °C lower than inside temperature |
| Power range | 14.4 W 60 Hz, 15.5 W 50 Hz |
| Ambient air temperature for operation | -20-60 °C |
| Connections - terminals | Faston connector |
