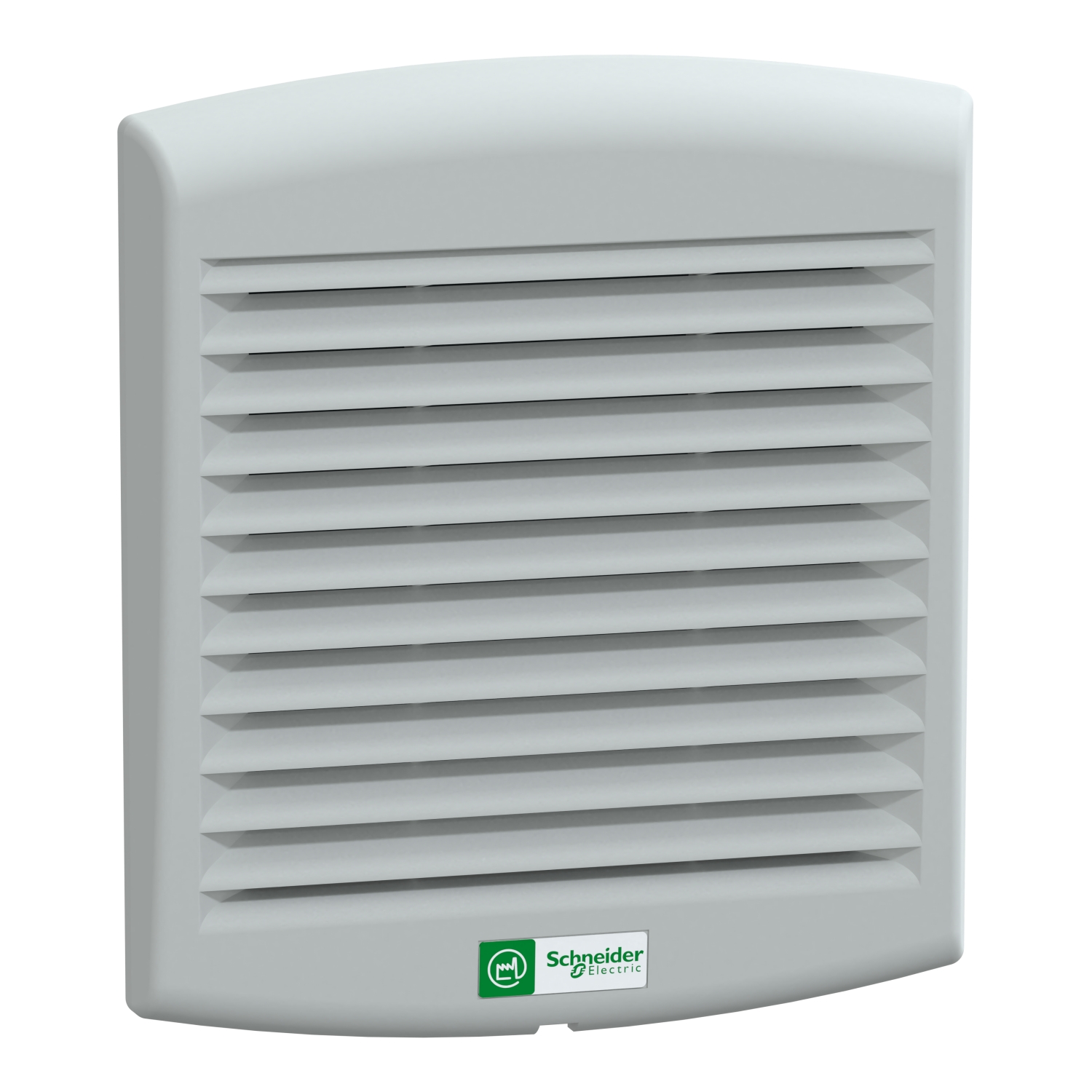

This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 50 Pa It has a power range of 16 W 50 Hz and 15 W 60 Hz, and a free flow rate of 79 m3/h at 50 Hz and 92 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -20 to 60°C It has a Faston connector and comes with a filter, an outlet grille, two protective grilles on the front and rear surfaces, and a power cord It has an IP54 degree of protection and a noise level of 46-49 dB The cut-out dimensions of the fan are 125 x 125 mm This fan also comes with an anti-insect filter included
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 115 V 50/60 Hz |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | fan |
| Type of ventilation filter | standard |
| Air flow | free flow rate with standard filter: 92 m3/h at 60 Hz, free flow rate with standard filter: 79 m3/h at 50 Hz |
| [Us] rated supply voltage | 75...126 V |
| Complementary | |
| Noise level | 46-49 dB |
| Bearing type | ball |
| [In] rated current | 0.179-0.179 A 60 Hz, 0.207-0.207 A 50 Hz |
| Colour | outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| Height | 170 mm external: |
| Width | 150 mm external: |
| Ambient air temperature for storage | -40-70 °C |
| Cut-out dimensions | 125 x 125 mm |
| Depth | 62 mm external: |
| Net weight | 0.78 kg |
| Device composition | 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor |
| Maximum pressure | 50 Pa flow rate 0 m³/h |
| Condition of use | filter must be cleaned and replaced regularly, flow rates depends on the work point, see ProClima software, outside temperature must be 5 °C lower than inside temperature, surrounding environment must be relatively clean, overfrequent filter replacement should be avoided |
| Power range | 16 W 50 Hz, 15 W 60 Hz |
| Ambient air temperature for operation | -20-60 °C |
| Connections - terminals | Faston connector |
