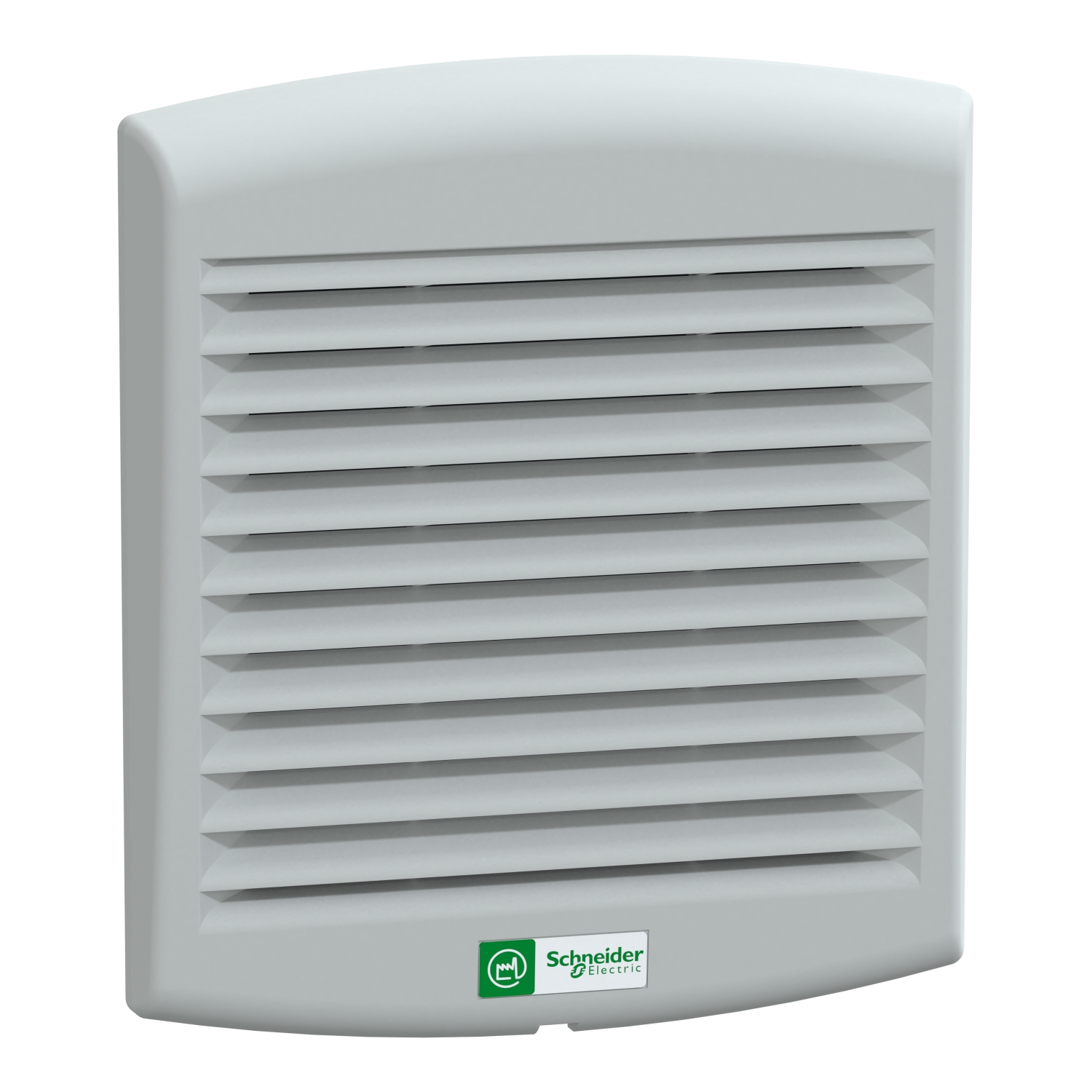

ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 24 V DC |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | fan |
| Type of ventilation filter | standard |
| Air flow | free flow rate with standard filter: 80 m3/h |
| [Us] rated supply voltage | 10...27.6 V |
| Complementary | |
| Noise level | 46-49 dB |
| Bearing type | ball |
| [In] rated current | 0.3-0.3 A |
| Colour | outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| Height | 170 mm external: |
| Width | 150 mm external: |
| Ambient air temperature for storage | -40-70 °C |
| Cut-out dimensions | 125 x 125 mm |
| Depth | 62 mm external: |
| Net weight | 0.48 kg |
| Device composition | 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor |
| Maximum pressure | 50 Pa flow rate 0 m³/h |
| Condition of use | flow rates depends on the work point, see ProClima software, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean, outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided |
| Power range | 7.6 W |
| Ambient air temperature for operation | -10-70 °C |
| Connections - terminals | cable |
