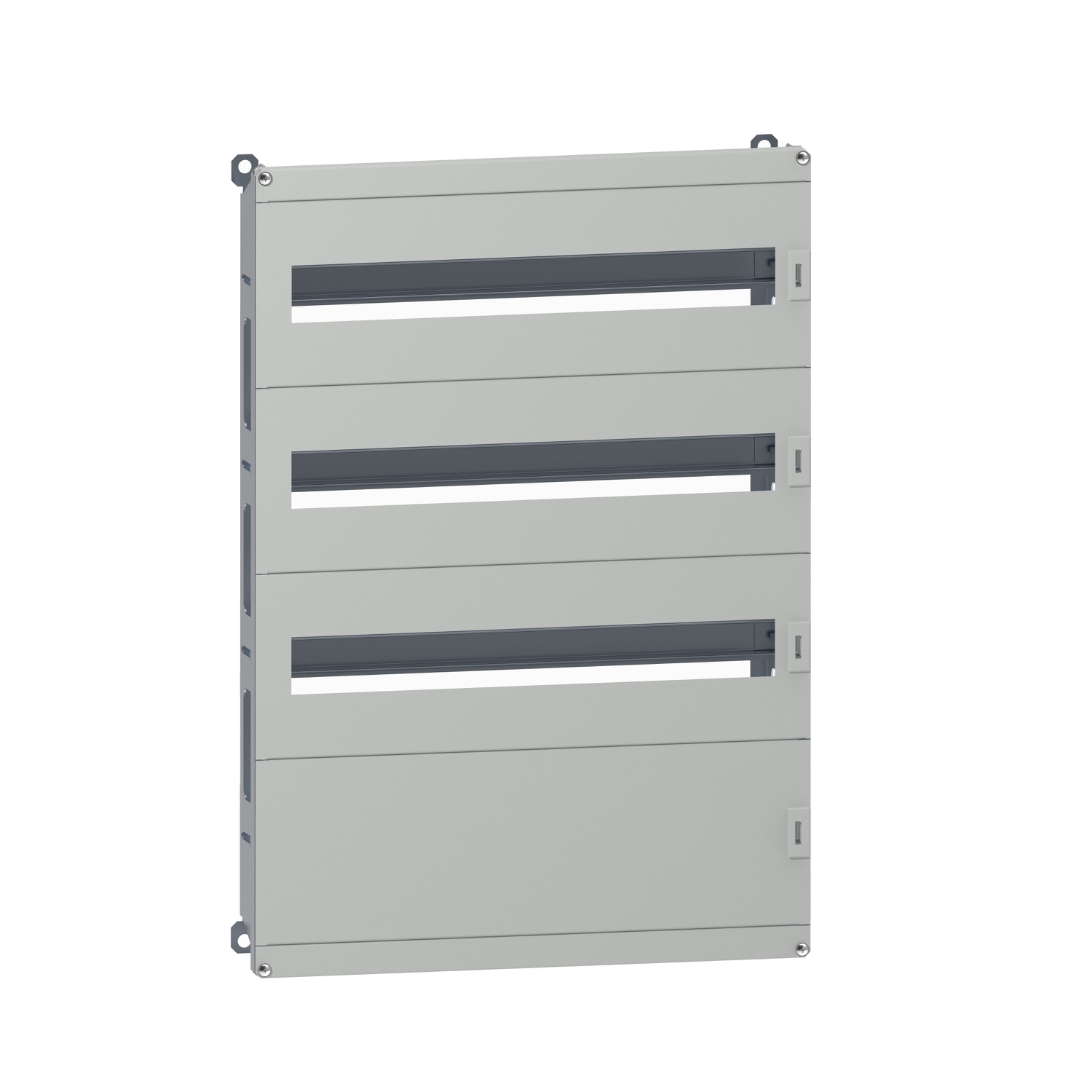

Modular chassis DLM type for SPACIAL WM enclosures. H is 700 x W is 500 mm, 66 (18mm) modules. Multi-purpose, modular distribution application. Step slide, front of enclosure mounting. 1 plain front panel with mounting plate incl. Steel made. Grey RAL 7035. 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panel (35 mm DIN rail).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | DLM |
| Device application | modular distribution application, multi-purpose |
| Quantity per set | set of 1 |
| Mounting location | step slide, front of enclosure |
| Range | Spacial |
| Device composition | 1 plain front panel with mounting plate, 3 front panels with 35 mm DIN rail, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 finish cover, 1 chassis structure |
| Product or component type | chassis |
| Accessory / separate part category | mounting accessory |
| Range compatibility | Spacial Spacial CRN, Spacial Spacial S3X, Spacial Spacial S3D |
| Enclosure nominal dimensions | - |
| Complementary | |
| Adjustment | in height from 40 to 85 mm for DIN rail |
| Colour | front panel: grey (RAL 7035) |
| Type of front plate | plain and cut-out plates |
| Material | steel |
| Height | 653 mm |
| Width | 455 mm |
| Number of cut-out | 3 cut-outs |
| Depth | 101.5 mm |
| Fixing mode | by fixing element - on front and back with supports location |
| Surface finish | polyester powder |
| Total number of 18 mm modules | 66 |
| Number of horizontal rows | 3 |
