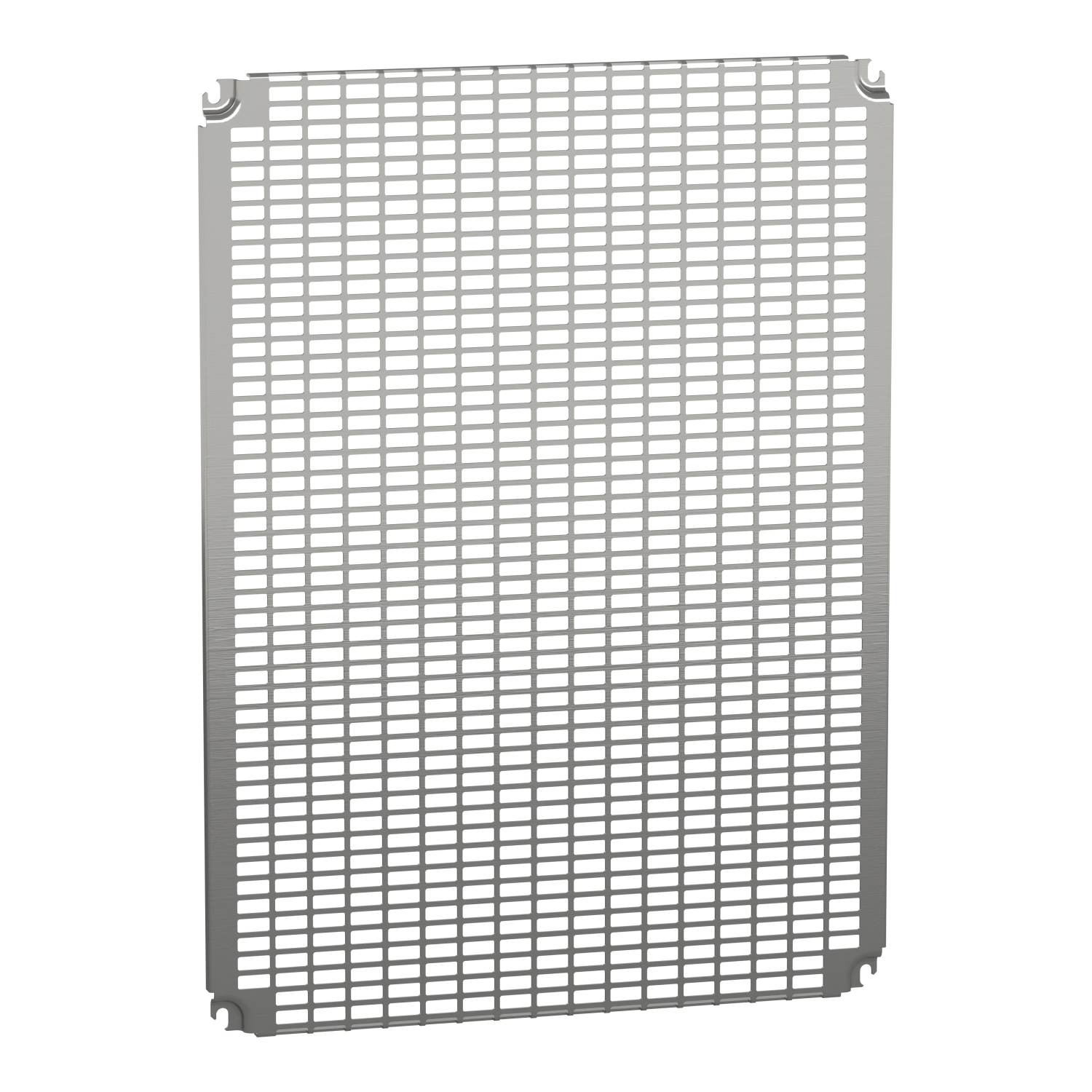

Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is800 x W is600 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 867 slots. Variant particularity is Installation in rear of enclosure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting plate description | Telequick perforated |
| Device application | multi-purpose |
| Quantity per set | set of 1 |
| Material | steel |
| Mounting location | direct fixing on backstuds, step slide |
| Range | Spacial |
| Product or component type | mounting plate |
| Surface finish | zinc coated |
| Accessory / separate part category | mounting accessory |
| Range compatibility | Thalassa Thalassa PLM, Spacial Spacial S3X, Spacial Spacial CRN, Spacial Spacial S3D |
| Enclosure nominal dimensions | - H: 800 mm W: 1200 mm , - H: 800 mm W: 600 mm |
| Complementary | |
| Height | 750 mm |
| Width | 551 mm |
| Number of slots | 867 |
| Cut-out dimensions | 11 x 26 mm |
| Depth | 15 mm |
| Fixing mode | by fixing element, screwed on backstuds - screw type M8 |
| Net weight | 3.16 kg |
| Thickness | 2 mm |
| Variant particularity | installation in rear of enclosure, with enclosures H800 x W1200 |
