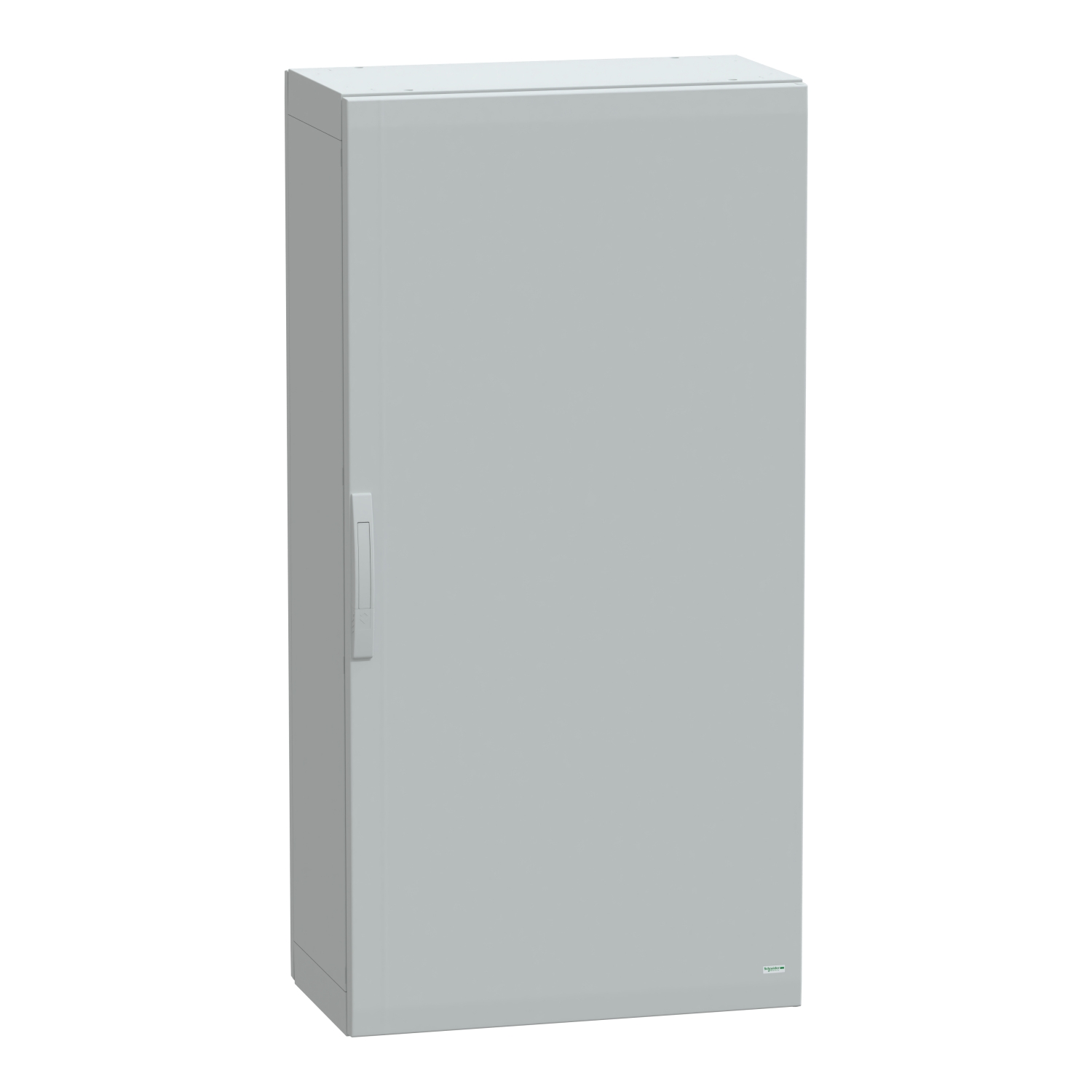

Thalassa PLA floor standing polyester enclosure. 1500x 750x 420 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 1 door. Accesible front and rear. Reversible 120° opening. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 750 mm |
| Device short name | PLA |
| Device application | multi-purpose |
| Enclosure nominal depth | 420 mm |
| Enclosure mounting | floor-standing |
| Range | Thalassa |
| Enclosure nominal height | 1500 mm |
| Device composition | 1 door, 1 rear panel, 2 side part, 1 bottom part, 1 top part |
| Product name | Thalassa PLA |
| Product or component type | suitable enclosure |
| Complementary | |
| Colour | grey (RAL 7035) |
| NEMA degree of protection | NEMA 3, NEMA 3X, NEMA 2, NEMA 12, NEMA 3R, NEMA 5, NEMA 13, NEMA 3S, NEMA 1 |
| Electrical insulation class | class II |
| Lock type | 4 points lock, 5 mm double-bar |
| Door type | plain front |
| Removable parts | rear panel by fixing element, door by hinges |
| Accessibility for operation | rear, front |
| Material | polyester reinforced with fibreglass |
| Body type | sealed top and bottom part assembled with side parts |
| Number of doors | 1 door(s) |
| Door opening side | reversible (120 °) |
| Standards | UL 508 A, IEC 62208 |
| Product certifications | UL/cUL listed, Veritas, DNV Marine |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 62208 |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| Ambient air temperature for storage | -35-90 °C |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
Only registered users can write reviews
Related products
Expandable M8 nuts to be installed in the bosses of the polyester enclosures
NSYTEX8
Expandable M8 nuts to be installed in the bosses of the polyester enclosures
$1.82 inc GST
$1.47 inc GST
Handle lock polyamid with padlock device (without insert) for PLA - Ral 7035
NSYCBCMPLAG
Handle lock polyamid with padlock device (without insert) for PLA - Ral 7035
$117.70 inc GST
$95.34 inc GST

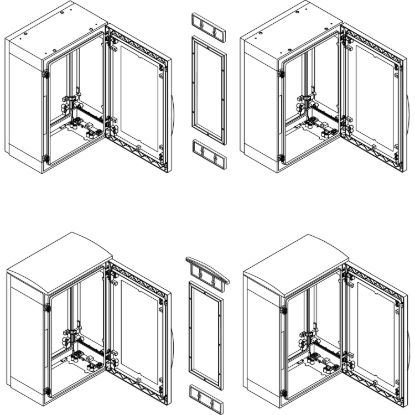

Horizontal coupling kit, Thalassa, for PLA enclosure H1500xD420 mm, 15 mm, IP55 coupling
