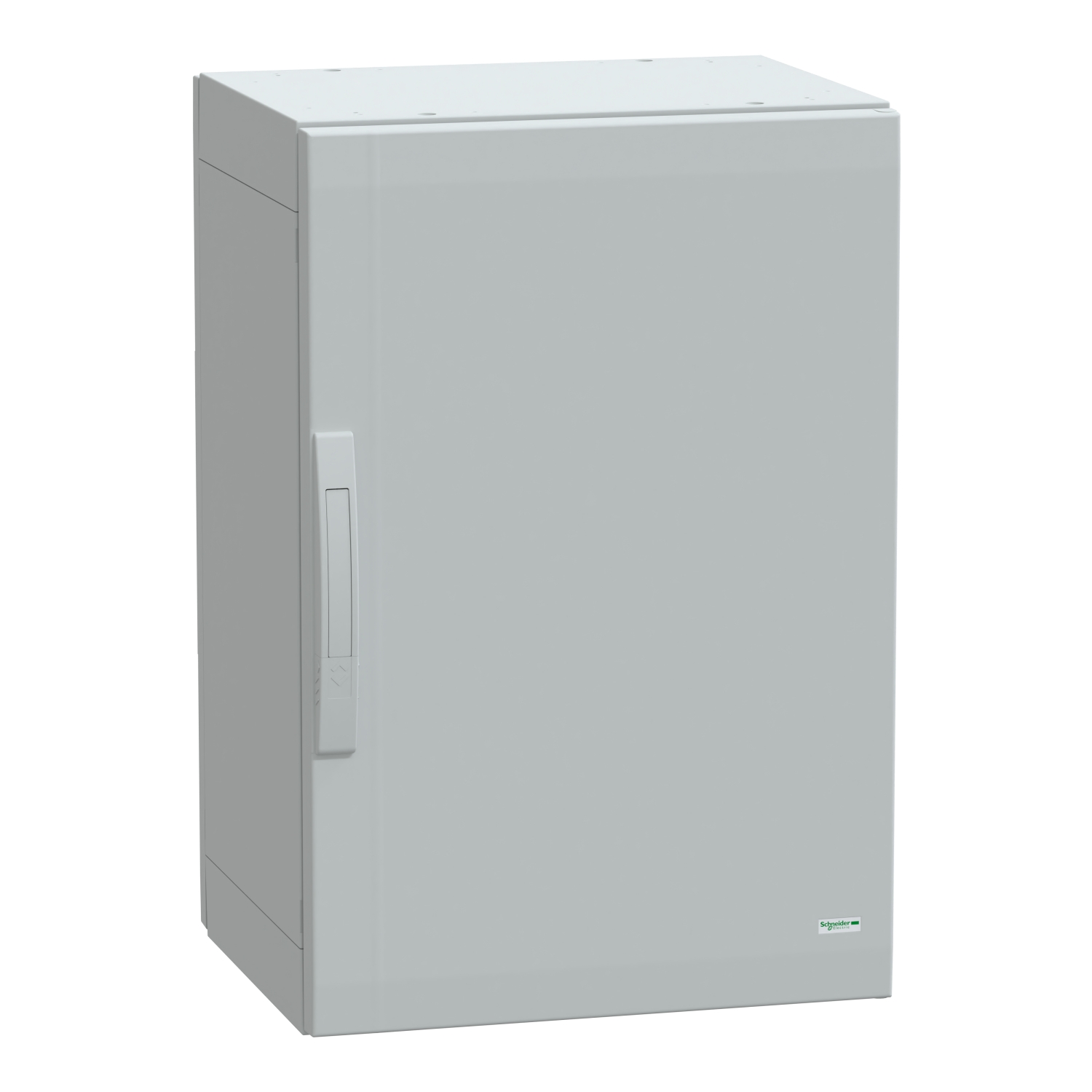

Floor standing polyester enclosure, Thalassa, Thalassa PLA, plain door, completely sealed, 750x500x420mm, IP65, IK10
Manufacturer: Schneider Electric
SKU: NSYPLA754G
GTIN: 3606480775093
Old price: $967.45 inc GST
$783.63 inc GST
Supported cards
Supported cards
This PLA is a multi-purpose, floor-standing unit that is ideal for a variety of applications It measures 750mm in height, 500mm in width, and 420mm in depth and is made of polyester reinforced with fiberglass This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside The door features a two-point lock with a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes The enclosure provides robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C, in accordance with the IEC 62208 standard, and has an IK10 rating according to IEC 62262, indicating high resistance to impacts It is rated IP65 (IEC 60529), offering complete protection against dust and water Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL/cUL listed and DNV Marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 500 mm
Device short name PLA
Device application multi-purpose
Enclosure nominal depth 420 mm
Enclosure mounting floor-standing
Range Thalassa
Enclosure nominal height 750 mm
Device composition 1 door, 1 rear panel, 2 side part, 1 bottom part, 1 top part
Product name Thalassa PLA
Product or component type suitable enclosure
Complementary
Colour grey (RAL 7035)
NEMA degree of protection NEMA 1, NEMA 3X, NEMA 3R, NEMA 13, NEMA 5, NEMA 12, NEMA 3S, NEMA 2, NEMA 3
Electrical insulation class class II
Lock type 2 points lock, 5 mm double-bar
Door type plain front
Removable parts rear panel by fixing element, door by hinges
Accessibility for operation rear, front
Material polyester reinforced with fibreglass
Body type sealed top and bottom part assembled with side parts
Number of doors 1 door(s)
Door opening side reversible (120 °)
Standards IEC 62208, UL 508 A
Product certifications DNV Marine, UL/cUL listed, Veritas
Environment
Fire resistance 960 °C conforming to IEC 62208
IP degree of protection IP65 conforming to IEC 60529 (completely sealed)
Ambient air temperature for storage -35-90 °C
IK degree of protection IK10 conforming to IEC 62262 (plain door)
