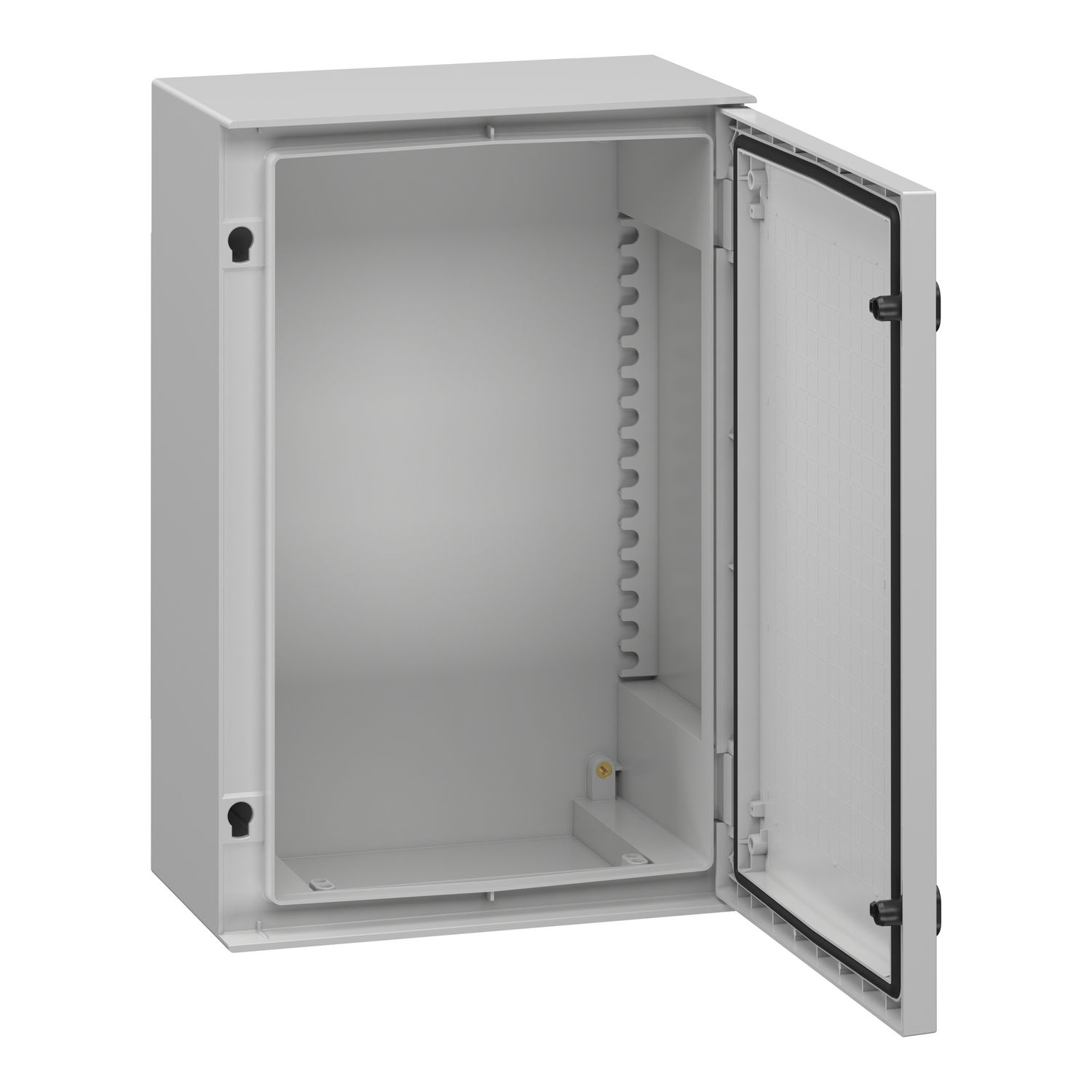

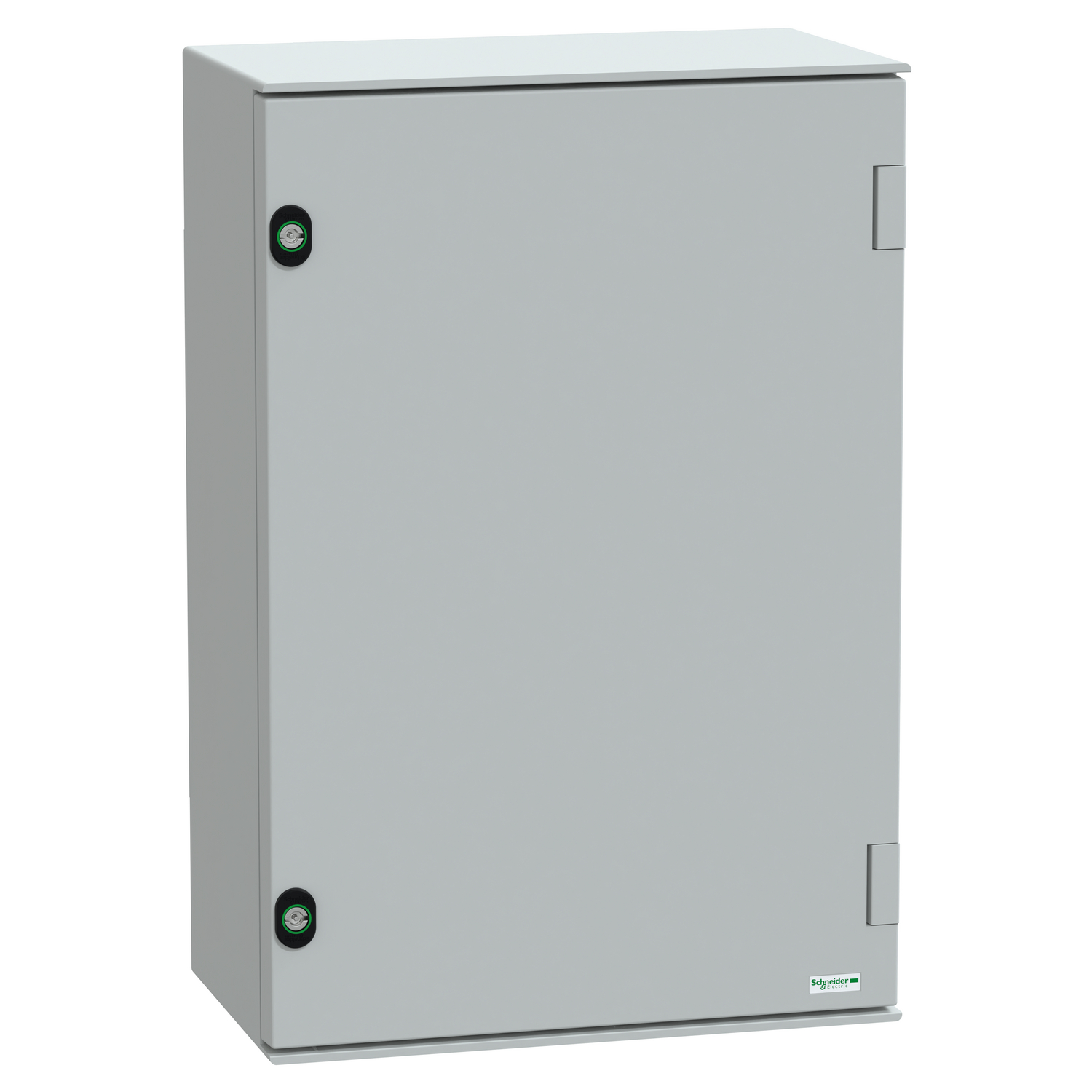

Thalassa PLM wall-mounting polyester enclosure monobloc. 647 x 436 x 250 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 436 mm |
| Device short name | PLM |
| Device application | multi-purpose |
| Enclosure nominal depth | 250 mm |
| Enclosure mounting | wall mounted |
| Range | Thalassa |
| Door type | plain |
| Lock type | 3 mm double-bar lock |
| Enclosure nominal height | 647 mm |
| Device composition | 2 lock, 1 door, 1 body |
| Product name | Thalassa PLM |
| Product or component type | compact enclosure |
| Complementary | |
| Colour | grey (RAL 7035) |
| Electrical insulation class | class II |
| Number of locks | 2 |
| Removable parts | door by hinges |
| Mounting plate description | without mounting plate |
| Accessibility for operation | front |
| Material | polyester reinforced with fibreglass |
| Standards | IEC 62208, NEMA classification 4X, NEMA classification 13 |
| Product certifications | UL |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 62208 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-80 °C |
| IK degree of protection | IK10 conforming to IEC 62262 |
