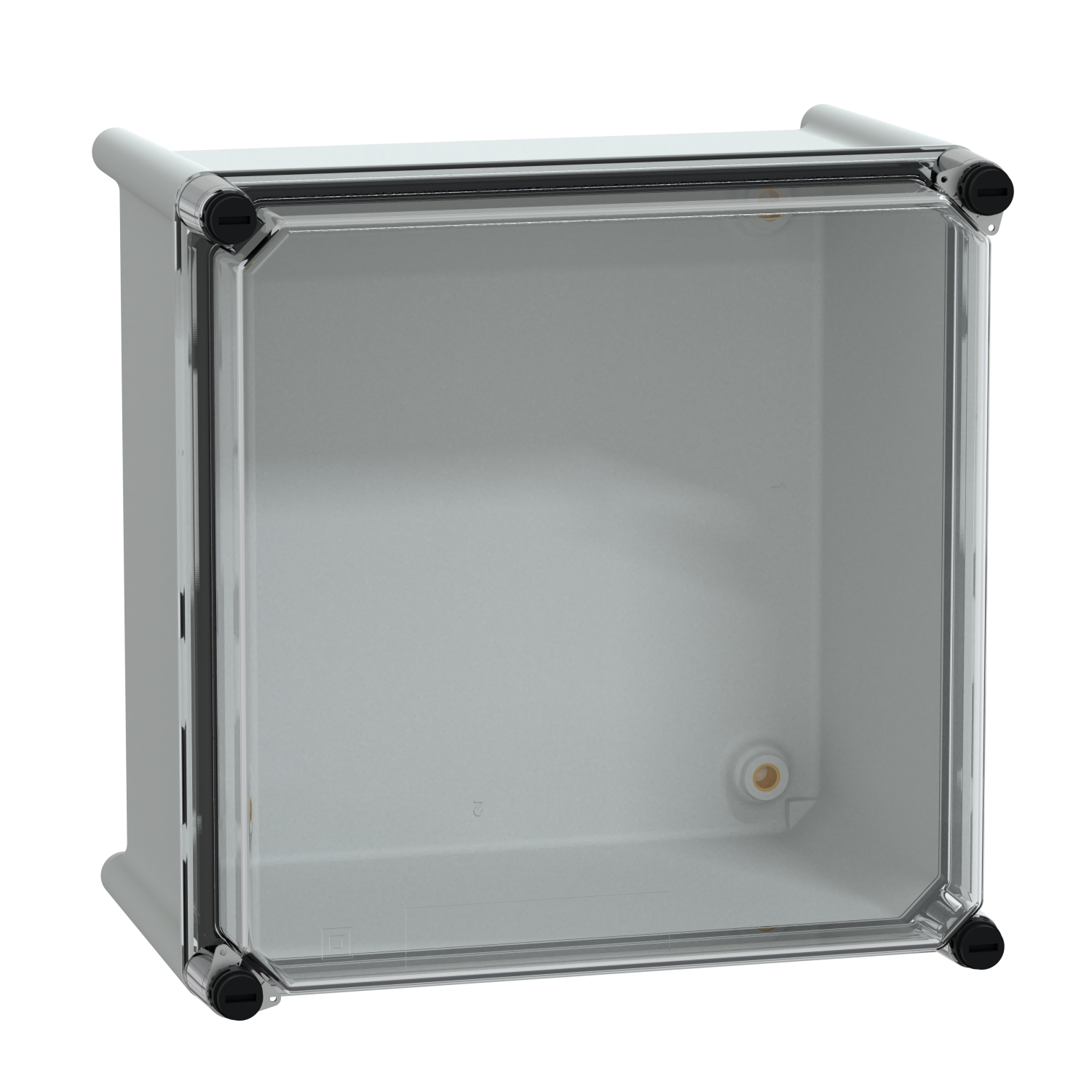

Thalassa PLS box polyester rear with transparent PC cover. 270 x 270 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 270 mm |
| Device short name | PLS |
| Device application | multi-purpose |
| Enclosure nominal depth | 180 mm |
| Enclosure mounting | wall mounted |
| Body type | one piece moulded |
| Range | Thalassa |
| Lock type | slot screw |
| Type of front cover | low transparent cover |
| Enclosure nominal height | 270 mm |
| Device composition | locking screws, 1 rear part: on enclosure, 1 cover: on enclosure |
| Product name | Thalassa PLS |
| Product or component type | insulating modular box |
| Complementary | |
| Colour | body: grey (RAL 7035) |
| Material | rear: polyester reinforced with fibreglass, cover: polycarbonate |
| Standards | IEC 62208, NEMA classification 13, NEMA 4X |
| Removable parts | cover locking screw |
| Product certifications | UL |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 62208 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Ambient air temperature for storage | -30-70 °C |
| Electrical insulation class | class II |
| IK degree of protection | IK09 conforming to IEC 62262 |
