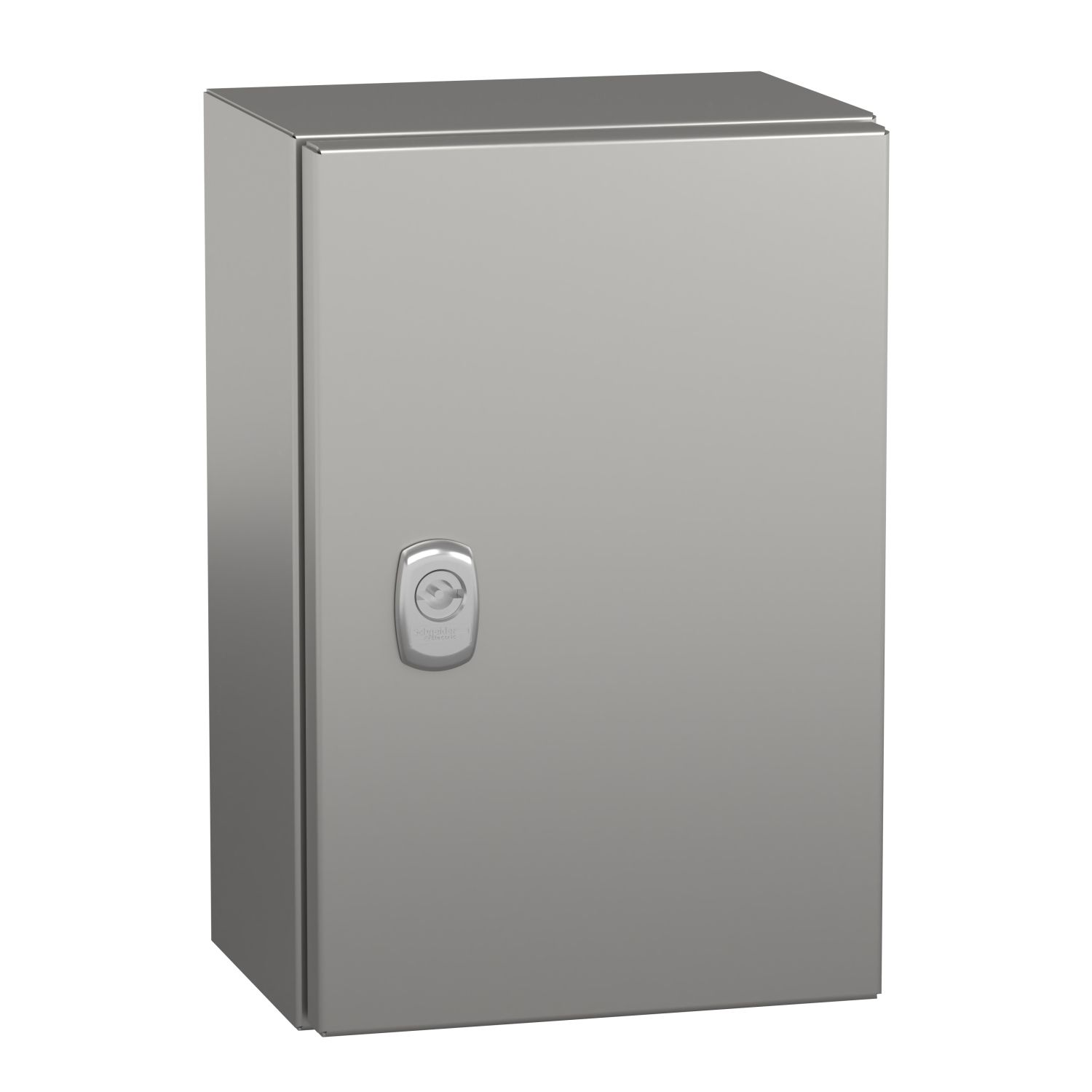

Spacial S3X compact steel enclosure with plain front door. 300 x 200 x 150 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 200 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 150 mm |
| Range | Spacial |
| Installation accessory type | wall-mounting |
| Enclosure nominal height | 300 mm |
| Device composition | 1 door, 1 lock: door, 1 body |
| Product name | Spacial S3X |
| Product or component type | compact enclosure |
| Complementary | |
| Surface finish | lock: chromium plated, body and door: Scotch-Brite® brushed |
| Body type | gutter shaped front rail, single piece body, cross-shaped structure |
| Removable parts | door by hinges |
| Accessibility for operation | front |
| Mounting plate description | without mounting plate |
| Door type | plain |
| Material | hinge: stainless steel, lock: zamak, body and door: stainless steel 304L |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 3.08 kg |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | without gland plate |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Environmental characteristic | specific hygiene, corrosive |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Standards | IEC 62208 |
| Product certifications | CAN/CSA 22, UL 508 type A |
