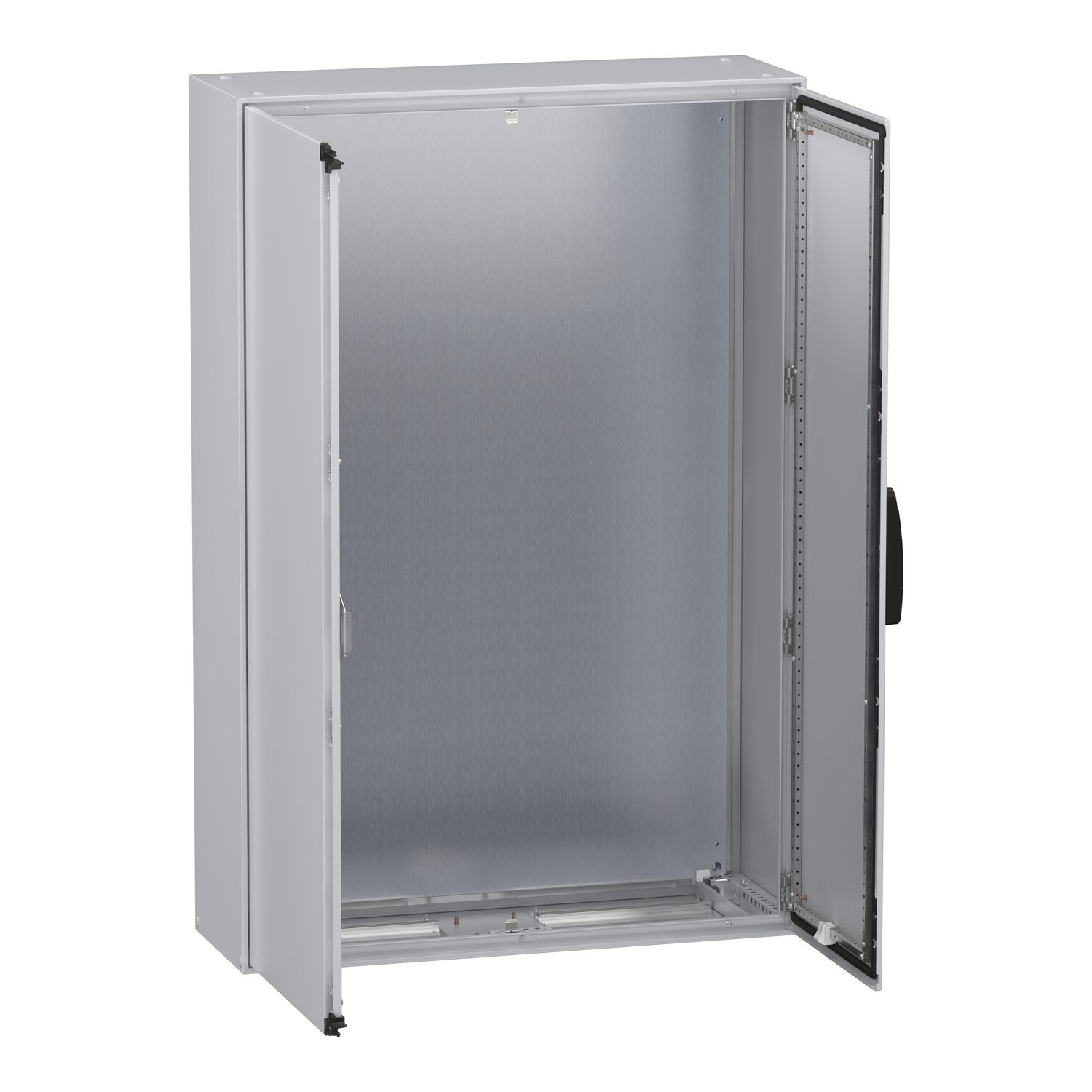

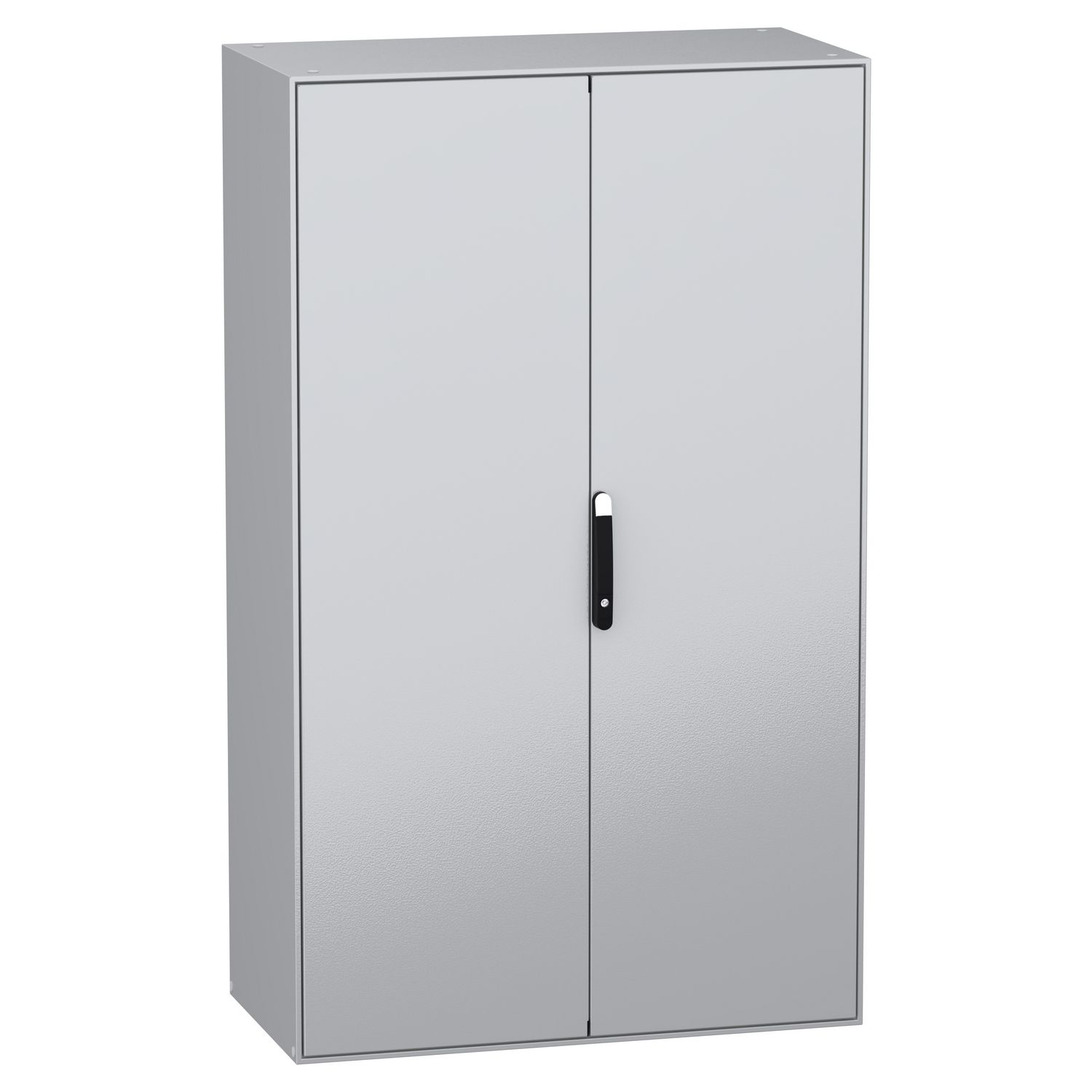

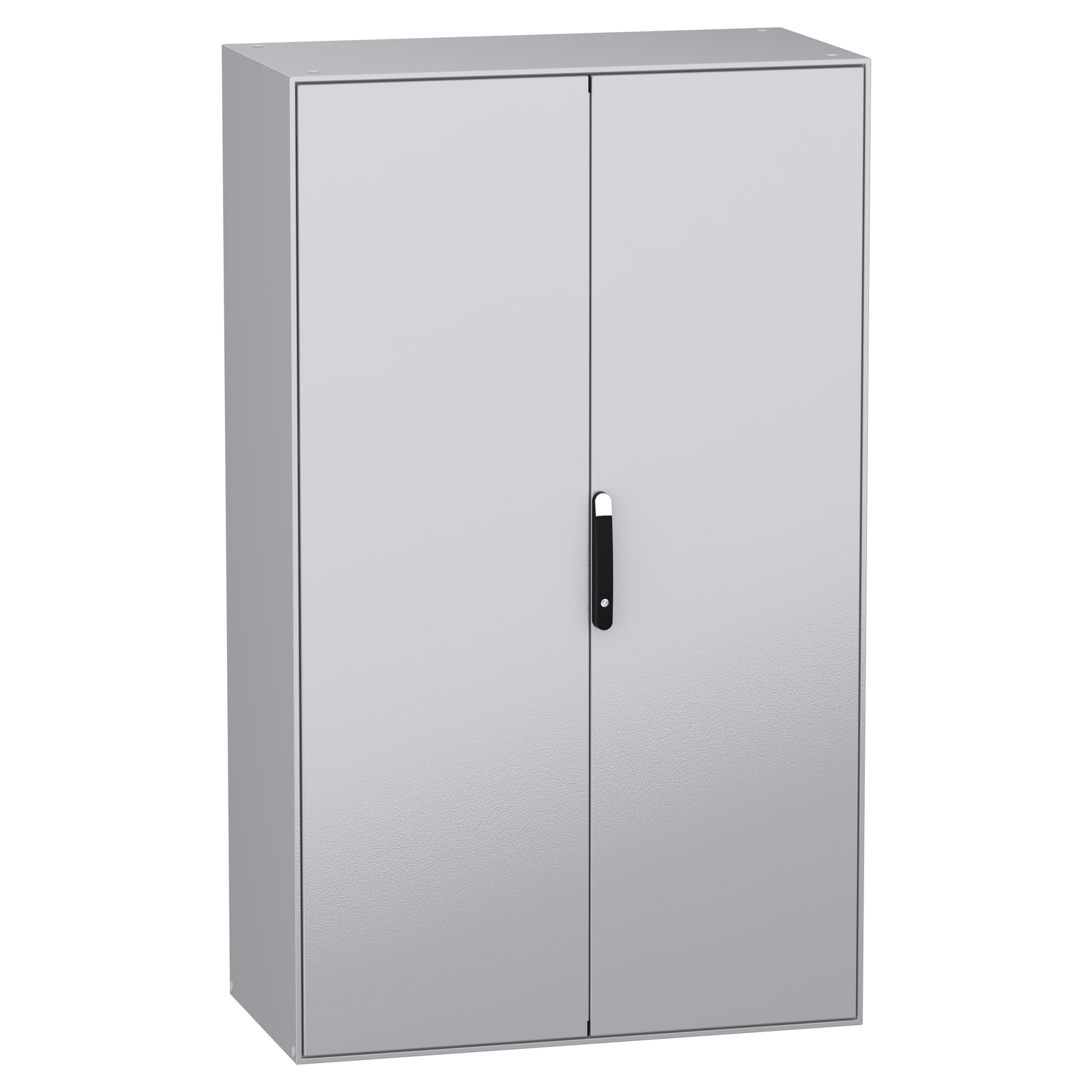

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 2000 x 1200 x 600 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Enclosure nominal depth | 600 mm |
| Installation accessory type | floor-standing |
| Enclosure nominal height | 2000 mm |
| Device composition | 1 mounting plate, 4 mounting plate bracket, 1 blocking system: left door, 1 locking system with handle: door, 2 cable gland plate, 2 door, 1 body |
| Enclosure nominal width | 1200 mm |
| Range | Spacial |
| Removable parts | mounting plate bracket by screws, mounting plate by screws mounting plate bracket, door by screws hinge |
| Product name | Spacial SM |
| Product or component type | compact enclosure |
| Complementary | |
| Accessibility for operation | front |
| Door type | plain |
| Material | hinge: zamak, door: sheet steel, body: sheet steel, mounting plate: galvanised steel |
| Number of doors | front: 2 door(s) |
| Net weight | 200 kg |
| Colour | handle: black (RAL 9005), enclosure: grey (RAL 7035) |
| Surface finish | epoxy-polyester powder |
| Mounting plate description | plain |
| Cable entry | 1 entry |
| Body type | single piece body with welded rear panel, front part forming a rigid frame with welded corners |
| Door opening side | right (120 °), left (120 °) |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Type of gland plate | standard |
| Environment | |
| Product certifications | UL, DNV, BV |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Standards | IEC 62208 |
