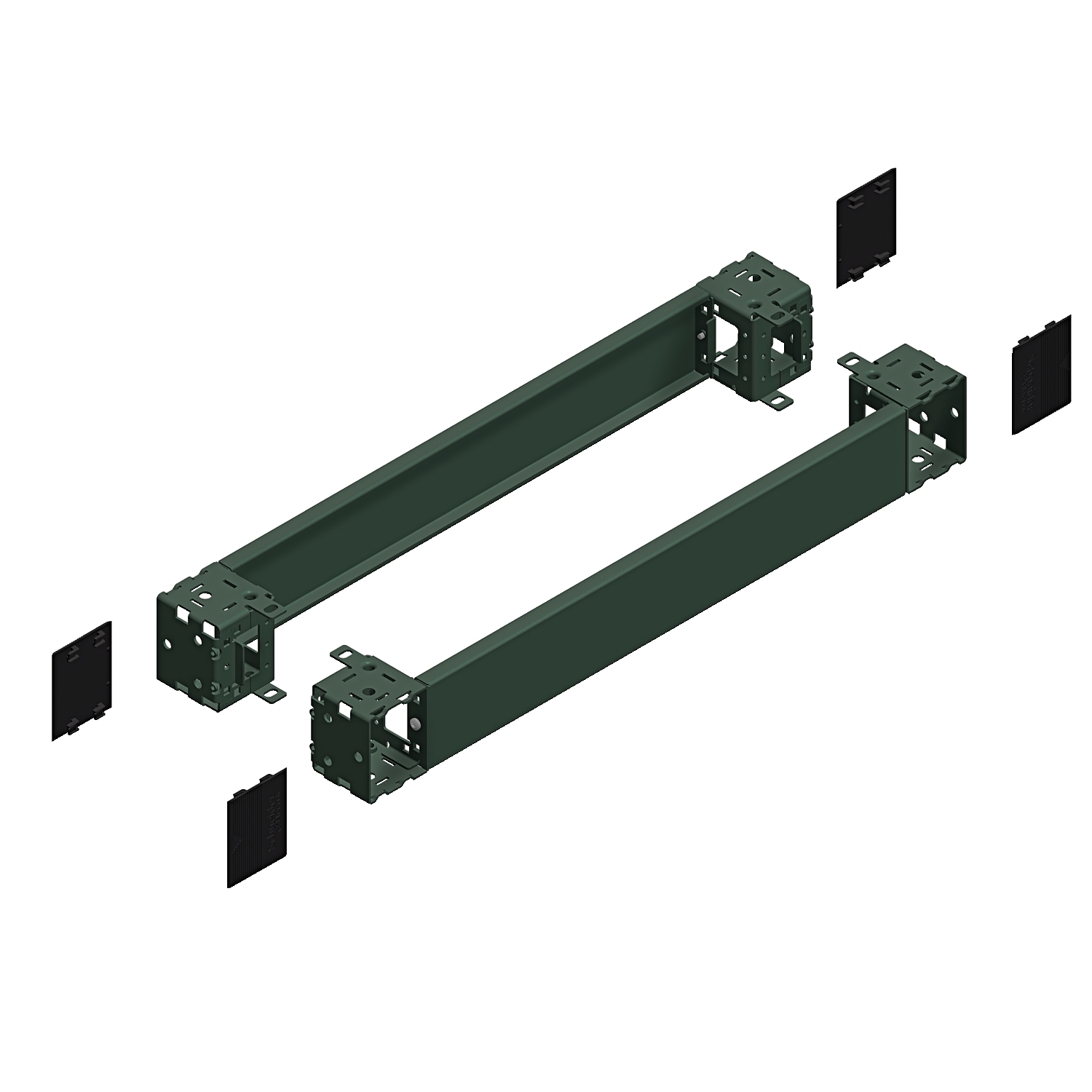

Front plinth for Spacial CRN, S3D, SF, SM, SD. 99 x 800 mm. Multi-purpose, electronic, compartimentalised application. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose, compartmentalised application, electronic application |
| Range | Spacial |
| Accessory / separate part category | enclosure accessory |
| Enclosure nominal dimensions | - |
| Mounting support | plinth side panels |
| Device composition | 4 corner, 1 rear panel, 1 front panel, 4 corner cover, fixing elements |
| Product or component type | front and rear plinth |
| Range compatibility | Spacial Spacial CRN, Spacial Spacial S3D, Spacial Spacial SD, Spacial Spacial SM, Spacial Spacial SF |
| Complementary | |
| Colour | grey (RAL 7022) |
| Width | 800 mm nominal: |
| Surface finish | epoxy-polyester powder |
| Fixing mode | by fixing element - on structure location |
| Permanent permissible load | 1300 kg |
| Height | 100 mm |
| Environment | |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
