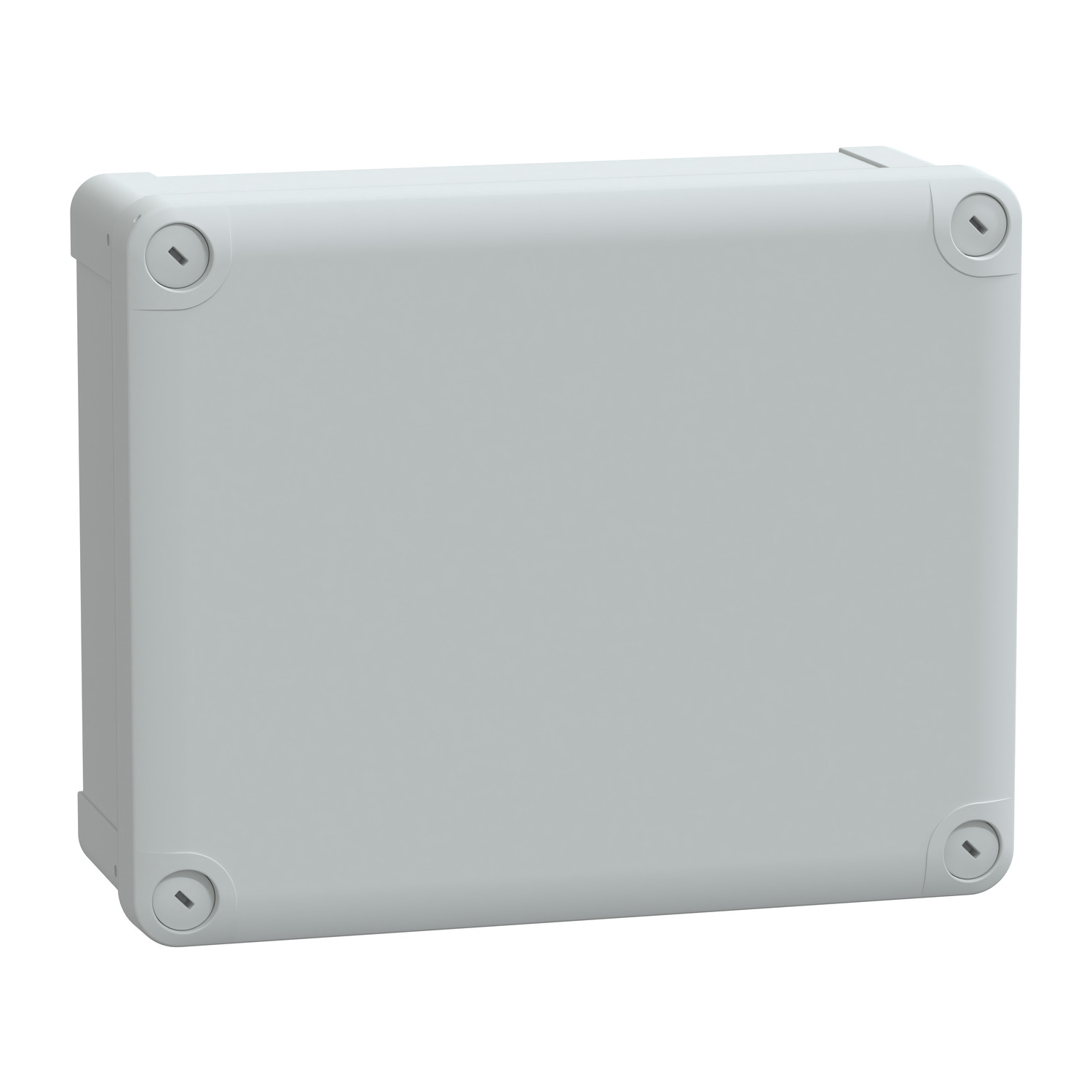

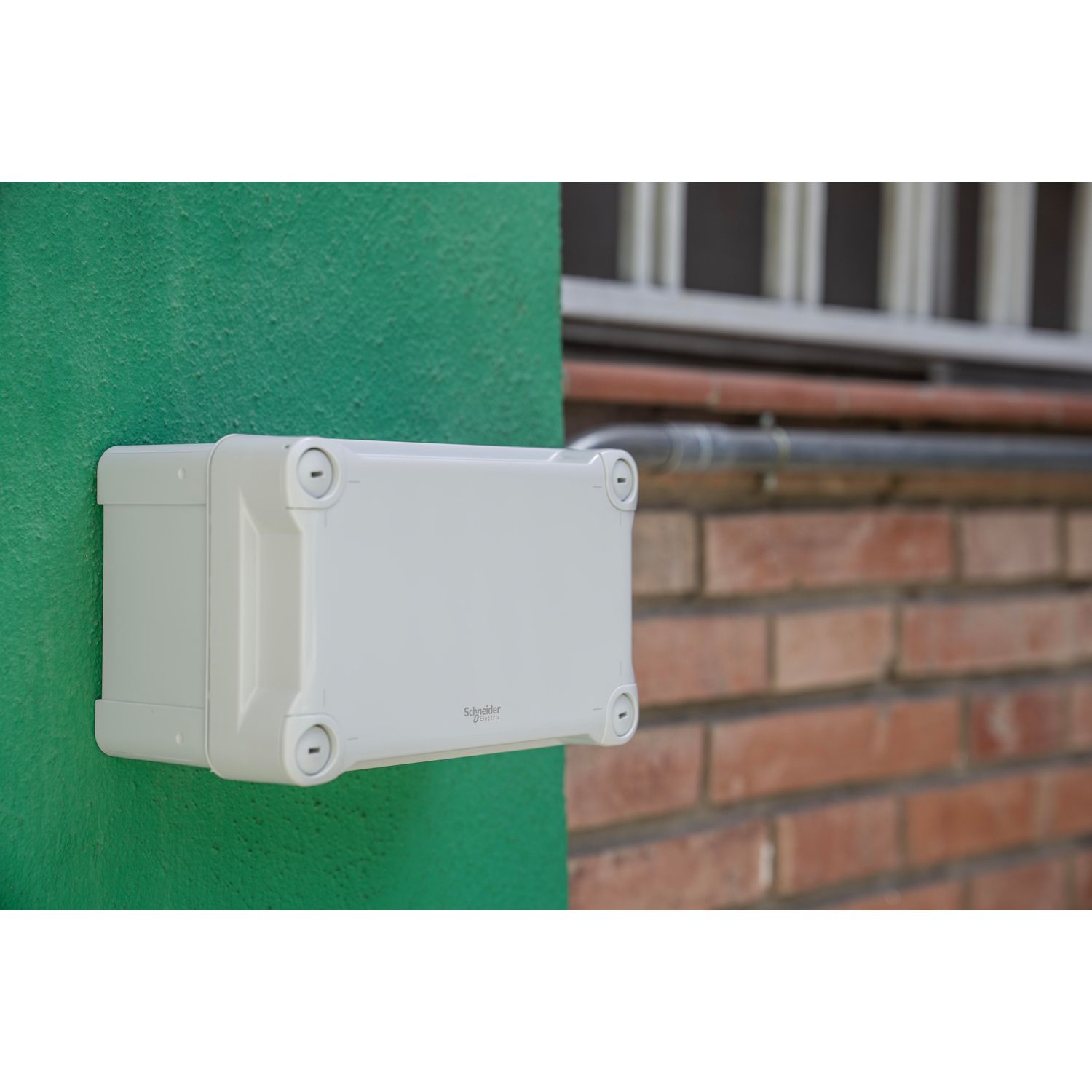

Thalassa TBP industrial PC box with opaque PC cover H20. Int is 225 x 175 x 80 mm. Ext is 241 x 194 x 194 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Enclosure mounting | wall mounted |
| Cover fixing | plastic screws |
| Range | Thalassa |
| Type of front cover | low plain cover |
| Lock type | captive screw flat outside sealed area |
| Internal depth | 80 mm |
| Internal height | 225 mm |
| Height | 241 mm |
| Removable parts | cover by captive screws |
| Depth | 87 mm |
| Width | 194 mm |
| Body type | one piece moulded |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Product name | Thalassa TBP |
| Internal width | 175 mm |
| Product or component type | industrial box |
| Complementary | |
| Colour | grey (RAL 7035) |
| Mounting location | outdoor (with canopy or shelter and anticondensation valve) |
| Electrical insulation class | class II |
| Material | polycarbonate |
| Net weight | 0.64 kg |
| Standards | IEC 62208, UL 508 A |
| Product certifications | UL, TÜV |
| Environment | |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15-60 °C |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| Ambient air temperature for operation | -25-80 °C |
| IK degree of protection | IK08 conforming to IEC 62262 |
