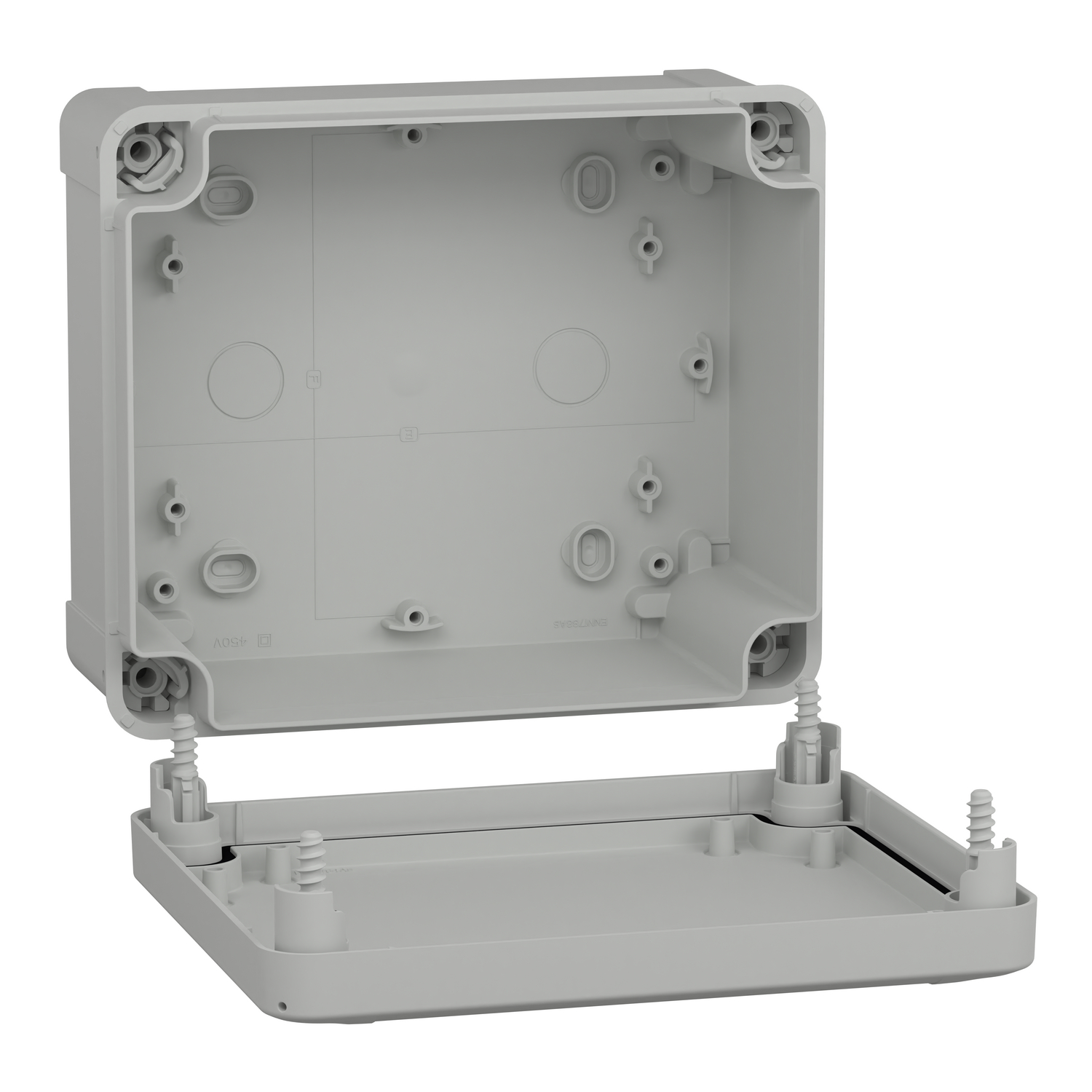

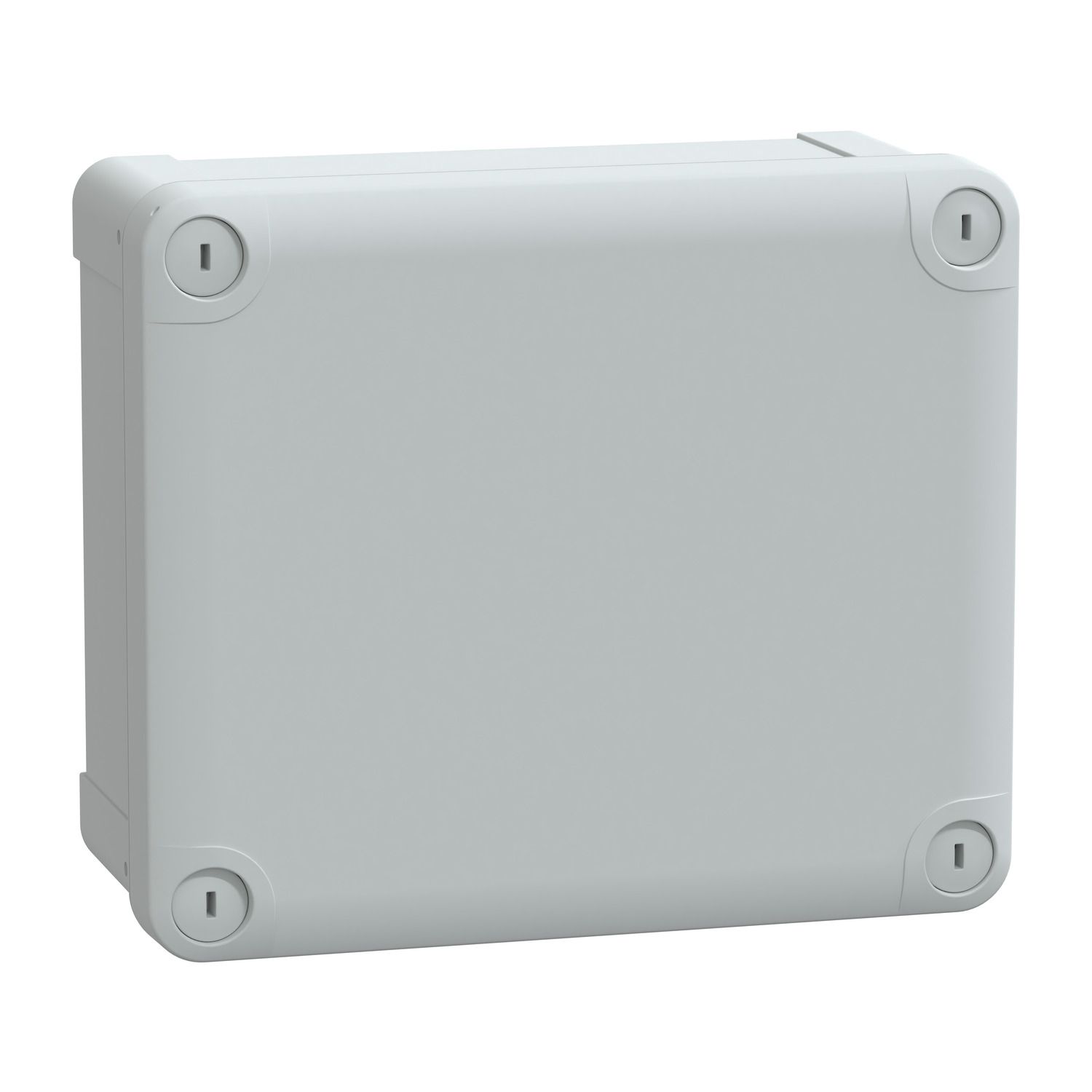

ABS industrial box for Thalassa TBS. Multi purpose. 192 x 164 x 87 mm. Wall mounted on enclosure. One piece moulded. Lock by Captive screw flat outside sealed area. Cover fixing by 4 plastic screws. Protection IP 66, IK07, electrical insulation class 2.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Enclosure mounting | wall mounted |
| Cover fixing | plastic screws |
| Range | Thalassa |
| Type of front cover | low plain cover |
| Lock type | captive screw flat outside sealed area |
| Internal depth | 80 mm |
| Internal height | 175 mm |
| Height | 192 mm |
| Removable parts | cover by captive screws |
| Depth | 87 mm |
| Width | 164 mm |
| Body type | one piece moulded |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Product name | Thalassa TBS |
| Internal width | 150 mm |
| Product or component type | industrial box |
| Complementary | |
| Colour | grey (RAL 7035) |
| Fire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15-40 °C |
| Electrical insulation class | class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| Ambient air temperature for operation | -25-60 °C |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Net weight | 0.45 kg |
| Standards | IEC 62208 |
| Product certifications | TÜV |
