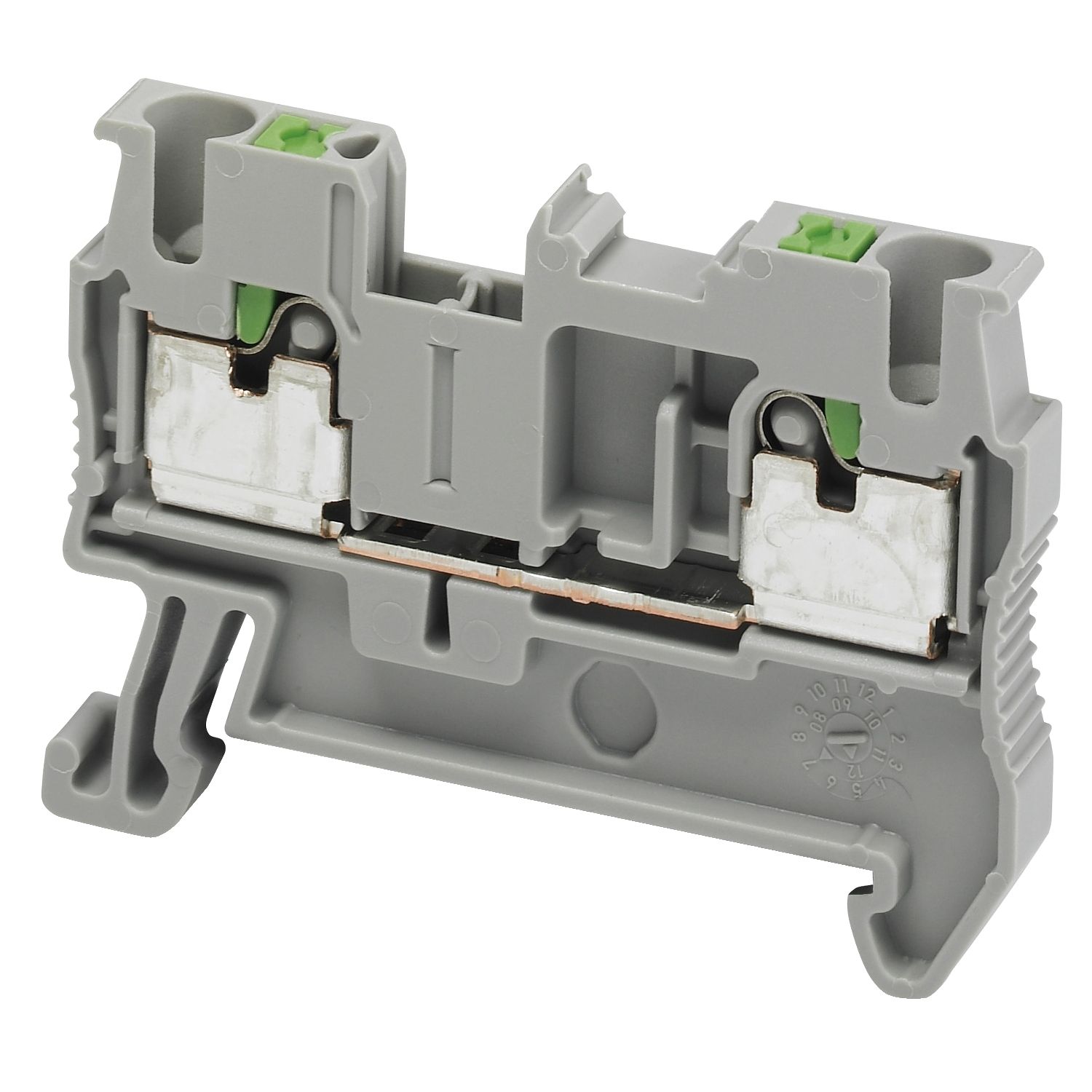

Terminal block, Linergy, Linergy TR, push-in type, feed through, 2 points, 2.5mm², grey, set of 50

Manufacturer: Schneider Electric

SKU: NSYTRP22

GTIN: 3606480533129

Catalog

Environmental Disclosure

Declaration of conformity

Old price: $2.76 inc GST

Price: $2.24 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL). Multi standards certified (VDE, LR, cURus, IEC-Ex, ATEX, EAC, GL, CSA). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name	Attribute value
Main
Quantity per set	set of 50
Accessory / separate part category	connection accessory
Terminal block level	1
Length	48.5 mm
Device short name	TRP
Colour	grey
Mounting mode	clip-on
Range	Linergy
Range of product	Linergy
Nominal cross section	2.5 mm²
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	passthrough
Complementary
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code	terminal block
Wire stripping length	10 mm
Tool type	disconnection: flat screwdriver, connection: without tool
Number of measurement input	2
Connection position	top
Connections - terminals	1 x push-in: downstream, 1 x push-in: upstream
Height	36.5 mm
[In] rated current	20-20 A cURus, 20-20 A CSA, 24-24 A conforming to EN/IEC 60947-7-1
Material	chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Dielectric constant	3.7 at 1 MHz
Net weight	7.2 g
Number of terminals	2
Product compatibility	Spacial enclosures
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage	600 V cURus, 600 V CSA, 800 V conforming to EN/IEC 60947-7-1
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width	5.2 mm
Cable cross section	0.2-2.5 mm², solid without cable end, 0.2-2.5 mm², flexible with cable end, 0.14-4 mm², solid with cable end, 0.14-2.5 mm², flexible without cable end
Environment
Product certifications	LR, CSA, EAC, VDE, ATEX, IEC-Ex, GL, cURus
Ambient air temperature for operation	-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength	1000 V conforming to IEC 60243-1
