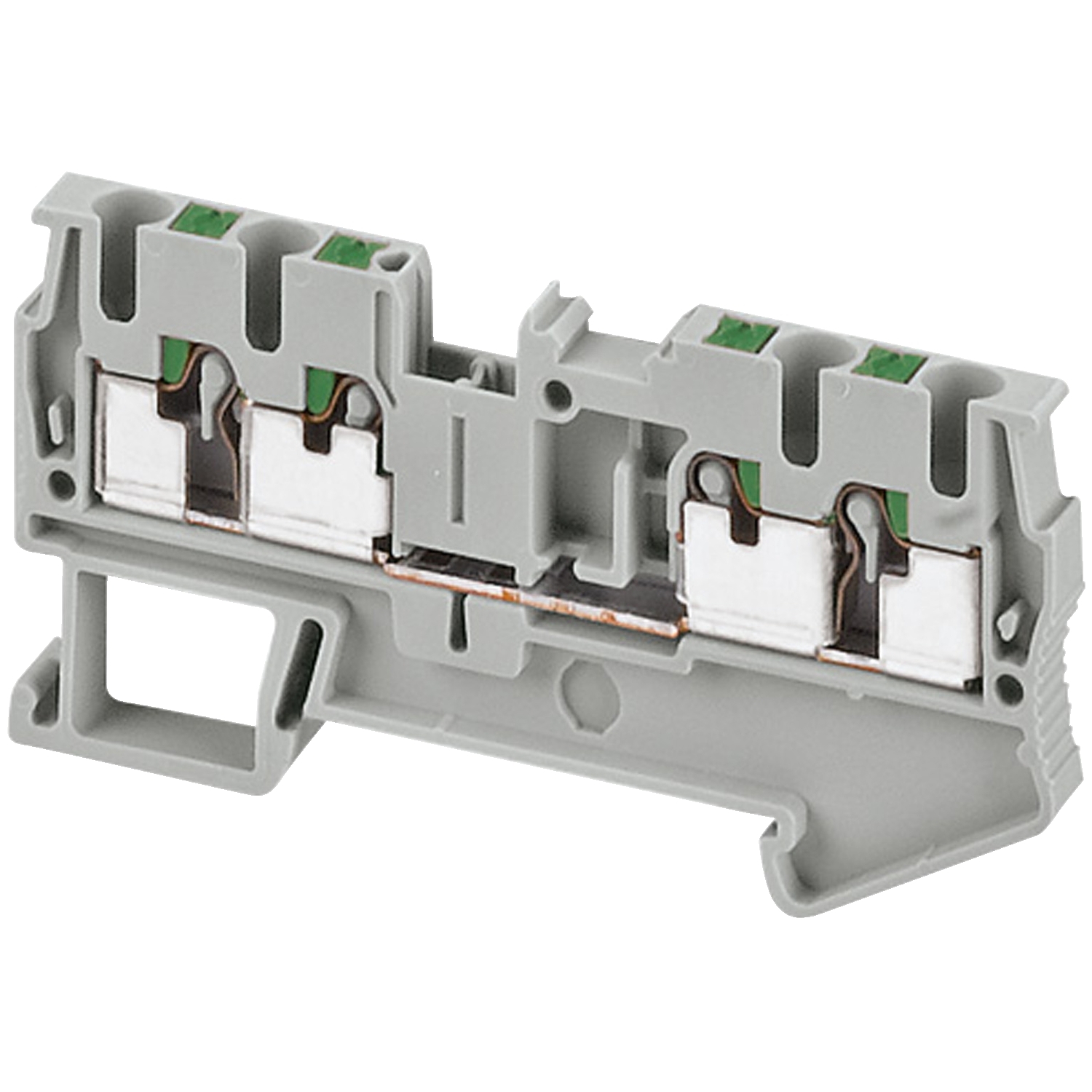

Terminal block, Linergy, Linergy TR, push-in type, feed through, 4 points, 2.5mm², grey, set of 50

Manufacturer: Schneider Electric

SKU: NSYTRP24

GTIN: 3606480533204

Catalog

Environmental Disclosure

Declaration of conformity

Old price: $3.85 inc GST

Price: $3.12 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment Mounting by clip-on and top connection by single-level 2x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name	Attribute value
Main
Device short name	TRP
Colour	grey
Quantity per set	set of 50
Mounting mode	clip-on
Range	Linergy
Accessory / separate part category	connection accessory
Range of product	Linergy
Nominal cross section	2.5 mm²
Terminal block level	1
Length	72 mm
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	passthrough
Complementary
Product compatibility	Spacial enclosures
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code	terminal block
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length	10 mm
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Tool type	disconnection: flat screwdriver, connection: without tool
Number of measurement input	2
Connection position	top
Connections - terminals	2 x push-in: upstream, 2 x push-in: downstream
Height	36.5 mm
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage	600 V cURus, 600 V CSA, 800 V conforming to EN/IEC 60947-7-1
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
[In] rated current	20-20 A cURus, 20-20 A CSA, 24-24 A conforming to EN/IEC 60947-7-1
Width	5.2 mm
Material	chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Dielectric constant	3.7 at 1 MHz
Net weight	10.6 g
Cable cross section	0.8-2.5 mm², flexible with cable end, 0.2-2.5 mm², solid without cable end, 0.14-4 mm², solid with cable end, 0.14-2.5 mm², flexible without cable end
Number of terminals	4
Environment
Ambient air temperature for operation	-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength	1000 V conforming to IEC 60243-1
Product certifications	CSA, VDE, EAC, IEC-Ex, LR, cURus, ATEX, GL
