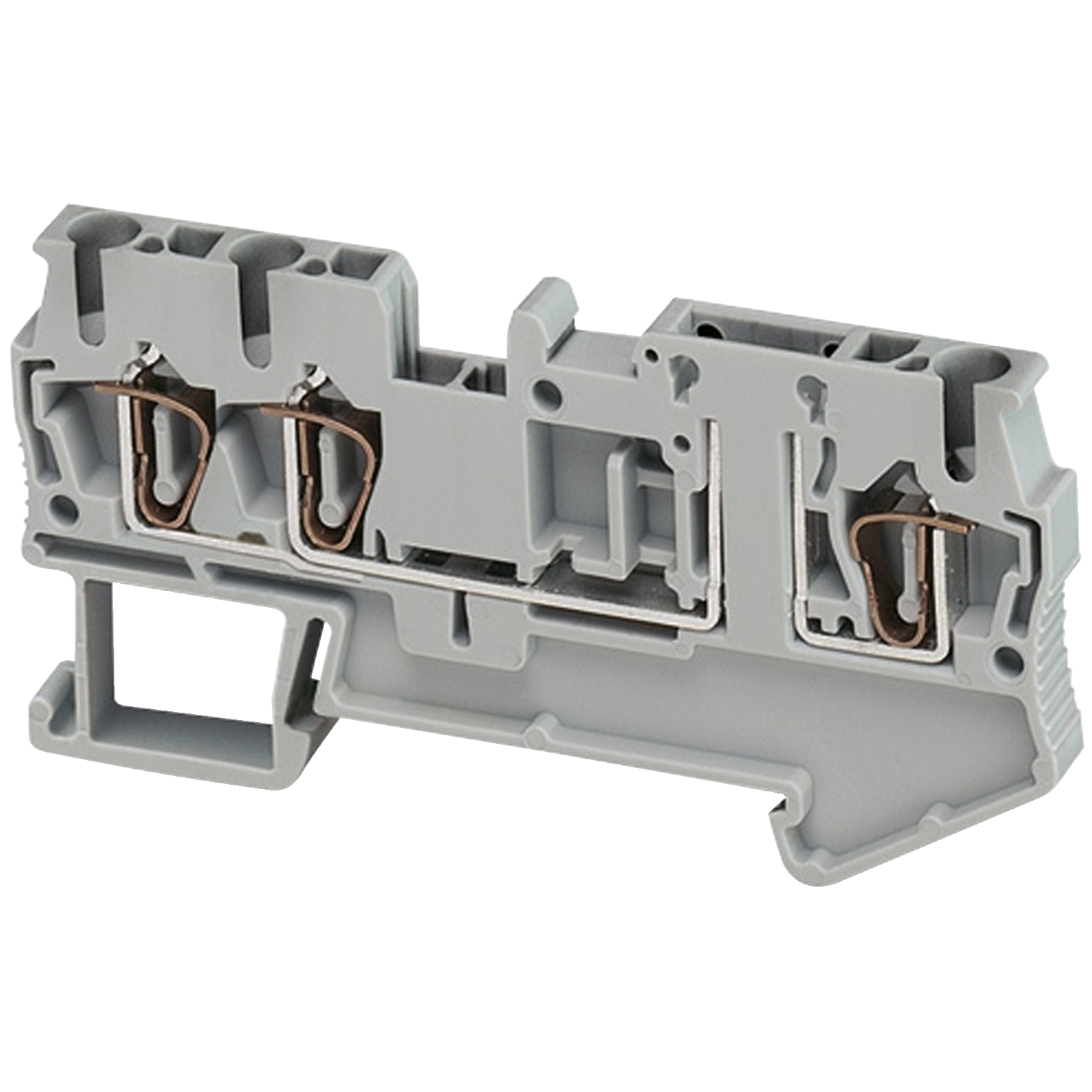

Linergy TR is terminal block for Linergy. It belongs to linergy Disconnect terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/UL and 400V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 16A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 spring terminals. It could be connection and disconnection by flat screwdriver. It is compatible with enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TRR |
| Associated connection component | cylindrical fuse, diode, blade |
| Colour | grey |
| Quantity per set | set of 50 |
| Mounting mode | clip-on |
| Range | Linergy |
| Range of product | Linergy |
| Nominal cross section | 2.5 mm² |
| Terminal block level | 1 |
| Length | 72 mm |
| Product name | Linergy TR |
| Product or component type | terminal block |
| Terminal block type | removable carrier disconnect |
| Complementary | |
| Product compatibility | Spacial enclosures |
| Range compatibility | TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Surface resistance | 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093 |
| Compatibility code | terminal block |
| Resistivity | 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093 |
| Wire stripping length | 10 mm |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Tool type | connection: flat screwdriver, disconnection: flat screwdriver |
| Number of measurement input | 2 |
| Connection position | top |
| Connections - terminals | 2 x spring terminal: downstream, 1 x spring terminal: upstream |
| Height | 36.5 mm |
| Fuse size | 6 x 32 mm, 5 x 20 mm |
| Dielectric loss | 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250 |
| [Ue] rated operational voltage | 300 V CSA, 300 V cURus, 400 V conforming to EN/IEC 60947-7-1 |
| Creep resistance | 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093 |
| [In] rated current | 16-16 A cURus, 16-16 A CSA, 20-20 A conforming to EN/IEC 60947-7-1 |
| Width | 5.2 mm |
| Material | polyamide 6/6: insulating case |
| Dielectric constant | 3.7 at 1 MHz |
| Net weight | 8.6 g |
| Cable cross section | 0.8-4 mm², solid, 0.08-2.5 mm², flexible without cable end |
| Number of terminals | 3 |
| Environment | |
| Ambient air temperature for operation | -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1 |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Product certifications | cURus, CSA, EAC |
