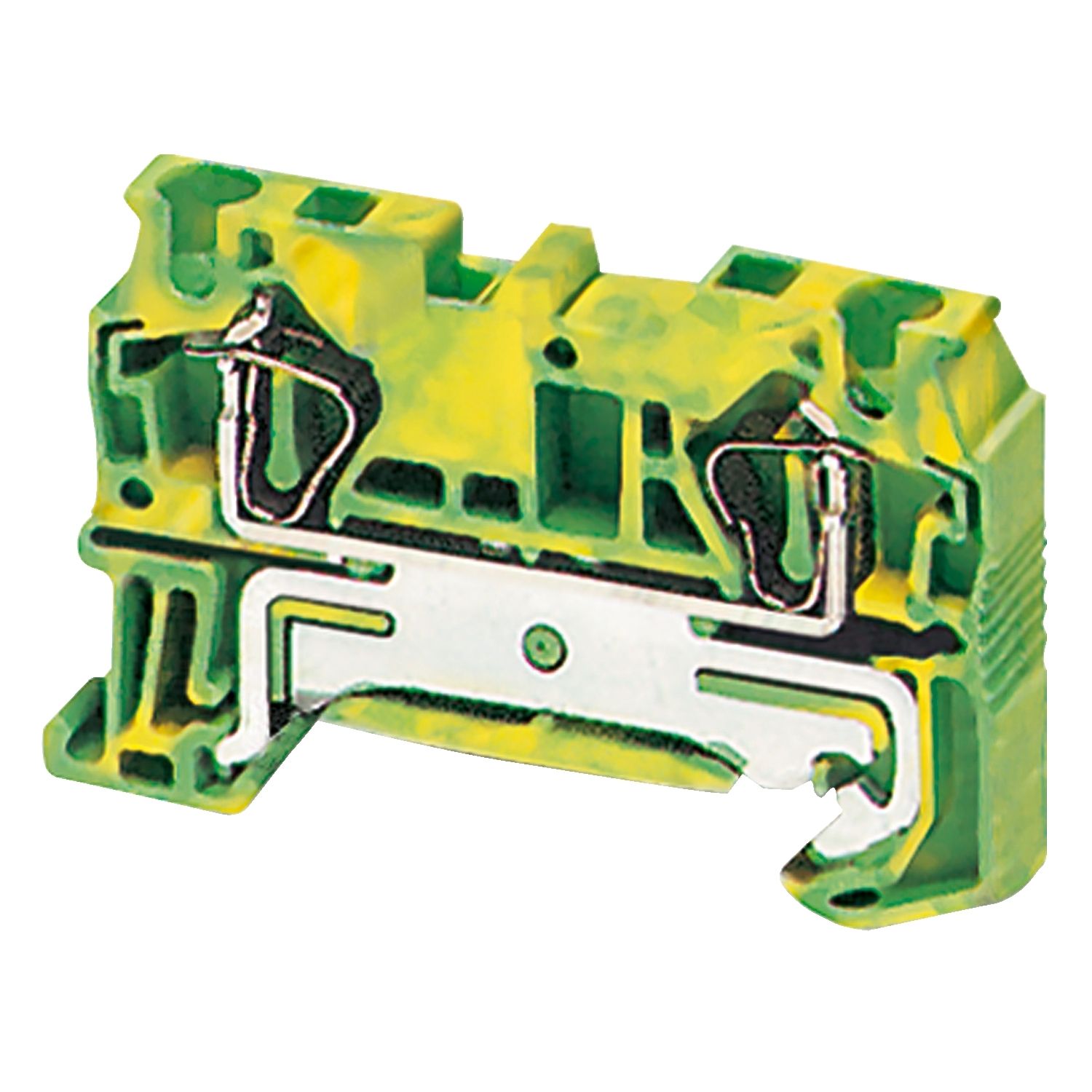

Terminal block, Linergy TR, spring type, protective earth, 2 points, 4mm², green-yellow, set of 50

Manufacturer: Schneider Electric

SKU: NSYTRR42PE

GTIN: 3606480532702

Catalog

Environmental Disclosure

Declaration of conformity

Old price: $10.51 inc GST

Price: $8.51 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

Linergy TR is terminal block for Linergy. It belongs to linergy protective earth terminal block with 4 mm² nominal cross section. Mounting by clip-on and top connection by single-level 1x1 Spring terminals. It could be connection and disconnection by flat screwdriver. It has Green/Yellow surface treatment. Sold in lots of 50 units. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name	Attribute value
Main
Quantity per set	set of 50
Terminal block level	1
Length	56 mm
Device short name	TRR
Colour	green-yellow
Mounting mode	clip-on
Range	Linergy
Range of product	Linergy
Nominal cross section	4 mm²
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	protective earth
Complementary
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code	terminal block
Wire stripping length	10 mm
Tool type	disconnection: flat screwdriver, connection: flat screwdriver
Number of measurement input	2
Connection position	top
Connections - terminals	1 x spring terminal: downstream, 1 x spring terminal: upstream
Height	36.5 mm
Material	polyamide 6/6: insulating case
Dielectric constant	3.7 at 1 MHz
Net weight	12.7 g
Number of terminals	2
Product compatibility	Spacial enclosures
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width	6.2 mm
Cable cross section	0.08-4 mm², flexible without cable end, 0.2-4 mm², flexible with cable end, 0.08-4 mm², solid
Environment
Product certifications	VDE, ATEX, CSA, EAC, DNV, IEC-Ex, GL, LR, cURus
Ambient air temperature for operation	-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength	1000 V conforming to IEC 60243-1
