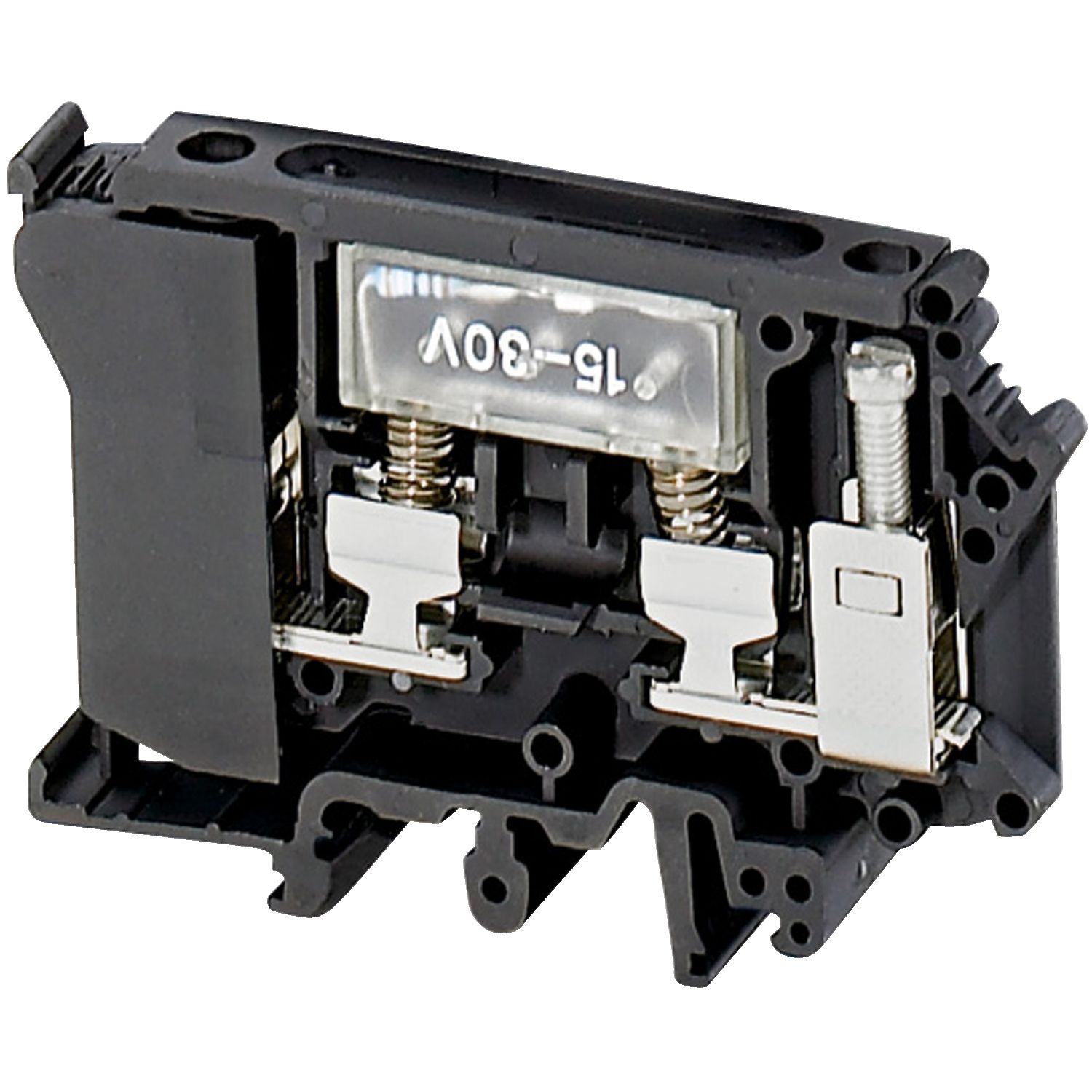

Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 16 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 10A conforming to EN/IEC 60947-7-1, 10A conforming to CSA/UL. It has black surface treatment with light indicator. Mounting by clip-on and sideways connection with 6.3x32 mm fuse. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 50 |
| Terminal block level | 1 |
| Length | 79 mm |
| Device short name | TRV |
| Colour | black |
| Mounting mode | clip-on |
| Range | Linergy |
| Range of product | Linergy |
| Nominal cross section | 16 mm² |
| Product name | Linergy TR |
| Product or component type | terminal block |
| Terminal block type | fused disconnect |
| Complementary | |
| Range compatibility | TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Compatibility code | terminal block |
| Wire stripping length | 9 mm |
| Tool type | disconnection: screwdriver, connection: screwdriver |
| Number of measurement input | 0 |
| Connection position | sideways |
| Connections - terminals | 1 x screw terminal: downstream, 1 x screw terminal: upstream |
| Height | 60.5 mm |
| Fuse size | 6.3 x 32 mm |
| [In] rated current | 10-10 A CSA, 10-10 A cURus, 10-10 A conforming to EN/IEC 60947-7-1 |
| Material | polyamide 6/6: insulating case |
| Dielectric constant | 3.7 at 1 MHz |
| Net weight | 34.2 g |
| Provided equipment | 12...30 V light indicator |
| Number of terminals | 2 |
| Product compatibility | Spacial enclosures |
| Tightening torque | 0.6-0.8 N.m |
| Surface resistance | 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093 |
| Resistivity | 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Dielectric loss | 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250 |
| [Ue] rated operational voltage | 600 V CSA, 600 V cURus, 500 V conforming to EN/IEC 60947-7-1 |
| Creep resistance | 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093 |
| Width | 10.2 mm |
| Cable cross section | 0.5-16 mm², solid, 0.5-16 mm², flexible without cable end |
| Environment | |
| Product certifications | EAC, cURus, CSA |
| Ambient air temperature for operation | -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1 |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
