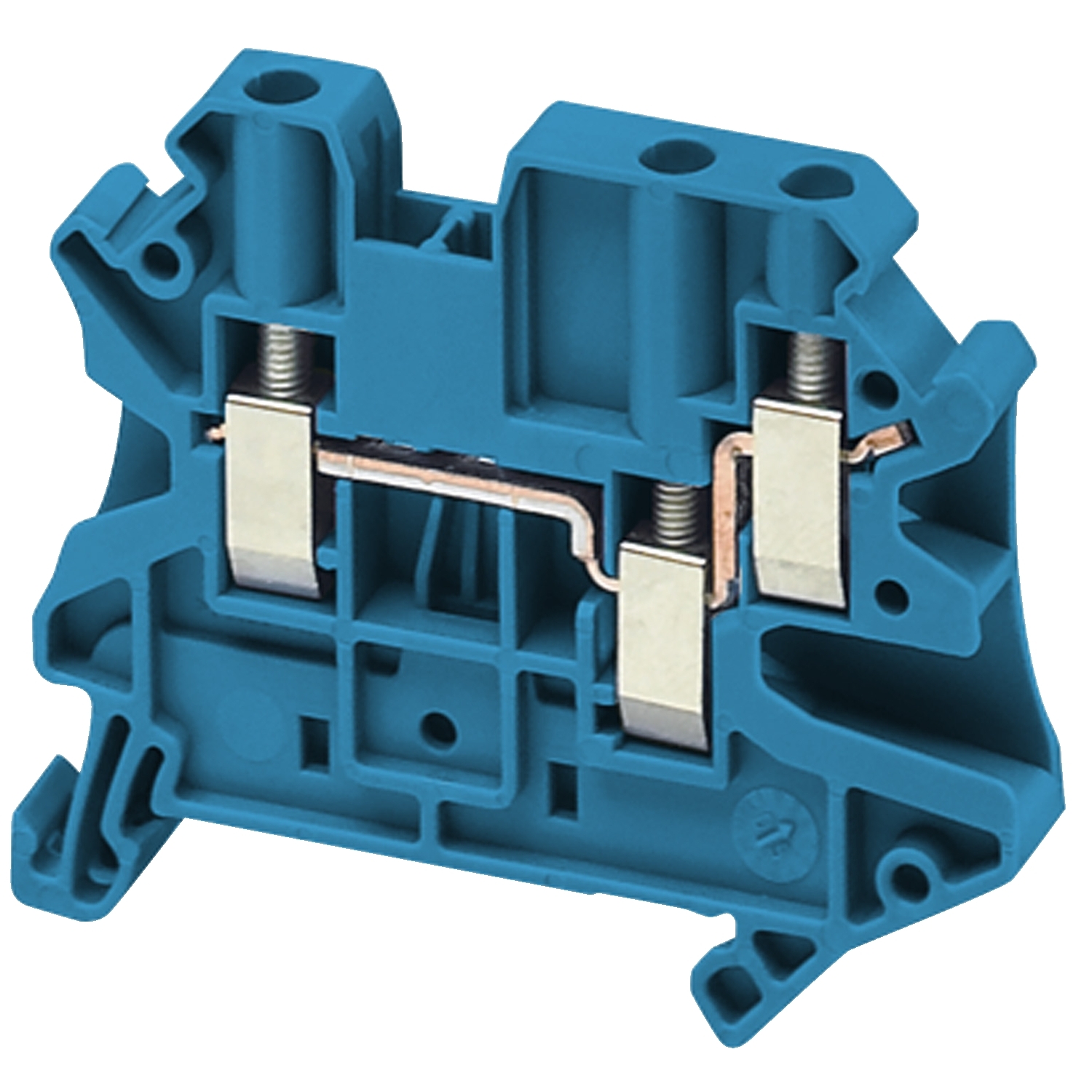

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1000V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1, 26A conforming to CSA/UL. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, LR, DNV). It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TRV |
| Colour | blue |
| Quantity per set | set of 50 |
| Mounting mode | clip-on |
| Range | Linergy |
| Accessory / separate part category | connection accessory |
| Range of product | Linergy |
| Nominal cross section | 4 mm² |
| Terminal block level | 1 |
| Length | 57.8 mm |
| Product name | Linergy TR |
| Product or component type | terminal block |
| Terminal block type | passthrough |
| Complementary | |
| Product compatibility | Spacial enclosures |
| Tightening torque | 0.6-0.8 N.m |
| Range compatibility | TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Surface resistance | 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093 |
| Compatibility code | terminal block |
| Resistivity | 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093 |
| Wire stripping length | 9 mm |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Tool type | disconnection: screwdriver, connection: screwdriver |
| Number of measurement input | 2 |
| Connection position | sideways |
| Height | 47.5 mm |
| Dielectric loss | 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250 |
| [Ue] rated operational voltage | 150 V cURus, 352 V conforming to ATEX Exe II Ex II 2 GD, 500 V conforming to EN/IEC 60947-7-1 |
| Creep resistance | 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093 |
| [In] rated current | 29-29 A conforming to ATEX Exe II Ex II 2 GD, 30-30 A cURus, 32-32 A conforming to EN/IEC 60947-7-1 |
| Width | 6.2 mm |
| Material | chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case |
| Cable cross section | 0.14-6 mm², solid cable without cable end, 0.14-6 mm², flexible cable without cable end, 0.2-4 mm², flexible cable with cable end, 0.14-6 mm², solid cable with cable end |
| Dielectric constant | 3.7 at 1 MHz |
| Connections - terminals | 2 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3) |
| Net weight | 14 g |
| Number of terminals | 3 |
| Environment | |
| Ambient air temperature for operation | -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1 |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Product certifications | LR, CSA, EAC, GL, ATEX, IEC-Ex, cURus, DNV |
Only registered users can write reviews
Related products

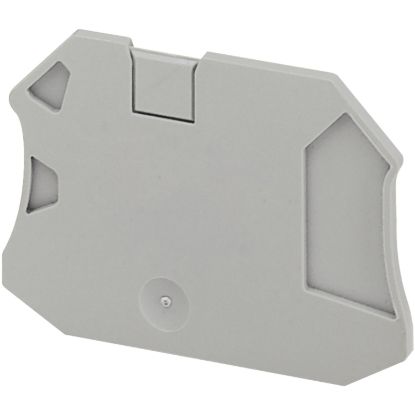

Cover plate, Linergy TR, 3 points, 2.2mm width, for screw terminals NSYTRAC23, grey, Set of 50
NSYTRAC23
Cover plate, Linergy TR, 3 points, 2.2mm width, for screw terminals NSYTRAC23, grey, Set of 50
$1.89 inc GST
$1.53 inc GST
End Bracket, Linergy, Snap-On For 35m DIN Rails, 5,2mm width, Markable
NSYTRAAB35
End Bracket, Linergy, Snap-On For 35m DIN Rails, 5,2mm width, Markable
$1.78 inc GST
$1.44 inc GST
Marking card, Linergy TR, with 6 strips, 6mm, unprinted, 60 characters, white, Set of 10
NSYTRABPV6
Marking card, Linergy TR, with 6 strips, 6mm, unprinted, 60 characters, white, Set of 10
$13.53 inc GST
$10.96 inc GST
Marking strip, Linergy TR, clip in type, 6mm, characters 1 to 10, printed horizontal, numeric, set of 10
NSYTRAB610
Marking strip, Linergy TR, clip in type, 6mm, characters 1 to 10, printed horizontal, numeric, set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, characters 91 to 100, printed horizontal, numeric, Set of 10
NSYTRAB6100
Marking strip, Linergy TR, clip in type, 6mm, characters 91 to 100, printed horizontal, numeric, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, characters N,L1,L2,L3,PE, printed horizontal, symbolic, Set of 10
NSYTRAB6L1N
Marking strip, Linergy TR, clip in type, 6mm, characters N,L1,L2,L3,PE, printed horizontal, symbolic, Set of 10
$2.59 inc GST
$2.10 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 11 to 20, printed horizontal, white, Set of 10
NSYTRAB620
Marking strip, Linergy TR, clip in type, 6mm, printed characters 11 to 20, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 21 to 30, printed horizontal, white, Set of 10
NSYTRAB630
Marking strip, Linergy TR, clip in type, 6mm, printed characters 21 to 30, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 31 to 40, printed horizontal, white, Set of 10
NSYTRAB640
Marking strip, Linergy TR, clip in type, 6mm, printed characters 31 to 40, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 41 to 50, printed horizontal, white, Set of 10
NSYTRAB650
Marking strip, Linergy TR, clip in type, 6mm, printed characters 41 to 50, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 51 to 60, printed horizontal, white, Set of 10
NSYTRAB660
Marking strip, Linergy TR, clip in type, 6mm, printed characters 51 to 60, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 61 to 70, printed horizontal, white, Set of 10
NSYTRAB670
Marking strip, Linergy TR, clip in type, 6mm, printed characters 61 to 70, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 71 to 80, printed horizontal, white, Set of 10
NSYTRAB680
Marking strip, Linergy TR, clip in type, 6mm, printed characters 71 to 80, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 81 to 90, printed horizontal, white, Set of 10
NSYTRAB690
Marking strip, Linergy TR, clip in type, 6mm, printed characters 81 to 90, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Plug, Linergy TR, insulating sleeve for test plug metalic part NSYTRAAM1, Red
NSYTRAATP1
Plug, Linergy TR, insulating sleeve for test plug metalic part NSYTRAAM1, Red
$11.99 inc GST
$9.71 inc GST

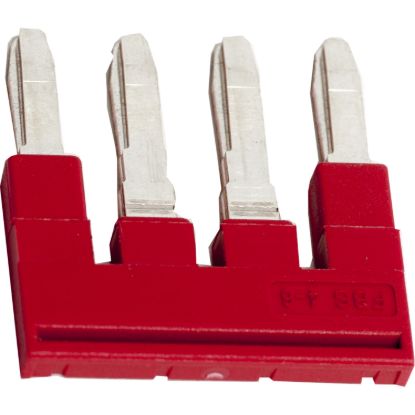

Plug-in bridge, Linergy TR, 4 pole, for 4mm² terminal blocks, red, 4 way, 6.2mm pitch, set of 50
NSYTRAL44
Plug-in bridge, Linergy TR, 4 pole, for 4mm² terminal blocks, red, 4 way, 6.2mm pitch, set of 50
$3.63 inc GST
$2.94 inc GST

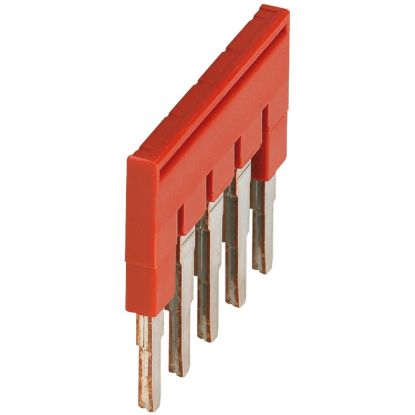

Plug-in bridge, Linergy TR, 5 points, for 4mm² terminal blocks, red, 5 ways, set of 50
NSYTRAL45
Plug-in bridge, Linergy TR, 5 points, for 4mm² terminal blocks, red, 5 ways, set of 50
$3.80 inc GST
$3.08 inc GST

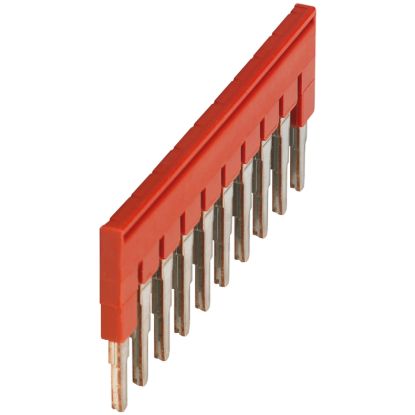

Plug-in bridge, Linergy, Linergy TR, 10 points, for 4mm² terminal blocks, red, 10 way, set of 10
NSYTRAL410
Plug-in bridge, Linergy, Linergy TR, 10 points, for 4mm² terminal blocks, red, 10 way, set of 10
$7.54 inc GST
$6.11 inc GST

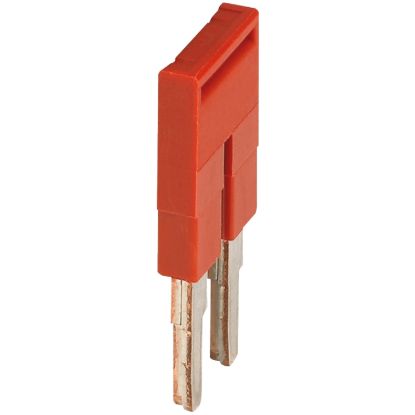

Plug-in bridge, Linergy, Linergy TR, 2 points, for 4mm² terminal blocks, 2 way, red, set of 10
NSYTRAL42
Plug-in bridge, Linergy, Linergy TR, 2 points, for 4mm² terminal blocks, 2 way, red, set of 10
$2.12 inc GST
$1.72 inc GST

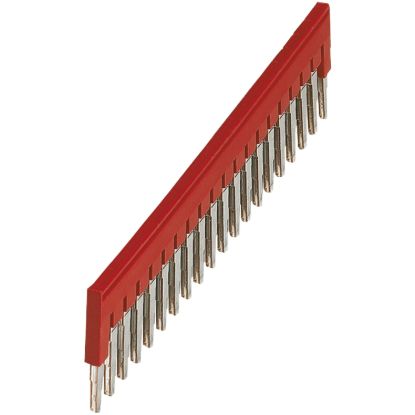

Plug-in bridge, Linergy, Linergy TR, 20 points, for 4mm² terminal blocks, red, 20 way, set of 10
NSYTRAL420
Plug-in bridge, Linergy, Linergy TR, 20 points, for 4mm² terminal blocks, red, 20 way, set of 10
$8.58 inc GST
$6.95 inc GST

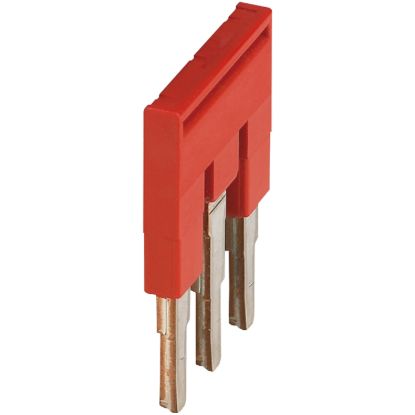

Plug-in bridge, Linergy, Linergy TR, 3 pole, for 4mm² terminal blocks, 6.2mm pitch, red, 3 way, set of 50
NSYTRAL43
Plug-in bridge, Linergy, Linergy TR, 3 pole, for 4mm² terminal blocks, 6.2mm pitch, red, 3 way, set of 50
$3.52 inc GST
$2.85 inc GST

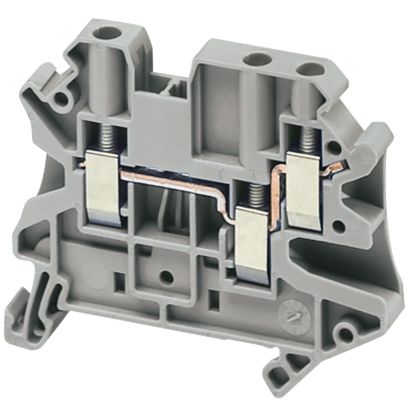

Screw Terminal, Linergy, Feed Through, 3 Points, 4mm² , Grey
NSYTRV43
Screw Terminal, Linergy, Feed Through, 3 Points, 4mm² , Grey
$2.41 inc GST
$1.95 inc GST

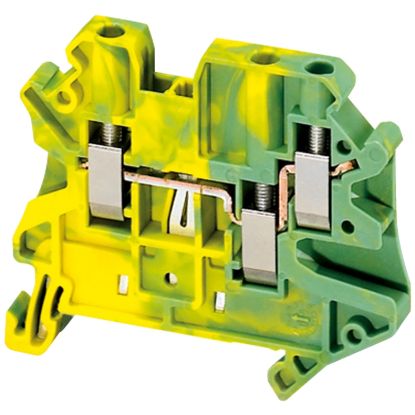

Terminal block, Linergy TRl, green-yellow, 4mm2, protective earth, 3 points, Set of 50
NSYTRV43PE
Terminal block, Linergy TRl, green-yellow, 4mm2, protective earth, 3 points, Set of 50
$6.22 inc GST
$5.04 inc GST
Terminal Marker Carrier for End Bracket NSYTRAAB35, Linergy, NSYTRAAB15
NSYTRASB4
Terminal Marker Carrier for End Bracket NSYTRAAB35, Linergy, NSYTRAAB15
$5.12 inc GST
$4.15 inc GST
Test Adapter for 4mm Safety Test Plugs, Linergy, Plugs In The Bridge Shafts
NSYTRAFT
Test Adapter for 4mm Safety Test Plugs, Linergy, Plugs In The Bridge Shafts
$3.58 inc GST
$2.90 inc GST

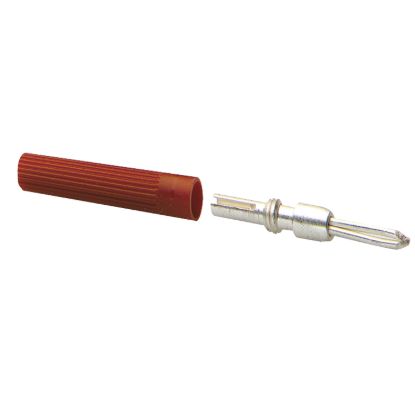

Test plug, Linergy TR, metallic part, for diameter 2.3mm socket hole
NSYTRAATM1
Test plug, Linergy TR, metallic part, for diameter 2.3mm socket hole
$11.99 inc GST
$9.71 inc GST

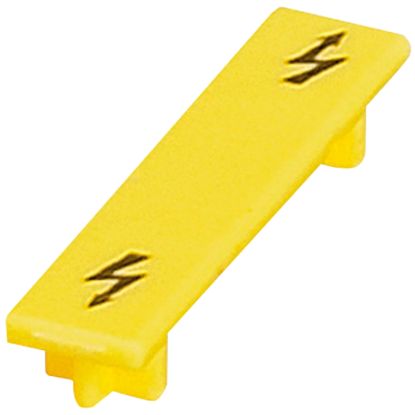

WARNING LABEL FOR 4MM² SCREW TERMINAL BLOCKS, Linergy, YELLOW
