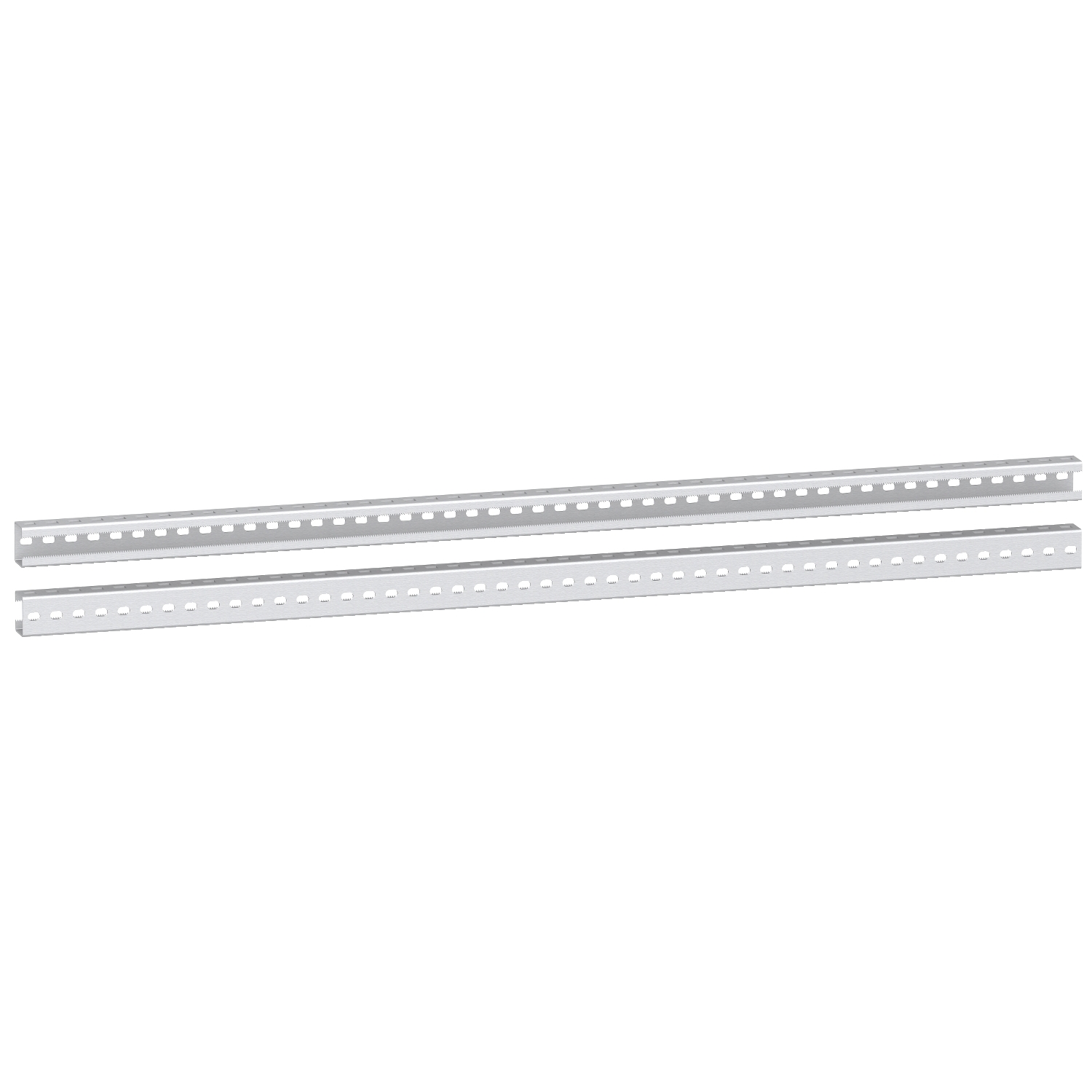

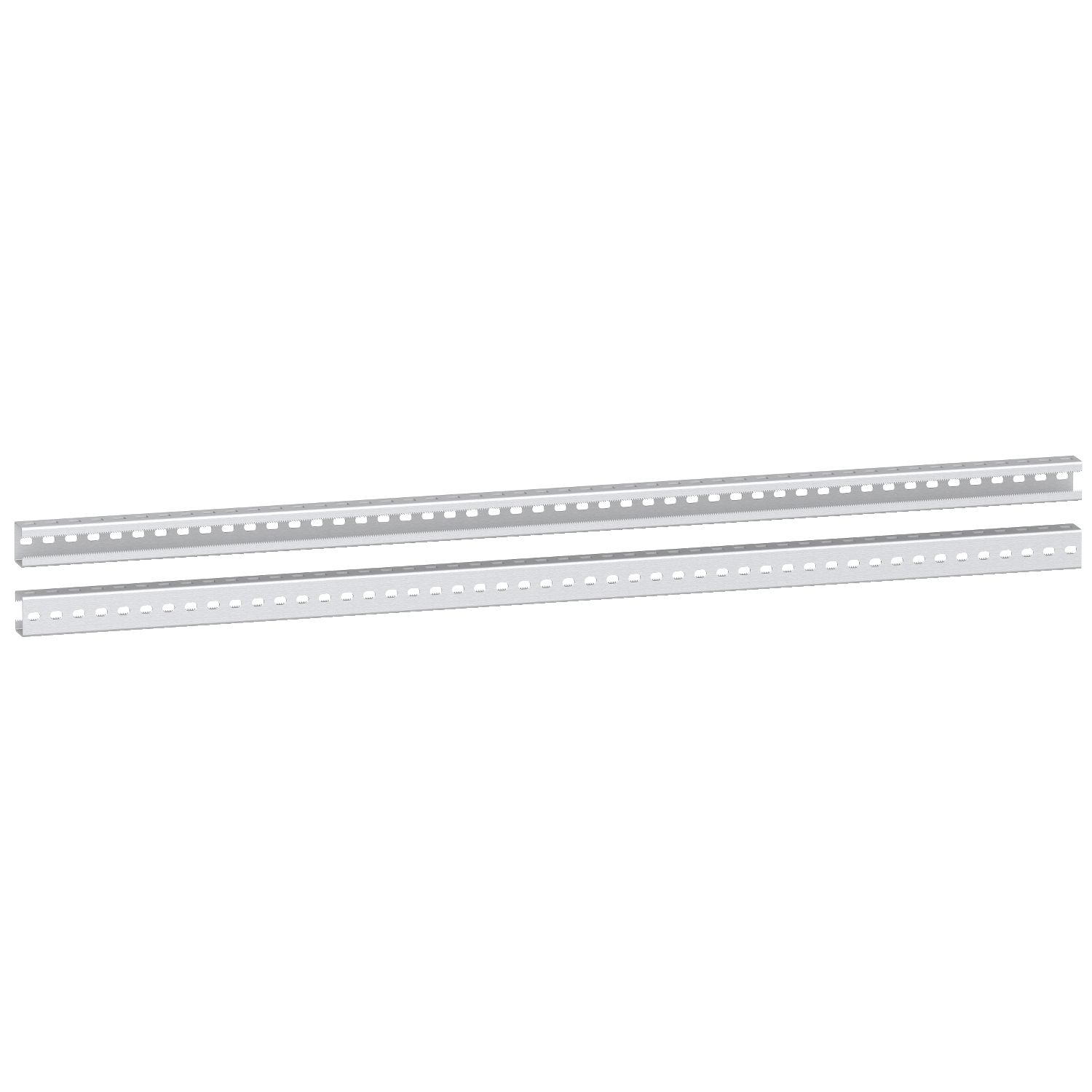

2mm thick steel technical upright for Thalassa PLA enclosures The width is 45mm The nominal height is 750mm and real height is 625mm The depth is 34mm The uprights are used for mounting chassis and fixing wiring accessories Mounting is adjustable in height every 2,5mm with quarter-turn nuts Fixed by bosses inserts of type M8 on rear of enclosure location Cut-out dimension is 11 x 13mm Anti-corrosion protection is ensured by zinc coating The product is made of x 2 uprights This product is qualified as a green premium, with minimal use of hazardous substances
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Range | Thalassa |
| Accessory / separate part category | mounting accessory |
| Enclosure nominal dimensions | - |
| Material | steel |
| Device composition | 2 upright |
| Product or component type | technical upright |
| Range compatibility | Thalassa Thalassa PLA |
| Mounting support | step slide, direct fixing on the rear inserts |
| Complementary | |
| Width | 45 mm |
| Cut-out dimensions | 11 x 13 mm |
| Depth | 34 mm |
| Fixing mode | bosses inserts - screw type M8 - rear of enclosure location |
| Thickness | 2 mm |
| Surface finish | zinc coated |
| Adjustment | adjustable in height every 2.5 mm with quarter-turn nuts |
| Height | 625 mm real: , 750 mm nominal: |
