Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PBXA |
| Control station type | double insulated |

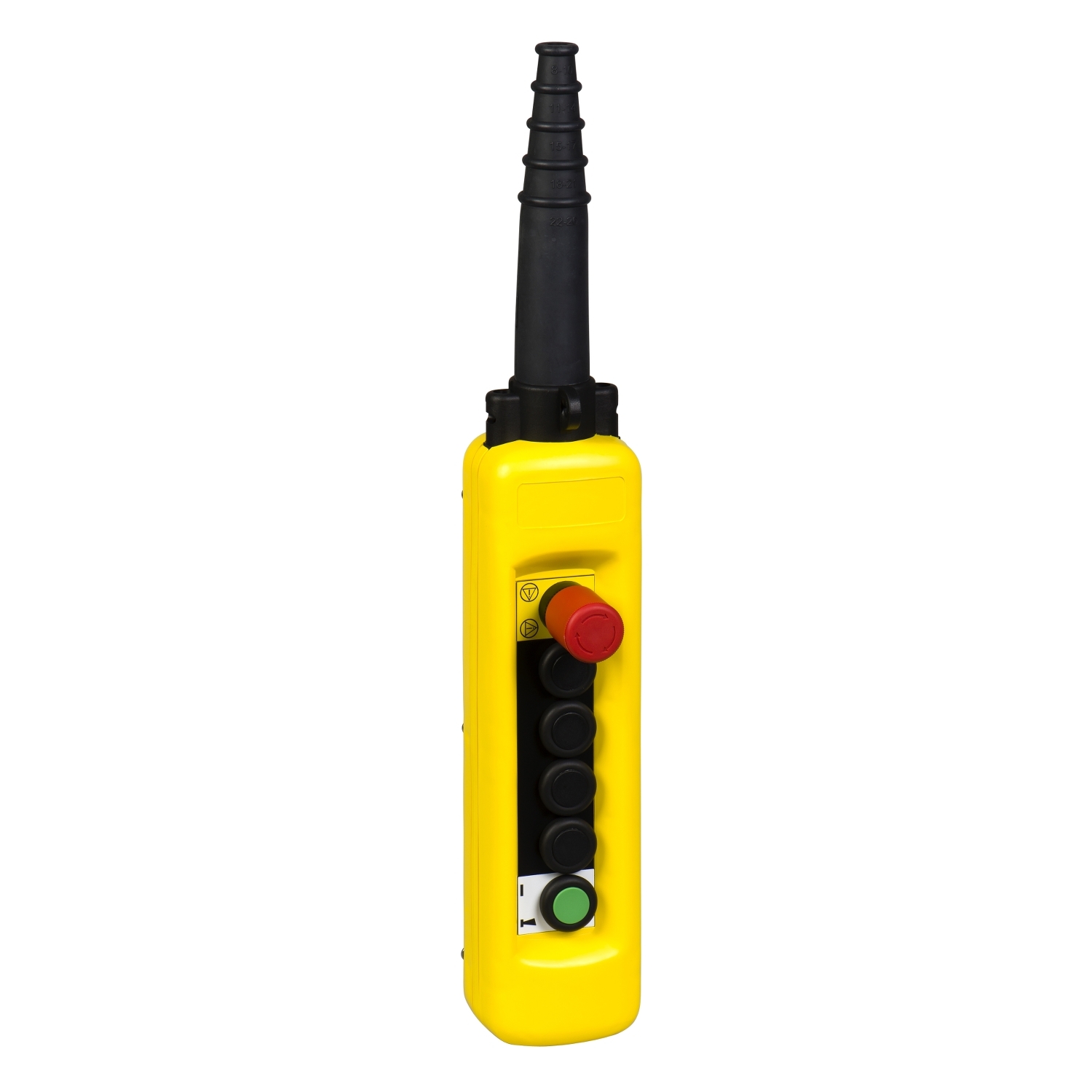

| Product or component type | pendant control station |
| Complementary | |
| Enclosure material | polypropylene |
| Mechanical durability | 3000000 cycles |
| Control station colour | yellow |
| Mechanical interlocking | with mechanical interlocking |
| Contact operation | snap action |
| Control station composition | 6 push-buttons |
| Ambient air temperature for storage | -40-70 °C |
| [Ui] rated insulation voltage | 2500 V |
| Control type | intuitive |
| Net weight | 0.42 kg |
| Enclosure type | complete ready for use |
| Cable entry | rubber sleeve with stepped entry 7.5-29.5 mm |
| Environment | |
| Protective treatment | TH |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Standards | NEMA 4X |
| Ambient air temperature for operation | -25-70 °C |
