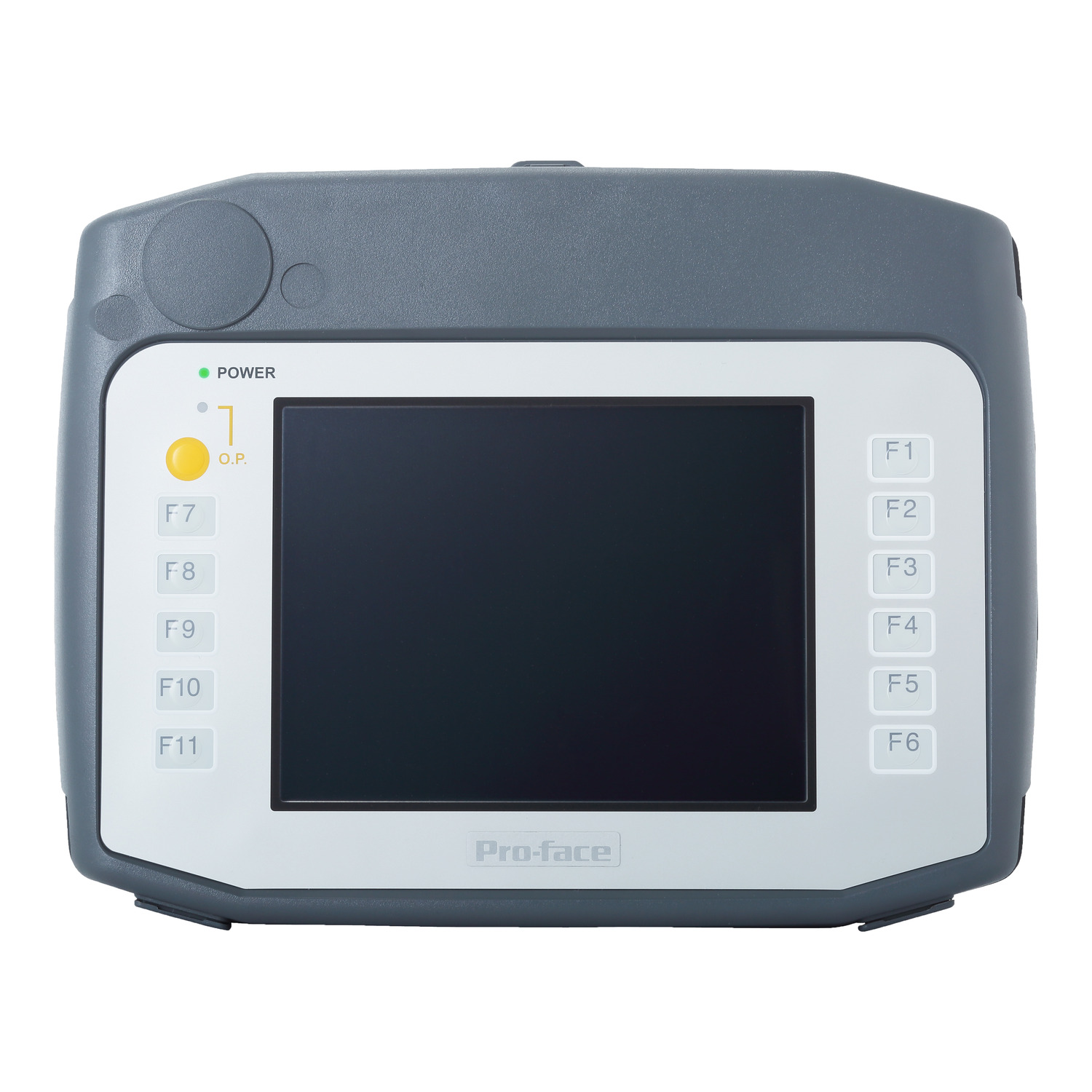

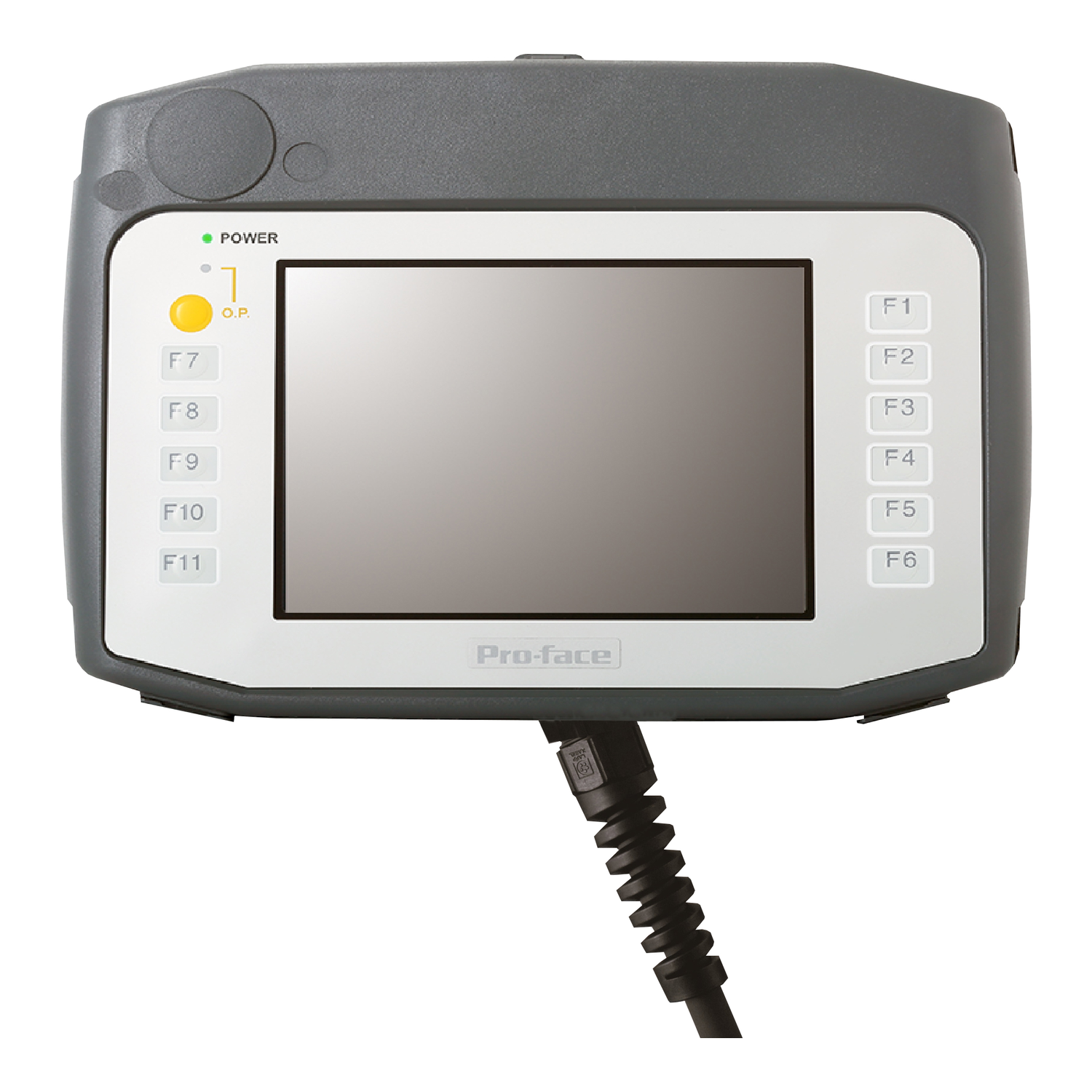

This product belongs to Pro-face GP4000H Series, an offer of advanced handheld HMI. The GP4000H Series provides high compatibility and safety, which is essential for handheld devices. It has a 5.7" color TFT LCD display with 640 x 480 pixels (VGA) resolution and 65,536 colors. The touch panel type is a resistive film (analog). It is equipped with 16MB application memory and 320KB backup memory. This can be easily programmed with GP-Pro EX software, with almost no coding. It also has 1x RS-232C/RS-422/RS-485 port, 1x host port, 1x mini-B USB port, 1x Ethernet port, 1x SD card slot. It also comes with External output, function switches, and a 3-position enable switch. Its dimensions are 224mm (width) x 178.3mm (height) x 87.8mm (depth) and weighs 0.91kg. This product works at a power consumption of 19W and a rated voltage of 24V DC. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. It conforms to standards like CE, UKCA, UL, cUL, KC, RCM, EAC.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Pro-face GP4000 |
| Software designation | GP-Pro EX |
| Product or component type | touch panel screen |
| Complementary | |
| Memory description | backup memory 320 kB, user data memory 32 MB |
| Character font | Thai, Cyrillic, Korean, Chinese (traditional Chinese), Chinese (simplified Chinese), ASCII, Japanese |
| Display type | colour TFT LCD |
| Display colour | 65536 colours |
| Display size | 5.7 inch |
| Type of cooling | AN (air natural) |
| Input voltage limits | 19.2...28.8 V DC |
| Backlight lifespan | 50000 hours with white |
| Electrical connection | cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding |
| Height | 178.3 mm |
| Maximum power consumption in W | 8 W when power is not supplied to external devices, 12 W |
| Depth | 87.8 mm |
| Width | 224 mm |
| Integrated connection type | external output interface, 3-position enable output interface, SD card slot, Ethernet 1 RJ45, interface: 10BASE-T/100BASE-TX, USB 2.0 type mini B, USB 2.0 type A, COM1 serial link, interface: RS232C/RS422/RS485, transmission rate: 187.5 kbps compatible with MPI, COM1 serial link, interface: RS232C/RS422/RS485, transmission rate: 2400...115200 bps |
| Local signalling | status LED red, flashing for ERR (Error), status LED red, steady for power ON, status LED orange, flashing for software starting up, status LED green, flashing for logic stop, status LED green, steady for operating status (RUN), status LED green, steady for offline |
| Touch panel | single touch analogue resistive |
| Rated short-duration power frequency withstand voltage | 1000 V AC during 1 min |
| Net weight | 0.91 kg |
| Display resolution | 640 x 480 pixels VGA |
| Inrush current | 35 A |
| Brightness | 16 levels via touch panel |
| [Us] rated supply voltage | 24 V DC |
| Environment | |
| Relative humidity | 10-90 % non condensing |
| Environmental characteristic | corrosive gas free |
| Ambient air temperature for storage | -20-60 °C |
| Directives | 1907/2006/EC - REACH directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| IP degree of protection | IP65f |
| Electromagnetic compatibility | electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 |
| Pollution degree | 2 |
| Ambient air temperature for operation | 0-40 °C |
| Operating altitude | 2000 m |
| Shock resistance | 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2 |
| Vibration resistance | 9.8 m/s² (f = 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2, 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
| Insulation resistance | > 10 MOhm |
| Standards | KN 61000-6-2, KN 11, EN 61000-6-2, EN 61000-6-4, EN 61131-2, CSA C22.2 No 61010-2-201, UL 61010-2-201 |
| Storage Relative Humidity | 10-90 % non condensing |
| Product certifications | EAC, RCM, KC, UKCA, CE, cUL, UL |
