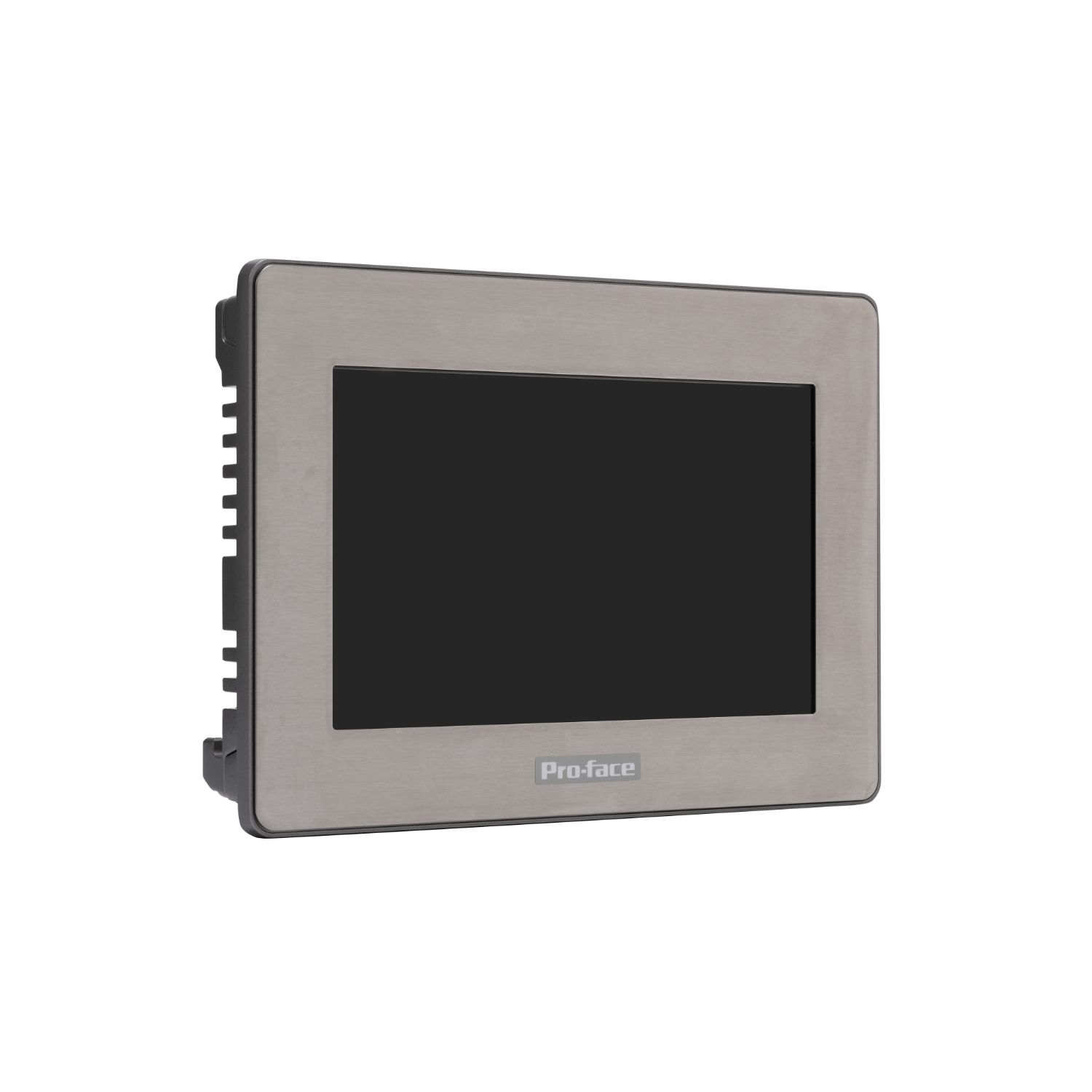

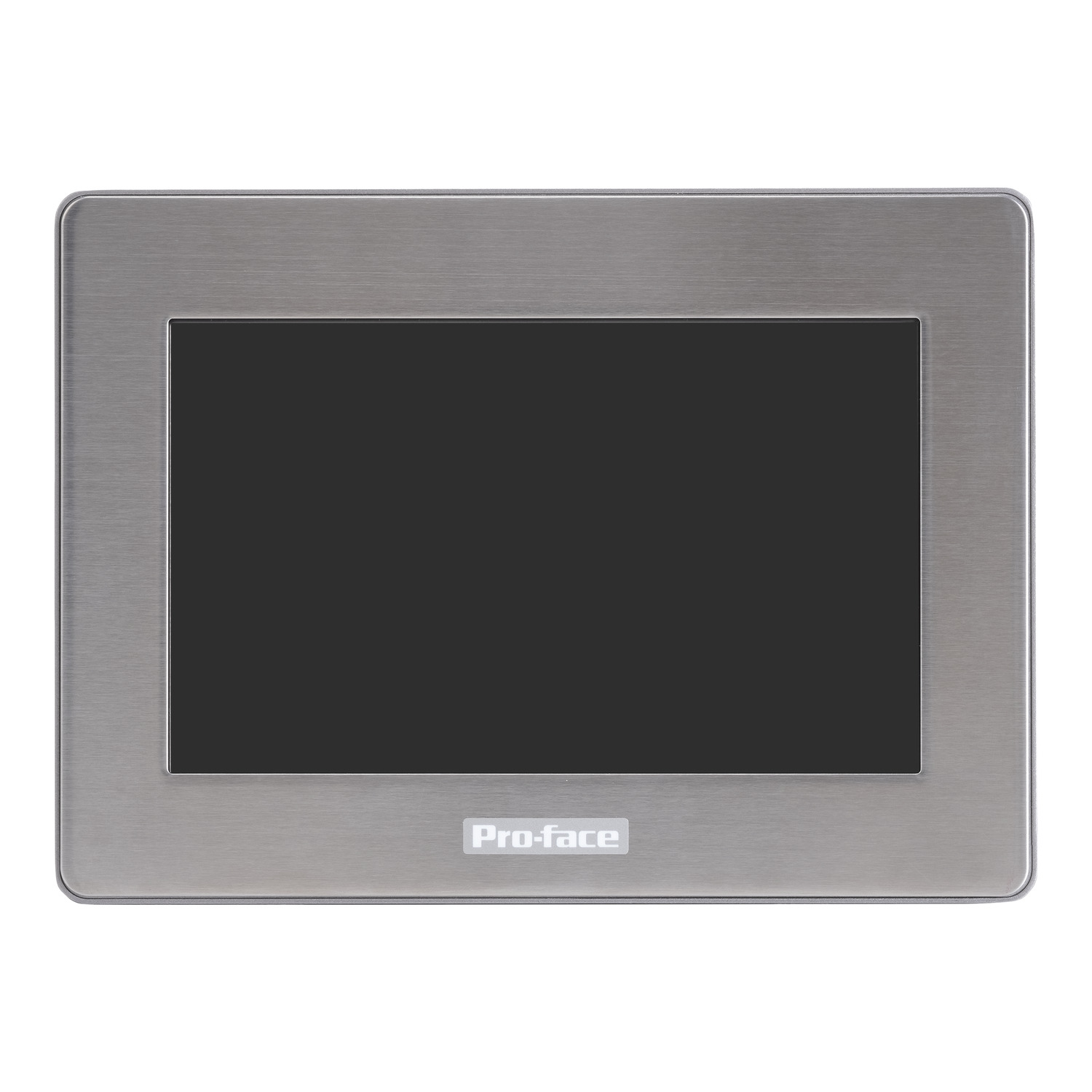

This product belongs to the Pro-face SP5000X Series, an offer of eXtreme outdoor HMI panels. These eXtreme outdoor HMI panels are a high-performance range of HMIs that are ideal for harsh outdoor environments. It features a 7" TFT color LCD (high brightness) with 800 x 480 pixels resolution (XVGA) and 262K colors. It offers atmospheric resistance with conformal coating. It can operate between temperature ranges of -30 to 65 °C. This product works at a power consumption of 29W and a rated voltage from 12V to 24V DC. Its dimensions are 203.6mm (width) x 148.6mm (height) x 37mm (depth) and weighs 1.3 kg. This product is suitable for multiple applications under harsh environmental conditions. It can be used in special-purpose vehicles such as fire trucks and construction equipment, parking lots and gas stations, and the oil and gas industry. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control equipment. It is also certified with UL 121201 and CSA C22.2 No 213 for use in Class I, Division 2 hazardous (Classified) locations, and IECEx/ATEX for use in zones 2/22. It is compatible with PFXSP5B90 box module.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Pro-face SP5000 |
| Product or component type | touch panel screen |
| Complementary | |
| Display type | colour TFT LCD |
| Display colour | 262144 colours |
| Display size | 7 inch |
| Type of cooling | AN (air natural) |
| Input voltage limits | 10.8…28.8 V DC |
| Backlight lifespan | 50000 hours with white |
| Fixing mode | by 4 screws, mounting on 1.6...5 mm thick panel |
| Electrical connection | cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding |
| Height | 148.6 mm |
| Maximum power consumption in W | 29 W |
| Depth | 37 mm |
| Width | 203.6 mm |
| Touch panel | single touch analogue resistive |
| Rated short-duration power frequency withstand voltage | 1000 V AC during 1 min |
| Net weight | 1.3 kg |
| Display resolution | 800 x 480 pixels WVGA |
| Cut-out dimensions | 190 x 135 mm panel cut dimension |
| Inrush current | 30 A |
| Brightness | 1000 cd/m2 |
| [Us] rated supply voltage | 12...24 V DC |
| Power consumption in W | 15 W (backlight dimmed (brightness: 20%)), 12.5 W (backlight off (standby mode)), 17.5 W, 29 W |
| Environment | |
| Relative humidity | 10-90 % non-condensing |
| Environmental characteristic | corrosive gas free |
| Ambient air temperature for storage | -30-70 °C |
| Directives | 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| IP degree of protection | IP66f |
| Electromagnetic compatibility | electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 |
| Pollution degree | 2 |
| Ambient air temperature for operation | -30-65 °C |
| Operating altitude | 2000 m |
| Shock resistance | 392 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 60068-2-27 |
| Vibration resistance | 7 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-6 |
| Insulation resistance | >= 10 MOhm |
| Standards | CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201 |
| Storage Relative Humidity | 10-90 % non-condensing |
| Product certifications | IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL |
