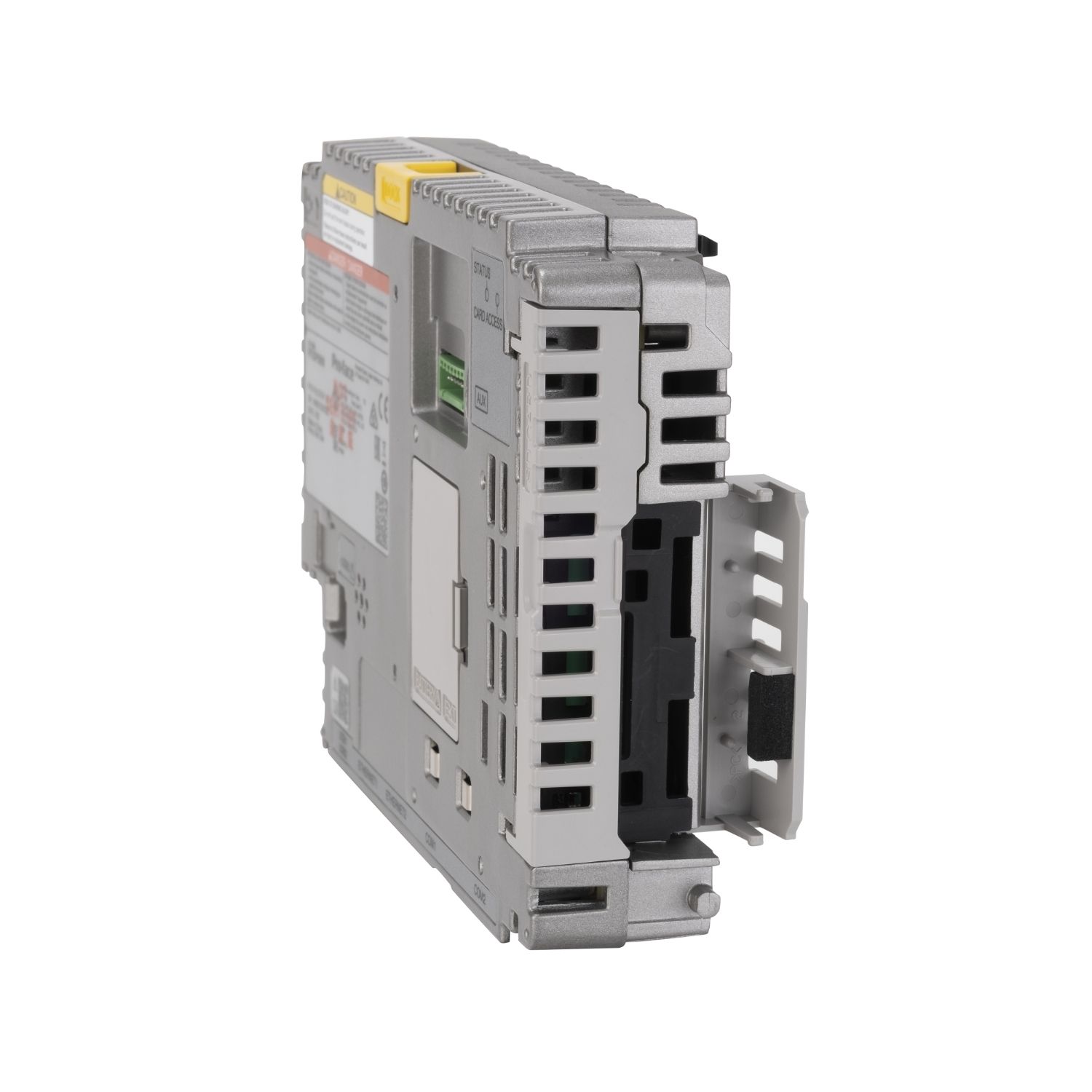

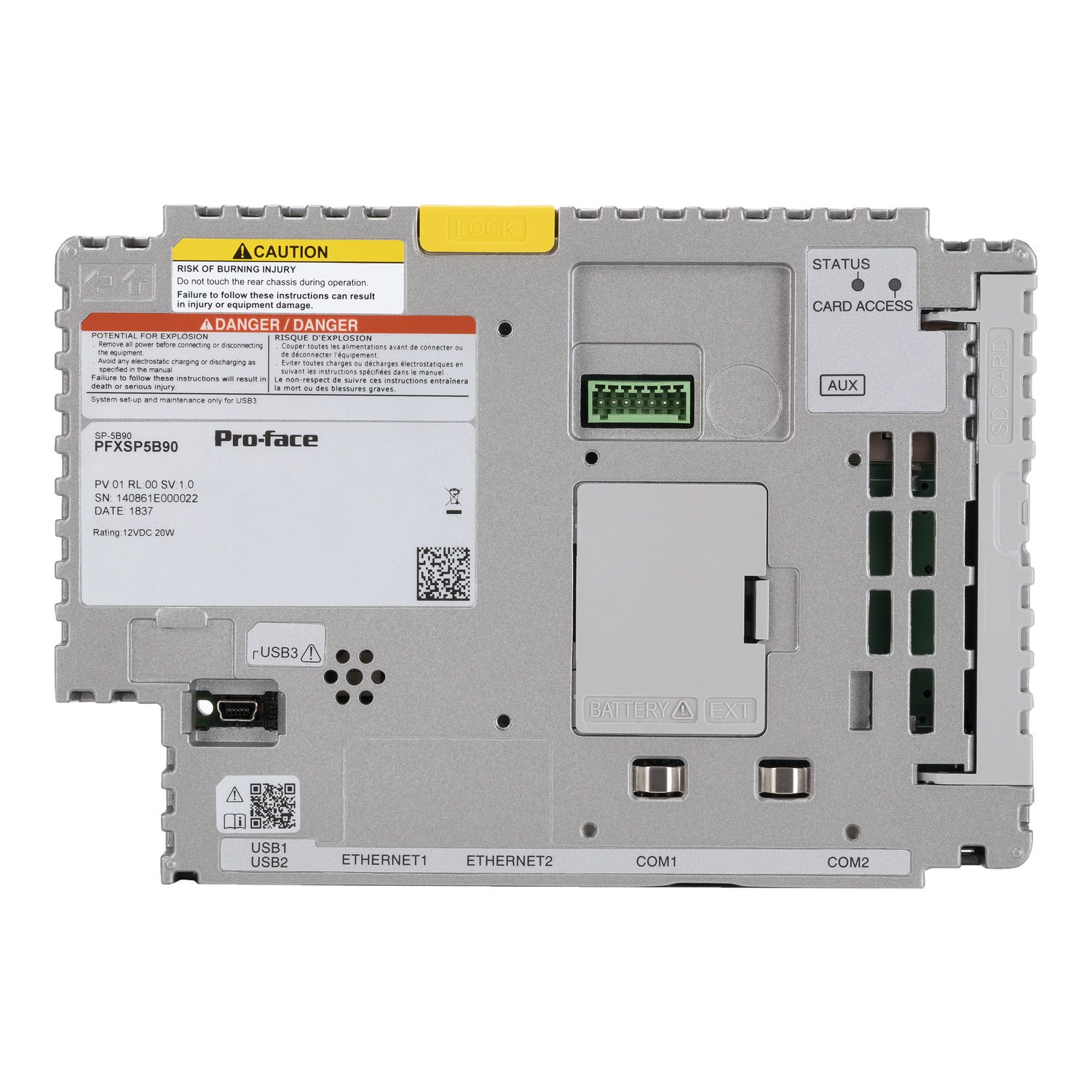

This product belongs to the Pro-face SP5000X Series, an offer of eXtreme Box modules. These eXtreme outdoor Box modules are a high-performance range of HMIs that are ideal for harsh outdoor environments. It has 2 RS-232C/422/485 ports, 2 host + 1 mini-B USB ports, 2 Ethernet ports (1Gbps), 2 SD card slots, 1 Expansion unit interface, 1 sound output and 1 AUX output interface. It offers atmospheric resistance with conformal coating. It can operate between temperature range of -30 to 70 °C. This product works at a power consumption of 20W and a rated voltage of 12V DC. Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9 kg. This product is suitable for multiple applications under harsh environmental conditions. It can be used in special-purpose vehicles such as fire trucks and construction equipment, parking lots and gas stations, and the oil and gas industry. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control equipment. It is also certified with UL 121201 and CSA C22.2 No 213 for use in Class I, Division 2 hazardous (Classified) locations, and IECEx/ATEX for use in zones 2/22. It is compatible with PFXSP5490WAD, PFXSP5690WAD and PFXSP5790WAD displays.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Pro-face SP5000 |
| Product or component type | base unit |
| Complementary | |
| Memory description | device memory 1 GB |
| Type of cooling | AN (air natural) |
| Height | 131 mm |
| Maximum power consumption in W | 20 W |
| Depth | 35 mm |
| Width | 188 mm |
| Integrated connection type | COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps |
| Net weight | 0.9 kg |
| [Us] rated supply voltage | 12 V DC |
| Power consumption in W | 20 W |
| Environment | |
| Relative humidity | 10-90 % non-condensing |
| Environmental characteristic | corrosive gas free |
| Ambient air temperature for storage | -20-60 °C |
| Directives | 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Electromagnetic compatibility | electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 |
| Pollution degree | 2 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000 m |
| Standards | CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201 |
| Storage Relative Humidity | 10-90 % non-condensing |
| Product certifications | IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL |
