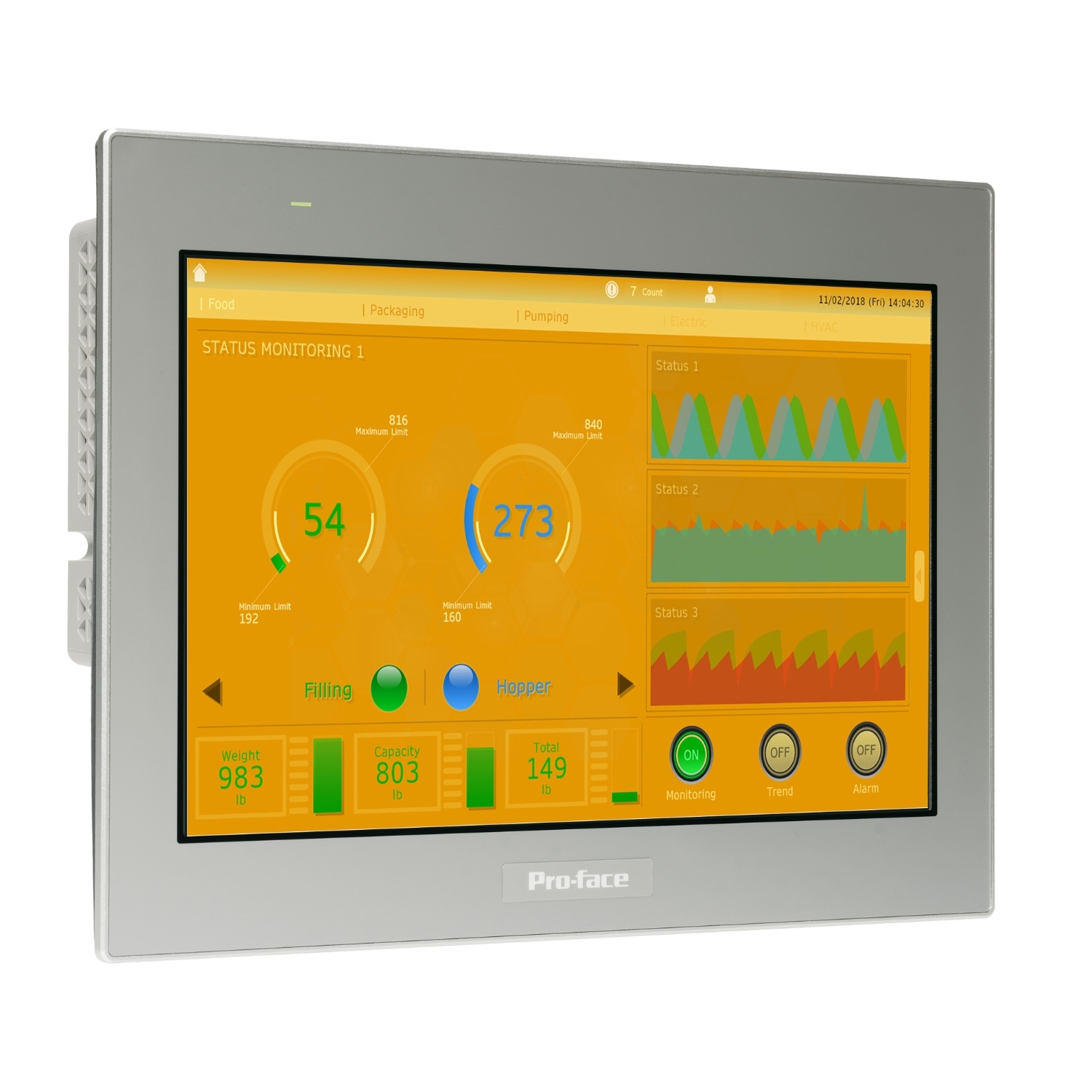

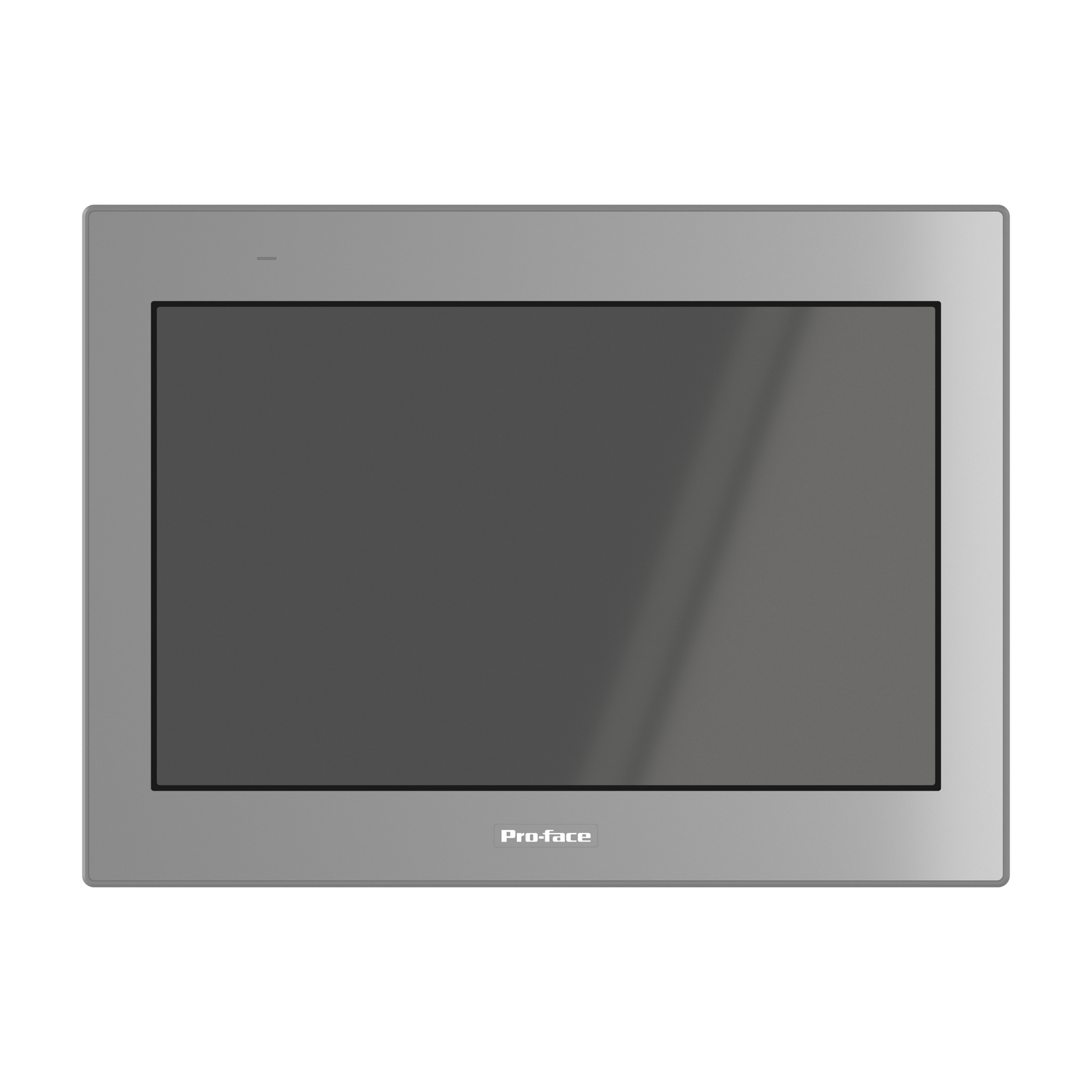

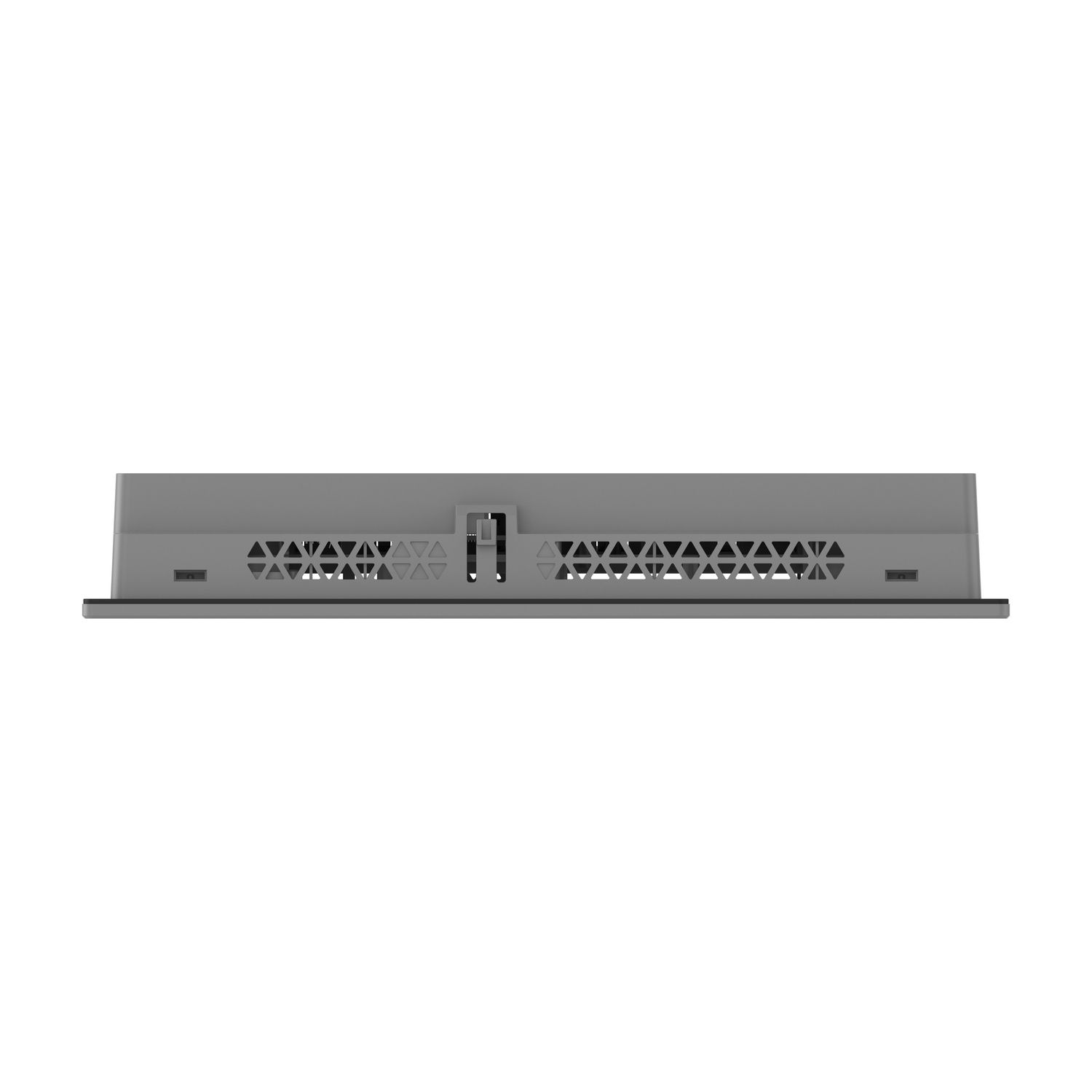

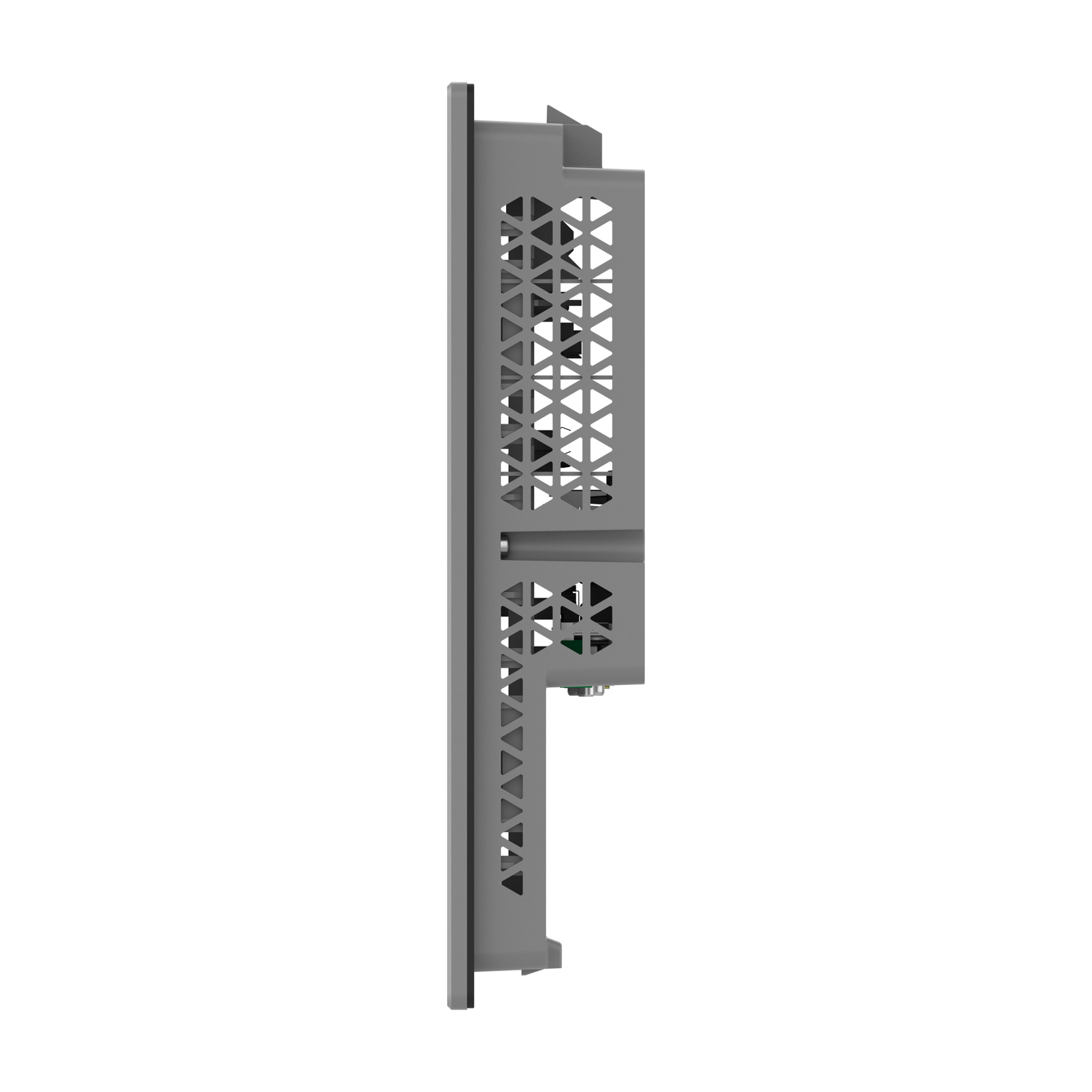

This Basic HMI panel belongs to the Pro-face ST6000 range. This single-touch resistive HMI is made of aluminium front panel with higher resolution and more color. This HMI interface is 12.1 inches wide with 16 million colors and 1,280 x 800 pixel resolution (WXGA). It is powered by BLUE software for an intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6000 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 313mm (width) x 235mm (height) x 50mm (depth) and weighs 1.80Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors. It conforms to EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 standards & CSA, CE, China RoHS, KC, REACH certifications. It is designed for panel mounting by 4 fastener screws. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure). It is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost-effective equipment.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Pro-face ST6000 |
| Product or component type | touch panel screen |
| Complementary | |
| Memory description | backup memory 500 kB, device memory 128 MB |
| Display type | colour TFT LCD |
| Display colour | 16 million colours |
| Display size | 12 inch |
| Type of cooling | AN (air natural) |
| Input voltage limits | 19.2...28.8 V DC |
| Backlight lifespan | 50000 hours with white |
| Fixing mode | by 4 screws conforming to IEC 61000-6-2, by 4 screws conforming to IEC 61131-2, by 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201 |
| Electrical connection | cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding |
| Height | 235 mm |
| Maximum power consumption in W | 5.9 W when backlight is OFF, 15 W when power is not supplied to external devices, 18.4 W |
| Depth | 50 mm |
| Front material | aluminium |
| Width | 313 mm |
| Enclosure material | PC |

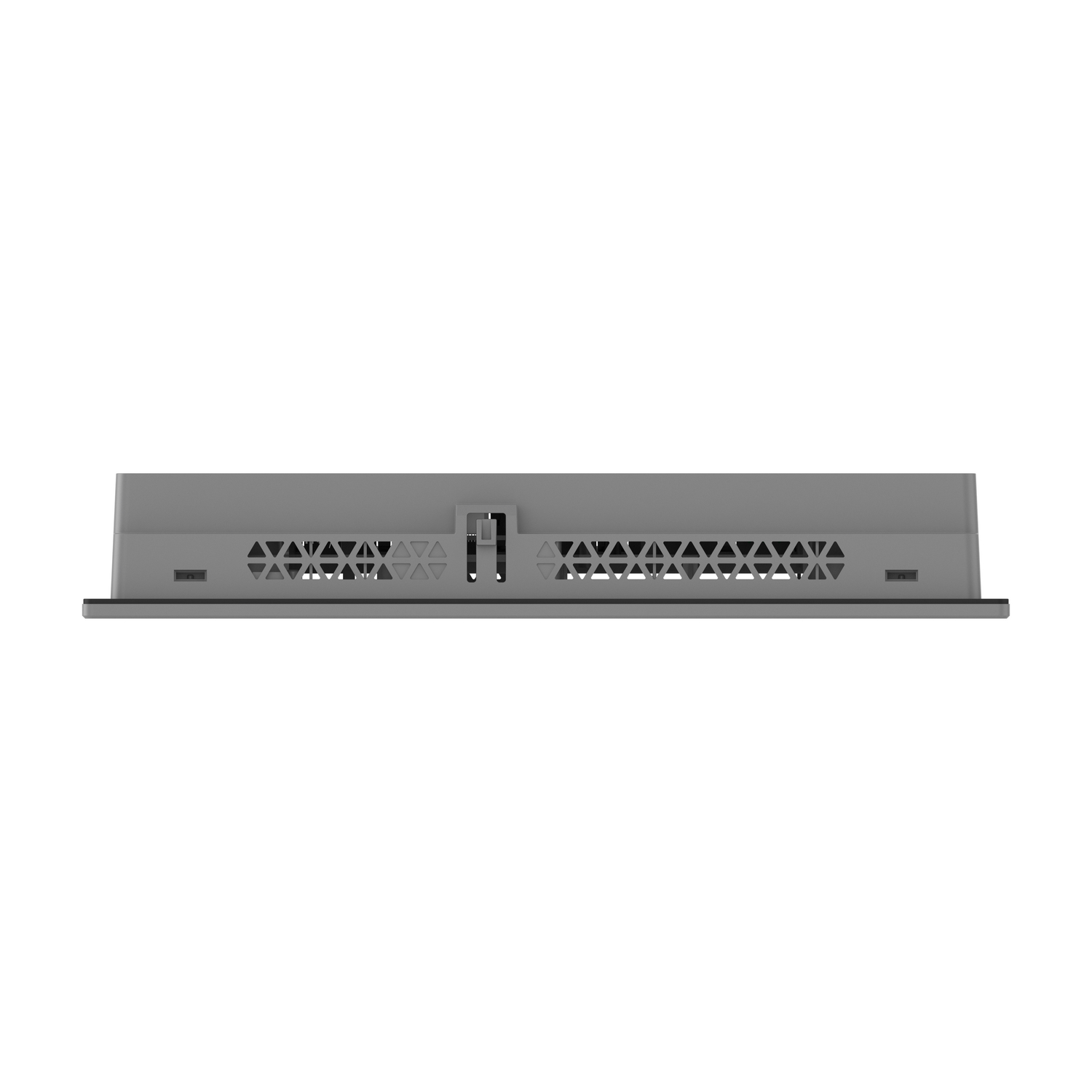

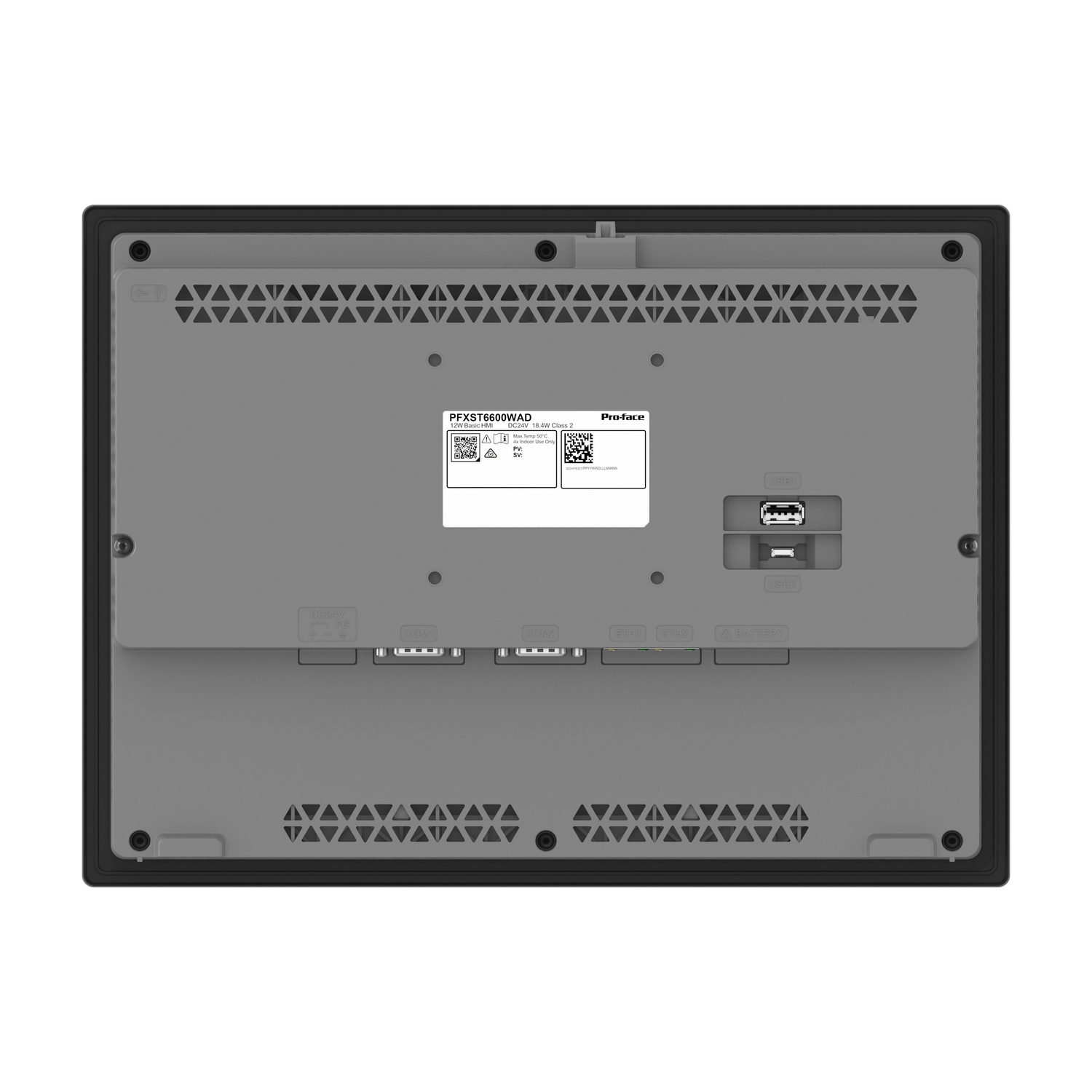

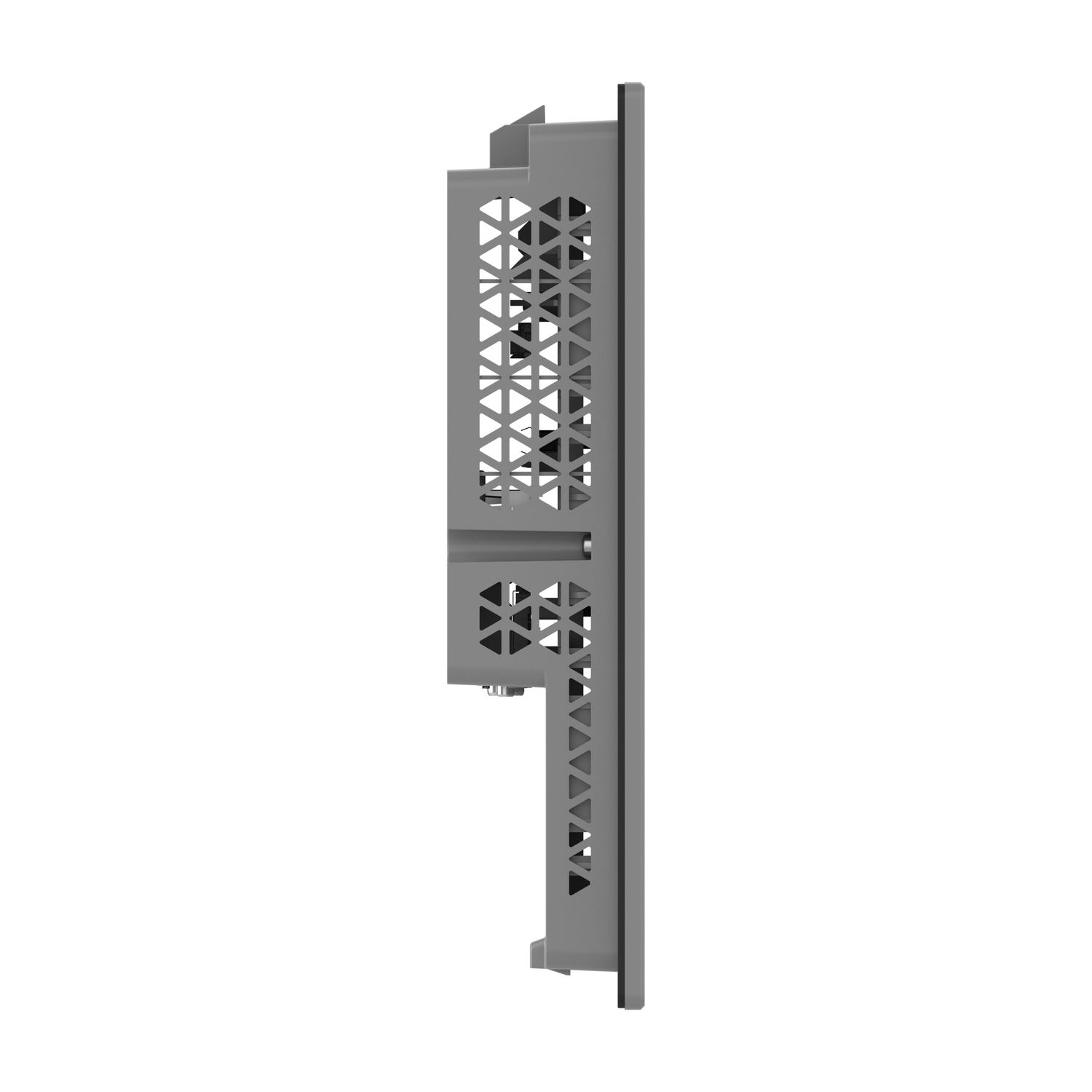

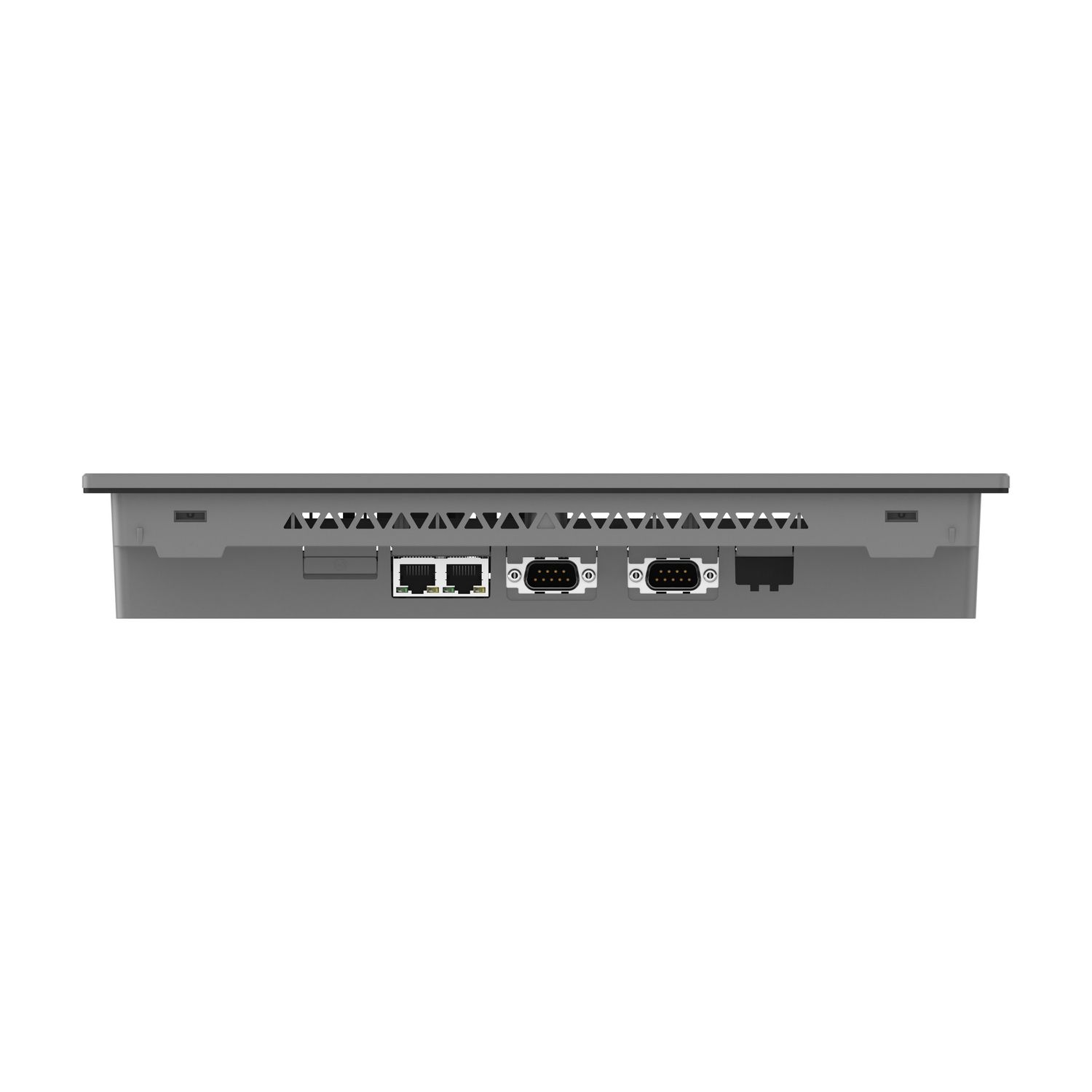

| Integrated connection type | Ethernet female RJ45 10BASE-T/100BASE-TX, USB 2.0 type micro B, USB 2.0 type A, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps, COM1 serial link 1 SUB-D 9-pin female, interface: RS232C/RS422/RS485, transmission rate: 2400...115200 bps |
| Touch panel | single touch analogue resistive |
| Rated short-duration power frequency withstand voltage | 1000 V AC during 1 min |
| Net weight | 1.8 kg |
| Display resolution | 1280 x 800 pixels WXGA |
| Data format | 8 bits, no parity, 1 or 2 stop even or odd |
| Cut-out dimensions | 295 x 217 mm |
| Inrush current | 30 A |
| Brightness | 16 levels via touch panel |
| [Us] rated supply voltage | 24 V DC |
| Maximum cycle time | 10 ms |
| Environment | |
| Relative humidity | 10-90 % non-condensing |
| Environmental characteristic | corrosive gas free |
| Ambient air temperature for storage | -20-60 °C |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| IP degree of protection | IP65f (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2 |
| Electromagnetic compatibility | electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 |
| Pollution degree | 2 |
| Ambient air temperature for operation | 0-50 °C |
| Operating altitude | 2000 m |
| NEMA degree of protection | NEMA 13 front panel (in enclosure), NEMA Type 1, NEMA 4X front panel (indoor use) |
| Vibration resistance | 9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2 |
| Insulation resistance | >= 10 MOhm |
| Standards | KN 61000-6-2, KN 11, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4 |
| Storage Relative Humidity | 10-90 % non-condensing |
| Product certifications | UKCA, RCM, IC, UL/cUL listed, EAC, CE |
