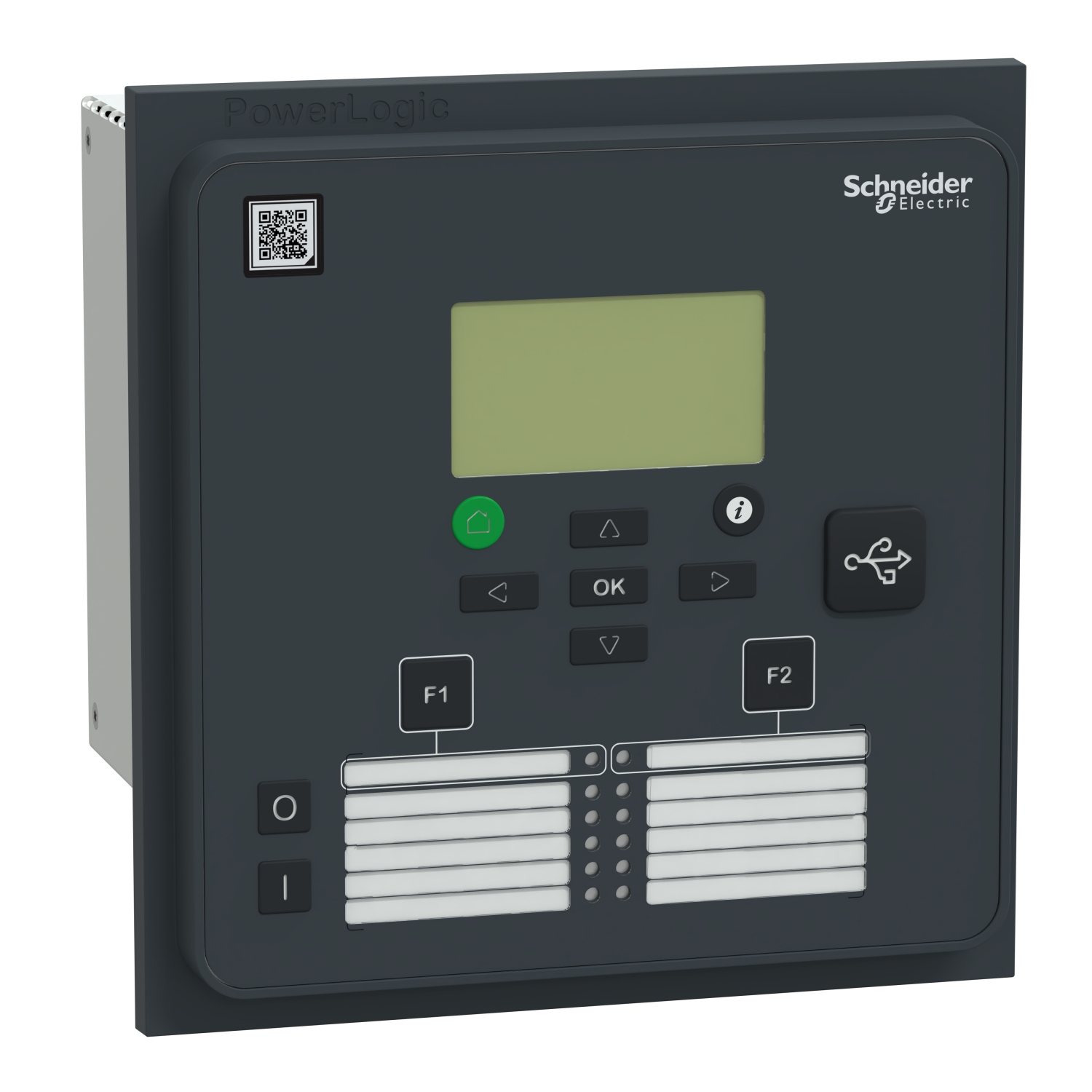

Perfectly suited for buildings and industry, utilities, and large industrial processes. The relay include protection for overcurrent, overload, broken conductor, earth-fault and breaker failure as per ANSI. It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others. Simple, reliable, safe and easy-to-use, thanks to the User Interface display. The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network. It include 16 digital inputs, 2 RJ45 communication port and 1 USB on front of the device. Mechanical dimensions are 169.5 mm in height, 170 mm in width and 205 mm in depth. The relays are certified with EN 60255-26 for electromagnetic compatiblity. The device is compatible with aditional modules and accessories: connection cables, communication modules, temperature and analogue input and output modules, LPVT & PLCT option, arc flash sensors, and other accessories.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 48...230 V AC/DC |
| Device short name | P3U30-5AAA2BCAA |
| Type of measurement | condition monitoring CB wear, voltage interruption, voltage 2nd, 15th harmonics with THD, current 2nd, 15th harmonics with THD, current phasor diagram view, voltage phasor diagram view, power factor, power angle, tan φ, cos φ, reactive energy, active energy, RMS apparent power, apparent power, RMS reactive power, reactive power, RMS active power, active power, frequency, earth fault reactance, fault location current, short circuit fault reactance, voltage ratio of negative and positive, voltage negative sequence, voltage positive sequence, voltage zero sequence, voltage phase to phase, voltage phase to earth, current ratio of negative and positive, current negative sequence, current positive sequence, current zero sequence, current 3-phase |
| Arc flash protection | no |
| Switchgear diagnosis type | trip circuit supervision ANSI code: TCS, CT supervision, CT/VT supervision ANSI code: 60 |
| Number of sensors | 0 arc sensor(s) , 0 temperature sensor(s) |
| Cybersecurity | port hardening, password protection |
| Integrated connection type | RJ45 2 rear, USB port 1 front |
| Setting | 4 |
| Digital input number | 16 |
| Control type | programmable logic, web-server, mobile application with Easergy SmartApp, 2 function keys, local/remote control, local control with I/O keys, local control on single-line diagram, programmable switchgear interlocking, switchgear control and monitoring |
| Analogue input number | 0 |
| Redundancy communication port protocol | PRP, RSTP |
| Monitoring function | relay self-monitoring, circuit breaker monitoring, trip circuit supervision 74 |
| Mounting case size | 30TE |
| Single line diagram | 4 controlled + 8 displayed |
| Product or component type | protection relay |
| Communication port protocol | EtherNet/IP, Modbus TCP, DNP3 TCP, IEC 60870-5-101, IEC 61850 ed. 2, IEC 61850 ed. 1 |
| Relay application | universal |
| Protection type | programmable curve, programmable stages 99, H5 detection, H5 detection 68H5, H2 detection 68H2, VT supervision 60, CT supervision 60, lockout relay 86, synchro-check 25, rate of change of frequency 81R, underfrequency 81/81N, earth fault overvoltage 59N, positive sequence undervoltage 27P, undervoltage 27, overvoltage 59, negative sequence overcurrent 46, capacitor overvoltage 59C, motor restart inhibition 66, excessive starting time, locked rotor 48/51LR, phase undercurrent 37, recloser 79, fault locator 21FL, directional active underpower 37P, breaker failure 50BF, switch ON to fault (SOTF), cold load pick-up, broken conductor 46 I2/I1, capacitor bank unbalance 51C, transient earth fault 67NI, directional earth fault 67N, earth fault overcurrent 50N/51N, directional phase overcurrent 67, phase overcurrent 50/51 |
| Number of outputs | 8, 1 watchdog |
| Network and machine diagnosis type | tripping context, disturbance recording, event recording |
| Connections - terminals | pin removable (voltage transformer), pin removable (current transformer), screw removable (digital input/output) |
| Range of product | PowerLogic P3 |
| Input type | : 100 V/110 V VT voltage 4 , : 1/5 A CT residual current 1 , : 1/5 A CT phase current 3 |
| Analogue output number | 0 |
| Complementary | |
| Web server | embedded HTTP server |
| Software name | eSetup Easergy Pro, EcoStruxure Power Device |
| Net weight | 2.5 kg maximum |
| Display type | LCD 128 x 64 pixels with single line diagram |
| Height | 169.5 mm |
| Width | 170 mm |
| Time synchronisation protocol | SNTP |
| Operating threshold | 110...230 V AC/DC |
| Depth | 205 mm |
| Local signalling | 8 LEDs programmable, 4 LEDs |
| Standards | IEC |
| Number of key | 2 customizable |
| Environment | |
| Operating altitude | 2000 m |
| Protective treatment | conformal coating |
| Relative humidity | 0-95 %, without condensation |
| Ambient air temperature for storage | -40-70 °C |
| Electromagnetic compatibility | EMC immunity conforming to EN/IEC 61000-4-17, EMC immunity conforming to EN/IEC 61000-4-11, EMC immunity conforming to EN/IEC 61000-4-29, EMC immunity level 5 conforming to EN/IEC 61000-4-9, EMC immunity conforming to EN/IEC 61000-4-8, EMC immunity level 3 conforming to EN/IEC 61000-4-6, EMC immunity level 3 conforming to EN/IEC 61000-4-5, EMC immunity level 4 conforming to EN/IEC 61000-4-4, EMC immunity level 3 conforming to EN/IEC 61000-4-3, EMC immunity level 4 conforming to EN/IEC 61000-4-2, EMC immunity conforming to EN/IEC 61000-4-18, EMC immunity conforming to IEC/EN 60255-26 ed. 3, emission tests class A conforming to CISPR 22, emission tests class A conforming to CISPR 11, emission tests conforming to IEC/EN 60255-26 ed. 3 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Environmental characteristic | exposure to damp heat in service Cab tests conforming to EN/IEC 60068-2-78, exposure to damp heat in service Db tests conforming to EN/IEC 60068-2-30, exposure to cold Ad tests conforming to EN/IEC 60068-2-1, exposure to dry heat Bb tests conforming to EN/IEC 60068-2-2 |
| Ambient air temperature for operation | -40-65 °C |
| Mechanical robustness | bumps: Ea conforming to IEC 60068-2-27, bumps (level: class II) conforming to IEC 60255-21-2, seismic tests method A (level: class II) conforming to IEC 60255-21-3, shocks: Ea conforming to IEC 60068-2-27, shocks (level: class II) conforming to IEC 60255-21-2, vibrations: Fc conforming to IEC 60068-2-6, vibrations (level: class II) conforming to IEC 60255-21-1 |
