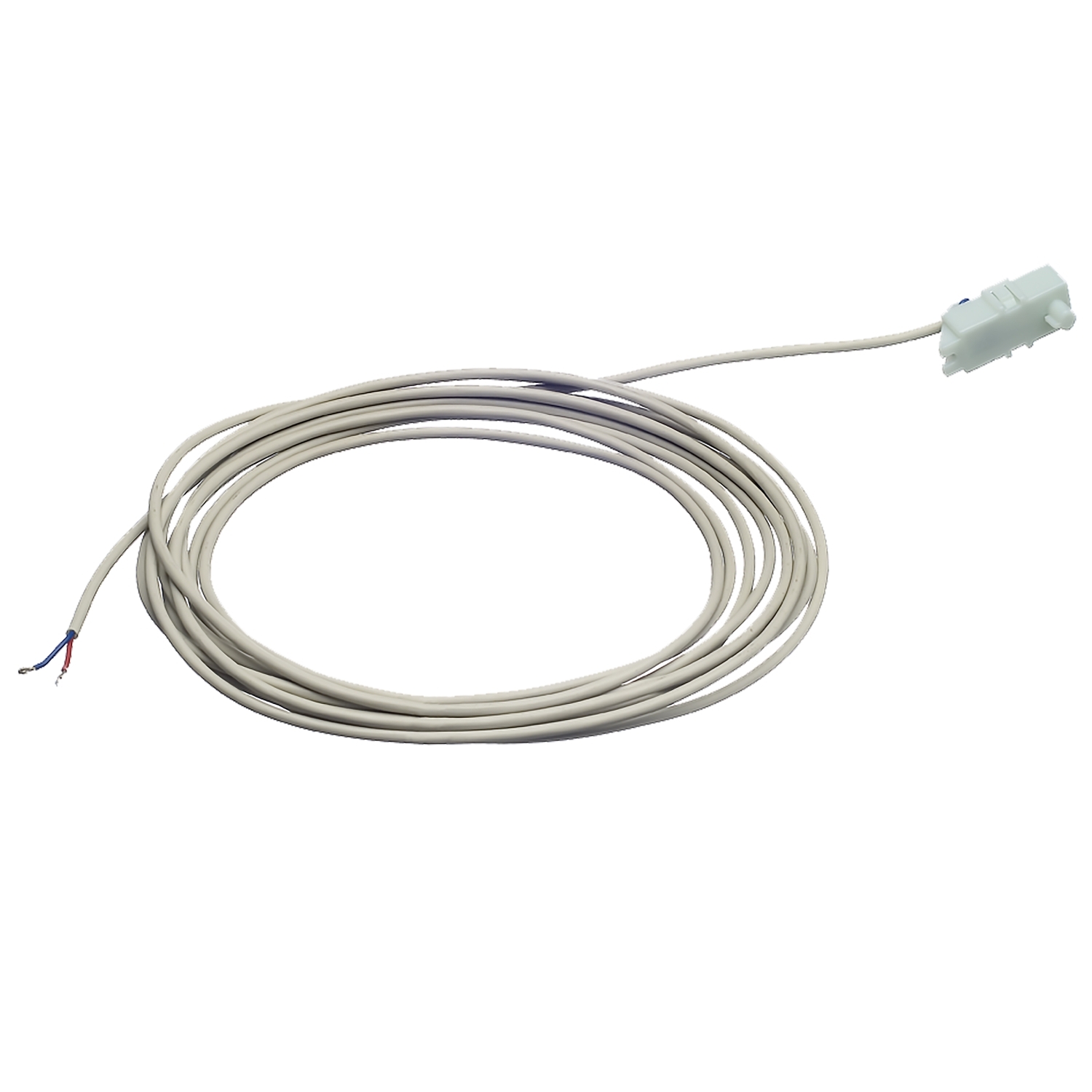

This arc flash sensor for easergy P3 is used to detect the light coming from the arc flash incident. The sensor transforms the light information into the current signal, which is used by the protection device to indicate arc flash The maximum length of the shielded cable is 6 m. The pollution degree is 2. Mechanical dimensions are 25 mm in height, 55 mm in width and 14 mm in depth.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | 1 piece |
| [Sn] nominal sensing distance | 400-1100 nm |
| Type of cable | shielded cable |
| Product or component type | arc sensor |
| Range of product | Easergy P3 |
| Complementary | |
| Depth | 14 mm |
| Width | 55 mm |
| Net weight | 0.3 kg |
| Cable length | 6 m |
| Height | 25 mm |
| Environment | |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25-70 °C |
