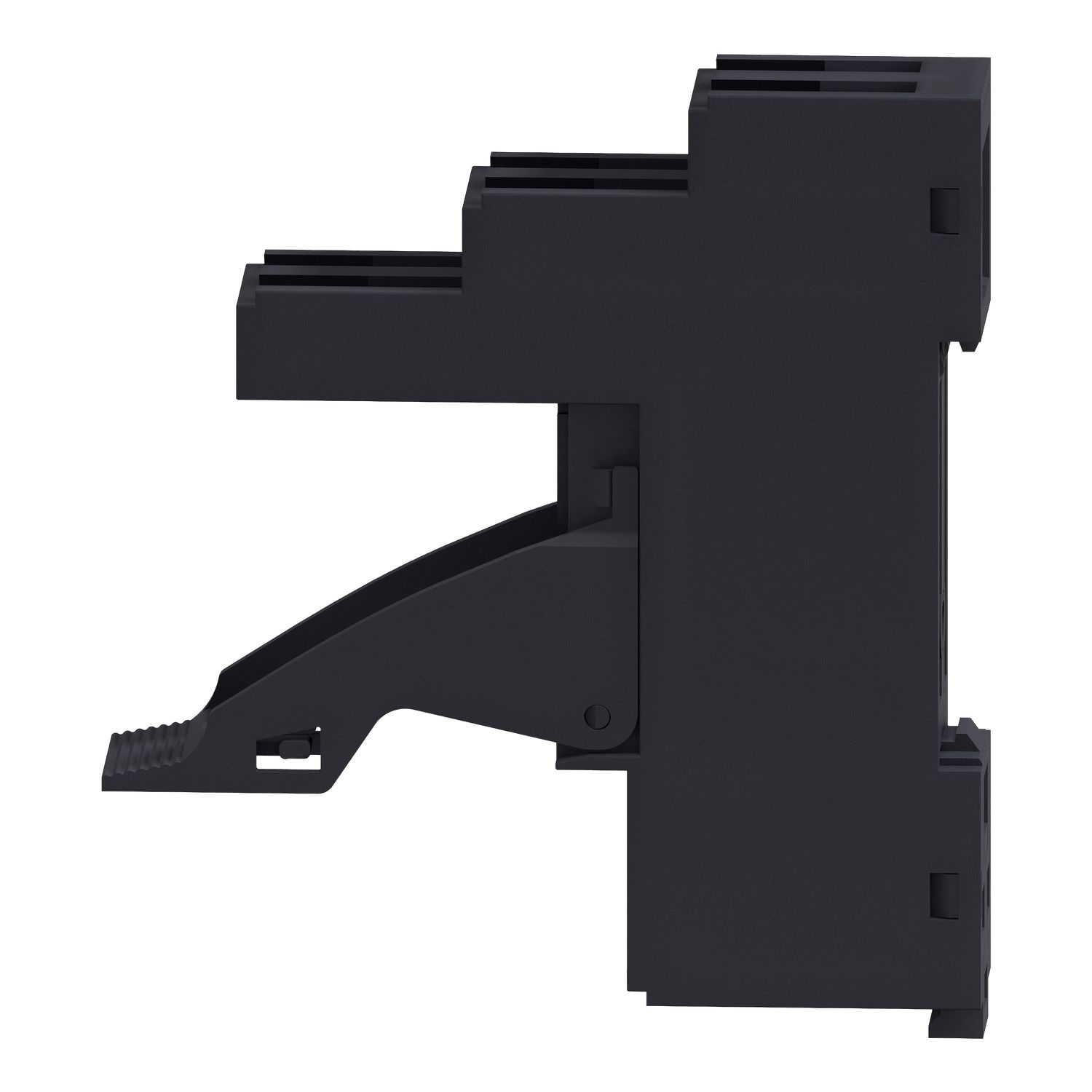

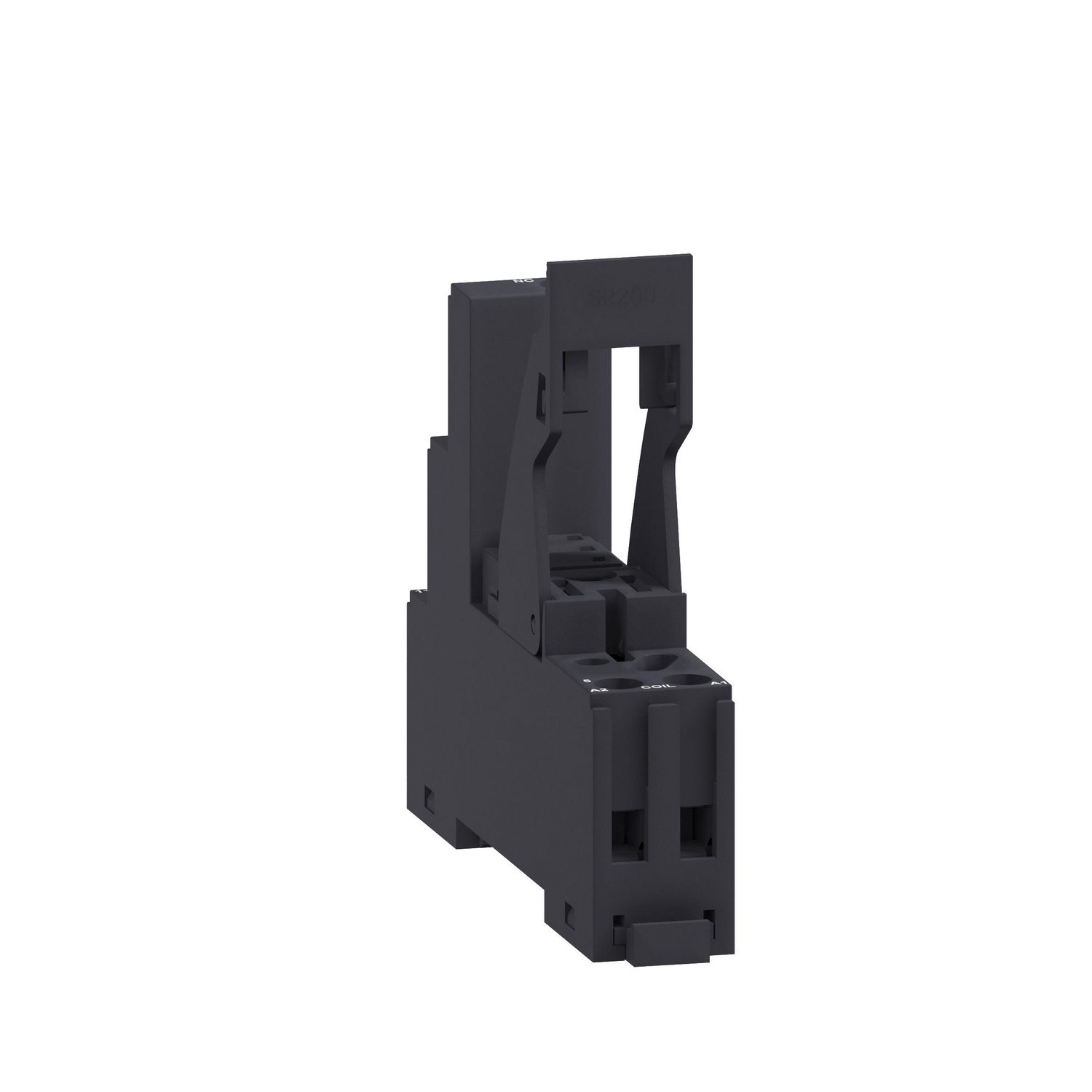

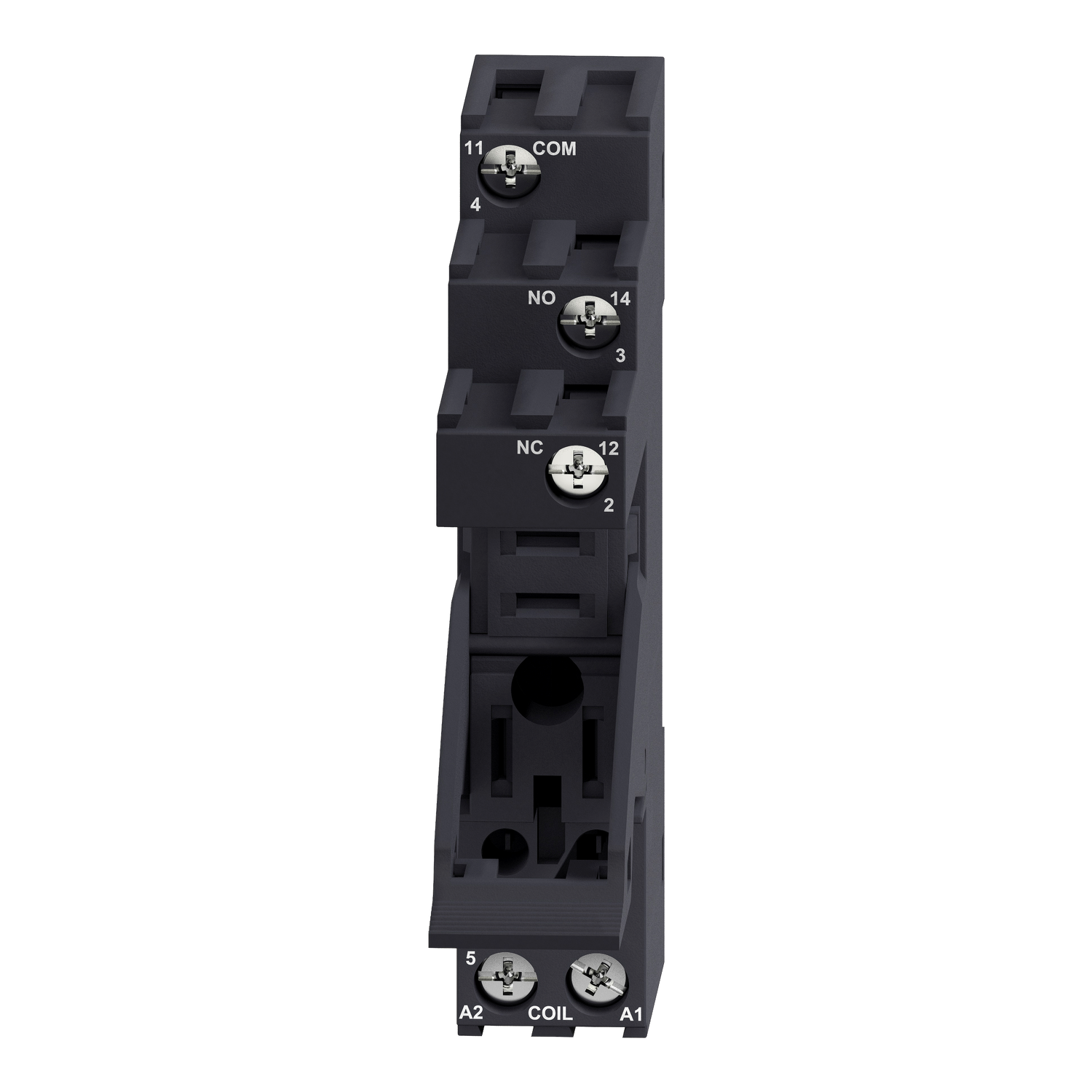

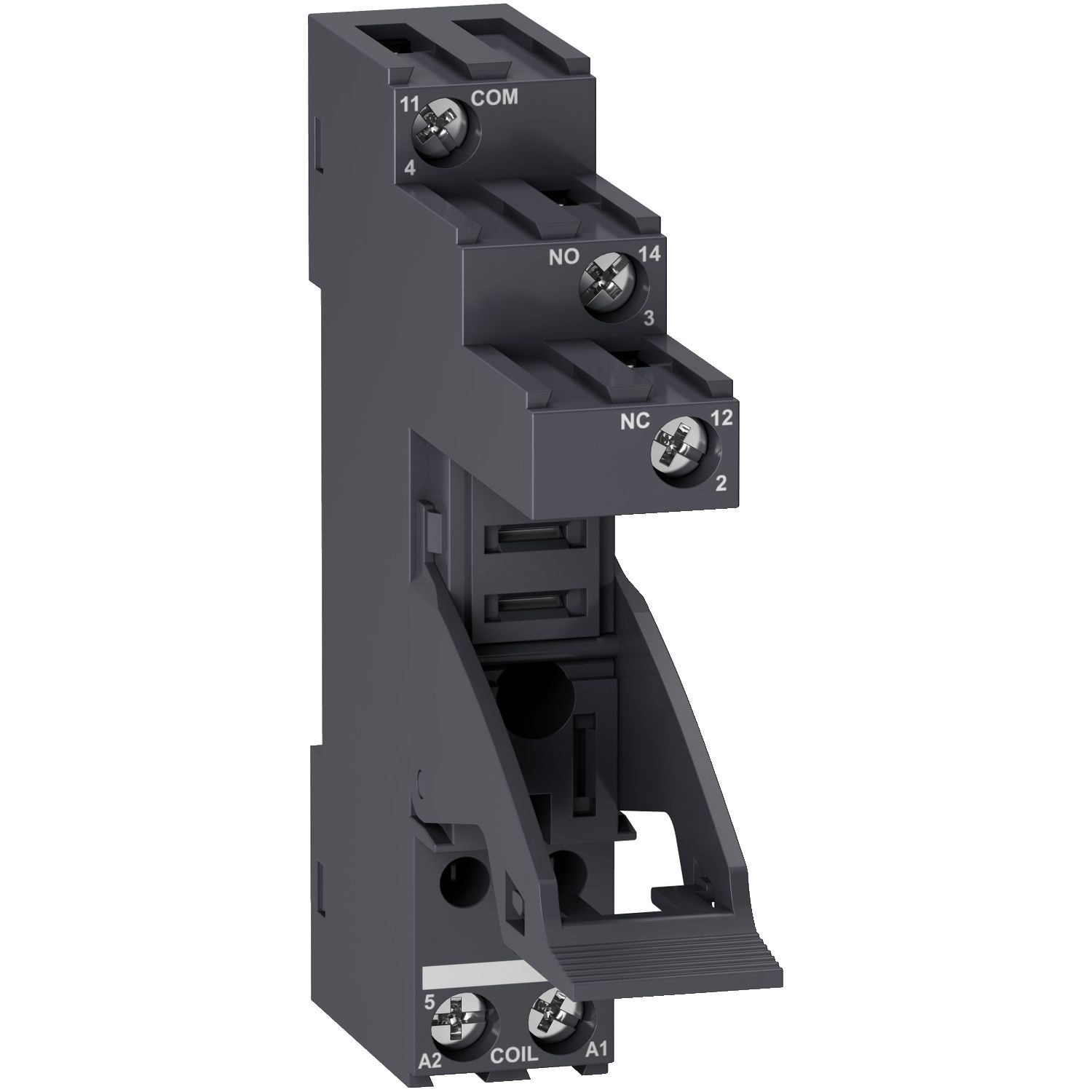

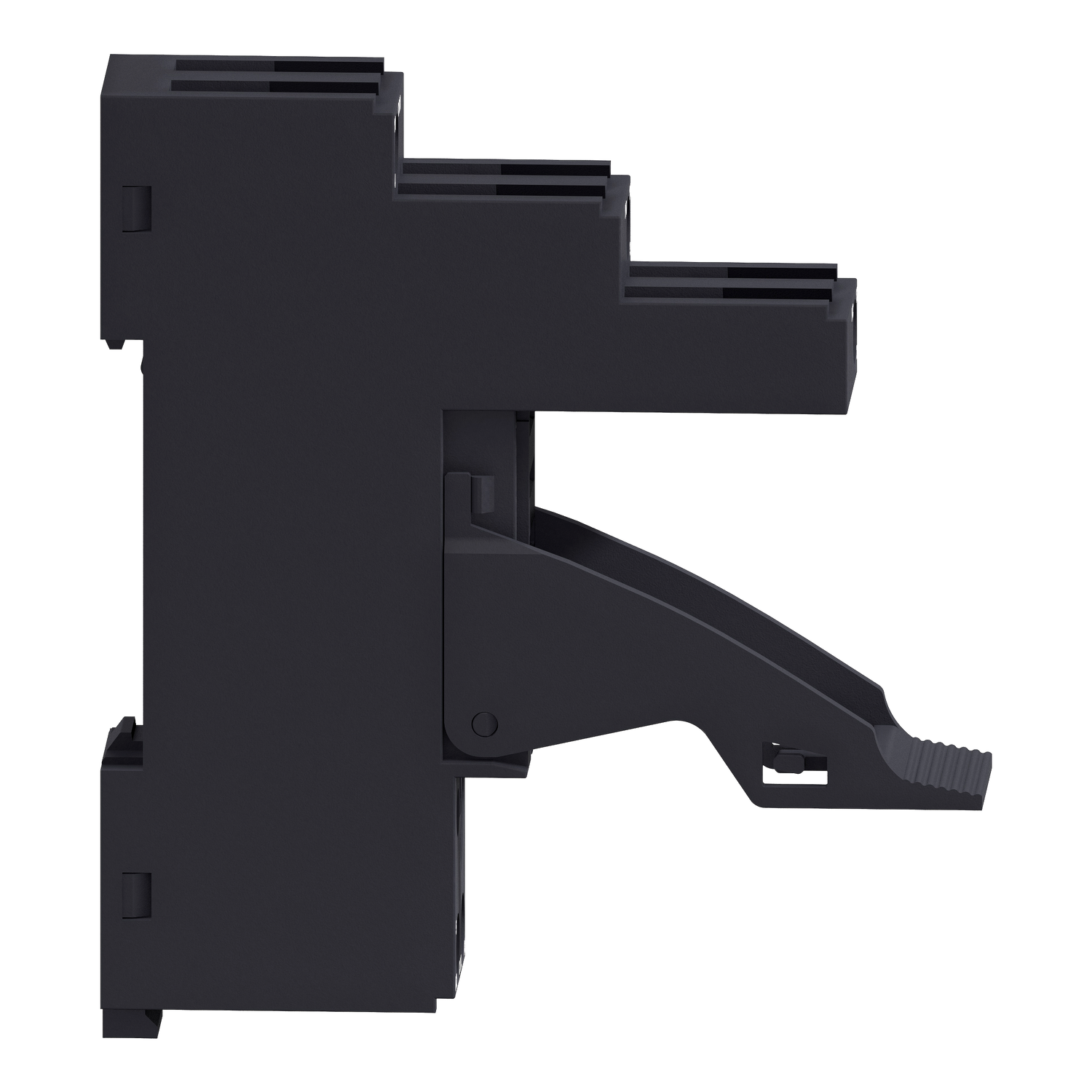

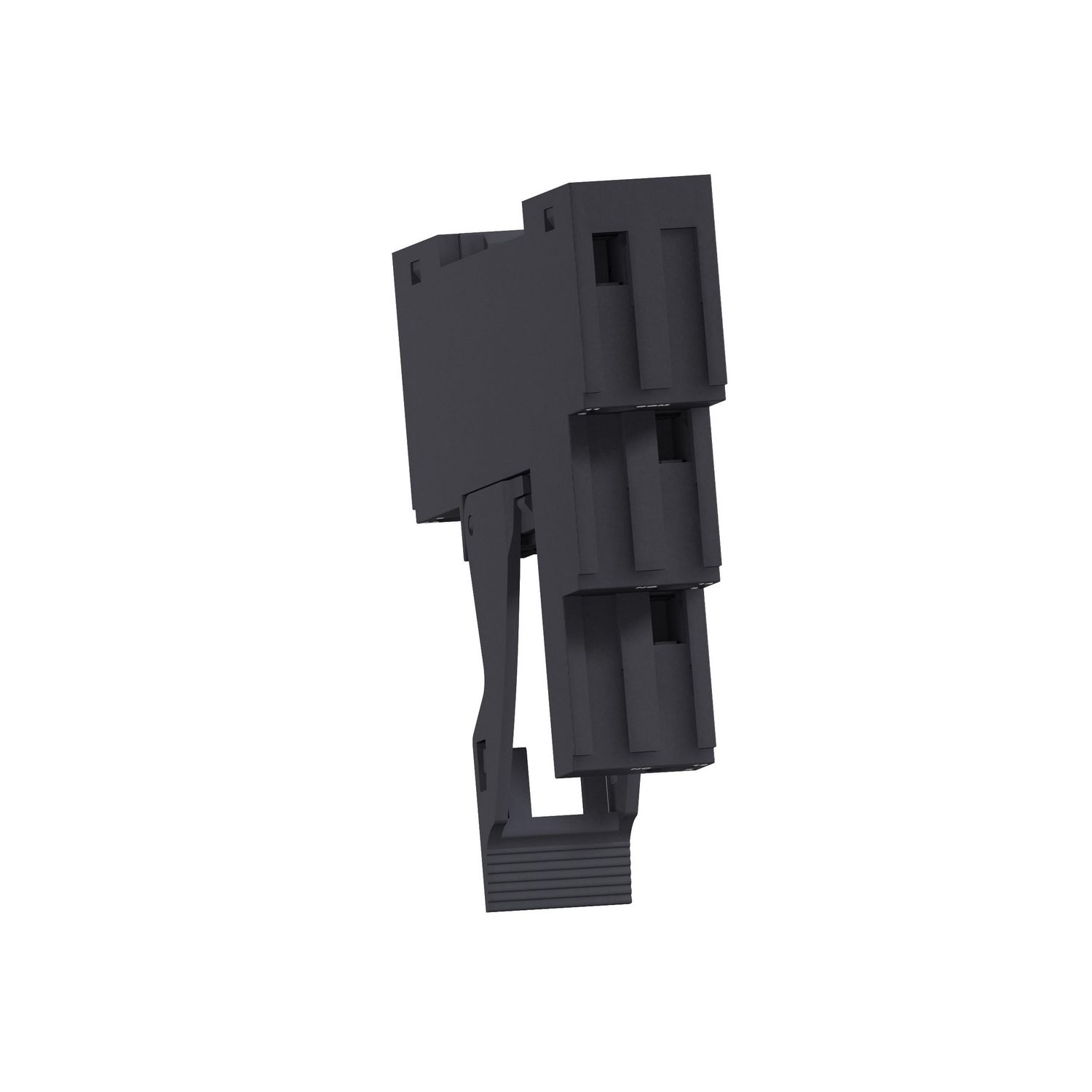

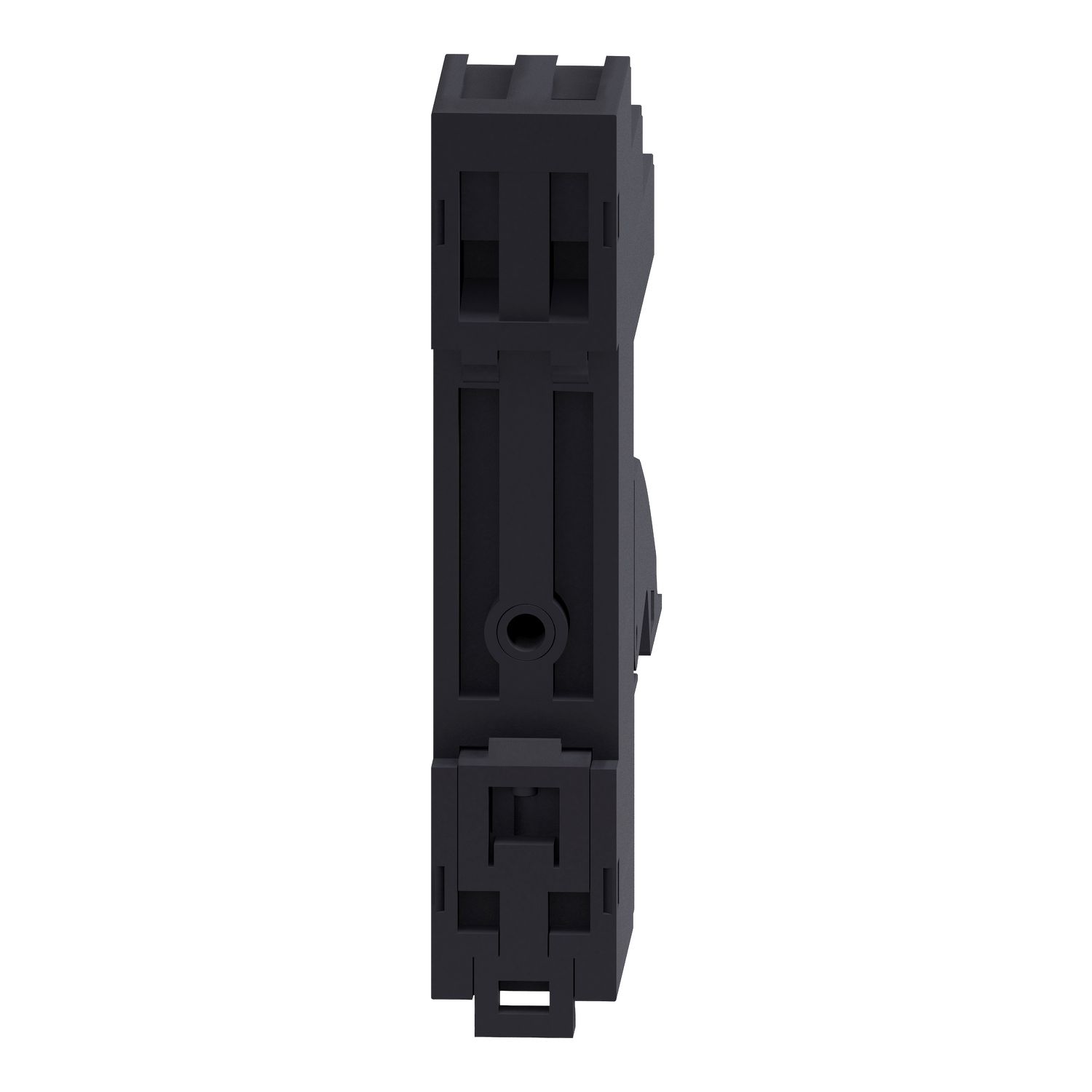

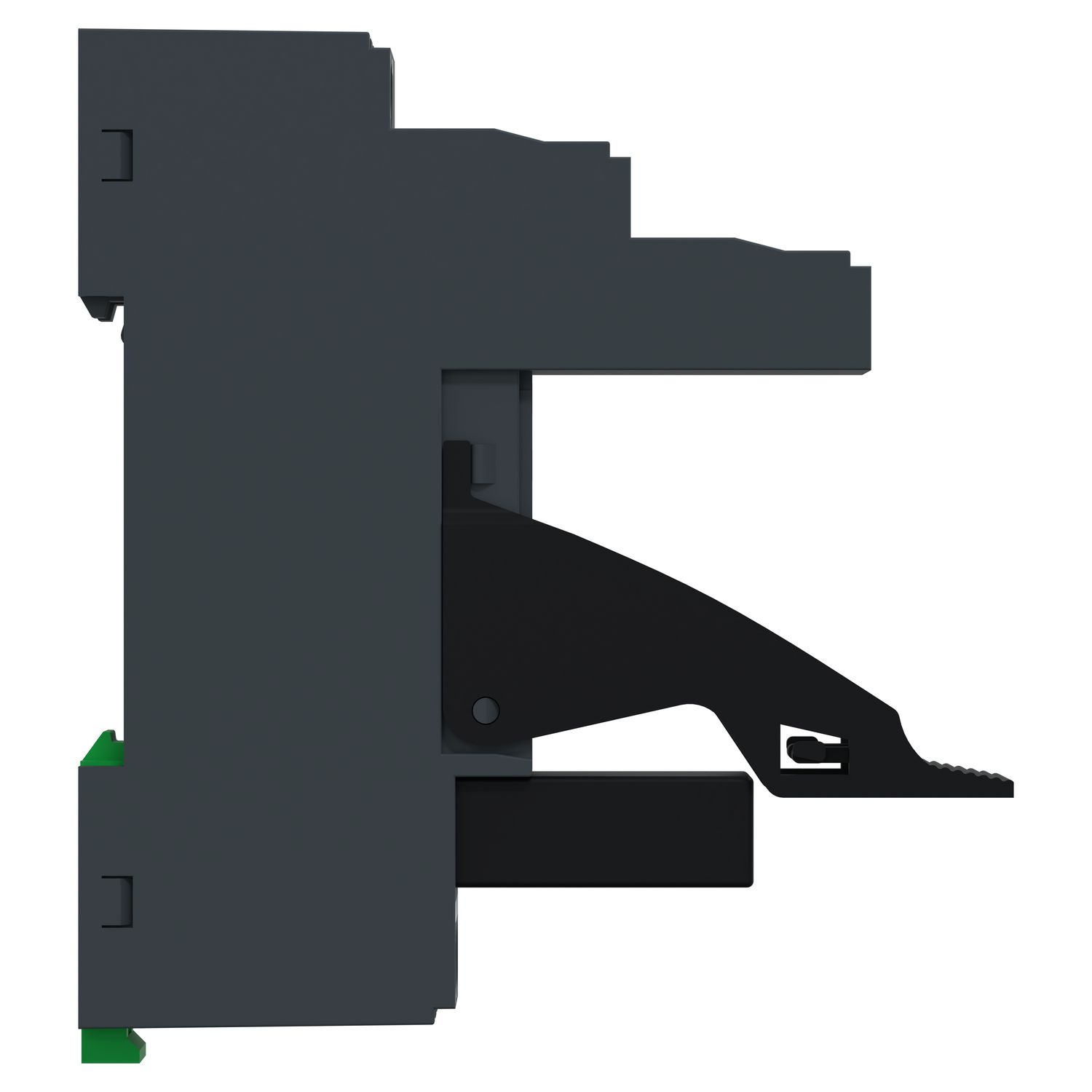

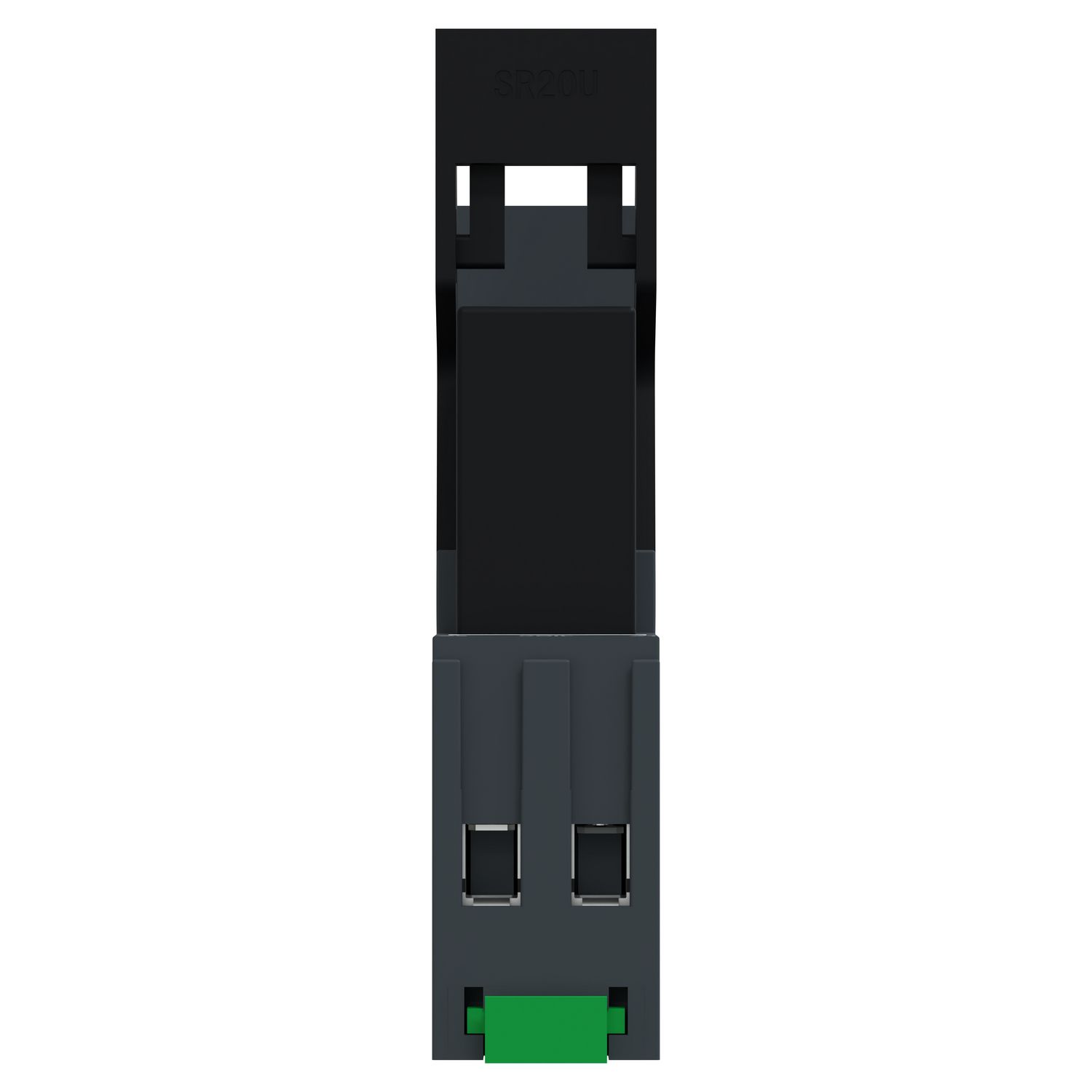

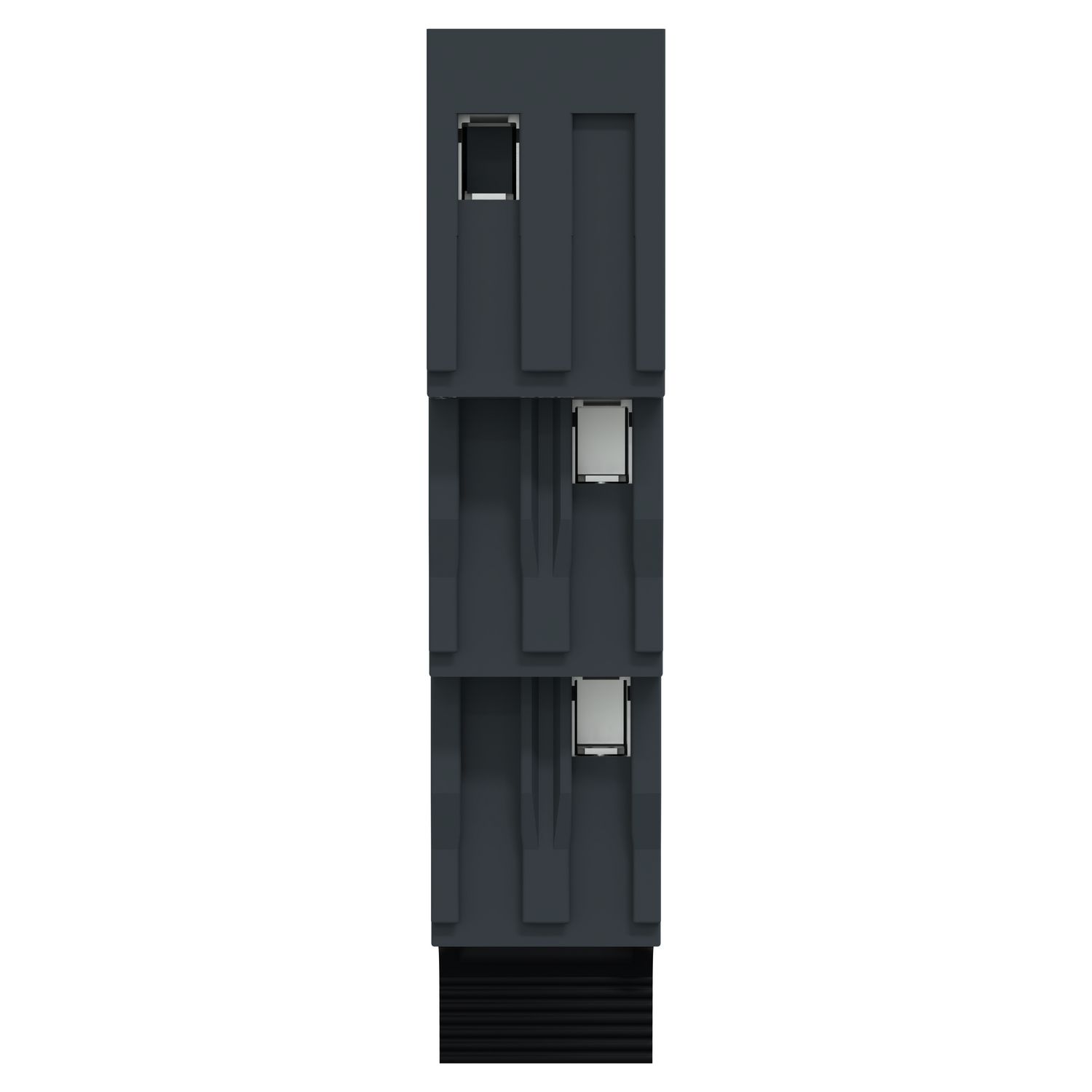

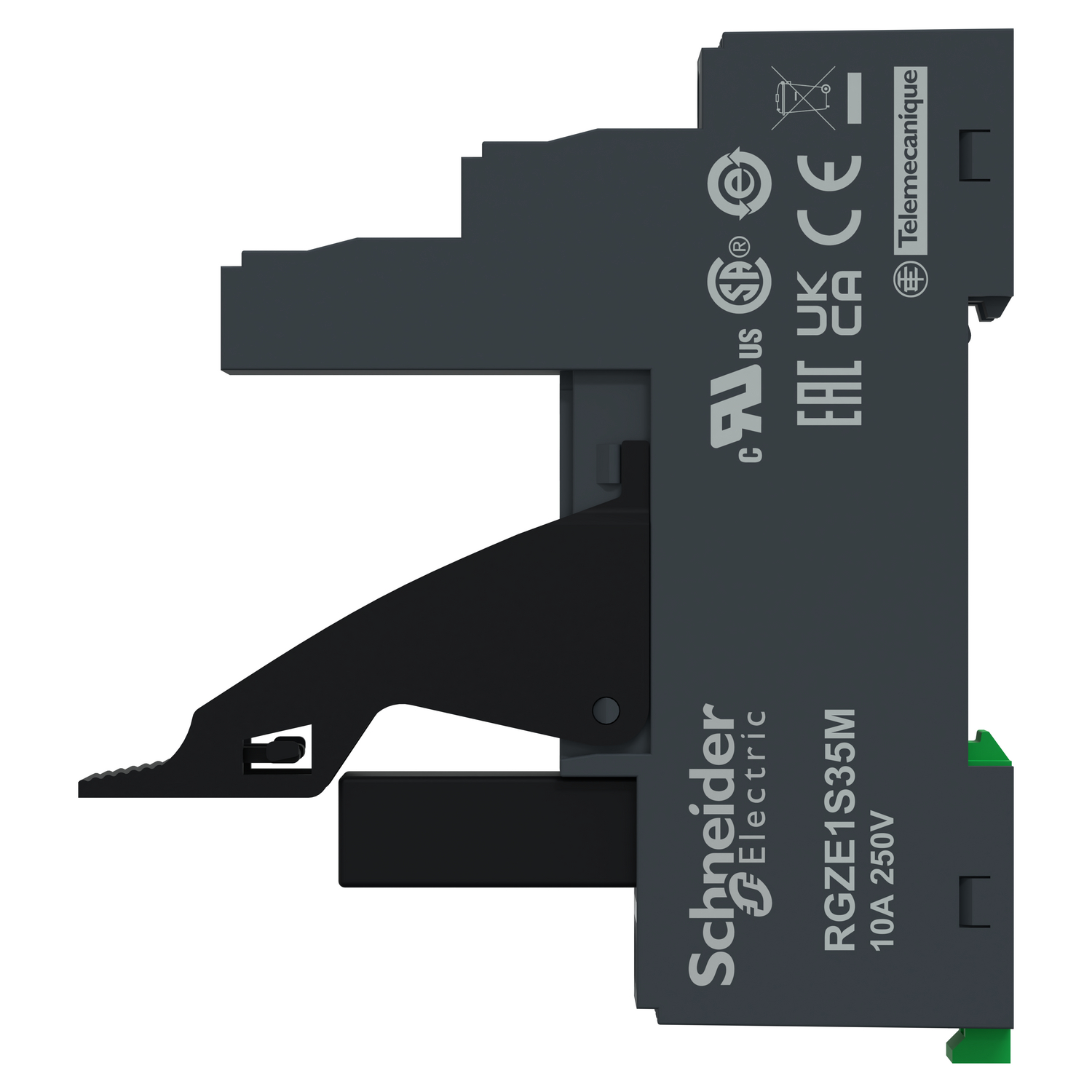

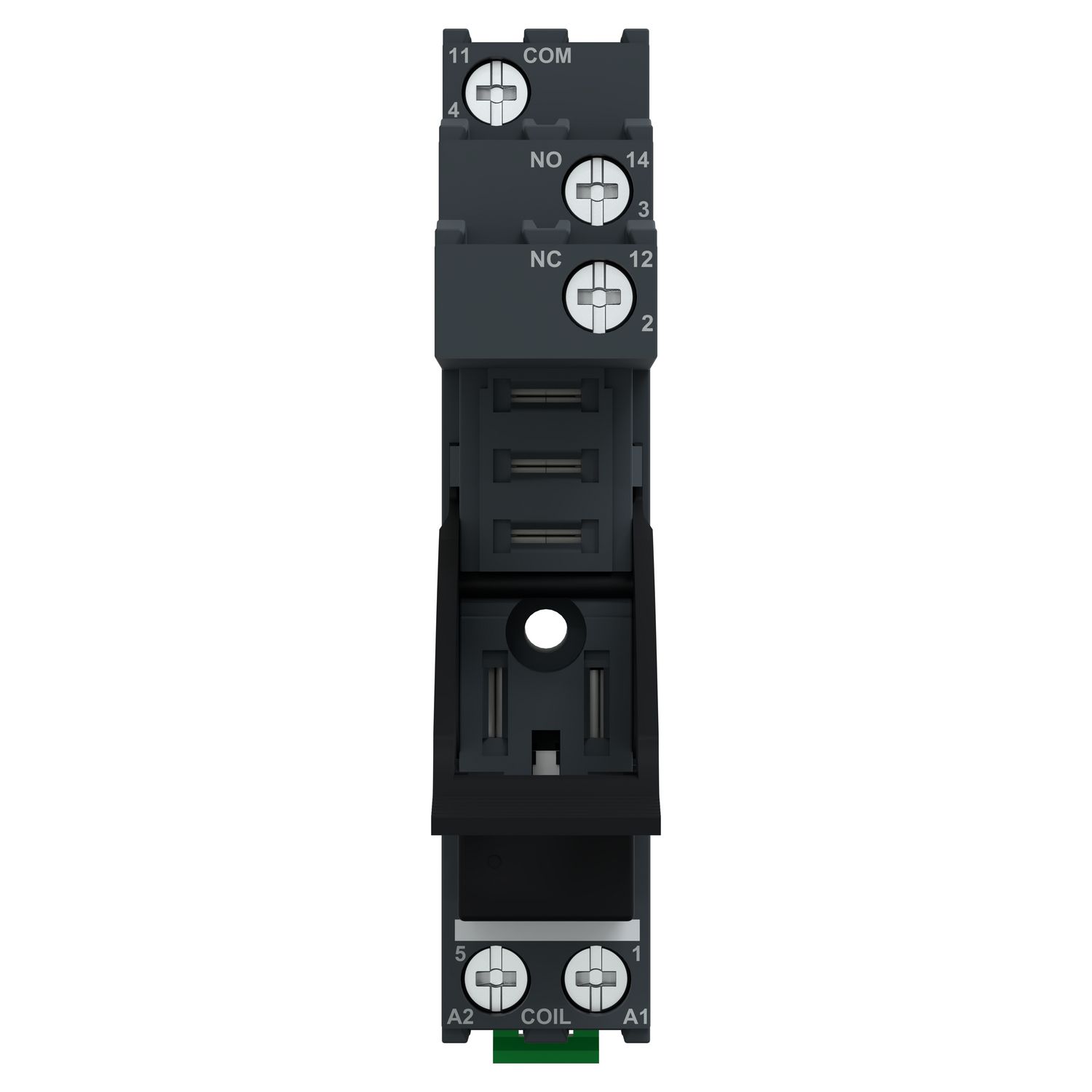

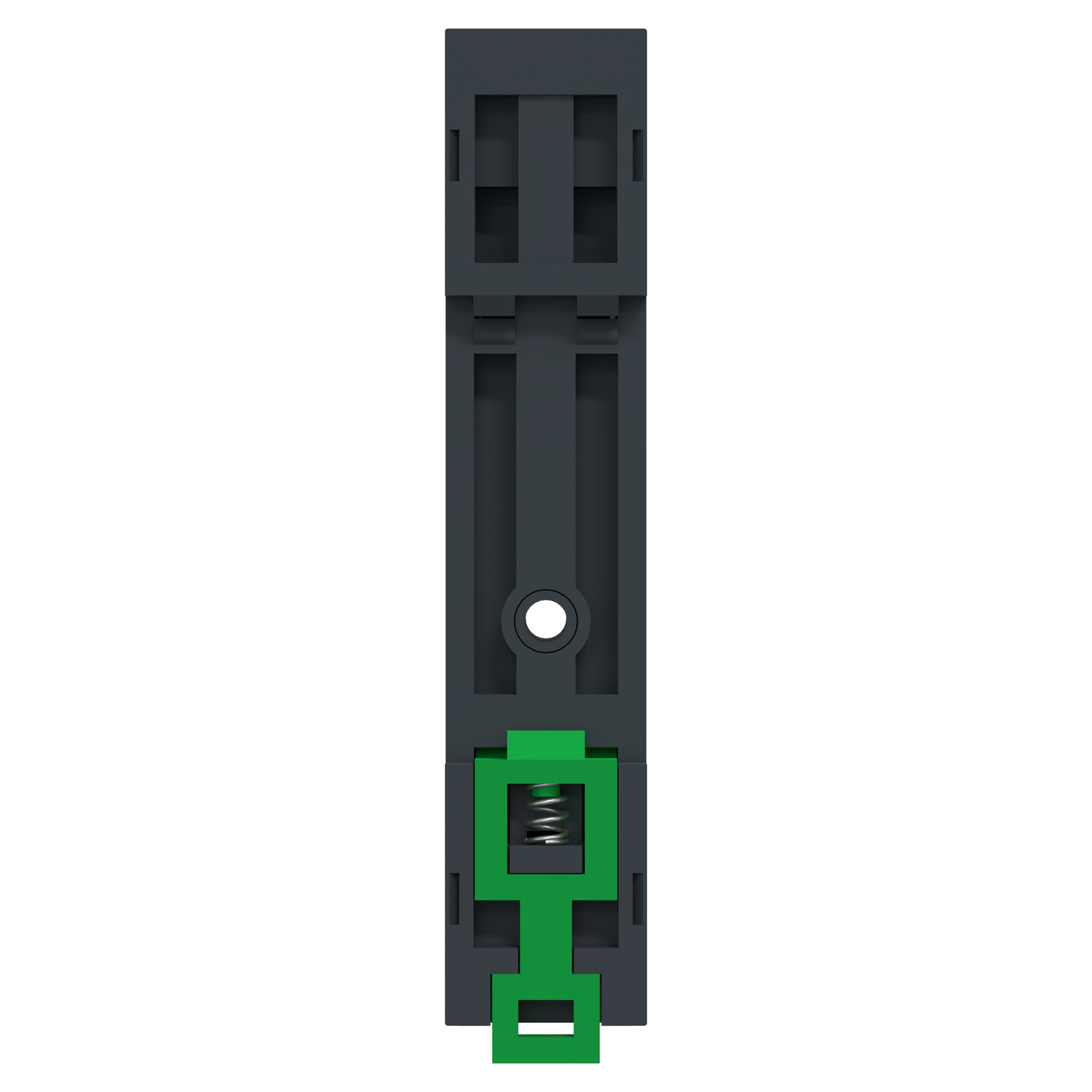

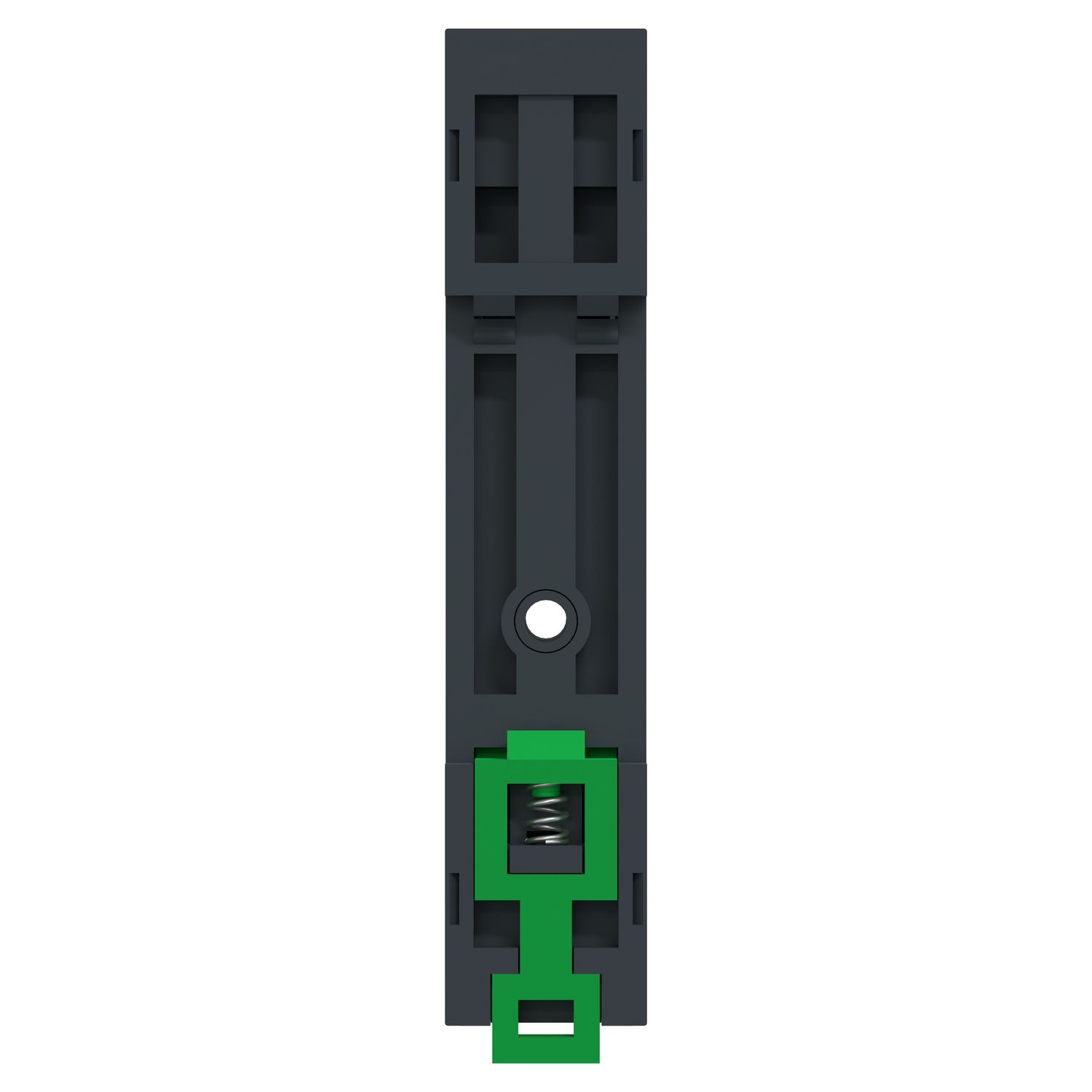

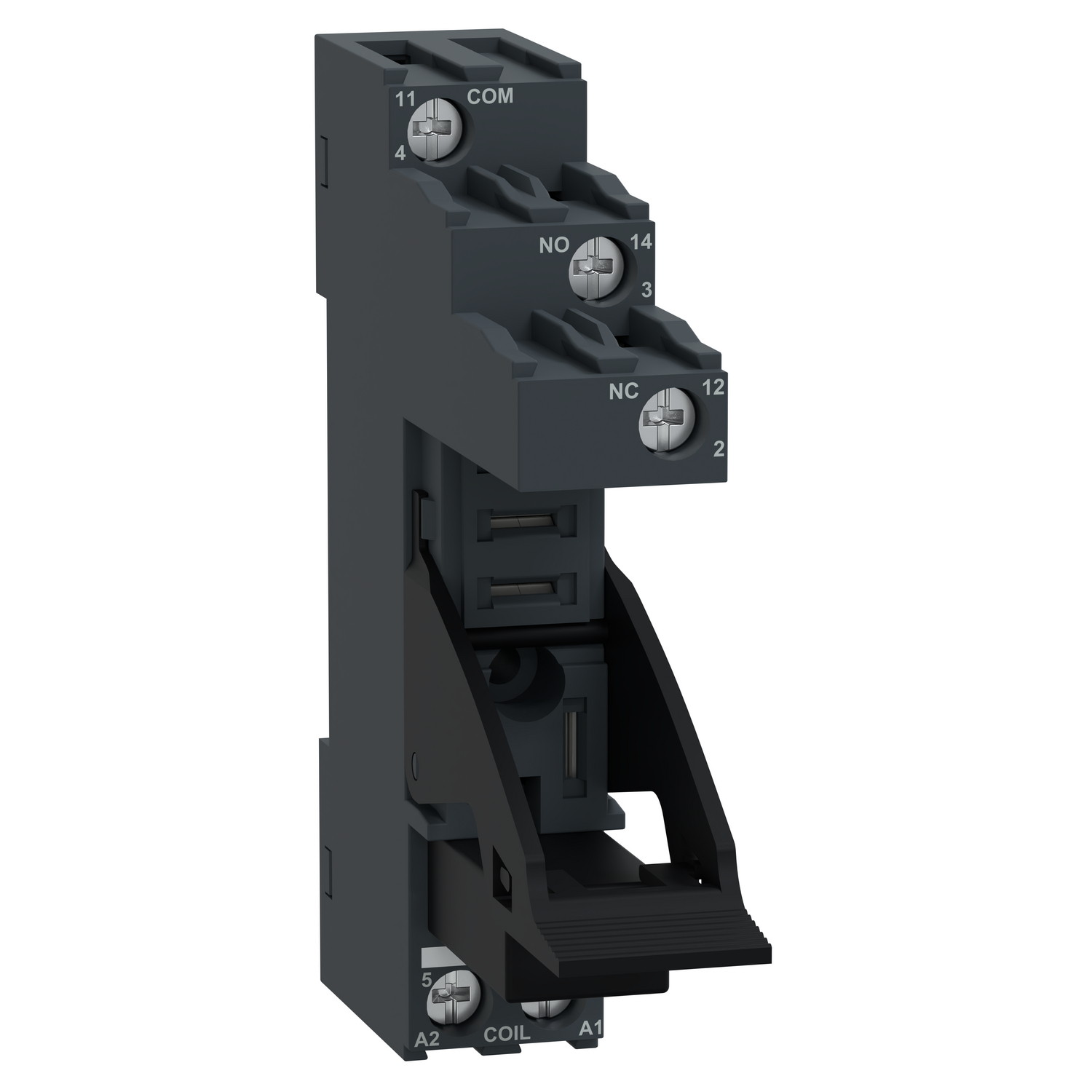

"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 1 C/O SPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime." 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | plug-in relay RXG with 1 C/O contact |
| Range of product | Harmony Electromechanical Relays |
| [In] rated current | 10 A |
| Contacts type and composition | 1 C/O |
| Product or component type | socket |
| [Ui] rated insulation voltage | 250 V |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 4 kV between terminals and DIN rail with basic insulation, 6 kV between coil and contact with reinforced insulation |
| Dielectric strength | 3 kV between terminals and DIN rail with basic insulation, 5 kV between coil and contact with reinforced insulation |
| Contact terminal arrangement | separate |
| Pollution degree | 3 |
| Overvoltage category | III |
| Connections - terminals | screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, screw terminals, 1 x 0.34...2 x 1.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors |
| [Ue] rated operational voltage | 300 V conforming to UL, 250 V conforming to IEC |
| Screw type | M3 |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 10-85 % |
| Ambient air temperature for operation | -40-70 °C |
| Standards | IEC 61984, CSA C22.2 No 14, UL 508 |
| Product certifications | DNV-GL, CSA, UL, EAC, CE |
