Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

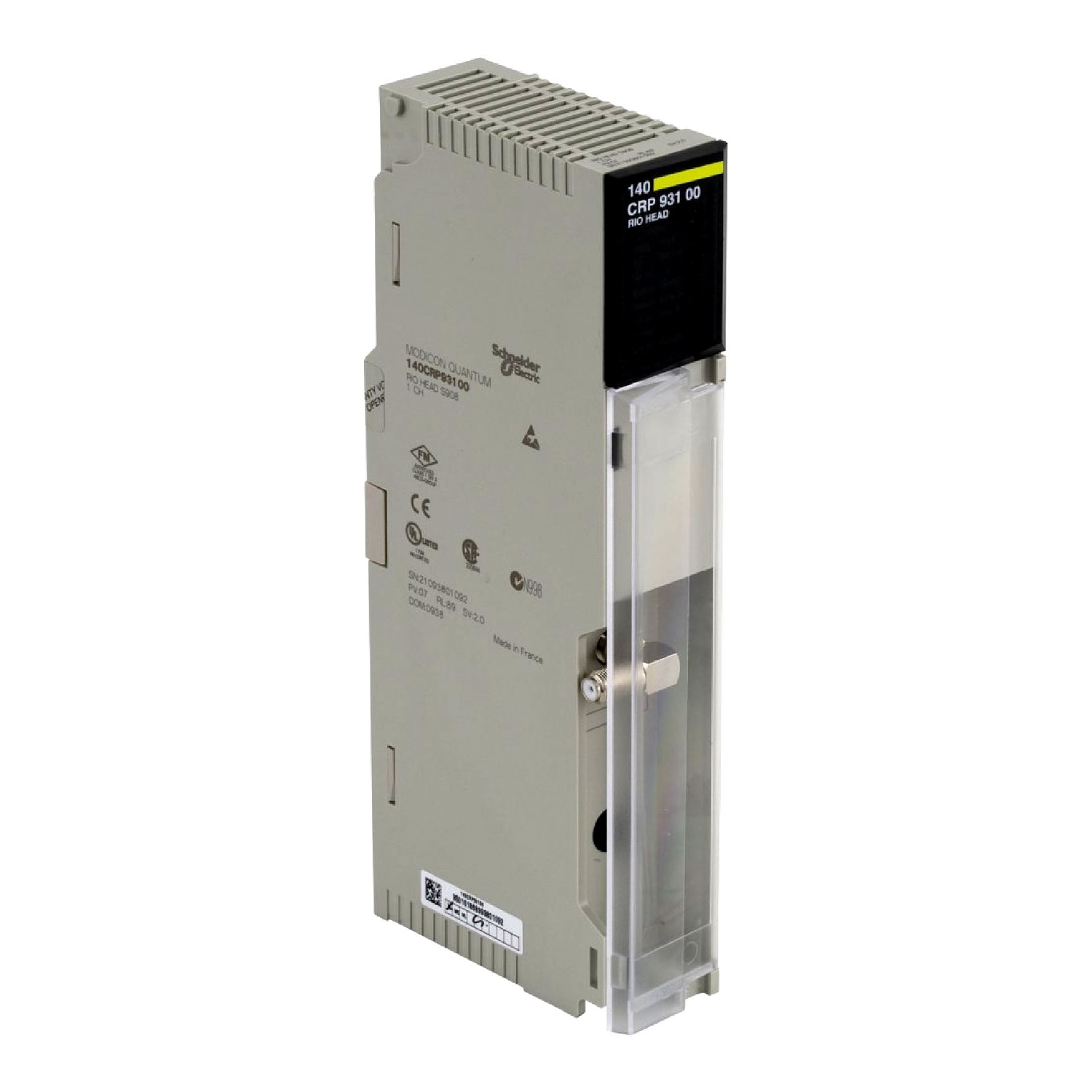

| Product or component type | RIO head-end adaptor module |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| I/O words/drop | 64 I/64 O |
| Product compatibility | Symax (any mix), Quantum 200/500/800 series |
| Transmission rate | 1544 Mbit/s |
| Module format | standard |
| Type of cable | 75 Ohm coaxial cable |
| Maximum drops/network | 31 |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | LAN controller check, memory check, power up |
| Power dissipation in W | 3 W 1 channel |
| Marking | CE |
| Bus current requirement | 600 mA 1 channel |
| Dynamic range | 35 dB |
| Environment | |
| Operating altitude | <= 5000 m |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | CSA C22.2 No 142, cUL, UL 508 |
| Resistance to electromagnetic fields | 10 V/m 80-1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | FM Class 1 Division 2 |
