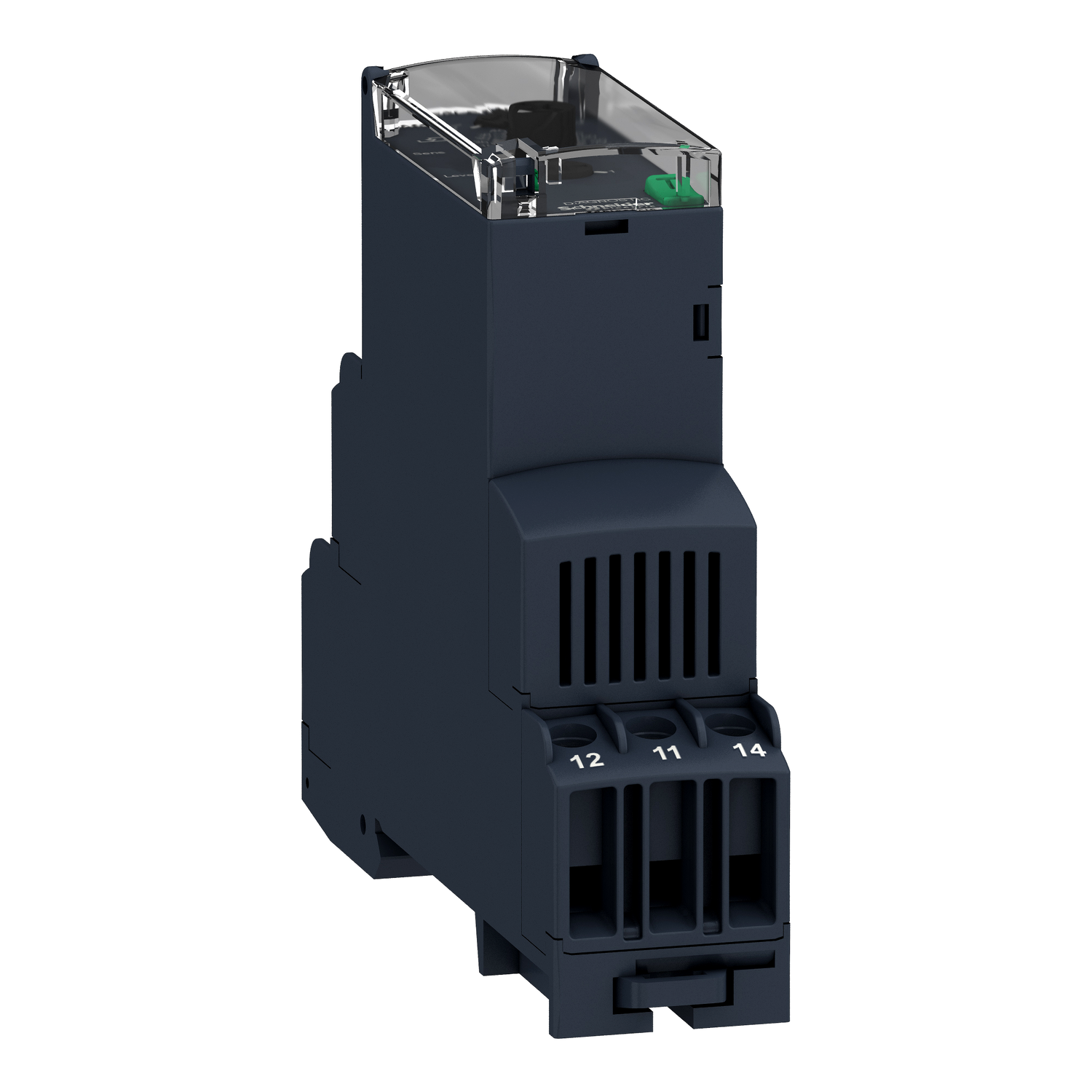

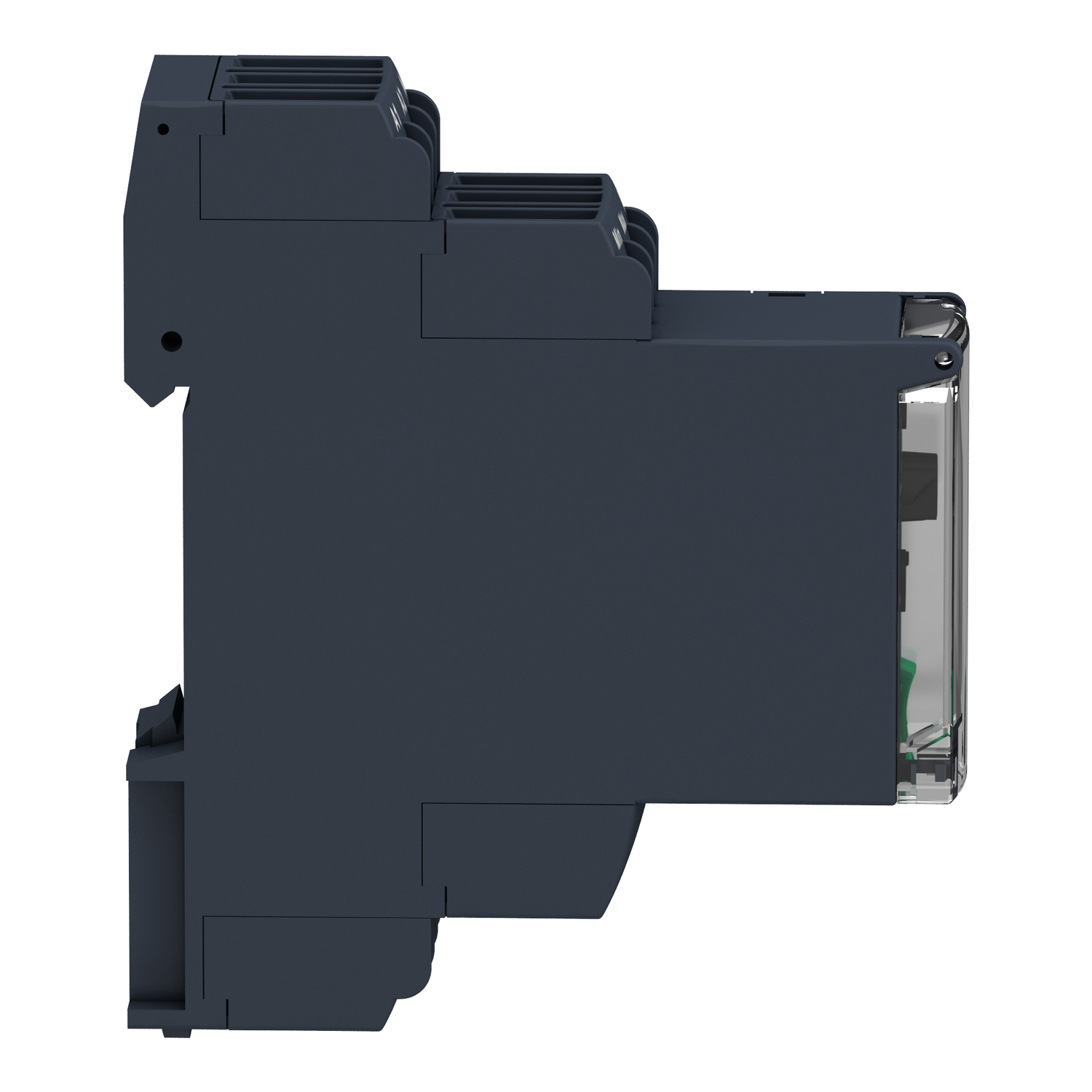

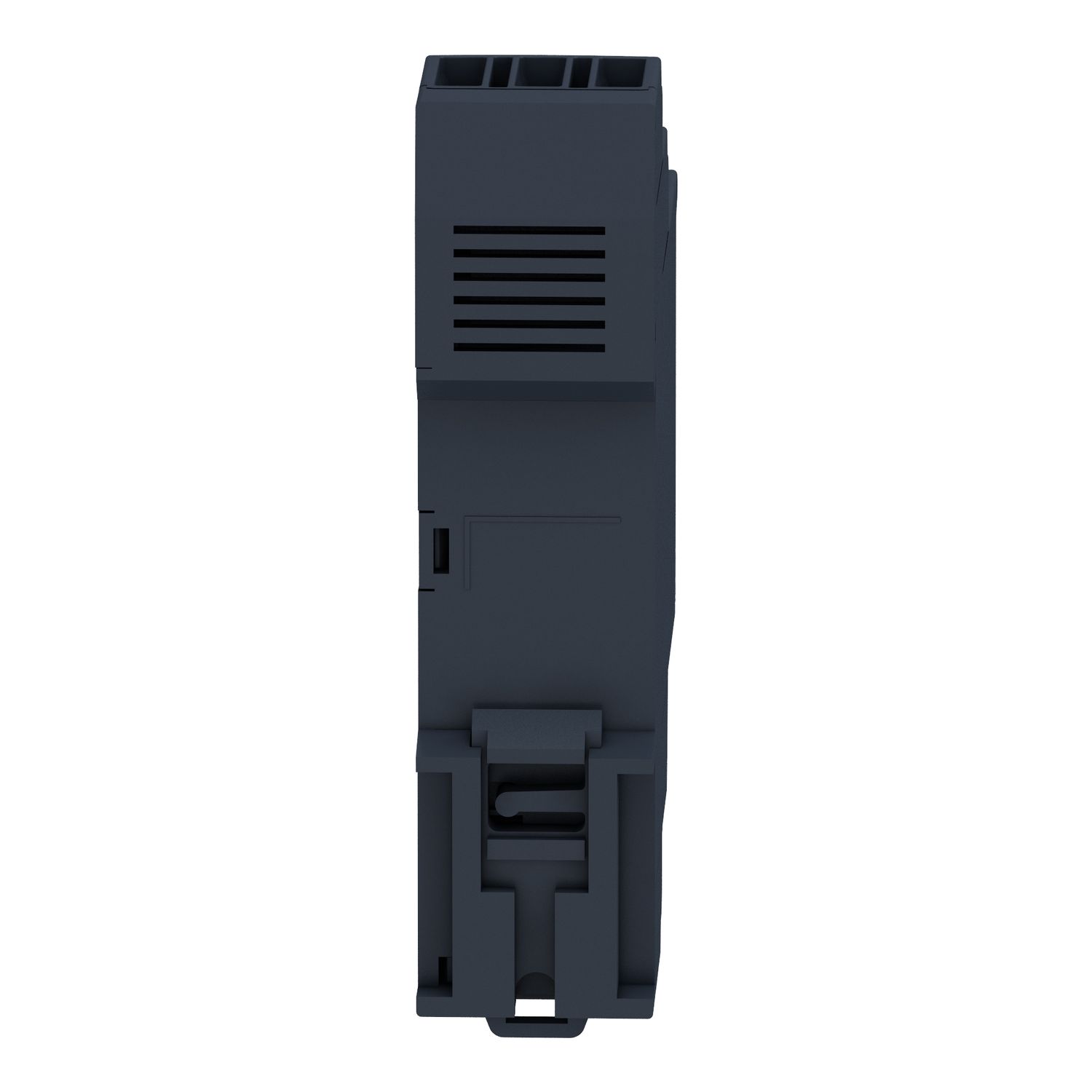

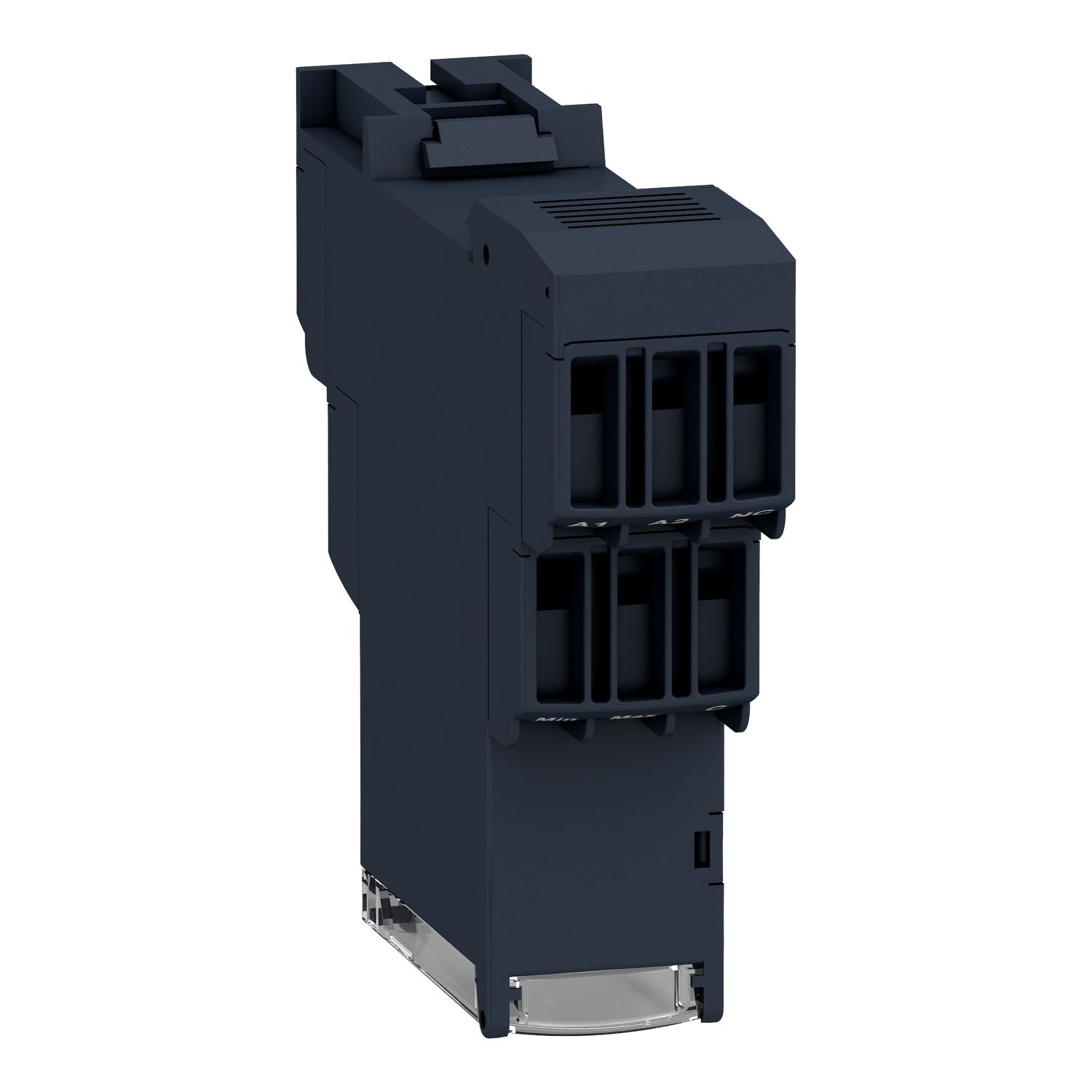

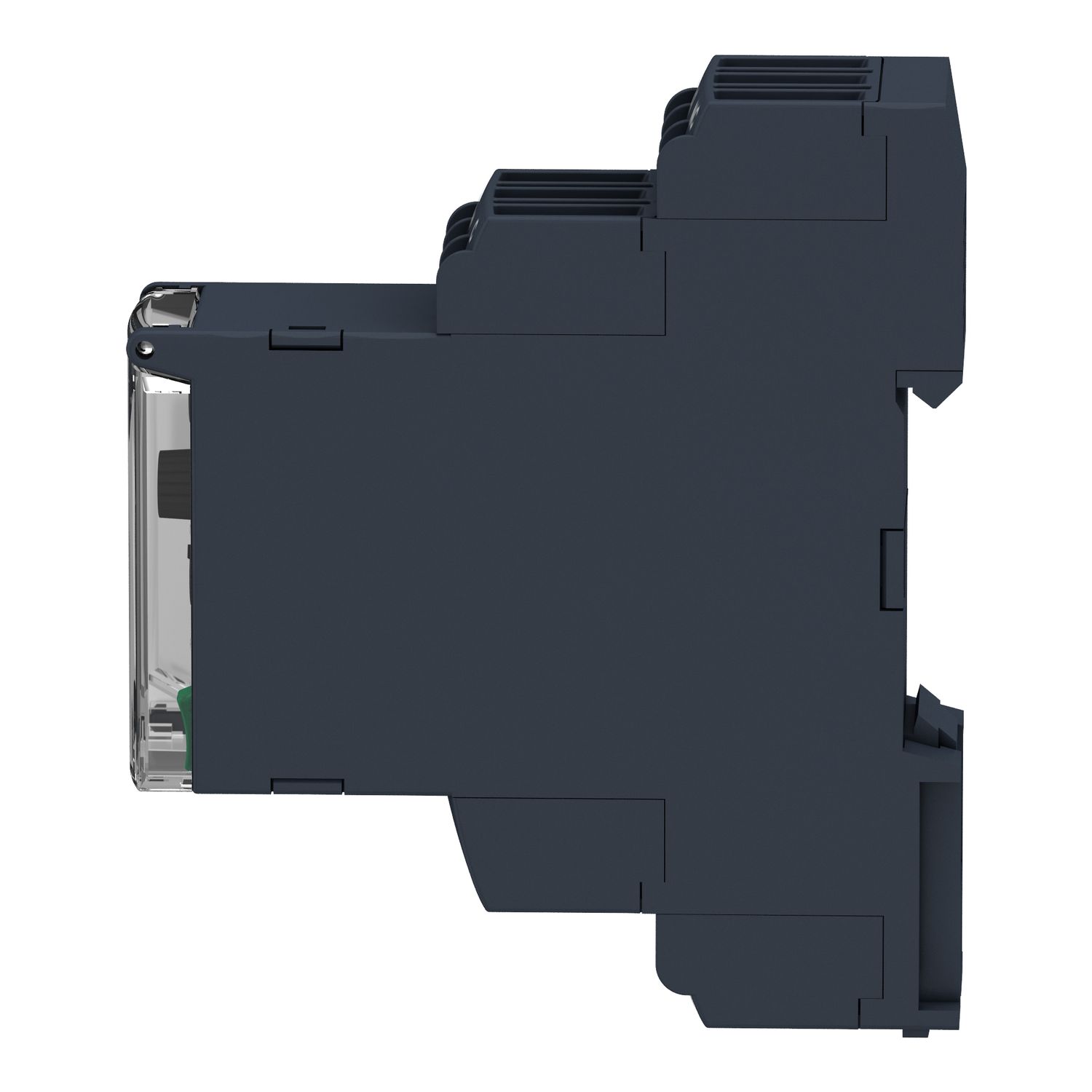

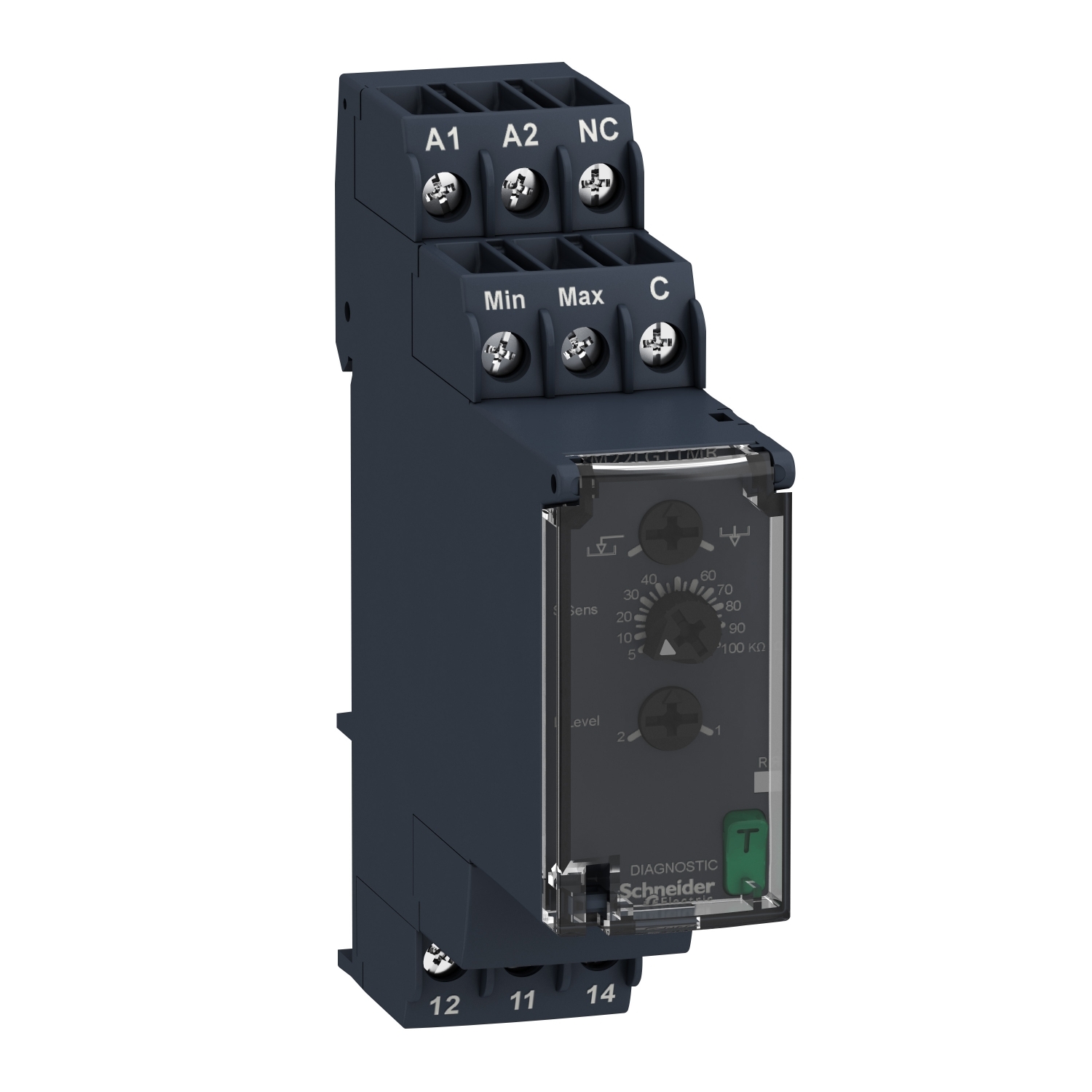

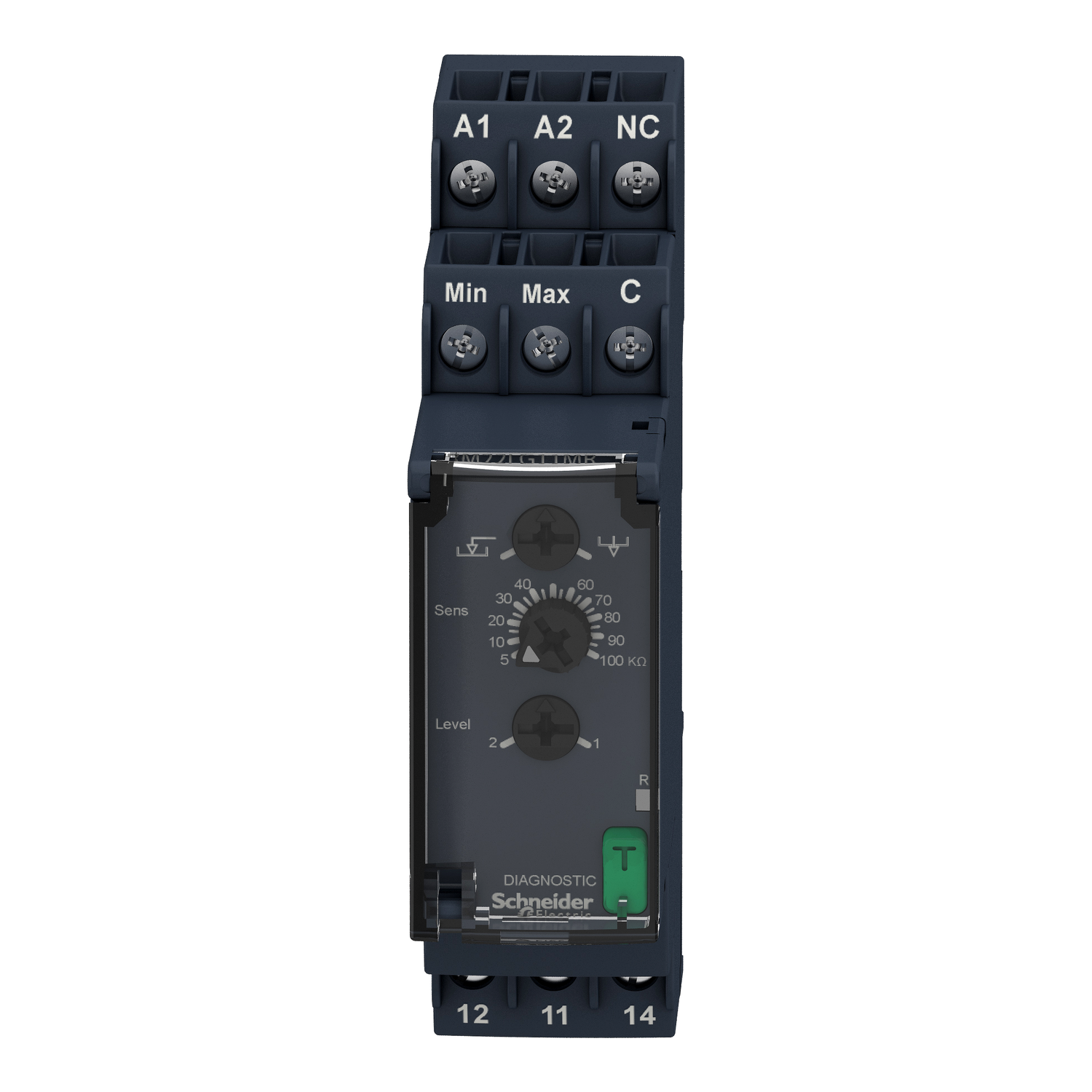

level control relay, Harmony Control Relays, 8A, 1CO, 24â€¦240V AC DC

Manufacturer: Schneider Electric

SKU: RM22LG11MR

GTIN: 3606480792328

Image of product in real life situation

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $177.54 inc GST

Price: $160.23 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Harmony RM22-LG relay allows monitoring of liquid level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name	Attribute value
Main
[Uc] control circuit voltage	24...240 V
Relay type	level control relay
Relay name	RM22L
Range of product	Harmony Control Relays
Maximum switching current	8 A AC
[In] rated current	8 A
Relay monitored parameters	detection by resistive probes
Time delay type	without
Contacts type and composition	2 C/O
Utilisation category	DC-1 conforming to IEC 60947-4-1, AC-1 conforming to IEC 60947-4-1, DC-13 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1
Product or component type	level control relay
Switching capacity in VA	2000 VA
Connections - terminals	screw connectors
Minimum switching current	10 mA at 5 V DC
Complementary
Run-up delay at power-up	0.6 s
Tightening torque	0.6-1 N.m conforming to IEC 60947-1
Maximum supply current for sensors	1 mA
Compatibility code	RM22
Mechanical durability	10000000 cycles
Supply voltage limits	20.4-264 V AC/DC
Insulation	between supply and measurement
Functionality	resistive probe detection
Maximum electrode current	1 mA
Control type	with test button
Contacts material	cadmium free
Maximum cable distance between devices	1000 m between probe and delay
Measurement error	0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Maximum electrode voltage	12 V AC
Safety reliability data	MTTFd = 125.5 years, B10d = 120000
Repeat accuracy	+/- 2 % for time delay
Electrical durability	100000 cycles
Sensitivity adjustment	5-100 %
Maximum power consumption in W	1.5 W DC
Width	22.5 mm
Mounting position	any position
Housing material	self-extinguishing plastic
Nominal output current	8 A
Mounting support	35 mm DIN rail conforming to IEC 60715
Overvoltage category	III conforming to IEC 60664-1
Connections - terminals	screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Maximum switching voltage	250 V AC
Net weight	0.1 kg
Sensitivity scale	5...100 kOhm St (Standard Sensitivity)
Output contacts	2 C/O
[Us] rated supply voltage	AC/DC non self-powered
Cable capacitance	4.7 nF at LS (Low Sensitivity) for probe cable, 2.2 nF at St (Standard Sensitivity) for probe cable, 1 nF at HS (High Sensitivity) for probe cable
Environment
Relative humidity	93-97 % at 25-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage	-40-70 °C
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP50 (front panel) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Electromagnetic compatibility	conducted and radiated emissions class B conforming to CISPR 22, conducted and radiated emissions class B group 1 conforming to CISPR 11, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to IEC 61000-6-2, immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1
Vibration resistance	0.5 gn (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 0.035 mm (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 1 gn (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6, 0.075 mm (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6
Shock resistance	5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27
Immunity to microbreaks	90 ms AC, 100 ms DC
Dielectric test voltage	2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
Standards	IEC 60255-1
Product certifications	CE, EAC, UL, CSA, CCC, RCM, GL
