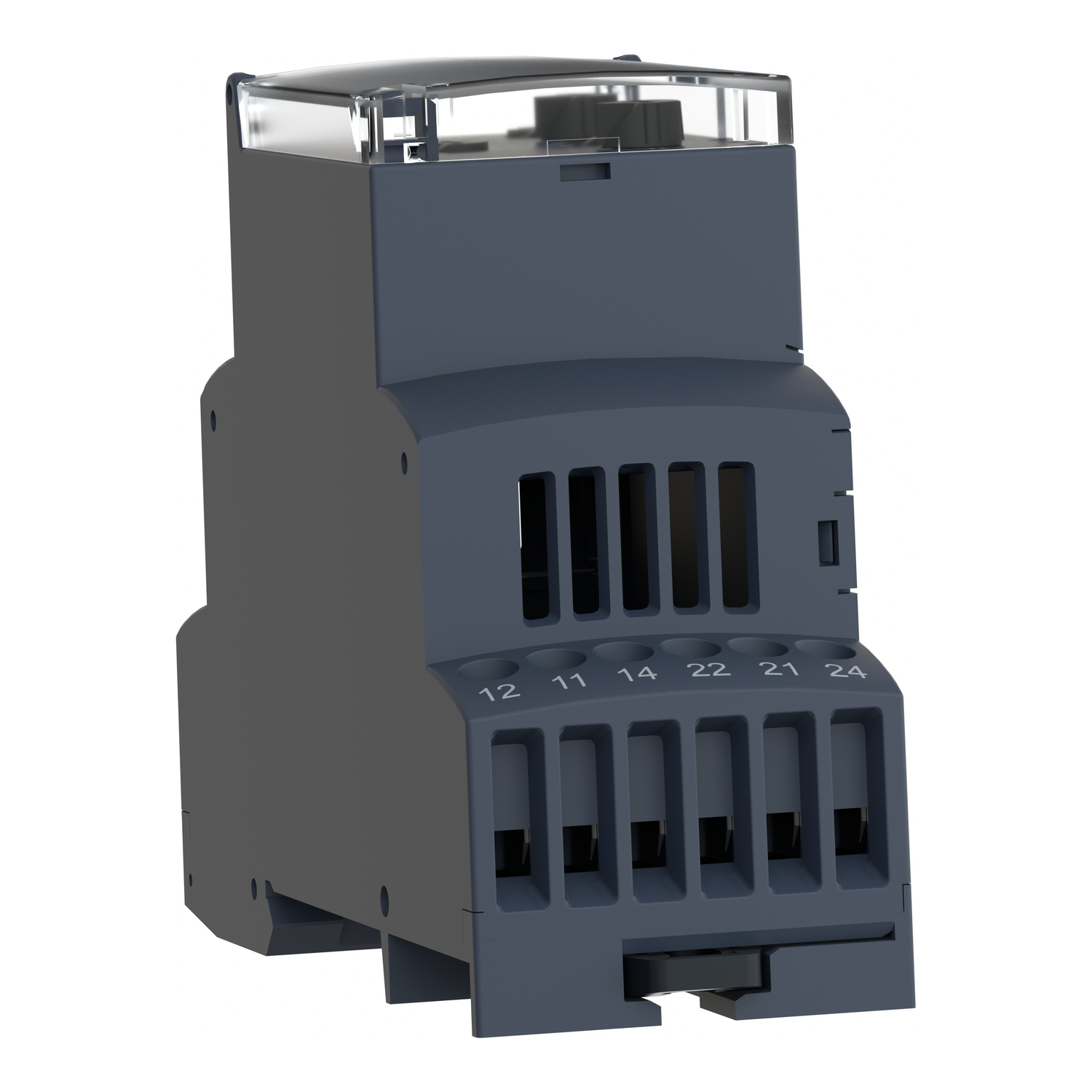

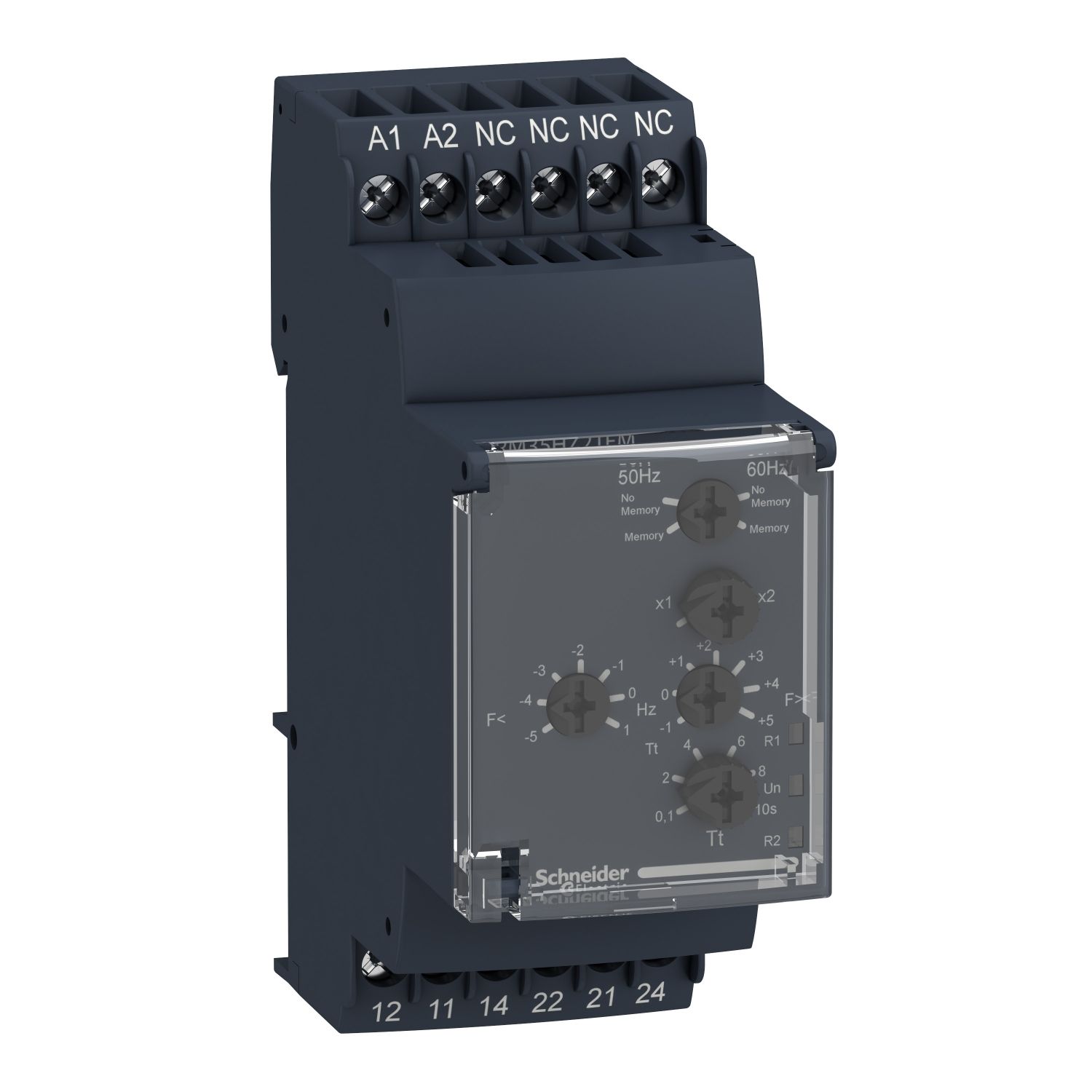

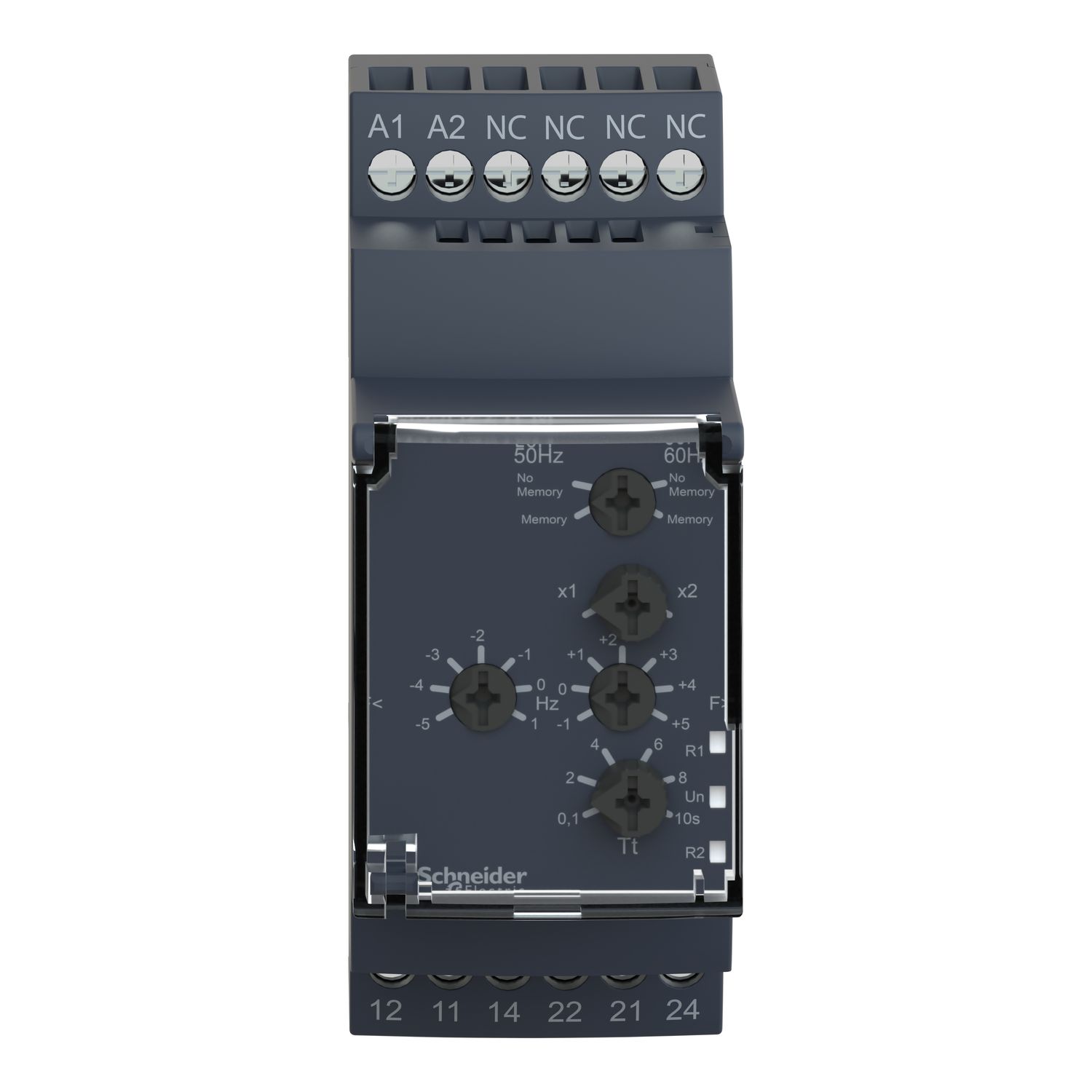

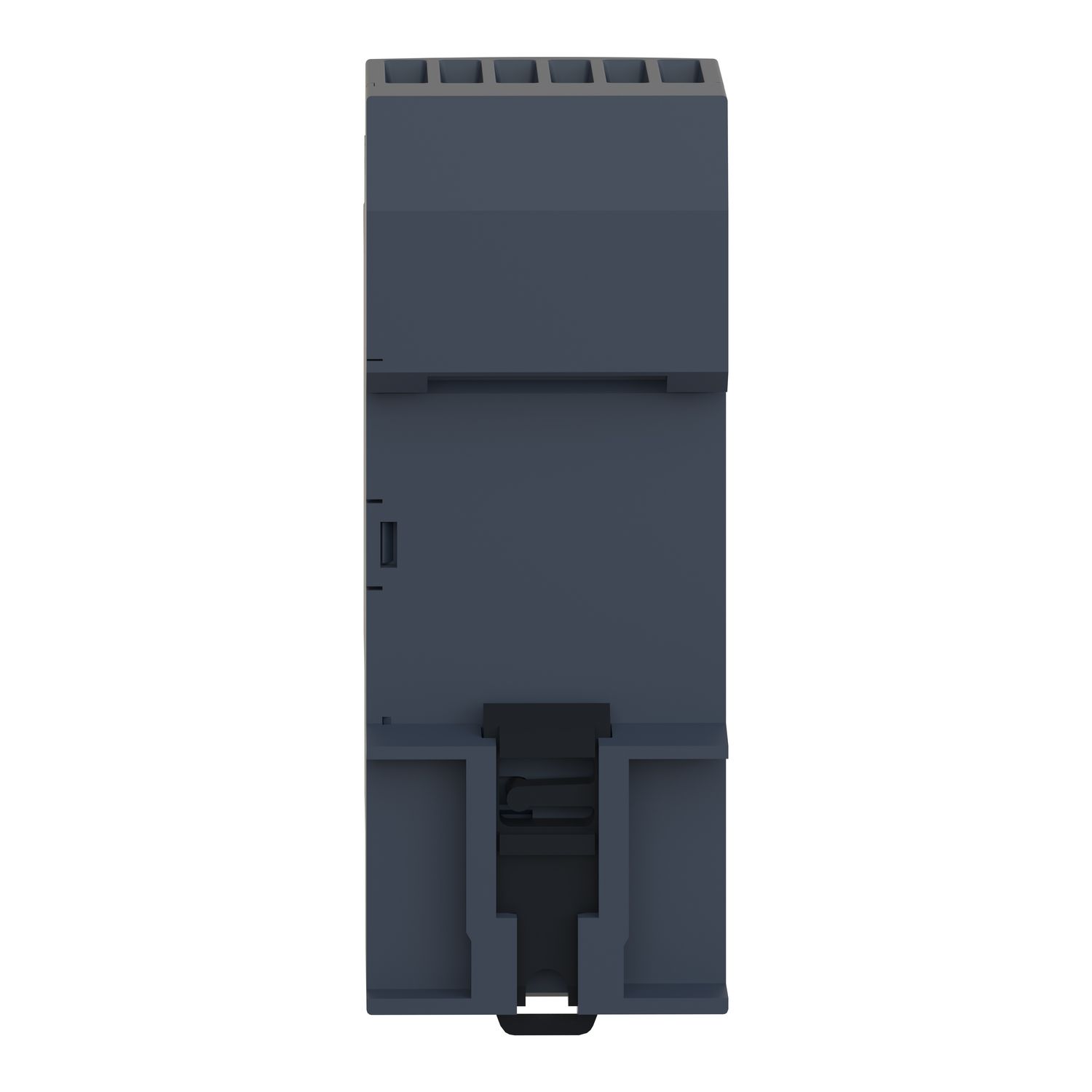

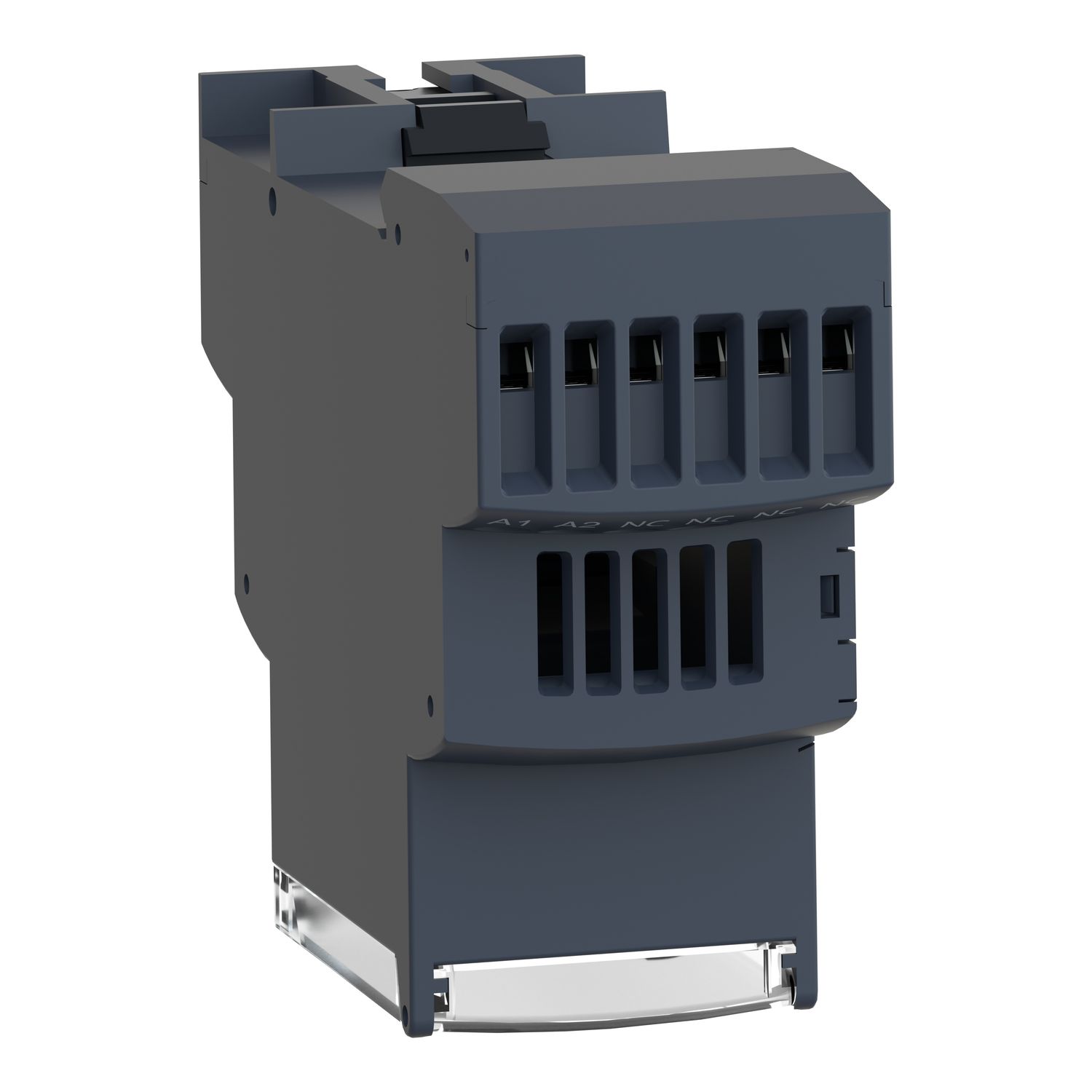

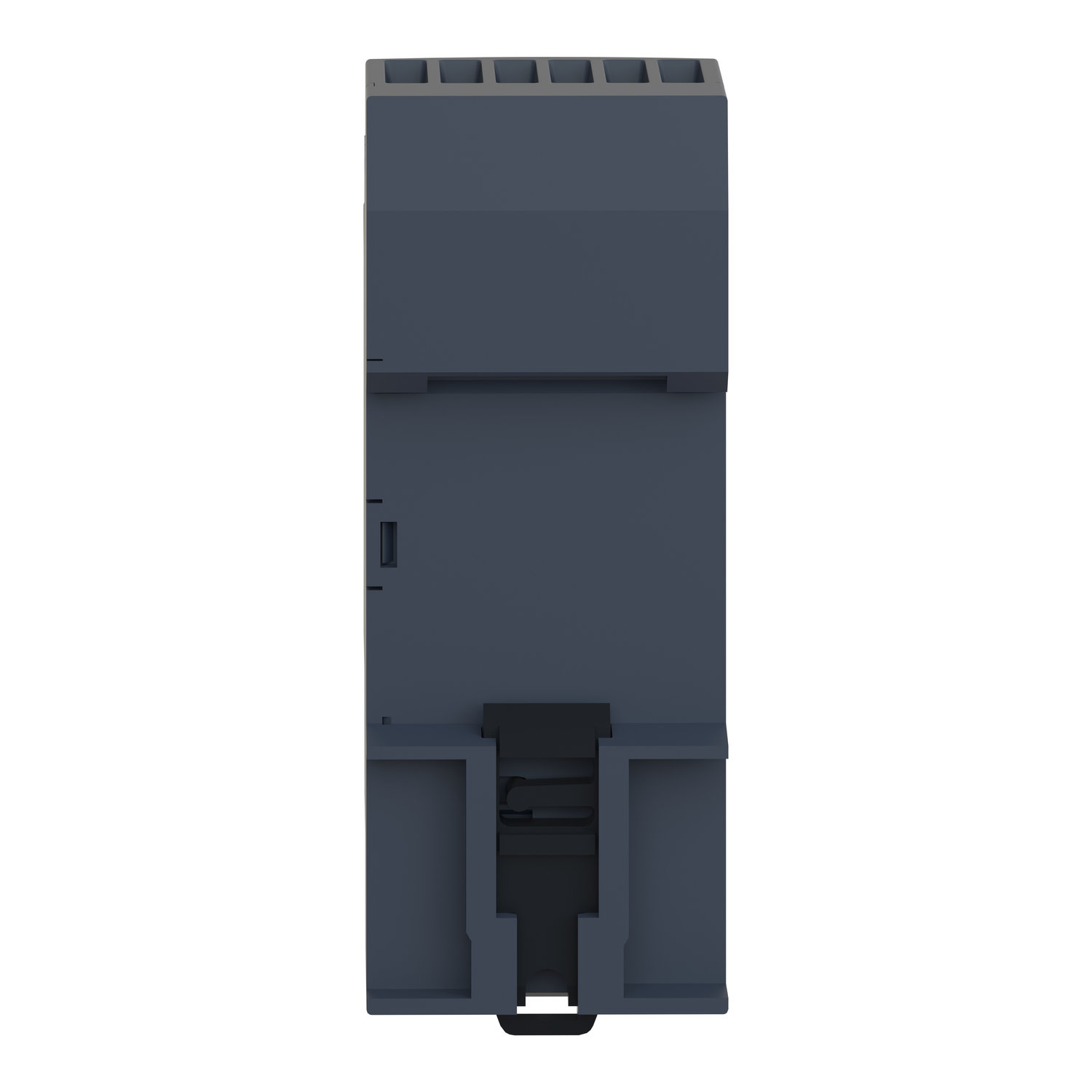

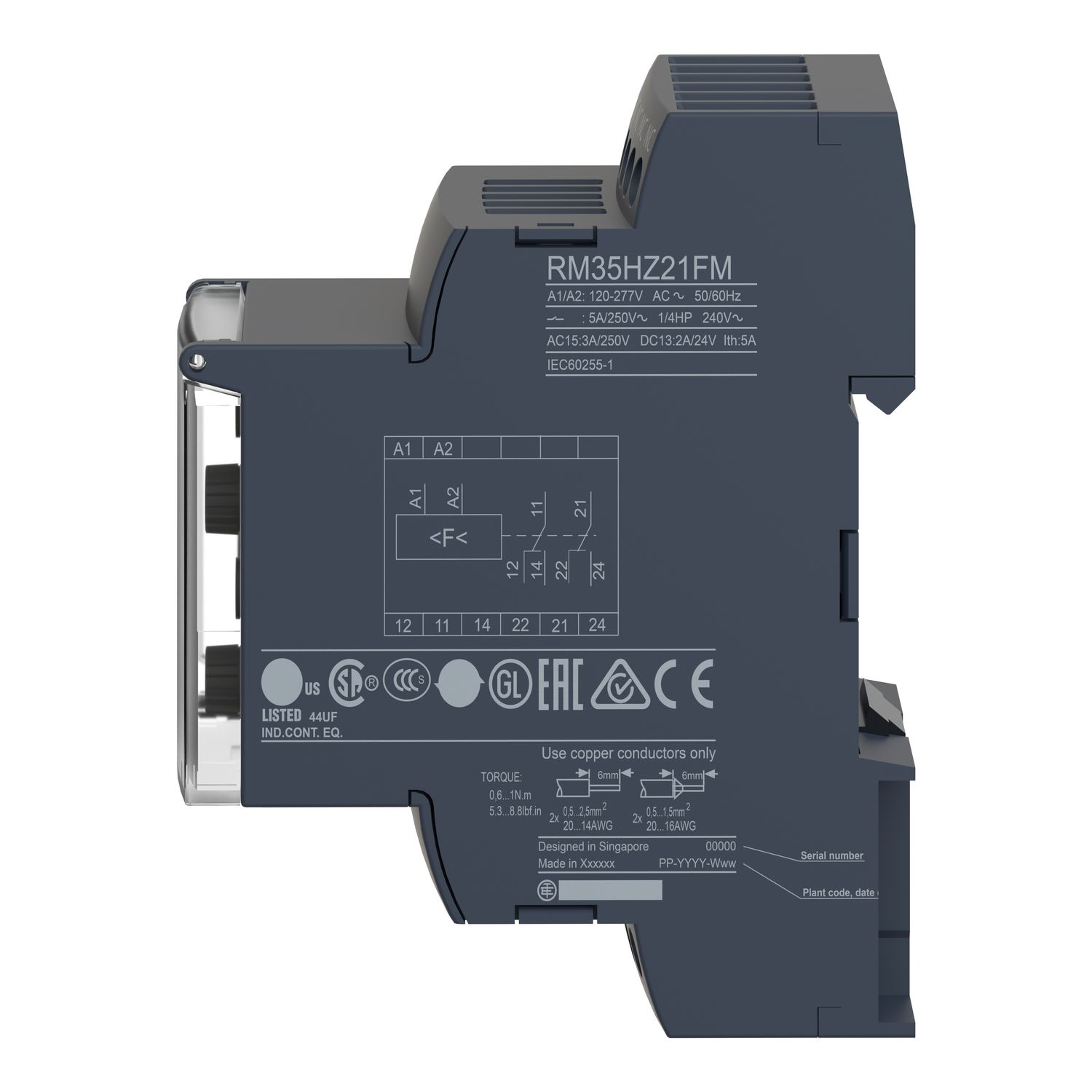

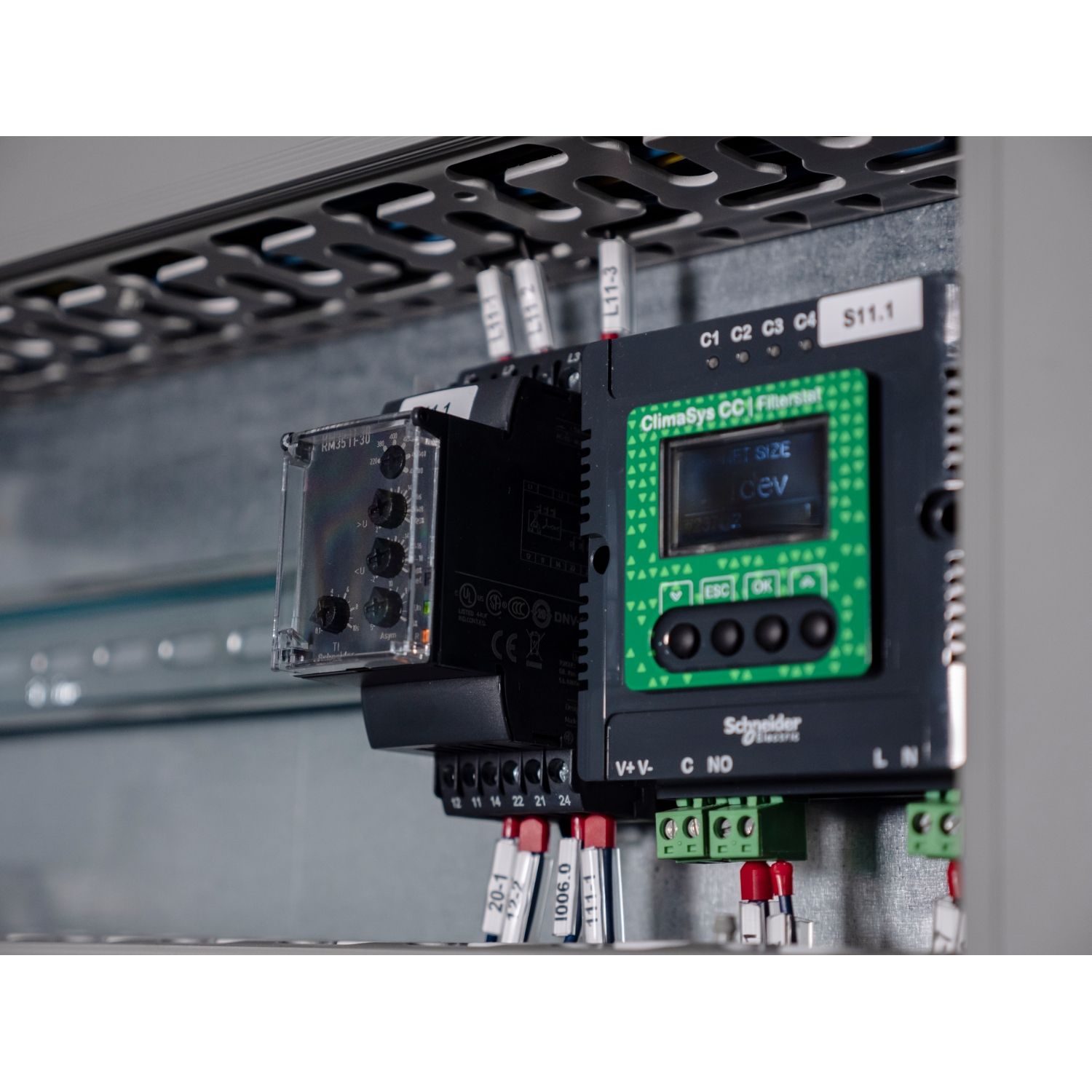

This Harmony RM35-HZ control relay allows monitoring of frequency control. This modular control relay is ideal for monitoring of frequency variations in electrical power sources such as wind turbine and micro-power stations. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides an automatic detection of abnormal electrical values before they incur serious damage to machinery thus reducing your maintenance and downtime costs. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Uc] control circuit voltage | 120...277 V |
| Relay type | frequency control relays |
| Relay name | RM35HZ21FM |
| Measurement range | 40...70 Hz frequency |
| Range of product | Harmony Control Relays |
| Maximum power consumption in VA | 6 VA AC |
| [In] rated current | 5 A |
| Relay monitored parameters | overfrequency and underfrequency 50 or 60 Hz |
| Time delay type | adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault |
| Contacts type and composition | 2 C/O |
| Utilisation category | DC-14 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1 |
| Product or component type | frequency control relay |
| Switching capacity in VA | 1250 VA |
| Connections - terminals | screw connectors |
| Minimum switching current | 10 mA at 5 V DC |
| Complementary | |
| Supply frequency | 50/60 Hz +/- 10 % |
| Run-up delay at power-up | 0.5 s |
| Tightening torque | 0.6-1 N.m conforming to IEC 60947-1 |
| Control circuit frequency | 40...70 Hz |
| Control circuit voltage limits | - 15 % + 10 % Un |
| Compatibility code | RM3 |
| Mechanical durability | 30000000 cycles |
| Supply voltage limits | 102-308 V AC |
| Insulation | no galvanic insulation between supply and measurement |
| Control type | without test button |
| Threshold setting | -10...2 Hz, -2...10 Hz |
| Marking | CE : EMC 89/336/EEC, CE : 73/23/EEC |
| Contacts material | cadmium free |
| Status LED | 1 LED yellow for correct frequency (low R2), 1 LED yellow for correct frequency (high R1), 1 LED green for power ON |
| Measurement error | < +/- 1 % over the whole range with voltage variation, +/- 0.05 %/°C with temperature variation |
| Insulation resistance | > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 |
| Repeat accuracy | +/- 0.5 % for time delay, +/- 0.5 % for input and measurement circuit |
| [Us] rated supply voltage | 120...277 V AC, AC non self-powered |
| Electrical durability | 100000 cycles |
| Width | 35 mm |
| Measurement accuracy | +/- 10 % of the full scale value in time delay, +/- 10 % of the full scale value in input |
| Housing material | self-extinguishing plastic |
| Input frequency | 70 Hz |
| Nominal output current | 5 A |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Overvoltage category | III conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60664-1 |
| Connections - terminals | screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end |
| Reset time | 2000 ms time delay |
| Maximum switching voltage | 250 V AC/DC |
| Operating position | any position without derating |
| Output contacts | 1 C/O + 1 C/O |
| Operating rate | <= 360 operations/hour full load |
| Hysteresis | 0.3-0.3 % fixed |
| Maximum measuring cycle | 200 ms measurement cycle as true rms value |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C conforming to IEC 60068-2-30 |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 |
| Electromagnetic compatibility | immunity for industrial environments conforming to NF EN/IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4 |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | -20-50 °C |
| Non-dissipating shock wave | 4 kV |
| Vibration resistance | 1 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| Dielectric test voltage | 2 kV AC 50 Hz |
| Standards | NF EN 60255-6, IEC 60255-6 |
| Product certifications | GOST, C-Tick, CSA, UL, GL |
