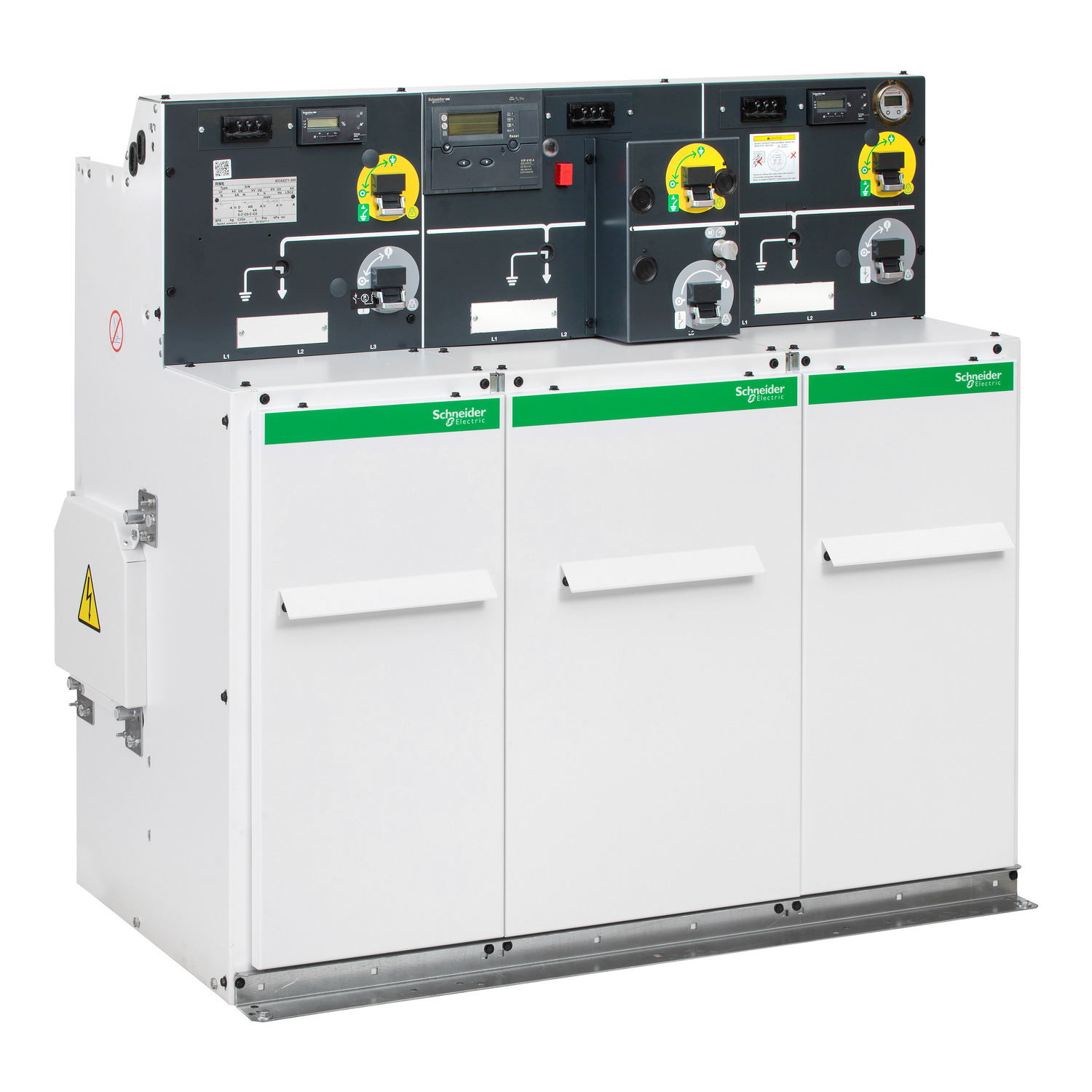

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure name | IDI |
| Rated short-time withstand current (Ik) | 20 kA rms 1 s |
| Rated continuous current (Ir) | 630 A |
| Enclosure type | NE (not extensible) |
| Product or component type | gas insulated switchboard |
| Standards | IEC 62271-200 |
| Network type | AC |
| Rated voltage (Ur) | 24 kV |
| Rated frequency (fr) | 50 Hz |
| Device composition | 1 x circuit-breaker 200 A (D), 1 x switch 630 A (I) |
| Range of product | RM6 |
| Number of functions | 3 |
| Complementary | |
| Height | 1142 mm |
| Depth | 710 mm |
| Relay type | 1 X voltage measurement relay VPIS, 1 X self-powered VIP 410E CUa D |
| Shaft type | standard |
| IK degree of protection | IK07 |
| Bus rated current | 630 A |
| Product weight | 240 kg |
| IP degree of protection | front face: IP3x, tank with HV parts: IP67 |
| Pressure sensor type | standard manometer, < 1000 m, temperature-25-40 °C |
| User language | English |
| Locking options description | without keylocks |
| Width | 1186 mm |
| Control type | manual O – 3 min - CO – 3 min - O (B) |
| Interlocking type | mechanical |
| Environment | |
| Operating altitude | < 1000 m |
| Ambient air temperature for operation | -25-40 °C indoor |
