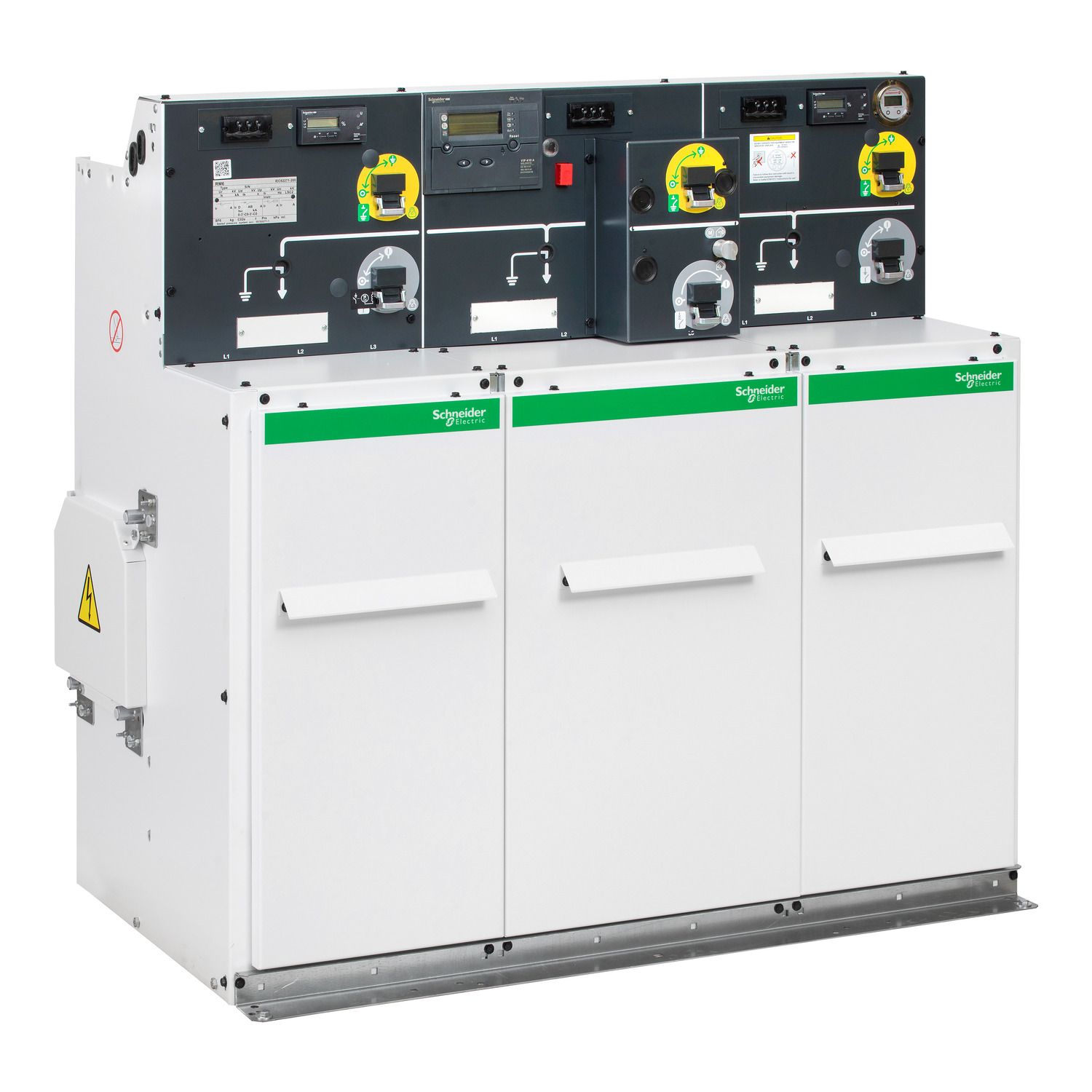

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure name | IDI |
| Rated short-time withstand current (Ik) | 20 kA rms 1 s |
| Rated continuous current (Ir) | 400 A |
| Enclosure type | NE (not extensible) |
| Product or component type | gas insulated switchboard |
| Standards | IEC 62271-200 |
| Network type | AC |
| Rated voltage (Ur) | 24 kV |
| Technology type | SF6 gas |
| Rated frequency (fr) | 50 Hz |
| Device composition | 1 x circuit-breaker 200 A, 2 x switch 400 A |
| Range of product | RM6 |
| Number of functions | 3 |
| Complementary | |
| Height | 1142 mm |
| Depth | 710 mm |
| Type of service box | IAC AFL |
| Relay type | self-powered VIP 40 CUa with current sensors and Mitop |
| Local signalling | voltage presence indicator light, F21D with CTR2200 sensor type, I |
| IK degree of protection | IK07 |
| Bus rated current | 400 A |
| IP degree of protection | front face + mechanism: IP3x, tank with HV parts: IP67 |
| Product weight | 240 kg |
| Pressure sensor type | standard manometer |
| User language | English |
| Width | 1186 mm |
| Control type | motor mechanism 24 V DC switch (I) |
| Interlocking type | mechanical |
| Environment | |
| Operating altitude | < 1000 m |
| Ambient air temperature for operation | -25-40 °C indoor |
