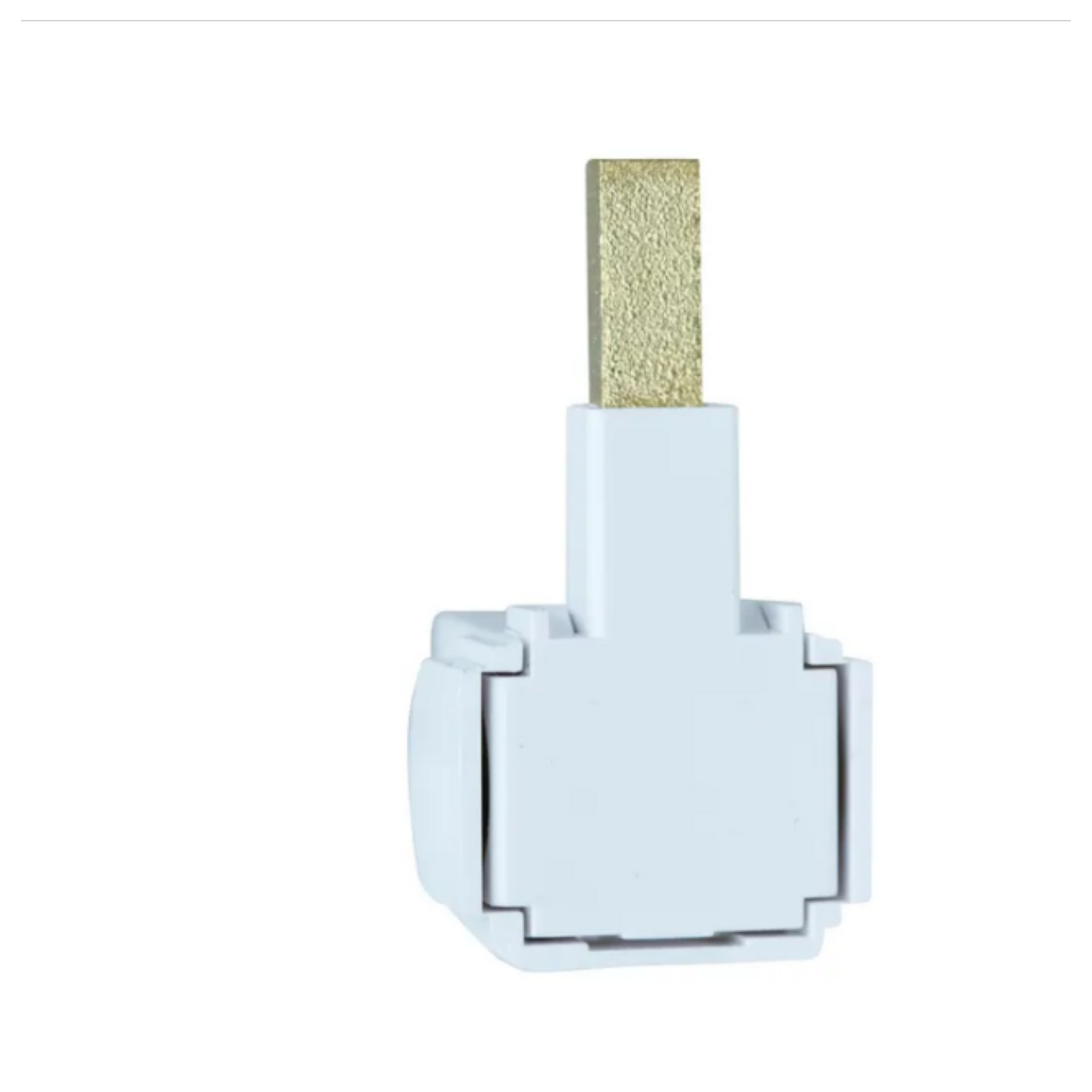

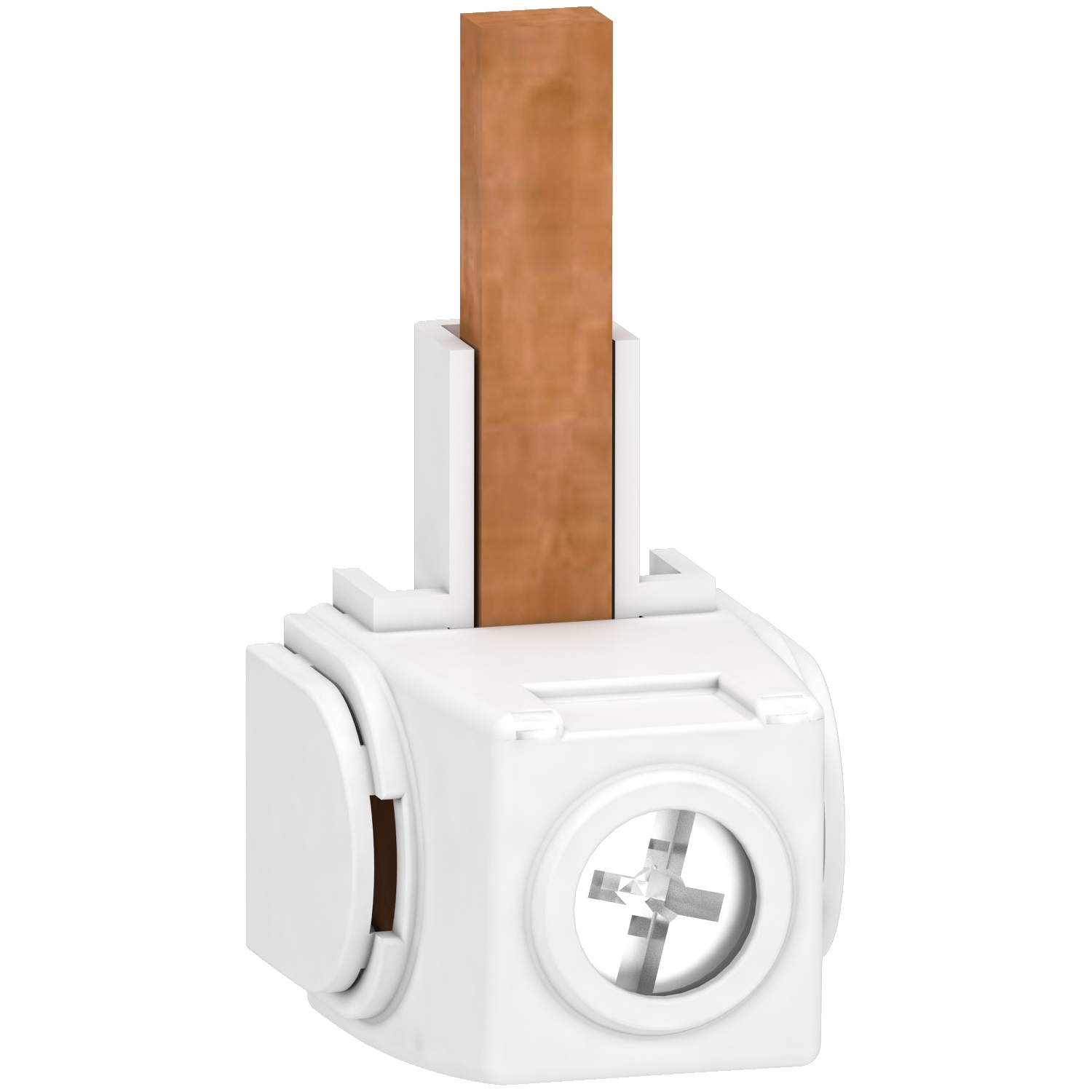

This Resi MAX connection accessory is a set of 4 1P+N connectors. The Ie rated operational current is 63A at 40°C. Its color is white (RAL 9003).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour | white (RAL 9003) |
| Quantity per set | set of 4 |
| Range | Resi MAX |
| Product or component type | connector |
| Accessory / separate part category | connection accessory |
| Complementary | |
| Tightening torque | 4-4 N.m |
| Mounting location | bottom on tunnel type terminals |
| Poles description | 1P + N |
| Mounting mode | horizontal |
| [Ie] rated operational current | 63 A at 40 °C |
| Connections - terminals | screw clamp terminals 1-35 mm² rigid |
