Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Poles description | 3P + N |
| Range | Resi MAX |

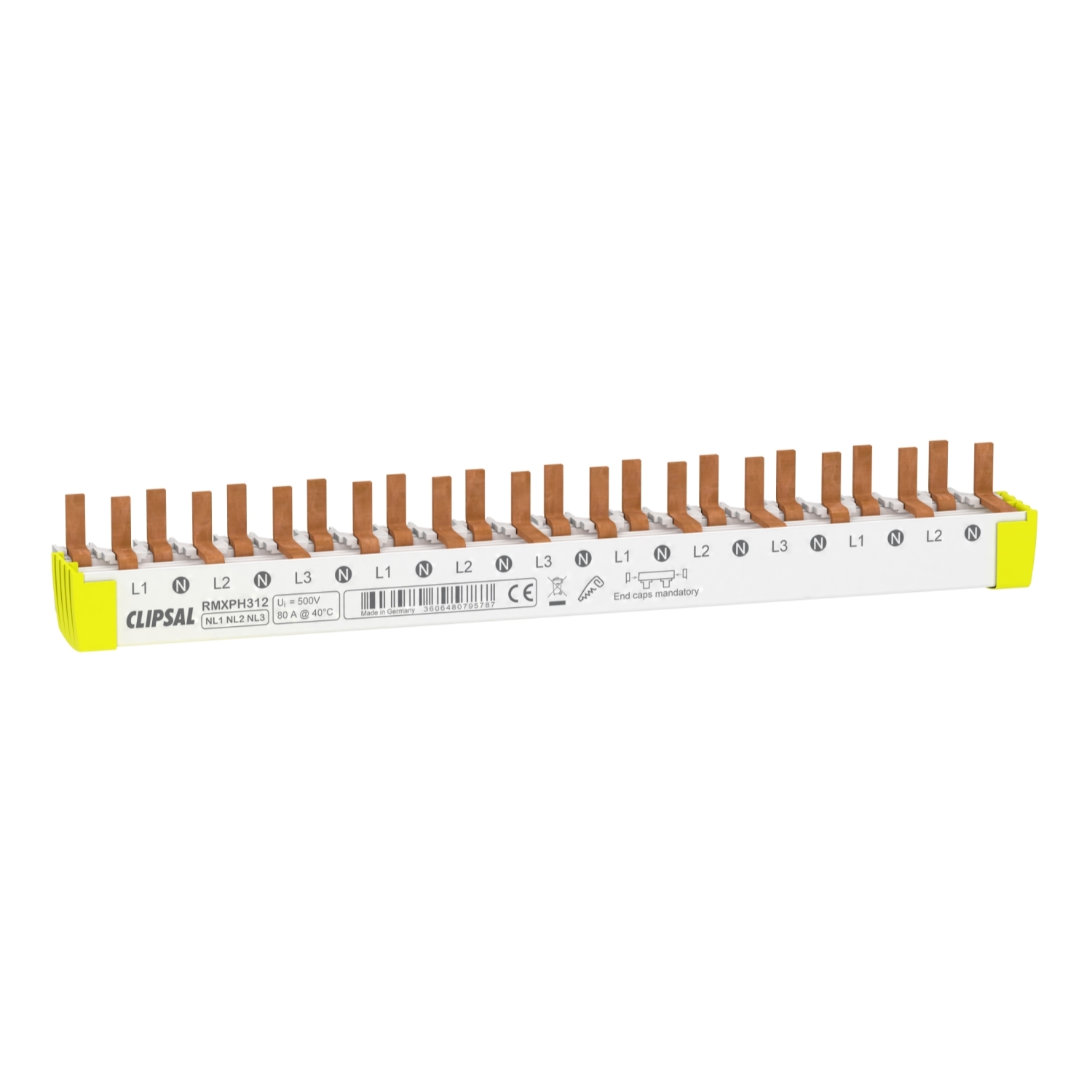

| Product or component type | comb busbar |
| Number of ways | 12 ways N + L tooth connector(s) with 9 mm pitch |
| Accessory / separate part category | connection accessory |
| Total number of 18 mm modules | 12 |
| Distance between way | 18 mm |
| Product brand | Clipsal |
| Complementary | |
| Mounting location | bottom on tunnel type terminals |
| Width | 216 mm |
| Colour | white (RAL 9003) |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ue] rated operational voltage | 400 V AC Ph/Ph, 230 V AC Ph/N |
| Insulation | insulated |
| Mounting mode | horizontal |
| [Ie] rated operational current | 80 A at 40 °C |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-1 |
| Device presentation | cuttable |
| 9 mm pitches | 24 |
| Environment | |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree | 3 conforming to IEC 60947-7-1 |
| Standards | IEC 60947-7-1, IEC 61439-1 |
