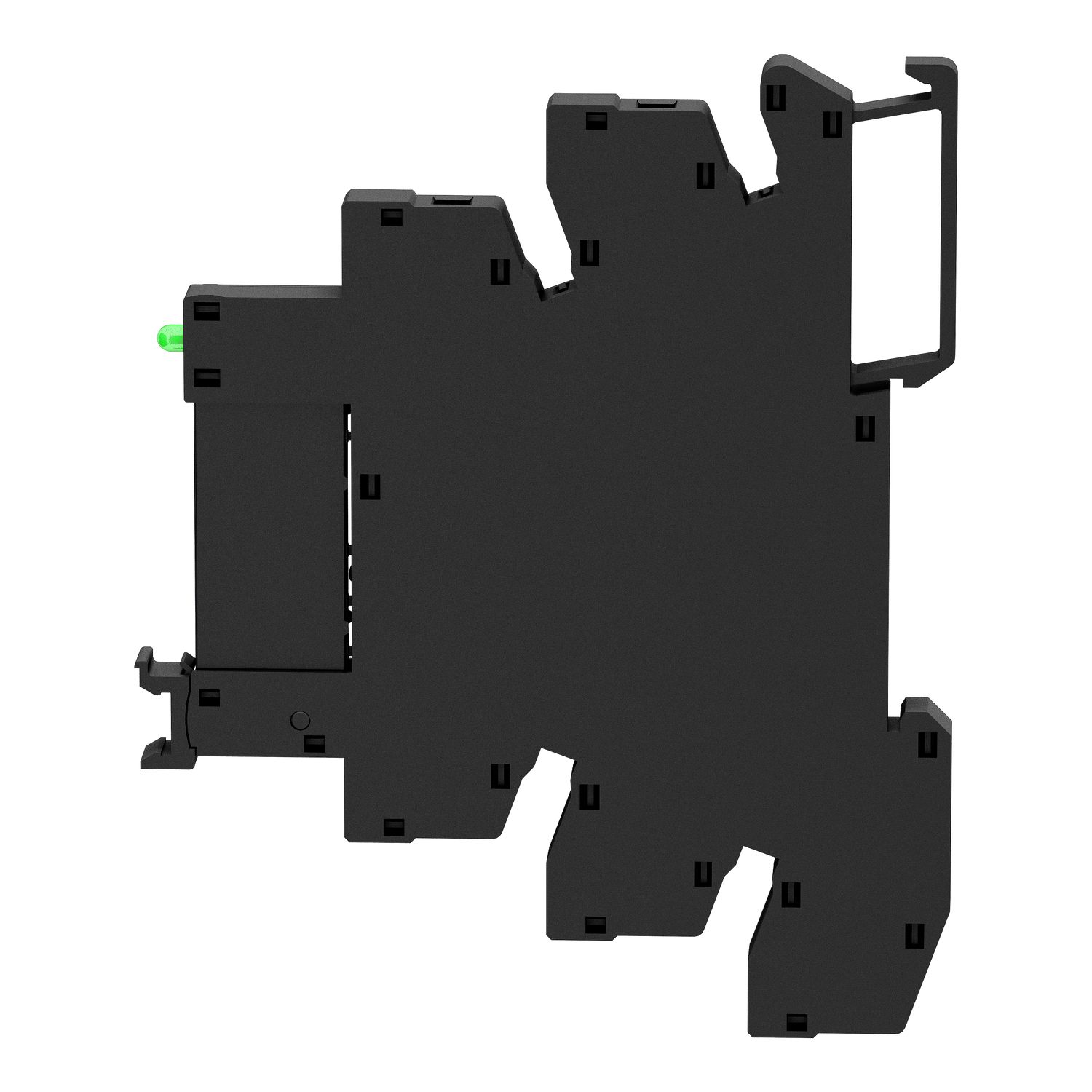

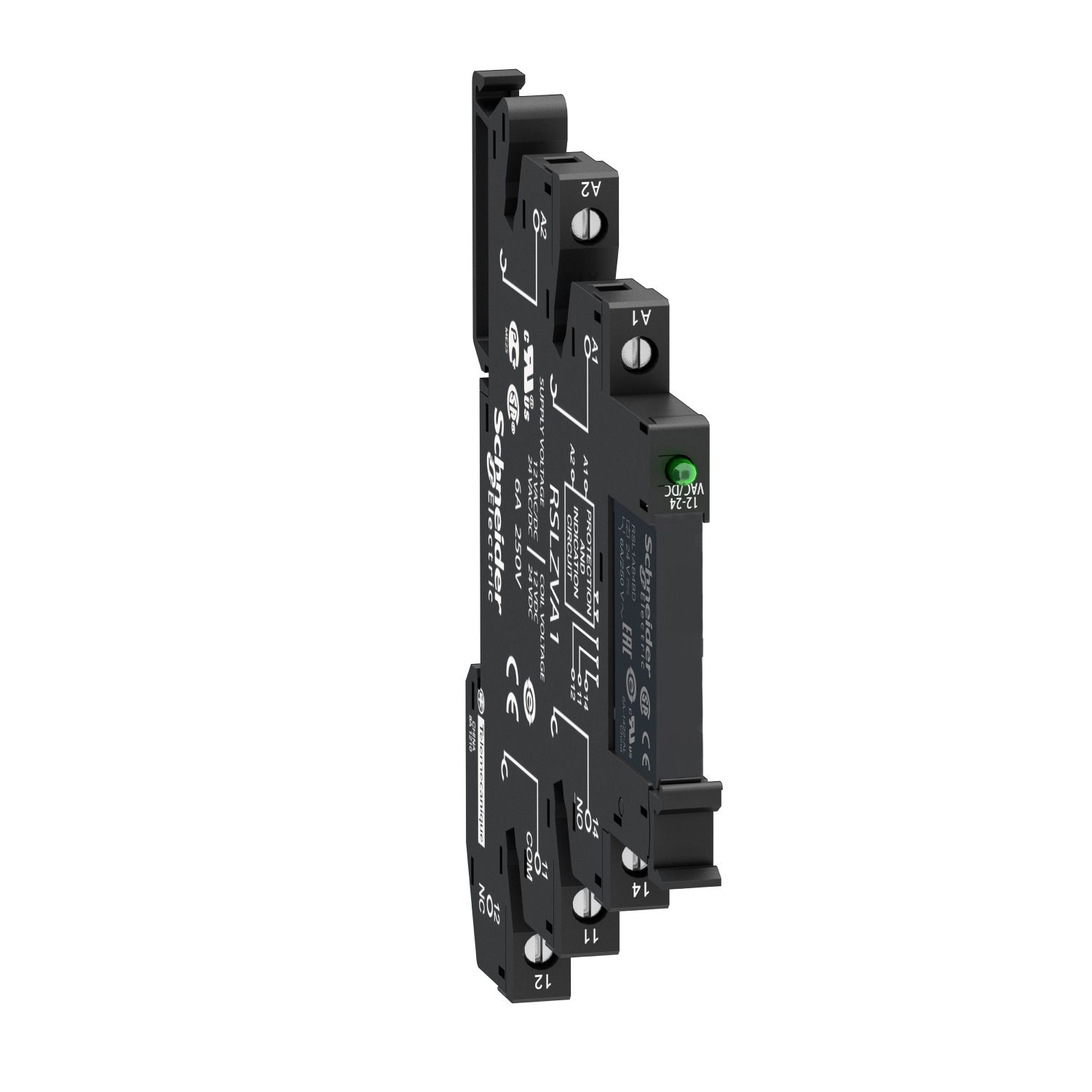

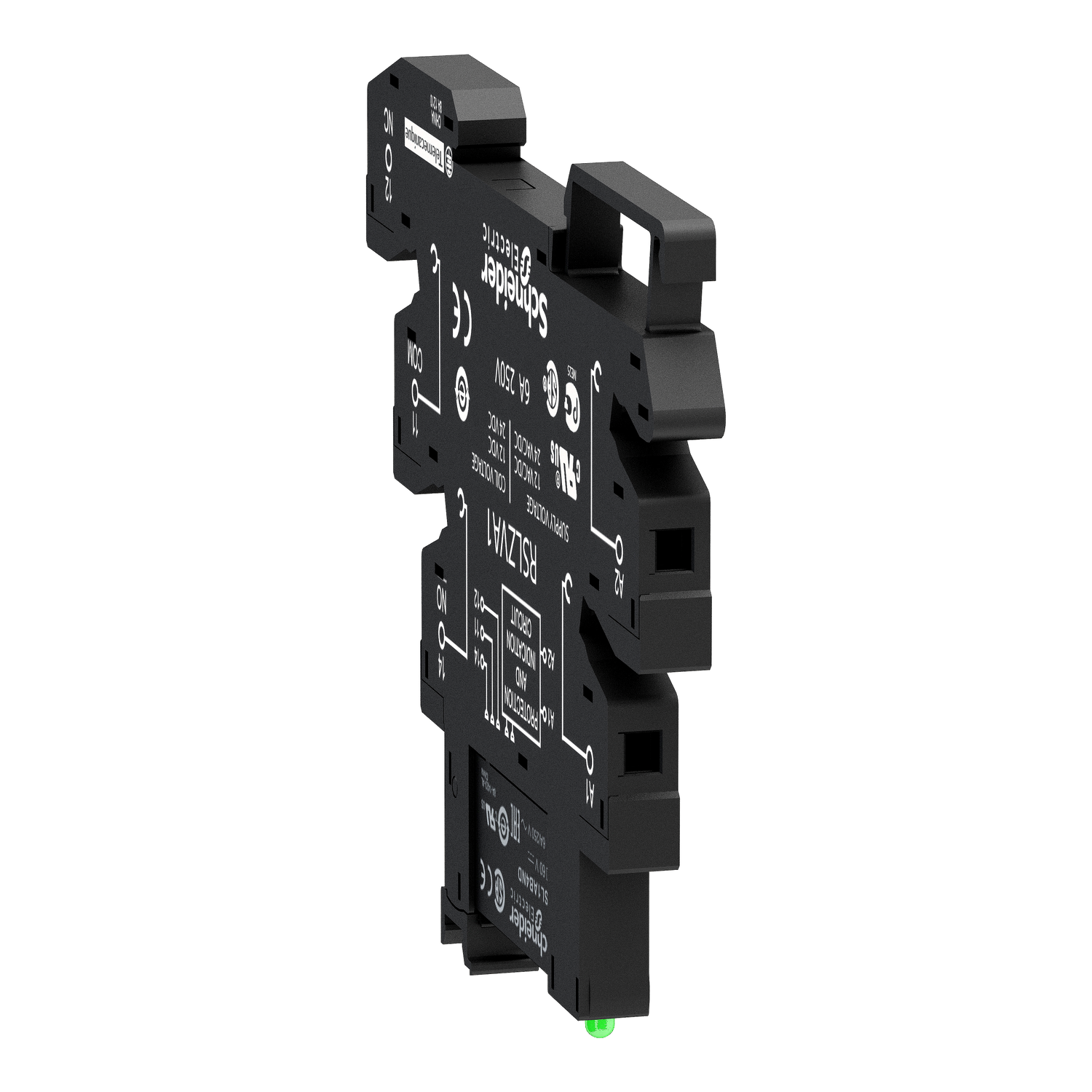

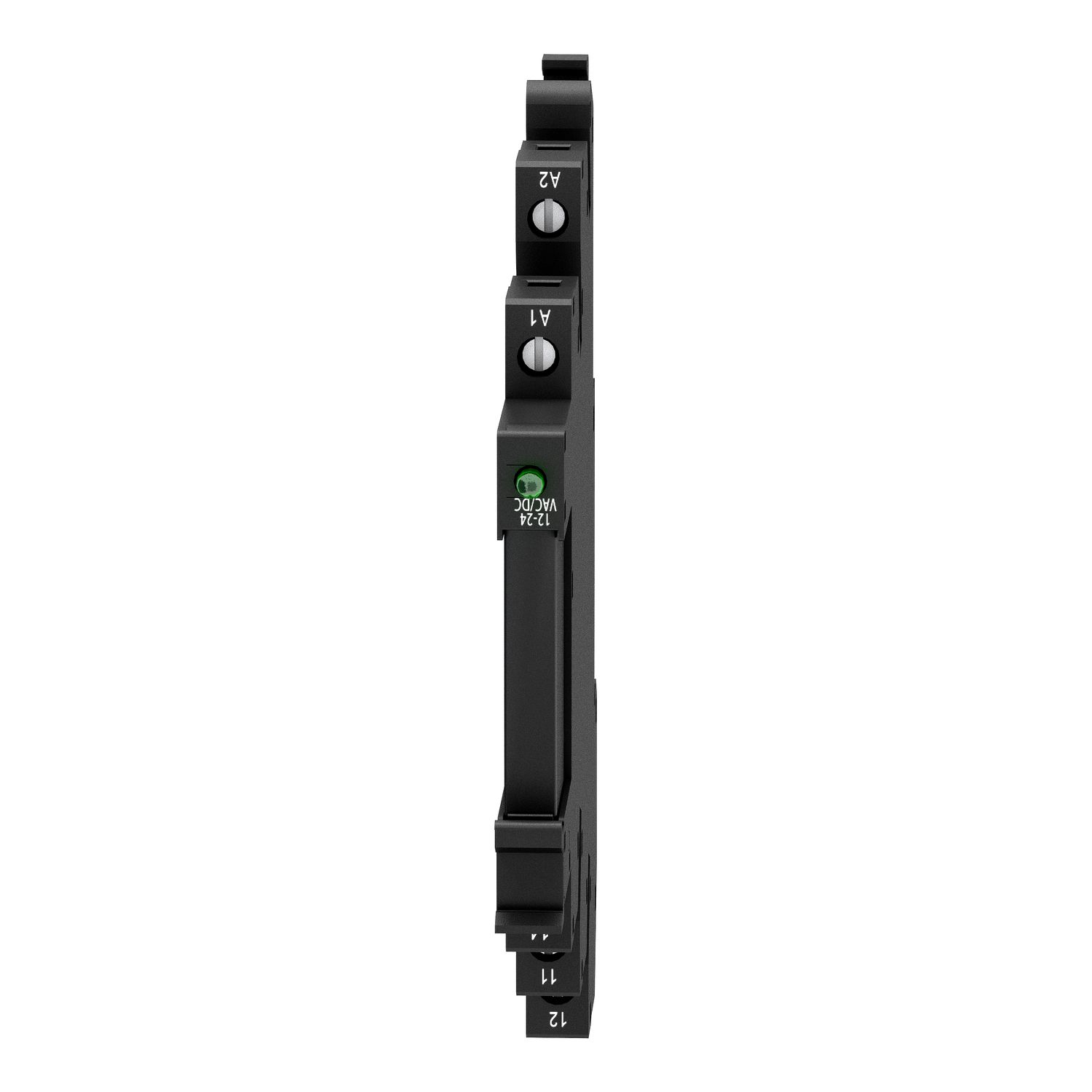

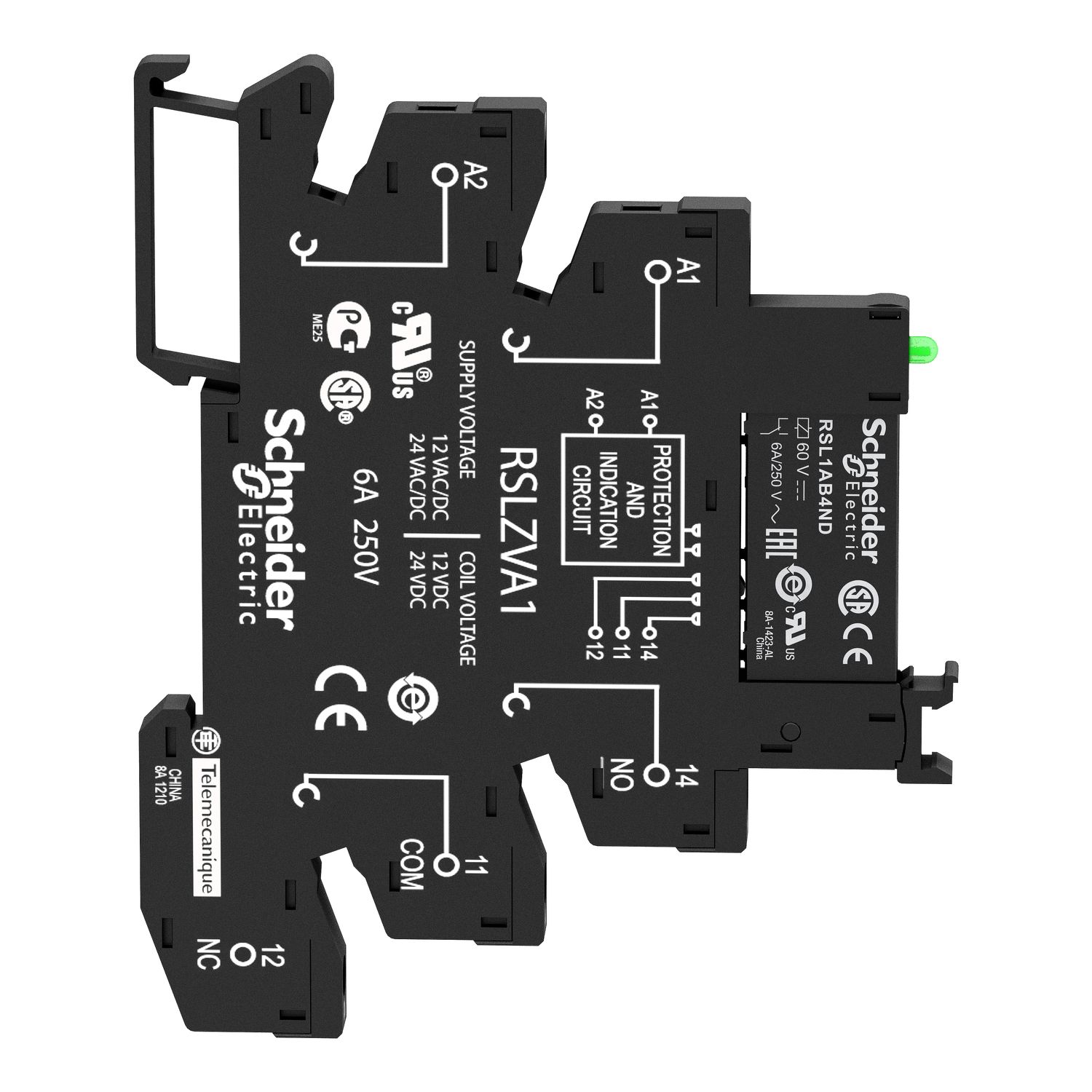

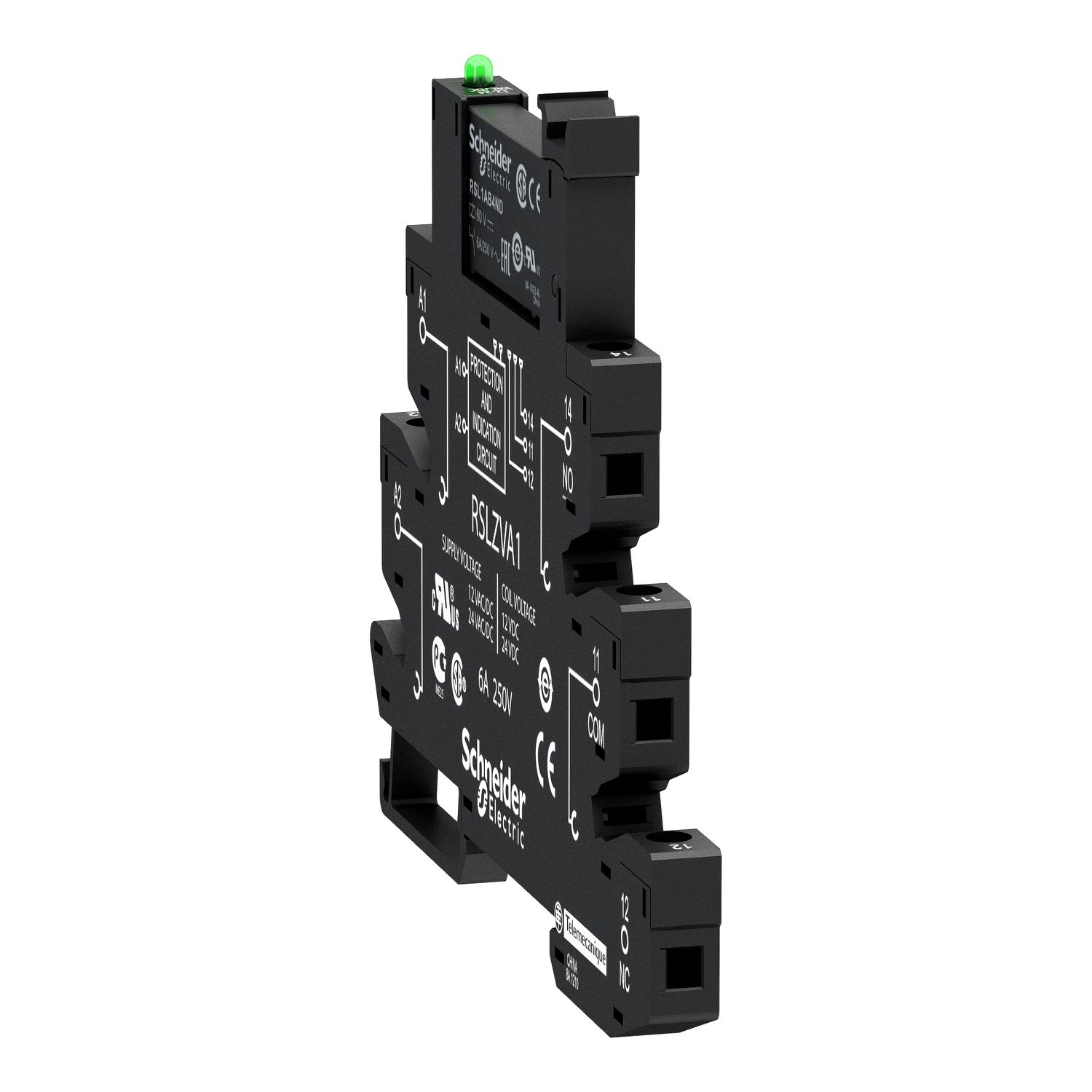

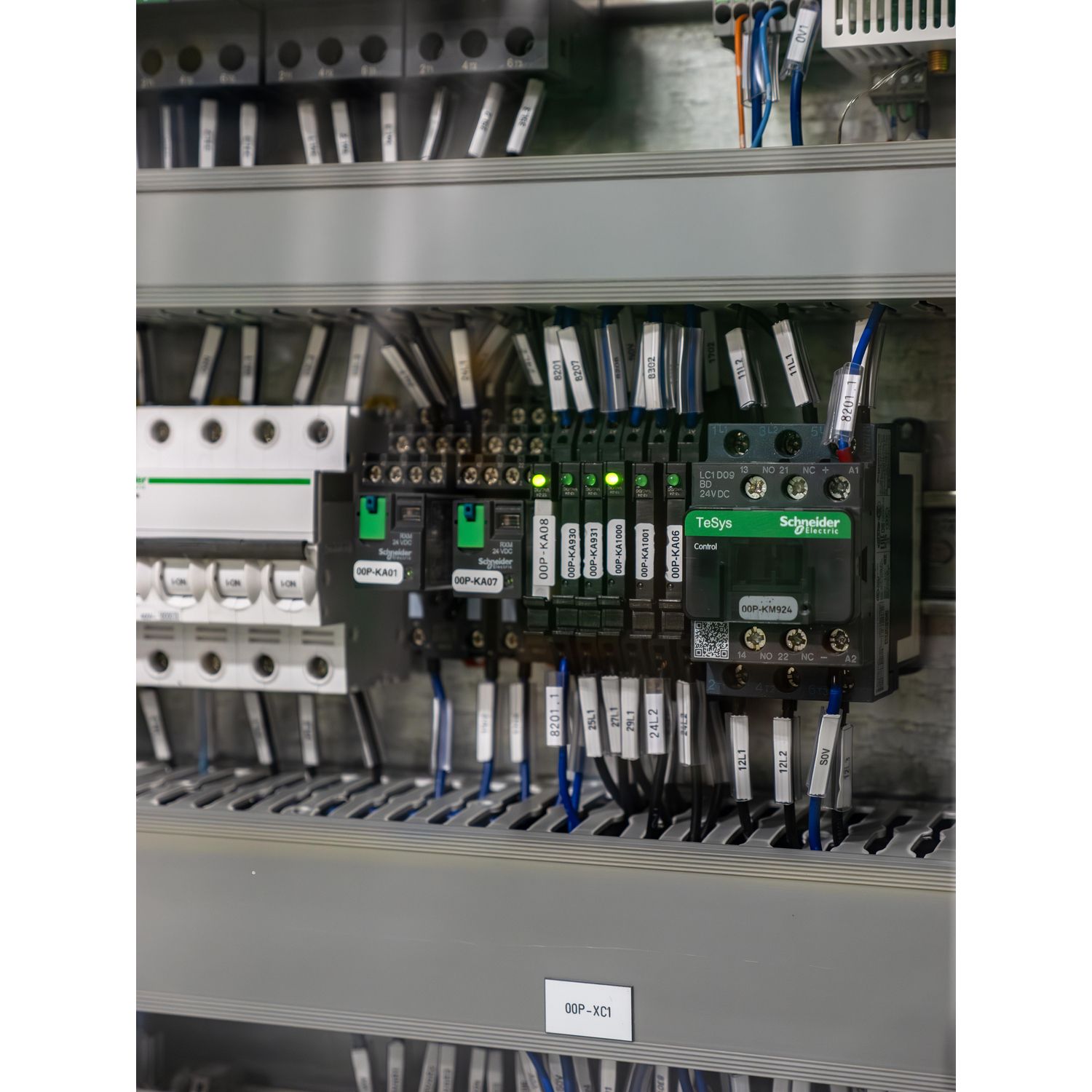

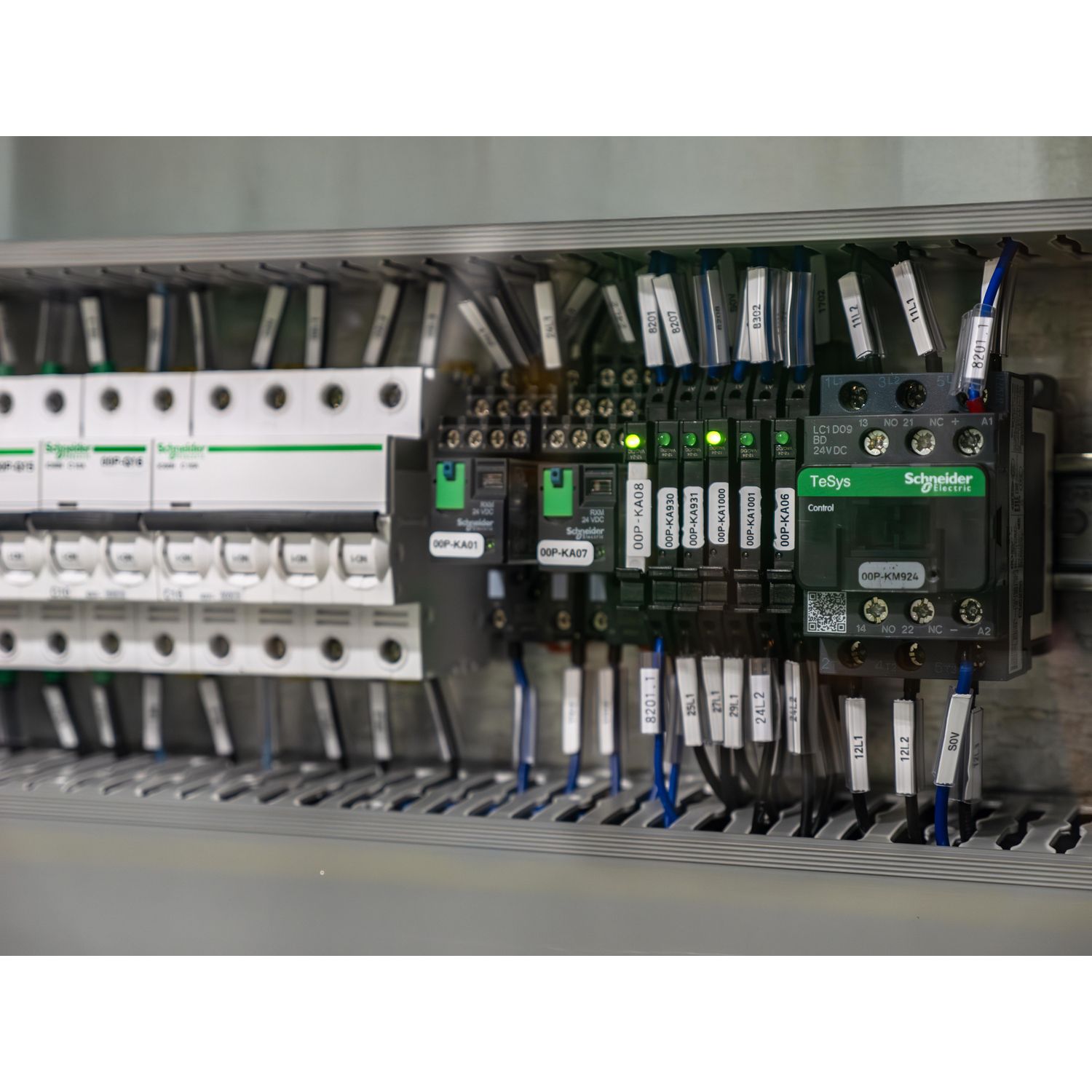

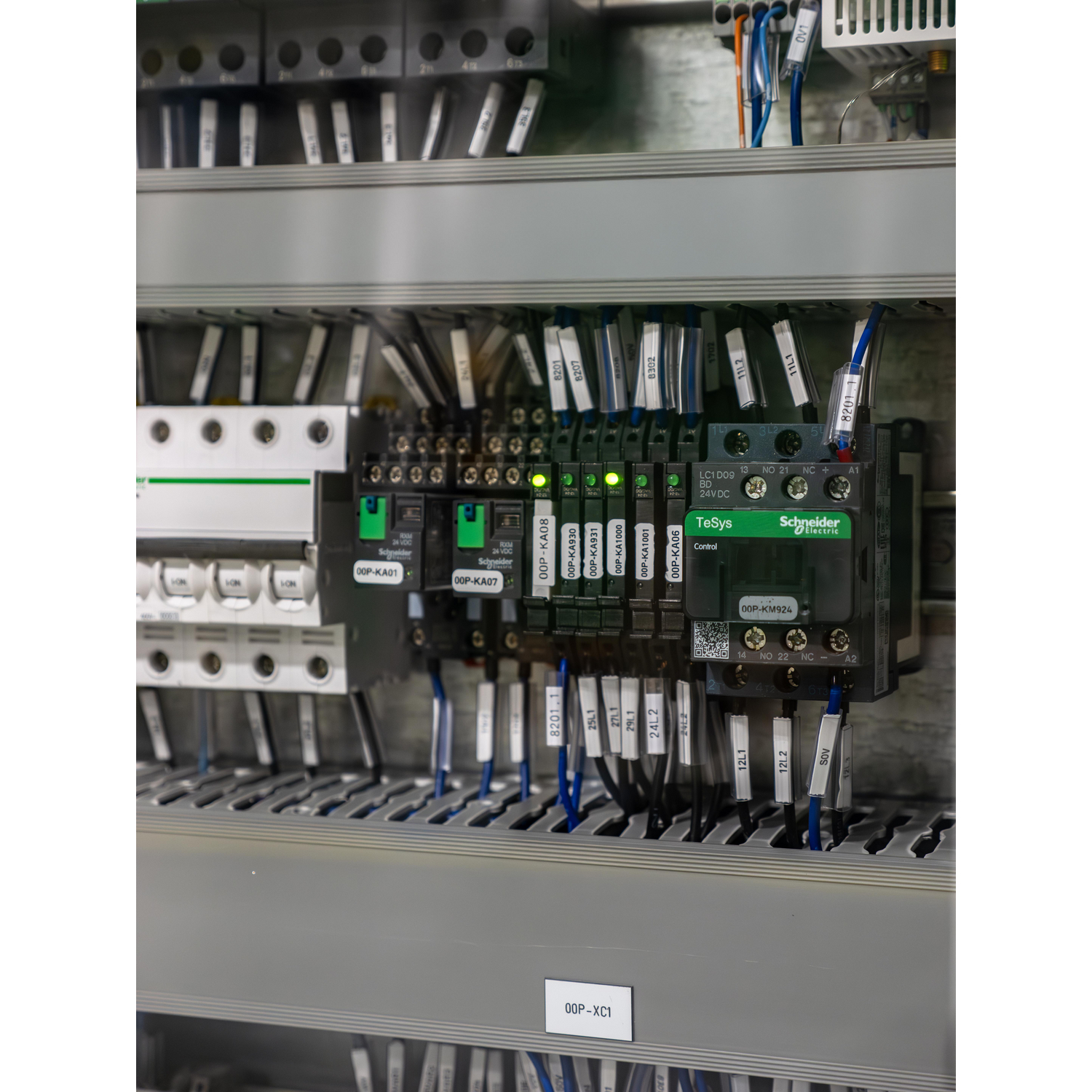

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RSL |
| [Uc] control circuit voltage | 24 V, 24 V AC/DC |
| Contact operation | standard |
| Shape of pin | flat (PCB type) |
| Range of product | Harmony Electromechanical Relays |
| [Ithe] conventional enclosed thermal current | 6 A at -40-55 °C |
| [In] rated current | 6 A |
| Contacts type and composition | 1 C/O |
| Series name | interface relay |
| Status LED | with |
| Product or component type | pre-assembled plug-in relay with socket |
| Connections - terminals | screw connectors |
| Complementary | |
| Drop-out voltage threshold | >= 0.05 Uc |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Operating position | any position |
| Compatibility code | RSL |
| Mechanical durability | 10000000 cycles |
| Sale per indivisible quantity | 10 |
| Average coil consumption | 0.17 W, DC |
| Device presentation | complete product |
| Average resistance | 3390 Ohm network: DC at 23 °C +/- 10 % |
| Control type | without push-button |
| Contact terminal arrangement | separate |
| Marking | CE |
| Contacts material | silver alloy (AgSnO2) |
| Height | 78.6 mm |
| Safety reliability data | B10d = 60000 |
| Maximum switching capacity | 150 W, 1500 VA |
| Minimum switching voltage | 12 V |
| Depth | 95 mm |
| Width | 6.2 mm |
| Operating time | 12 ms, 5 ms reset |
| Minimum switching current | 100 mA |
| [Ui] rated insulation voltage | 277 V conforming to cUL, 250 V conforming to IEC |
| [Ie] rated operational current | 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL |
| Connections - terminals | screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Minimum switching capacity | 120 mW |
| Maximum switching voltage | 277 V |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| Net weight | 0.029 kg |
| Electrical durability | 60000 cycles for resistive load, 6 A at 250 V, AC-1 |
| Fixing mode | plastic compression spring |
| Mounting support | 35 mm symmetrical DIN rail |
| Test levels | level A group mounting |
| Protection category | RT III |
| Operating rate | <= 360 cycles/hour under load, <= 18000 cycles/hour no-load |
| Tightening torque | < 0.5 N.m for M2.5 screw(s) |
| Terminals description ISO n°1 | (11-12-14)OC, (A1-A2)CO |
| Environment | |
| Input voltage | 24 V AC/DC (input voltage limit: 21.6...28.8 V) |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-55 °C |
| Dielectric strength | 4000 V AC between coil and contact, 1000 V AC between contacts |
| Shock resistance | 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27, 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)10 cycles in operation conforming to IEC 60068-2-6, 10 gn, amplitude = +/- 1 mm (f = 10-150 Hz)10 cycles not operating conforming to IEC 60068-2-6 |
| Standards | IEC 61810-1, UL 508, CSA C22.2 No 14 |
| Product certifications | CSA, GOST, UL |
