| Attribute name | Attribute value |
|---|---|
| Main | |

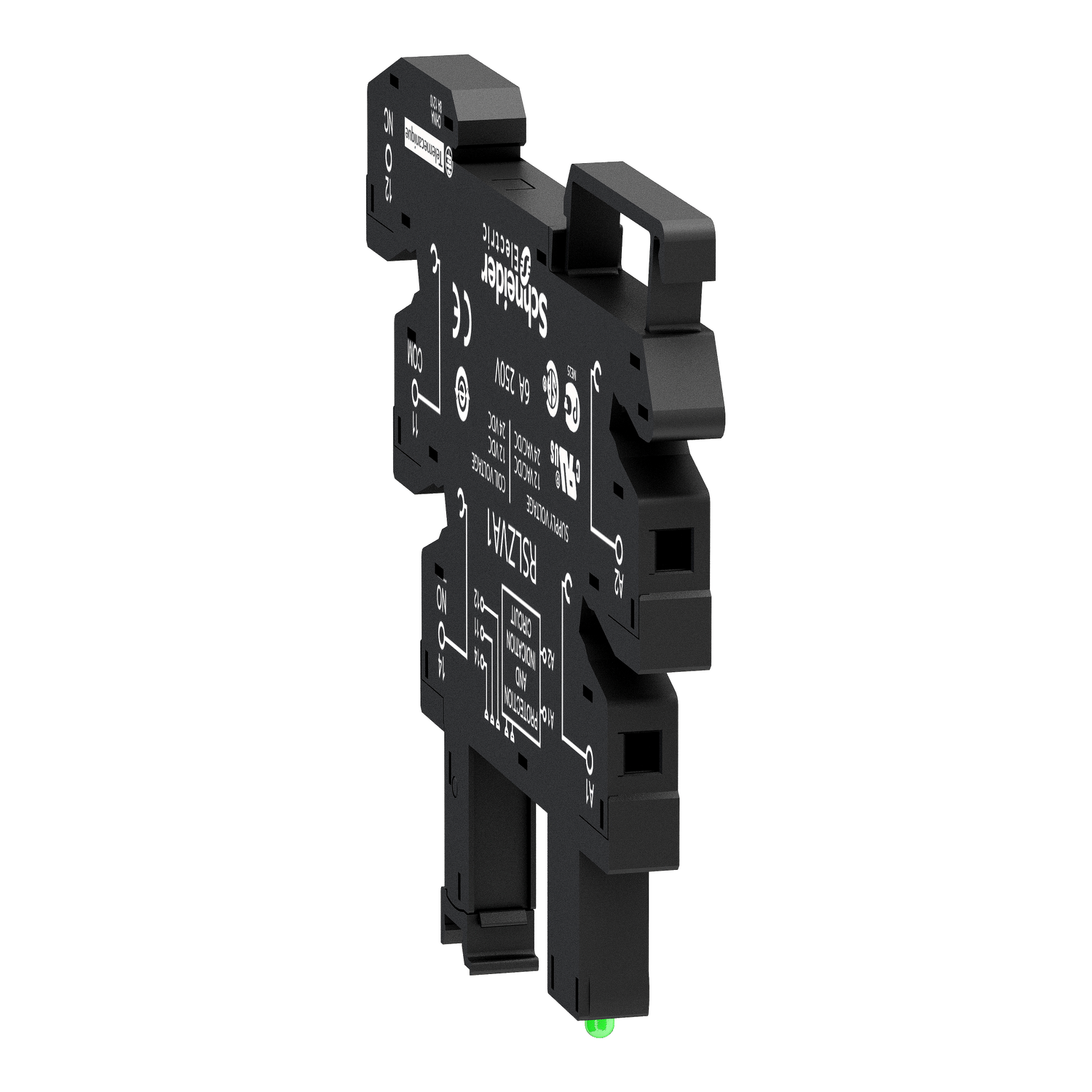

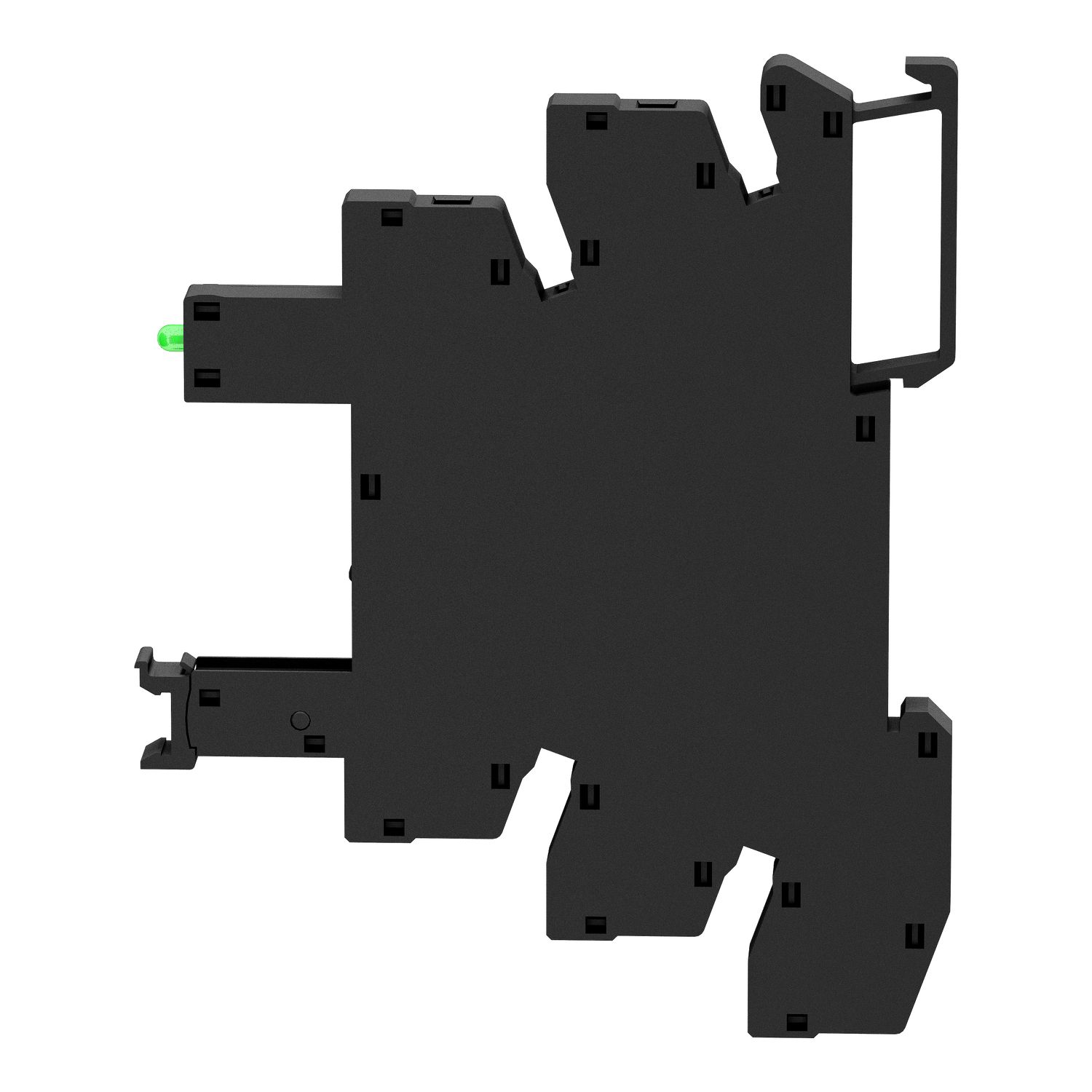

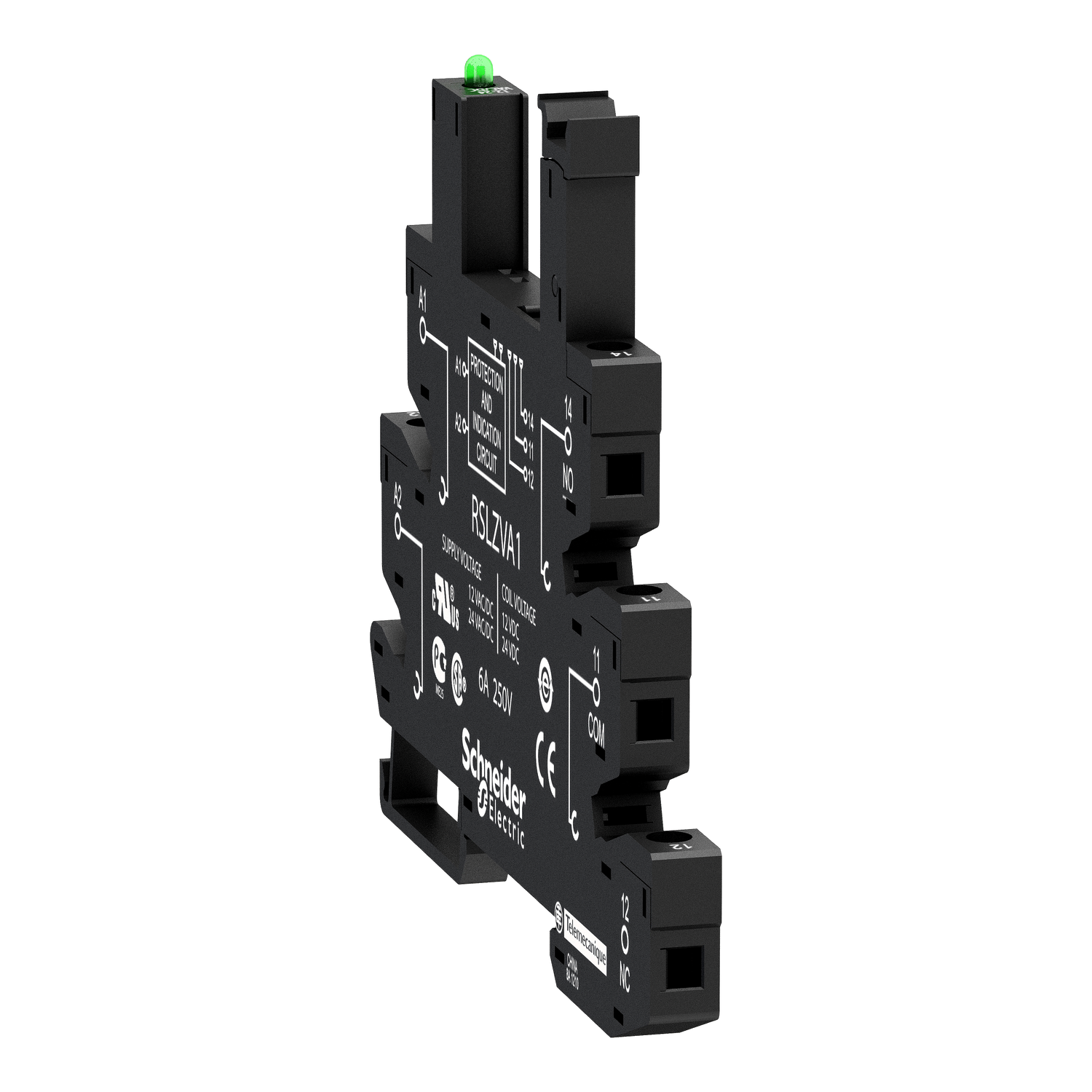

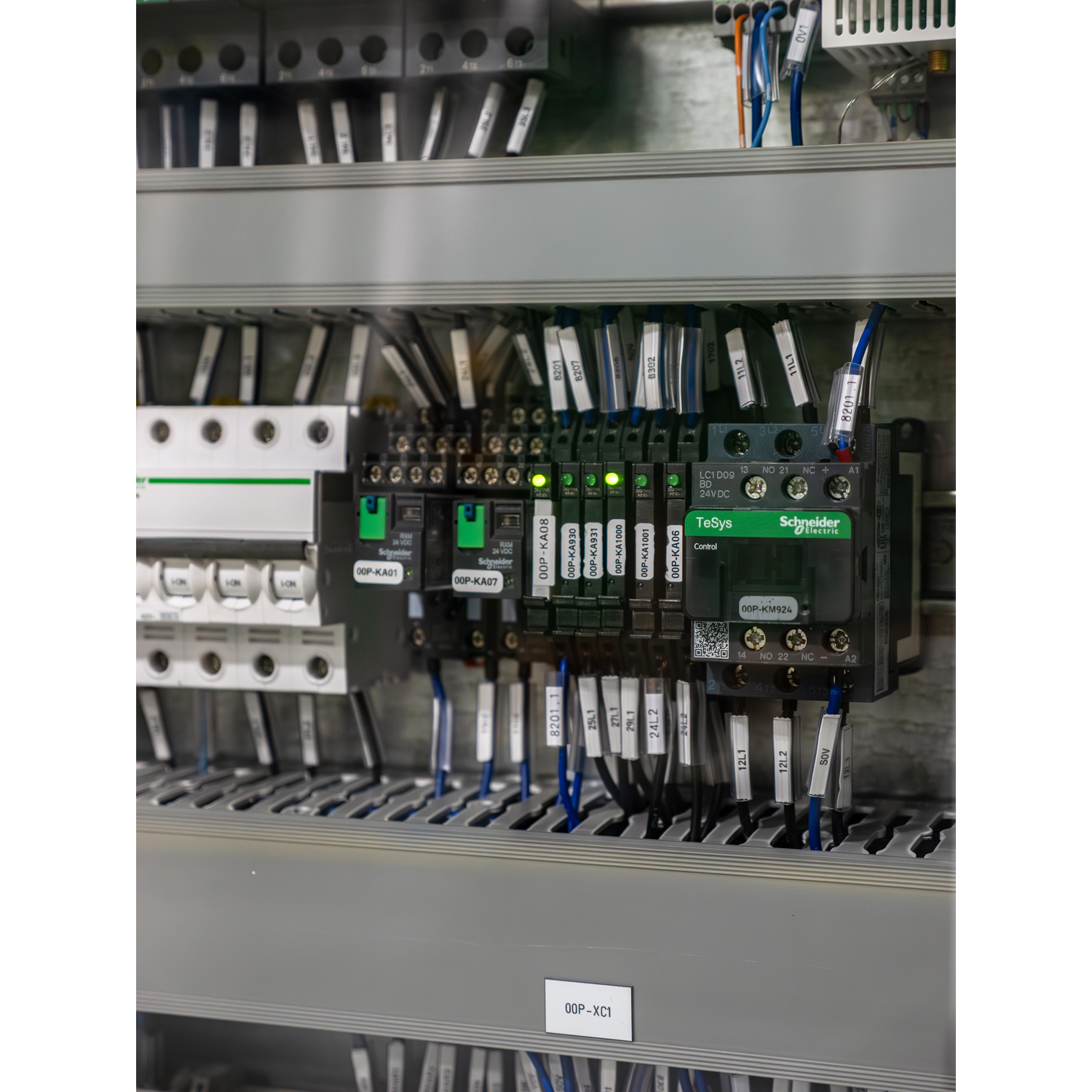

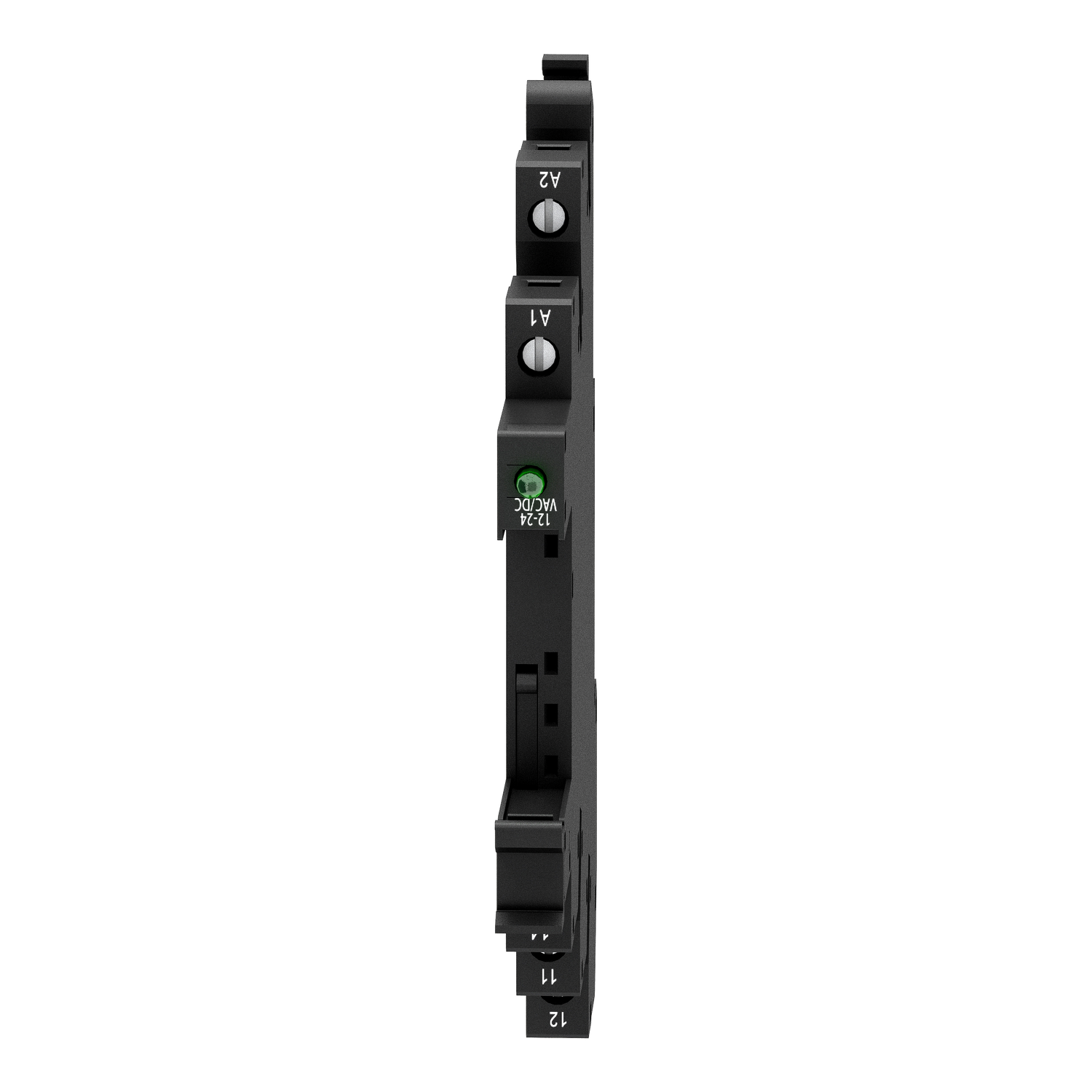

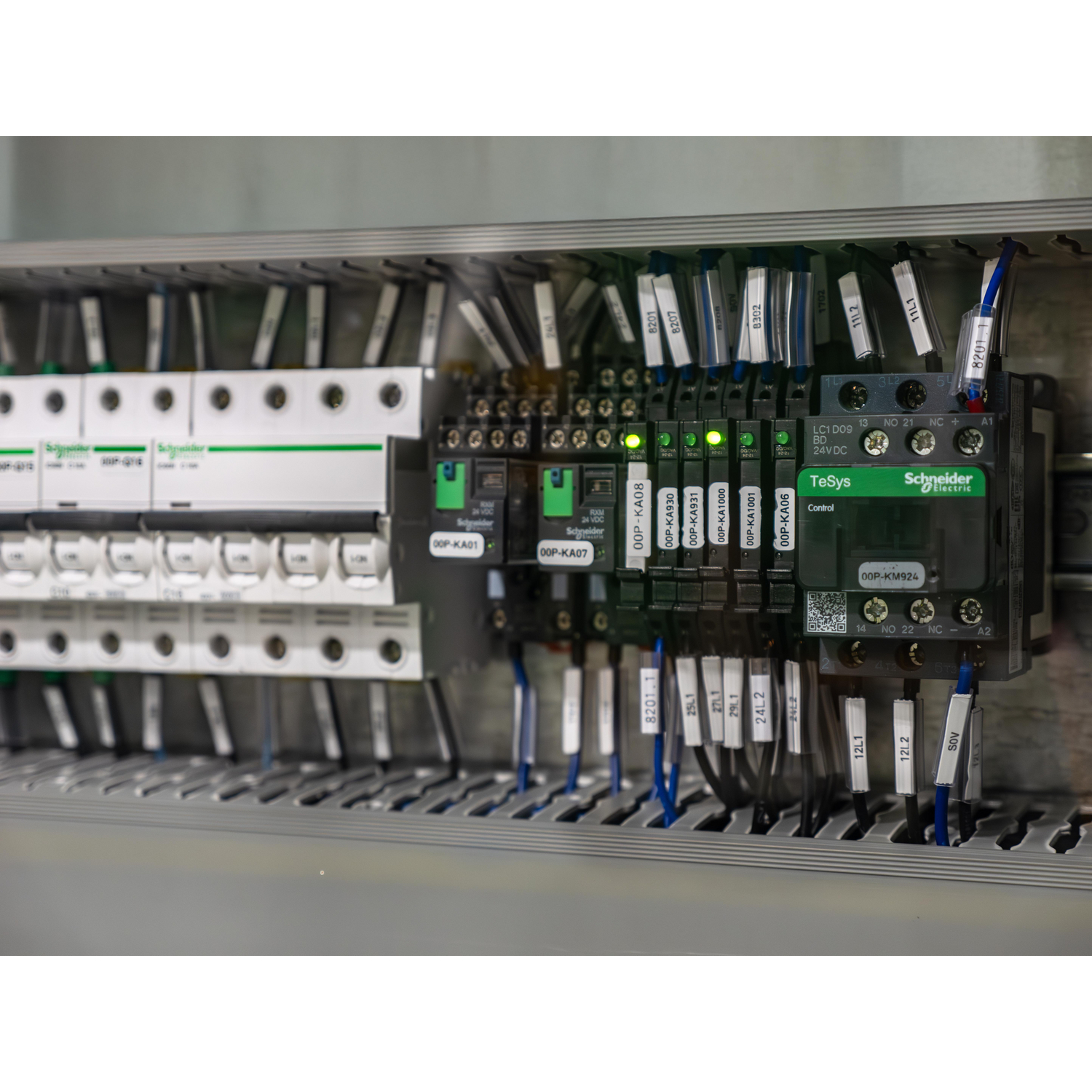

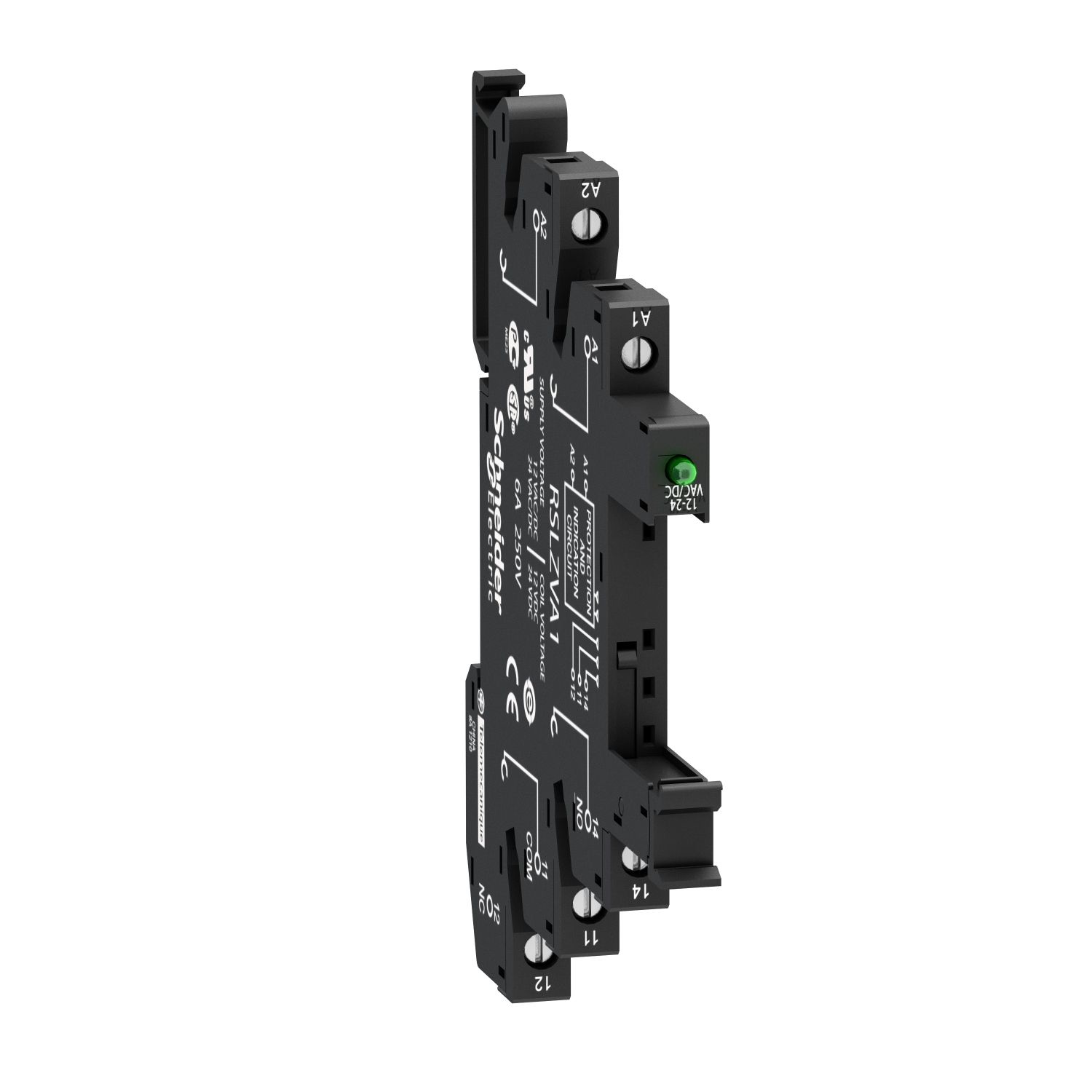

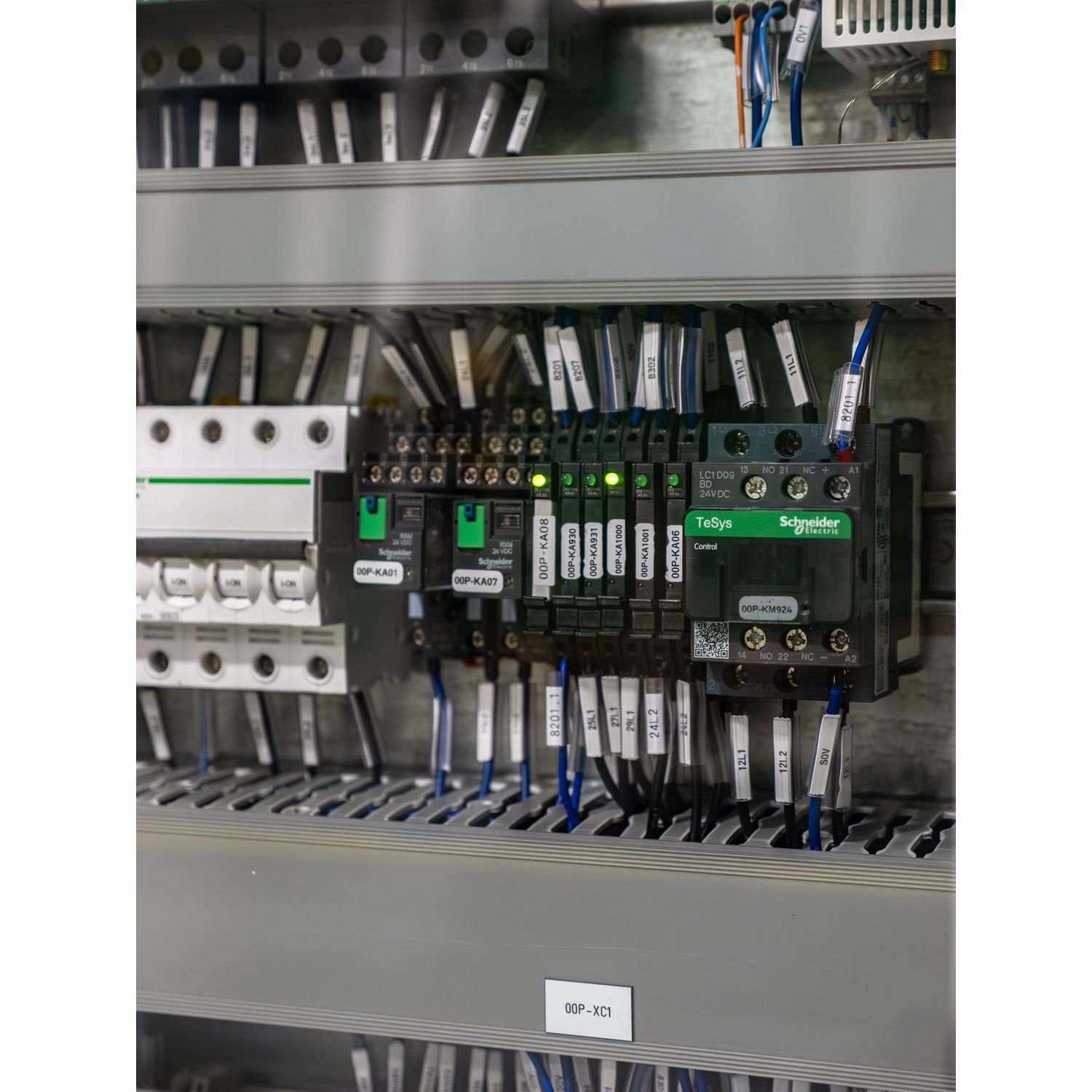

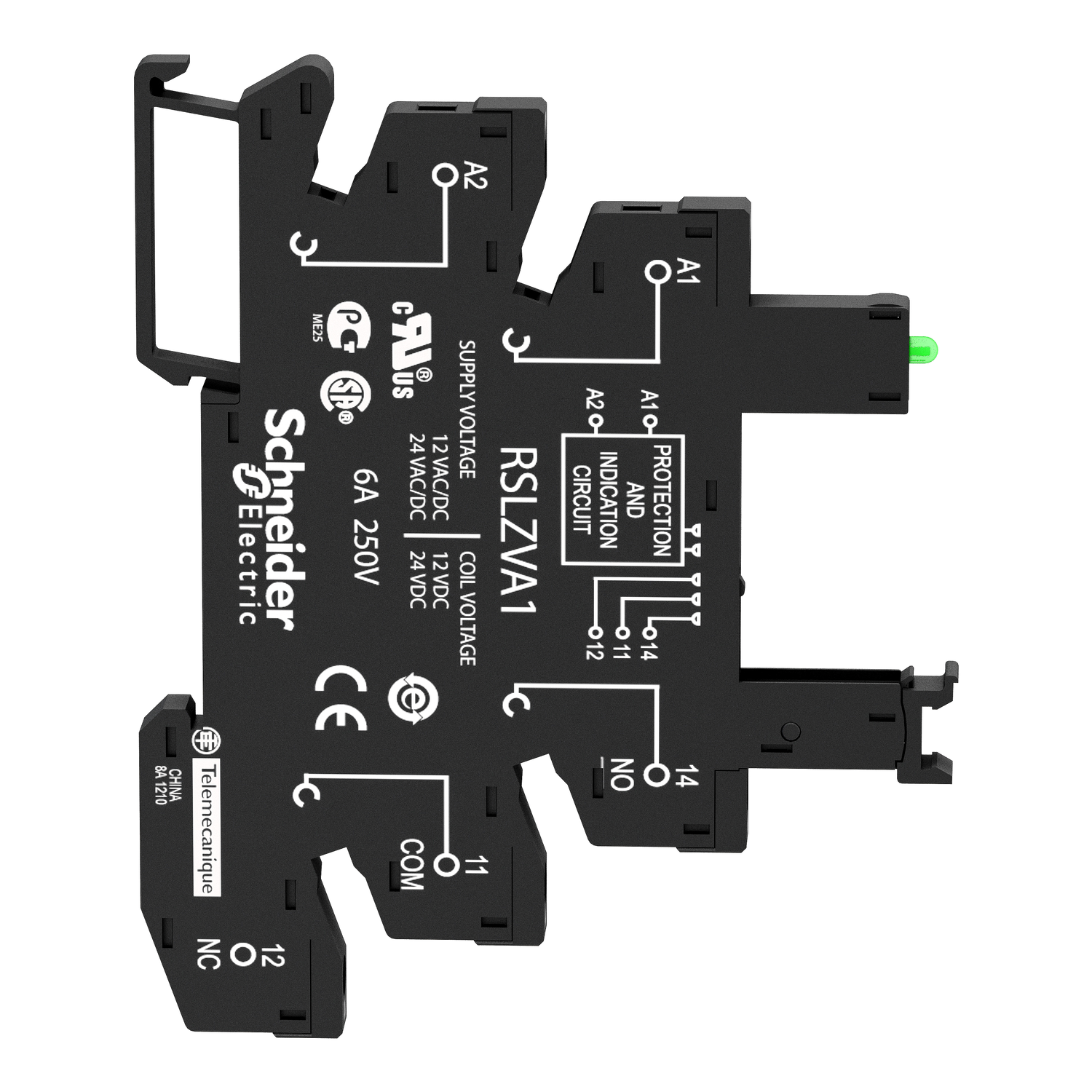

| Device short name | RSLZ |
| [Uc] control circuit voltage | 24 V, 12 V |
| Product compatibility | plug-in relay RSL with 1 C/O contact at 24 V DC, plug-in relay RSL with 1 C/O contact at 12 V DC |
| Device presentation | basic element |
| Rated operational voltage limits | 21.6...28.8 V, 11.4...14.4 V |
| Range of product | Harmony Electromechanical Relays |
| [Ith] conventional free air thermal current | 6 A |
| [Ue] rated operational voltage | < 300 V AC |
| Switching voltage | 24 V AC/DC, 12 V AC/DC |
| [In] rated current | 6 A |
| Contacts type and composition | 1 C/O |
| Product or component type | socket |
| Complementary | |
| Group of product | RSL_CON_12-24 |
| Compatibility code | RSLZ |
| Sale per indivisible quantity | 10 |
| CAD overall height | 78.6 mm |
| Fixing mode | plastic compression spring (35 mm symmetrical DIN rail) |
| Contact terminal arrangement | separate |
| Shape of pin | flat |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| CAD overall depth | 95 mm |
| CAD overall width | 6.2 mm |
| Overvoltage category | III |
| Connections - terminals | connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw connectors |
| Net weight | 0.023 kg |
| Tightening torque | < 0.4 N.m for M2.5 screw(s) |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Marking | CE |
| Ambient air temperature for operation | -40-70 °C |
| Standards | UL 508, IEC 61984 |
| Product certifications | GOST, CSA |
