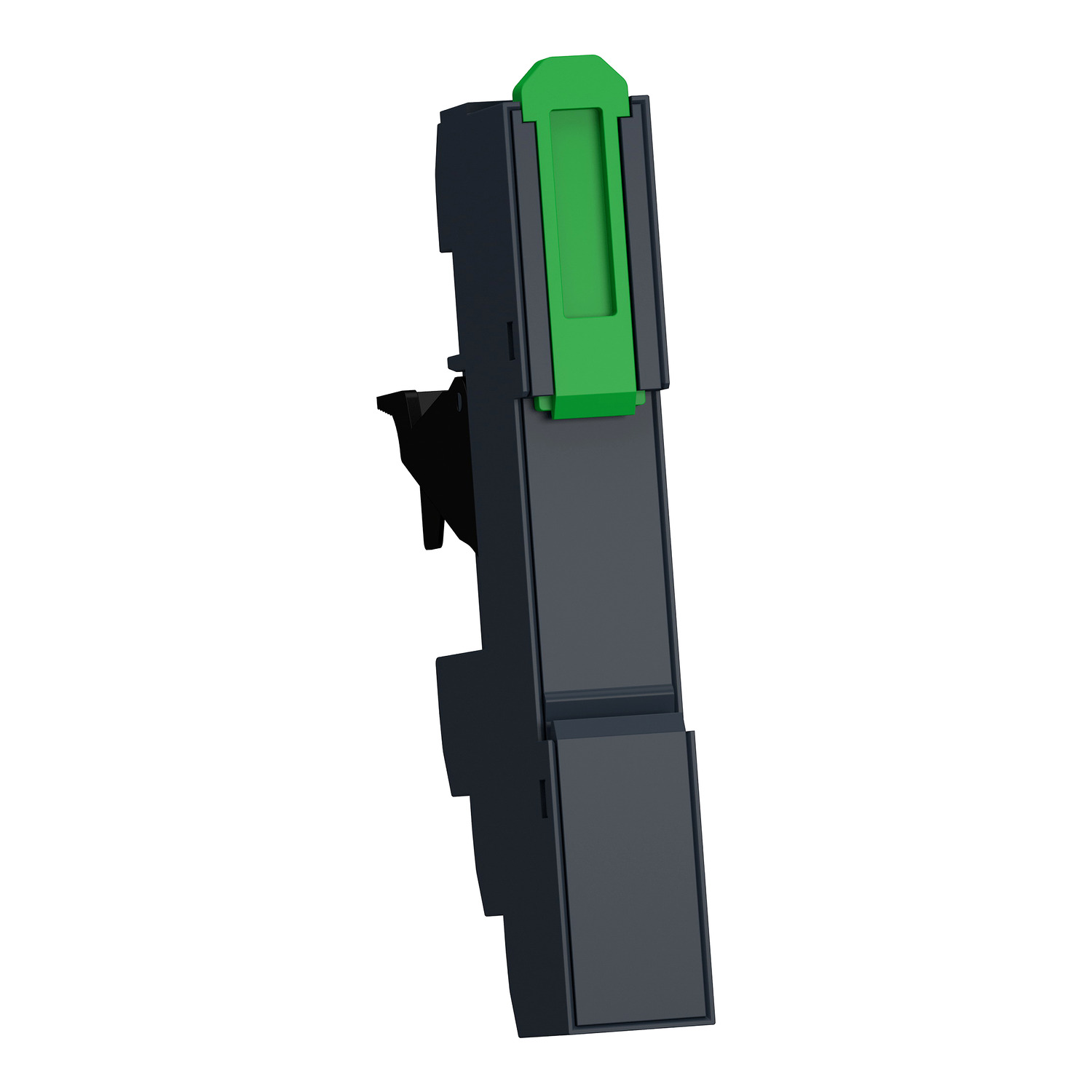

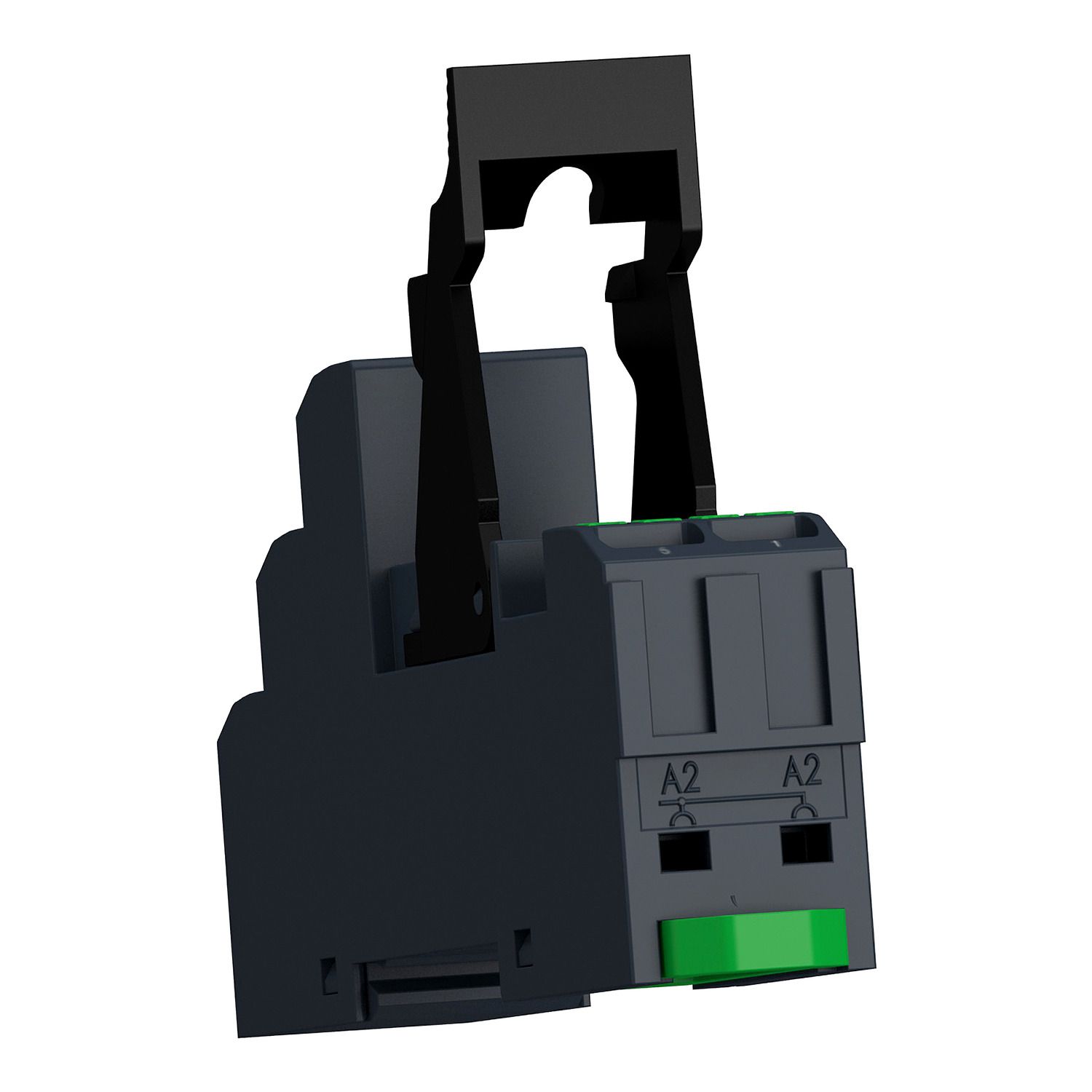

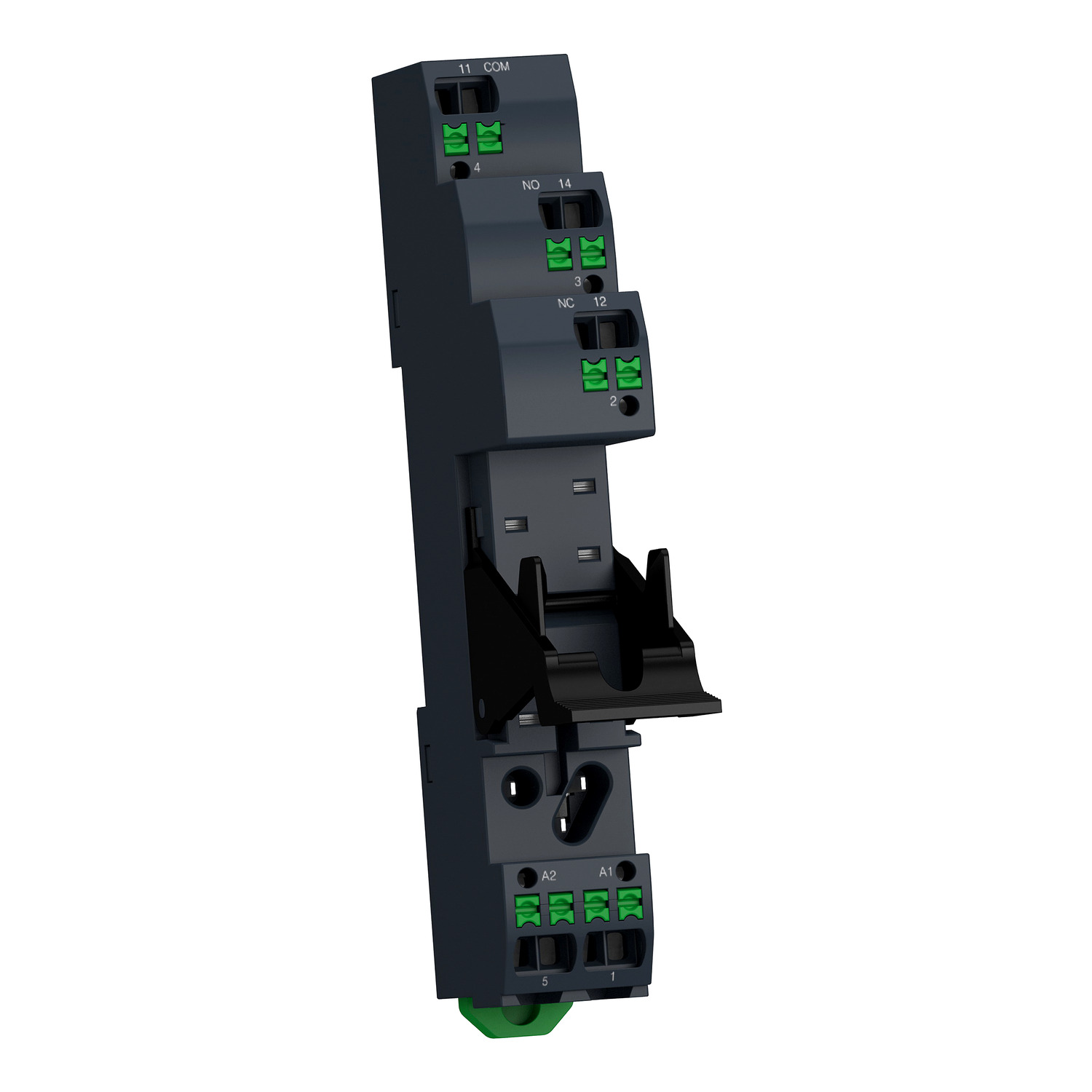

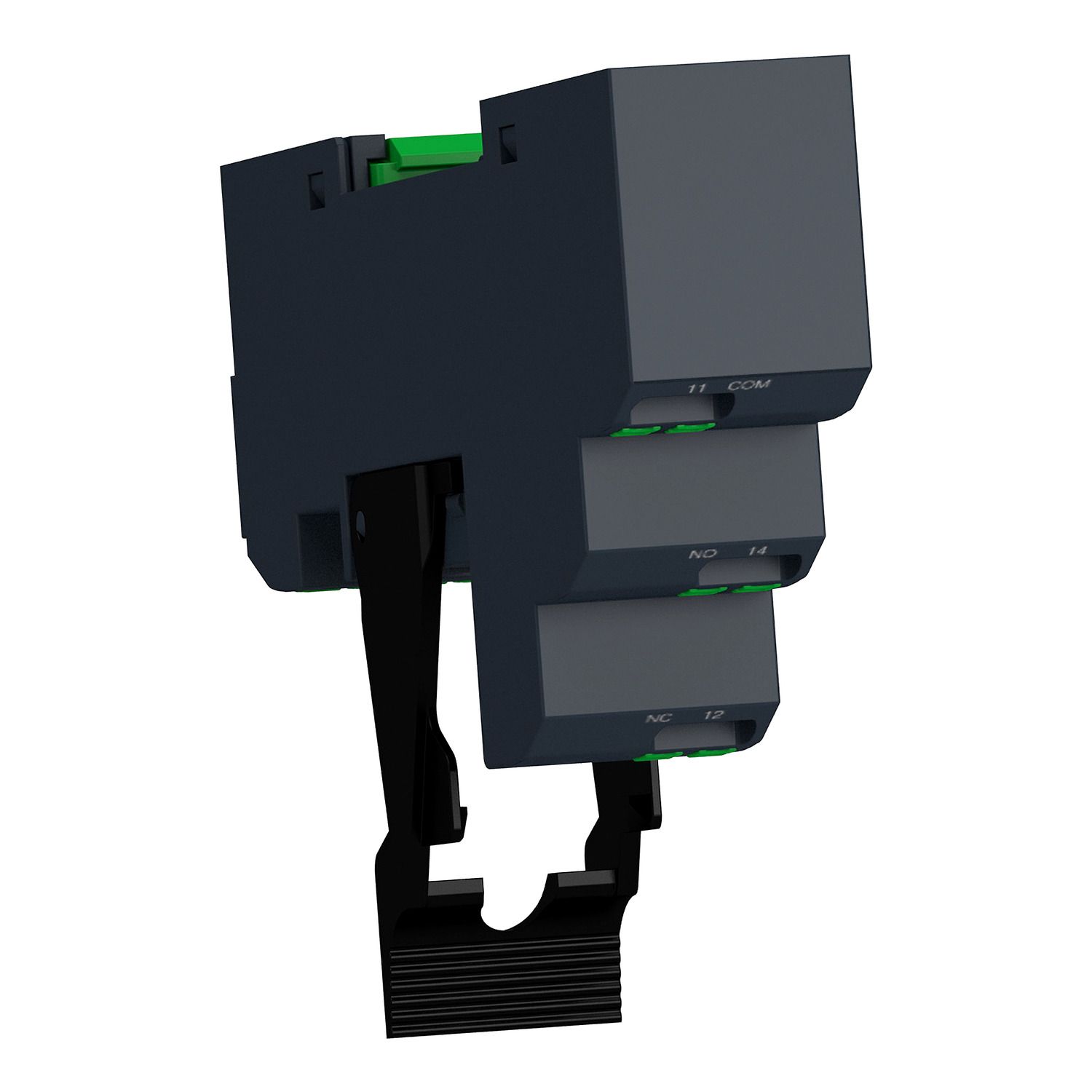

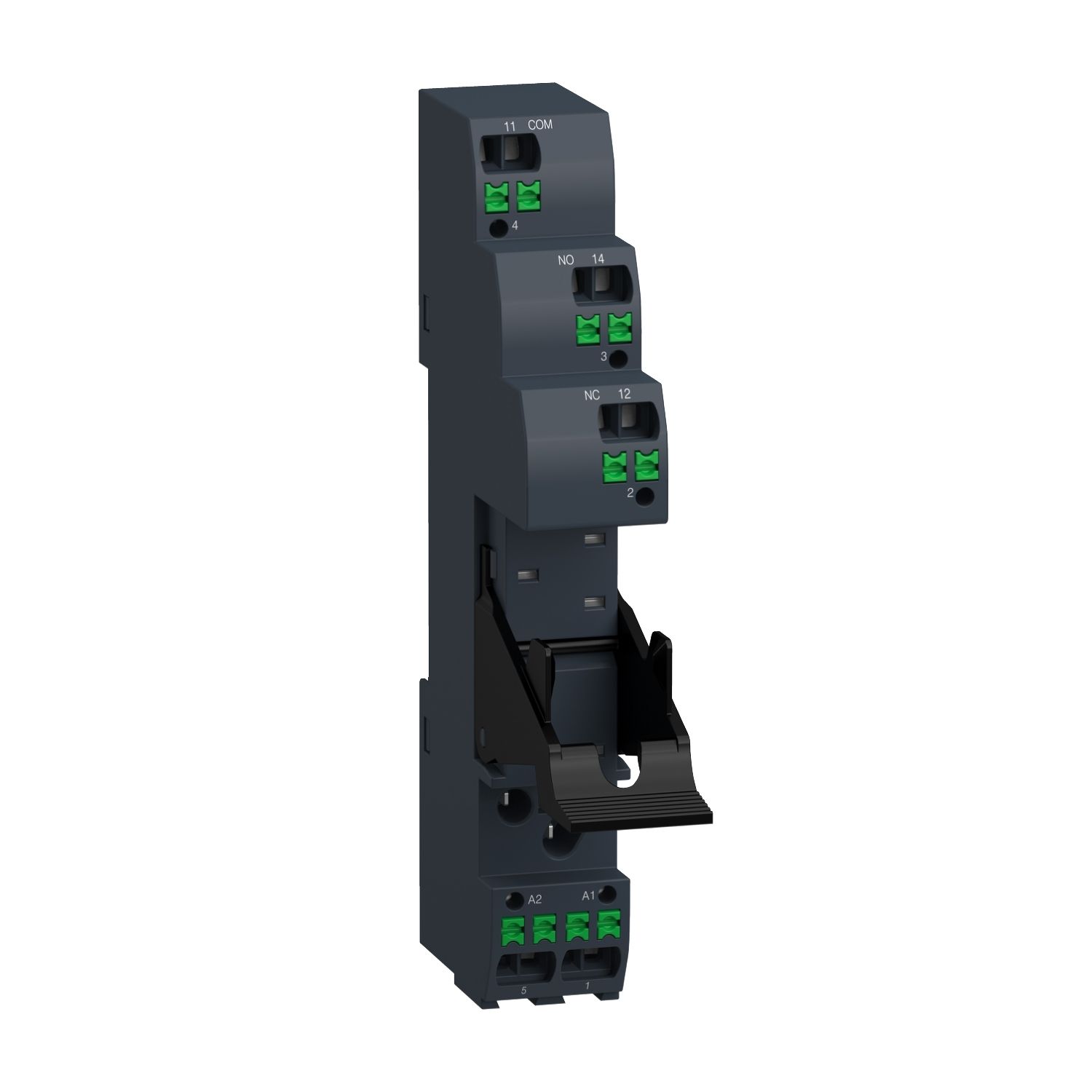

This Harmony RSZ range is a plug-in socket. This plug-in relay socket is compatible with interface plug-in relay RSB range. This product is for RSB1A relays. It is compatible with RSB with 1 C/O contact, 12A, RSB1A120 relays. It has a rated voltage of 250V AC with an output rating of 12A. This premium product conforms to international standard and certifications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RSZ |
| [In] rated current | 12 A |
| Contacts type and composition | 1 C/O |
| Product or component type | socket |
| [Ui] rated insulation voltage | 250 V |
| Product compatibility | plug-in relay RSB with 1 C/O contact at 12 A |
| Range of product | Harmony Electromechanical Relays |
| [Ith] conventional free air thermal current | 12 A |
| Complementary | |
| Overvoltage category | III |
| Width | 16 mm |
| Compatibility code | RSZ |
| Sale per indivisible quantity | 10 |
| Connections - terminals | spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, push-in terminals |
| Fixing mode | clip-on (35 mm symmetrical DIN rail) |
| Net weight | 0.037 kg |
| Contact terminal arrangement | separate |
| Length | 98 mm |
| Shape of pin | flat |
| Pollution degree | 3 |
| [Ue] rated operational voltage | 300 V conforming to UL, 250 V conforming to IEC |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Height | 60 mm |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 |
| Marking | CE |
| Standards | IEC 61984 |
| Ambient air temperature for operation | -40-85 °C |
| Product certifications | EAC, UL, CSA |
