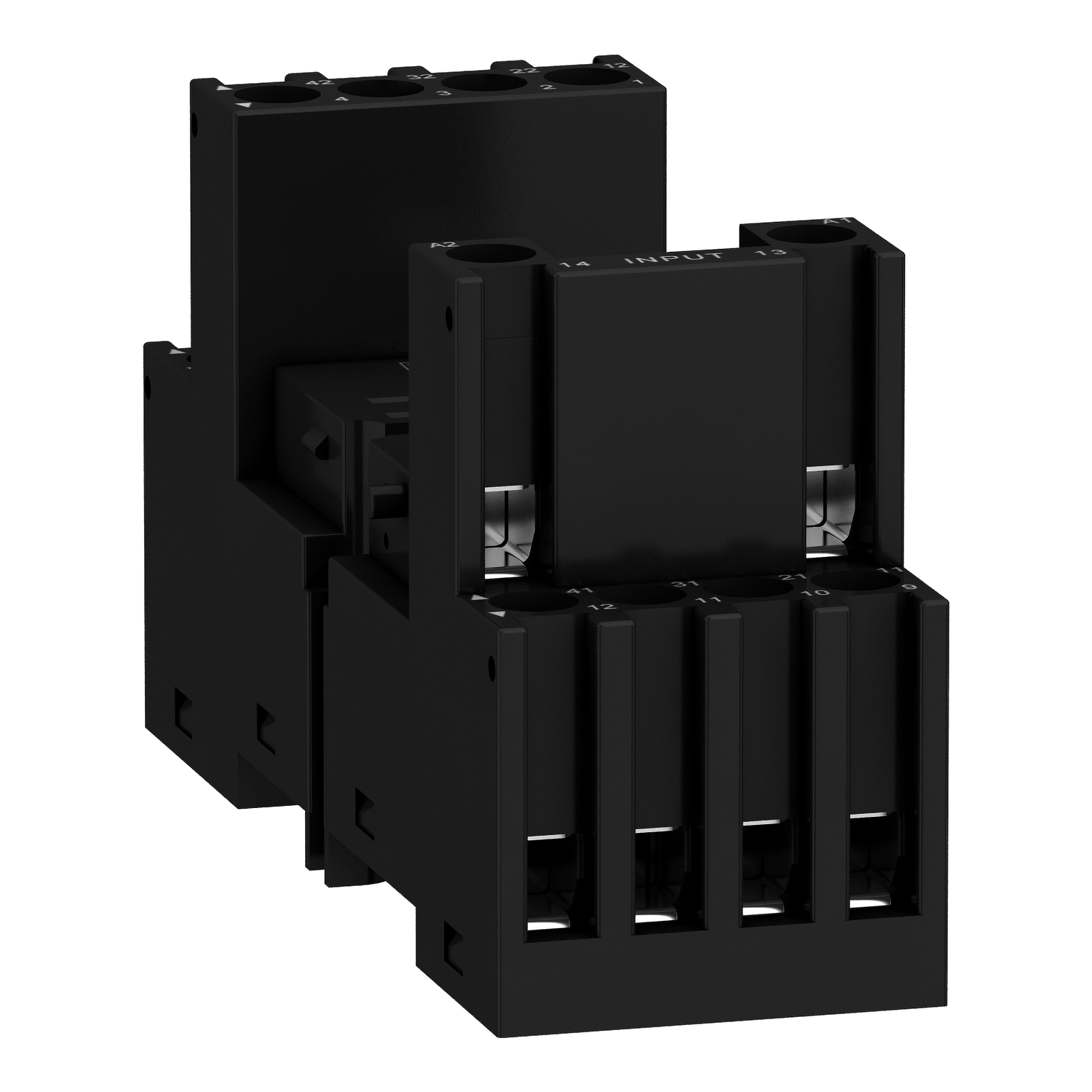

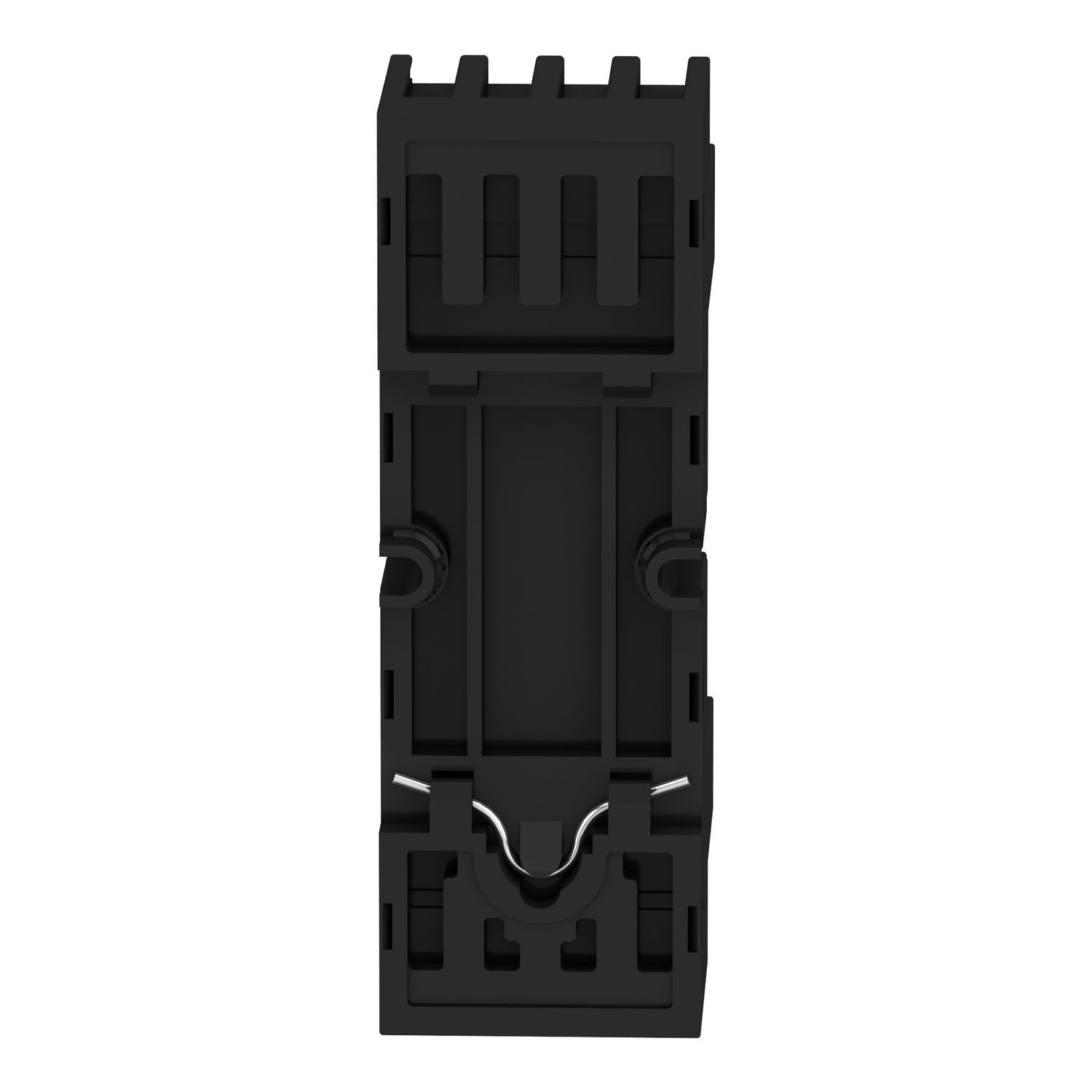

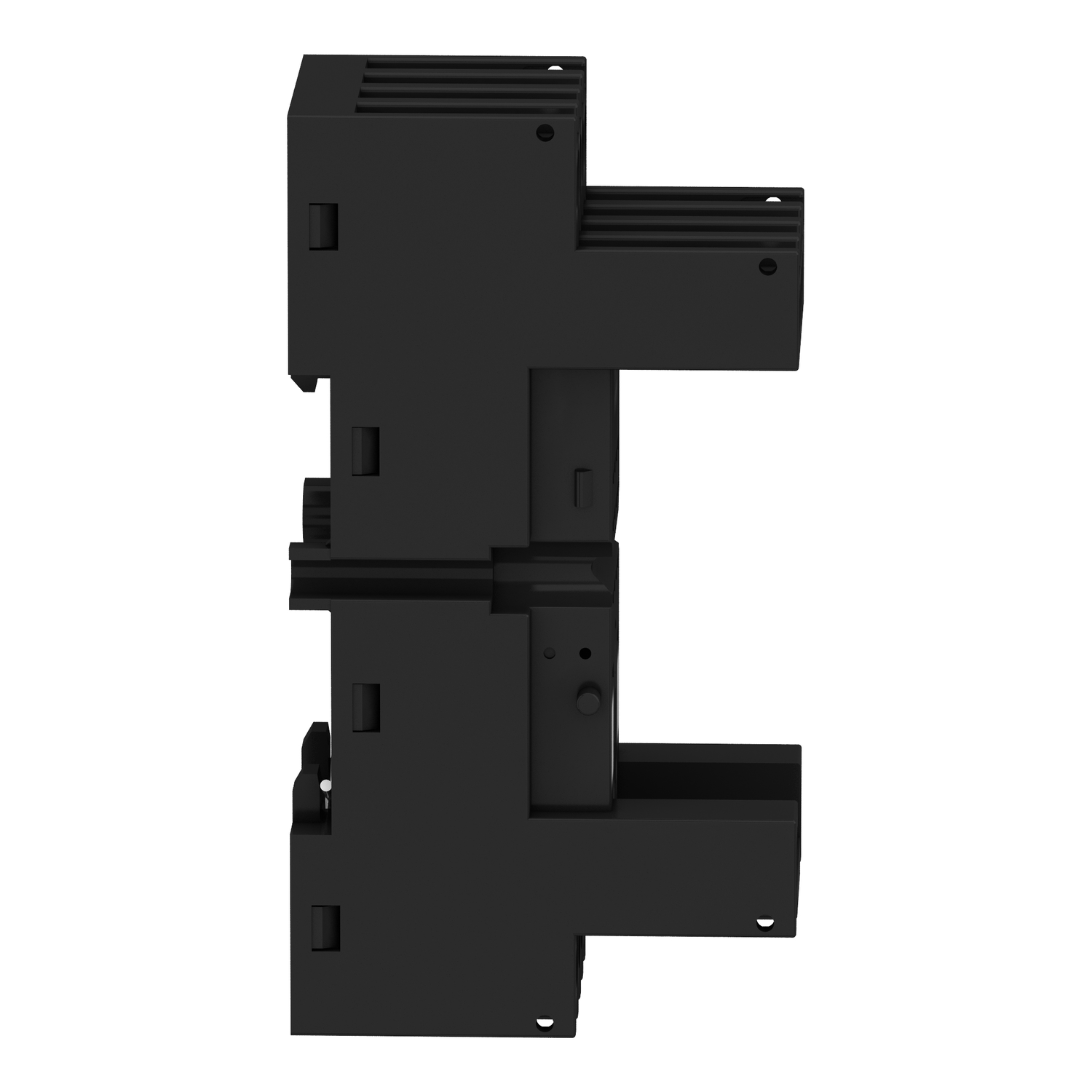

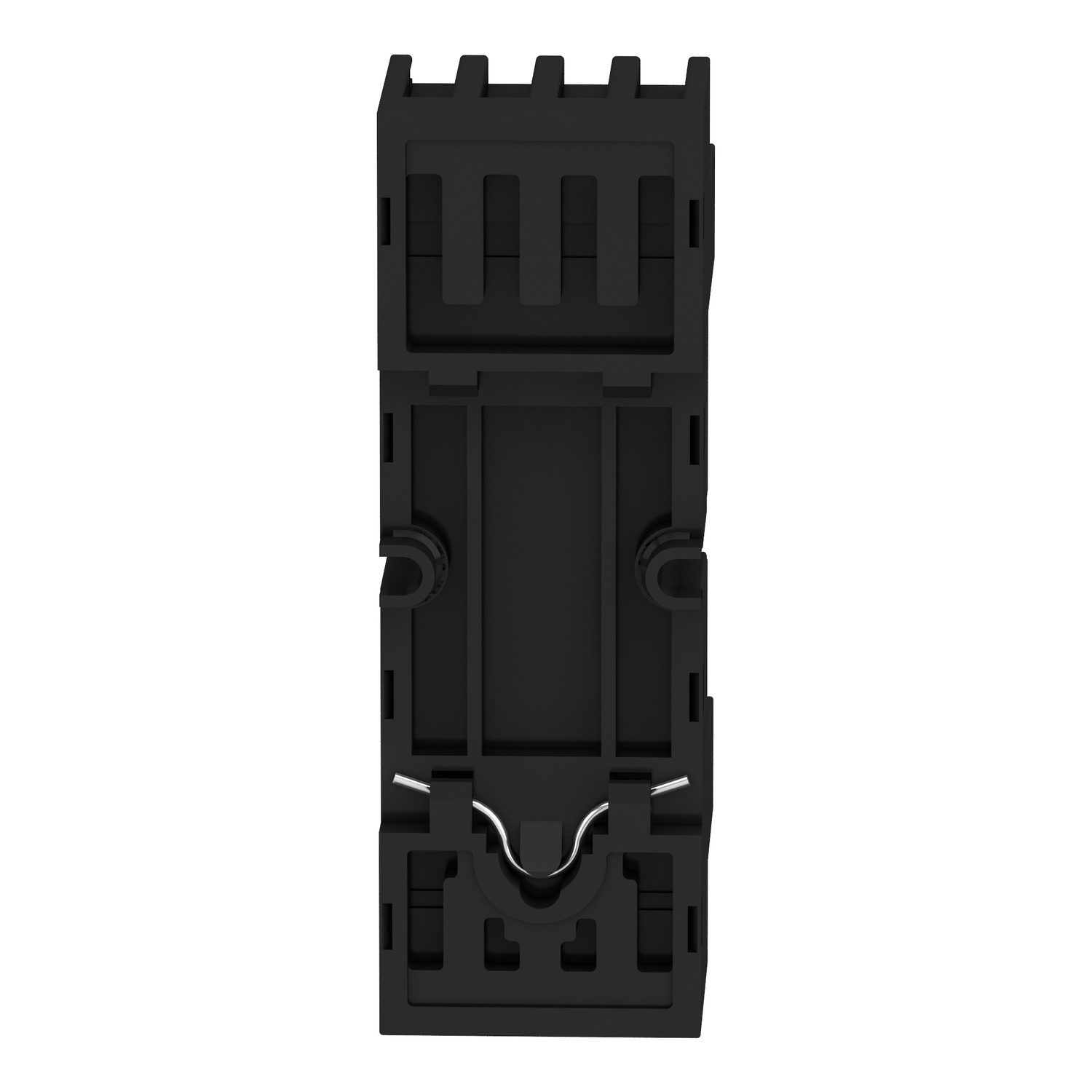

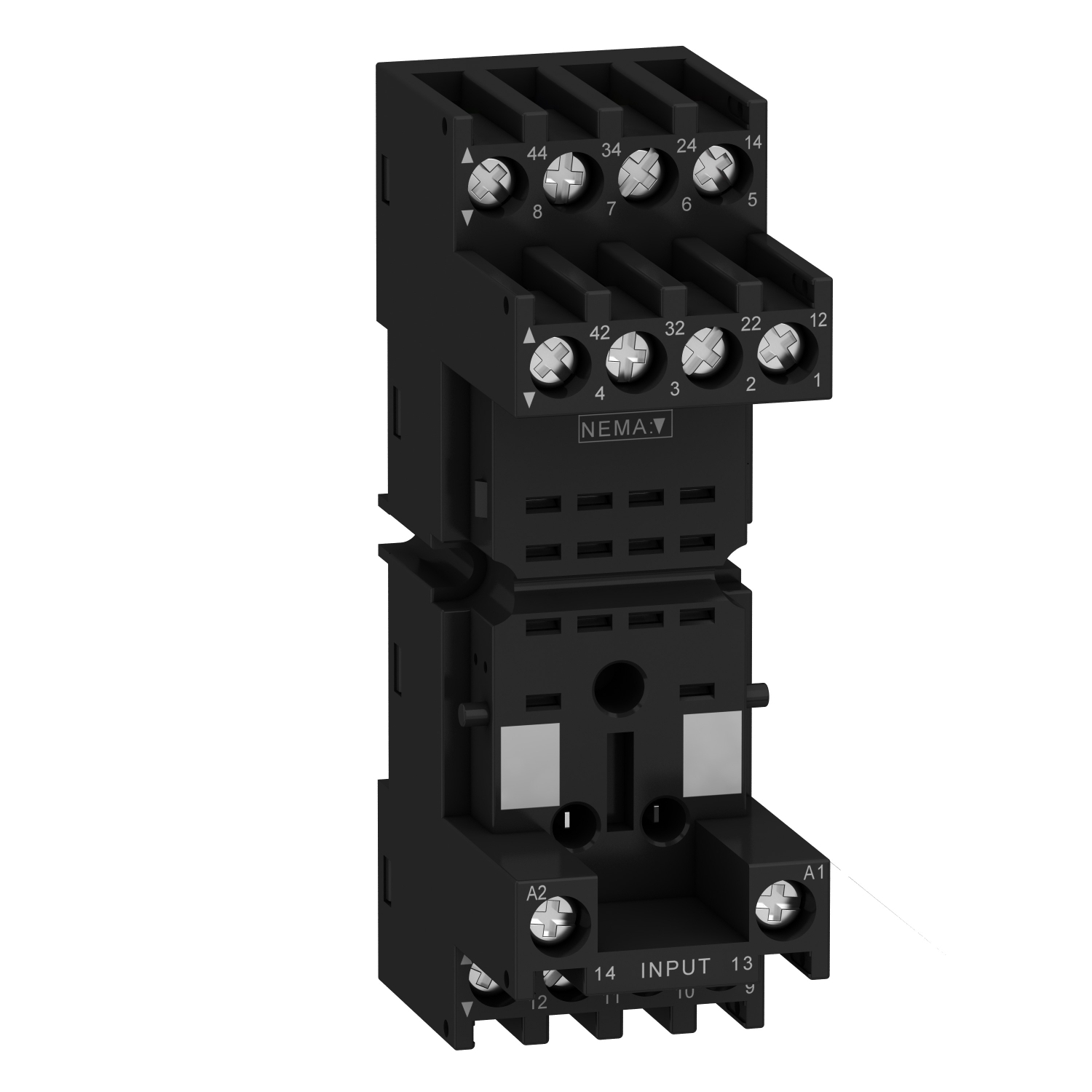

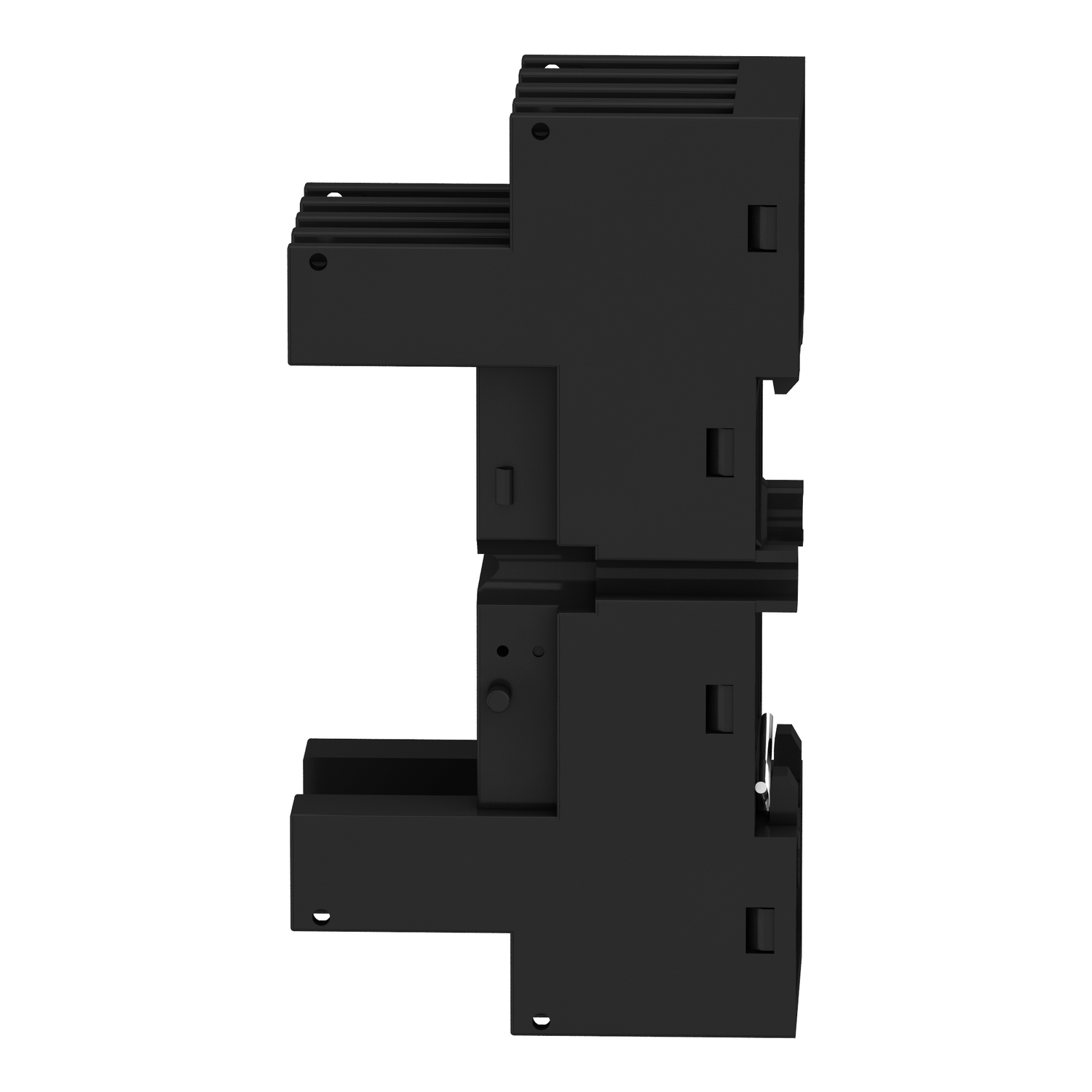

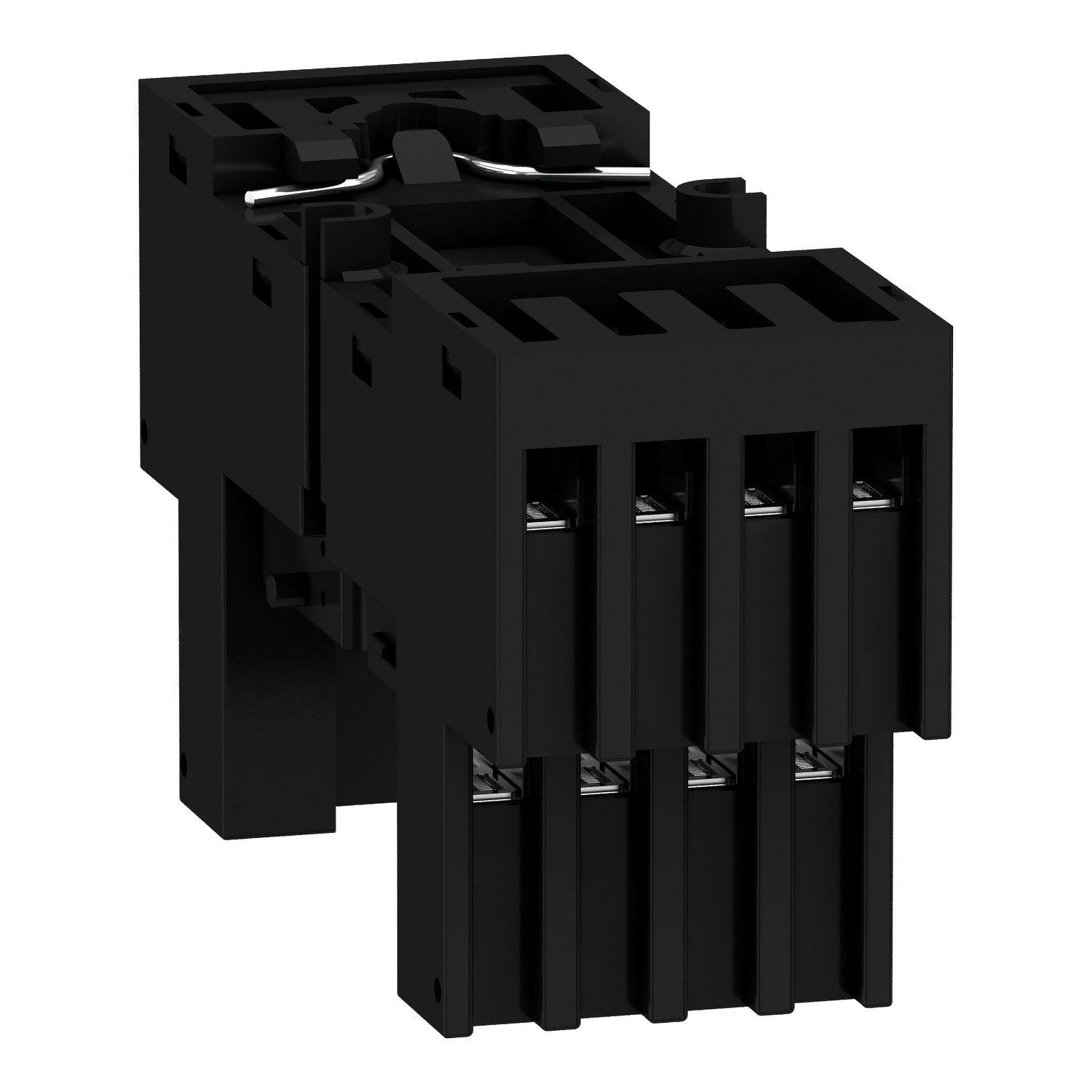

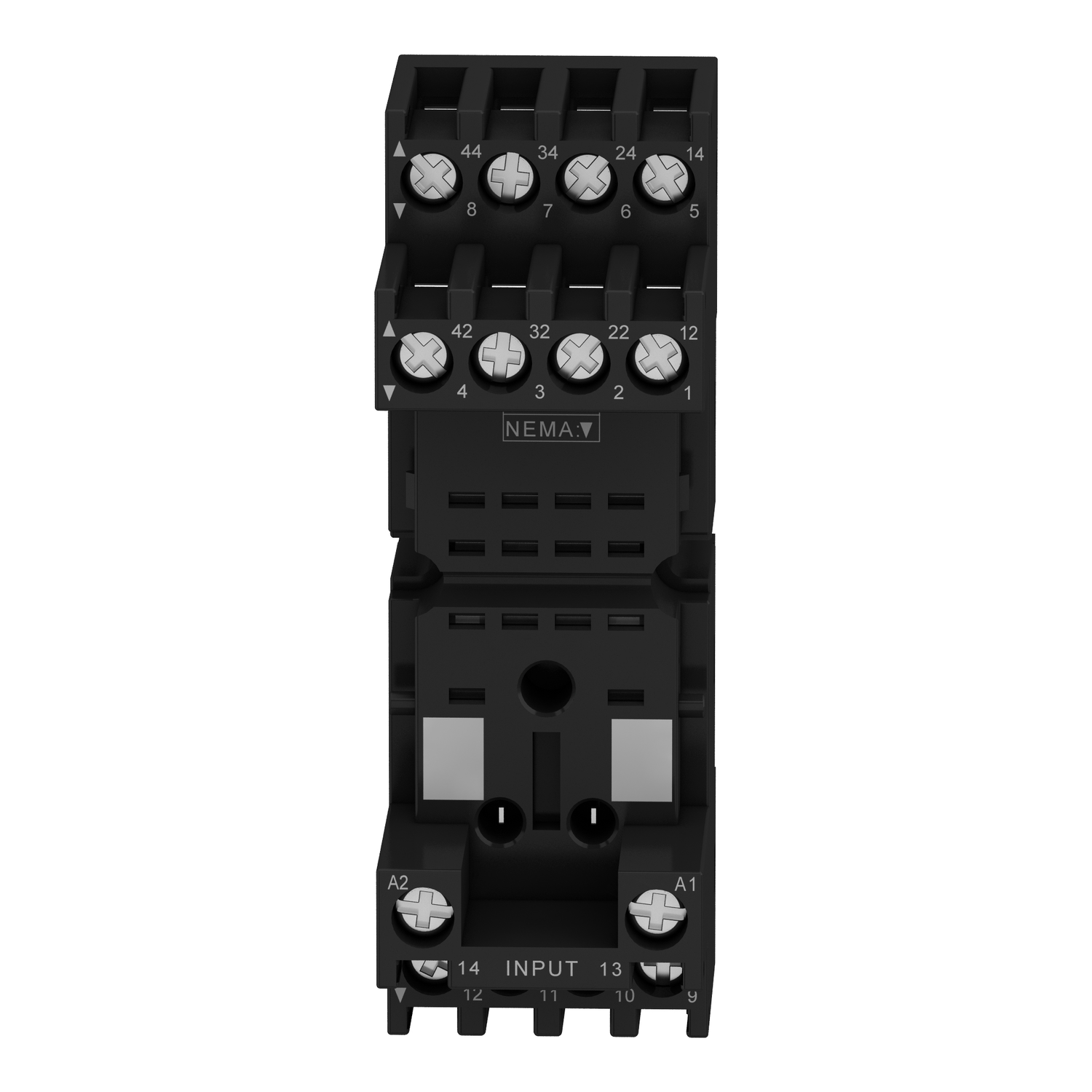

Socket for RXM2 RXM4 relays, Harmony Timer Relays, screw connectors, mixed contact
Manufacturer: Schneider Electric
SKU: RXZE2M114M
GTIN: 3389119404259
Old price: $14.19 inc GST
$12.81 inc GST
Supported cards
Supported cards
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RXZ
Product compatibility plug-in relay RXM with 4 C/O contact, plug-in relay RXM with 2 C/O contact
Range of product Harmony Timer Relays, Harmony Electromechanical Relays
[Ith] conventional free air thermal current 10 A
Output type relay
[In] rated current 10 A
Contacts type and composition 4 C/O
Product or component type socket
Complementary
Group of product RXM_2-4_C/O_CON_MIX_FLAT
Compatibility code RXZ
Sale per indivisible quantity 10
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Contact terminal arrangement mixed
Shape of pin flat
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Overvoltage category III
Width 27 mm
Connections - terminals connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors
Net weight 0.056 kg
[Ue] rated operational voltage < 250 V
Tightening torque < 1 N.m for M3 screw(s)
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Ambient air temperature for operation -40-55 °C
Dielectric strength 3000 V
Standards IEC 61984
Product certifications Lloyd's, CSA, UL
